Key Specifications

Product Model

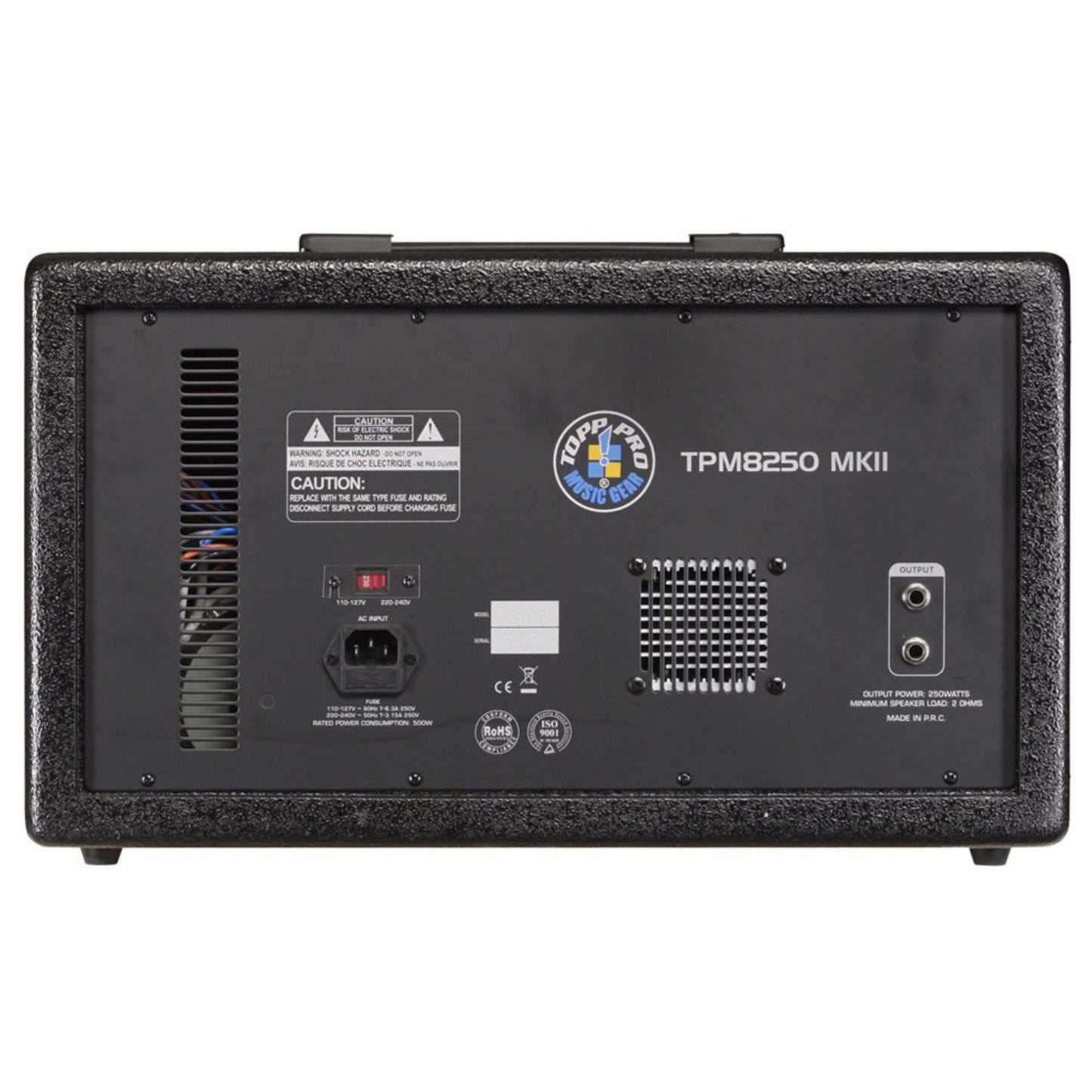

TPM8250 MKII

Mixer Type

Powered Mixer (Amplified)

RMS Power Output

300W @ 4 Ω (1kHz, THD 1%)

Frequency Response

20 Hz to 22 kHz (±3 dB)

Channel Processing & EQ

Mic Gain / Line Gain

50 dB / 20 dB

Channel EQ (3-Band)

• High: ±15 dB @ 12 kHz
• Mid: ±12 dB @ 2.5 kHz
• Low: ±15 dB @ 80 Hz

Master Graphic EQ

7-Band (4/3 octave)

DSP & Master Section

DSP Resolution

24-bit A/D and D/A Converters

Effects Library

100 Presets (Vocal, Room, Echo, Plate, Multi-FX)

Max Output Level

+22 dBu (Monitor / FX Sends)

Media & Physical

USB MP3 Player

FAT16/32 Support | 8 to 320 kbps VBR

Dimensions

480 x 220 x 274 mm

Net Weight

10.8 kg (23.8 lbs)
