TPM-9.1000
TPM-9.1000
TOPP PRO
UNIT: PIECE/S
Product Code: SKU:TOPP-TPM9100-CHN-608
Key Features

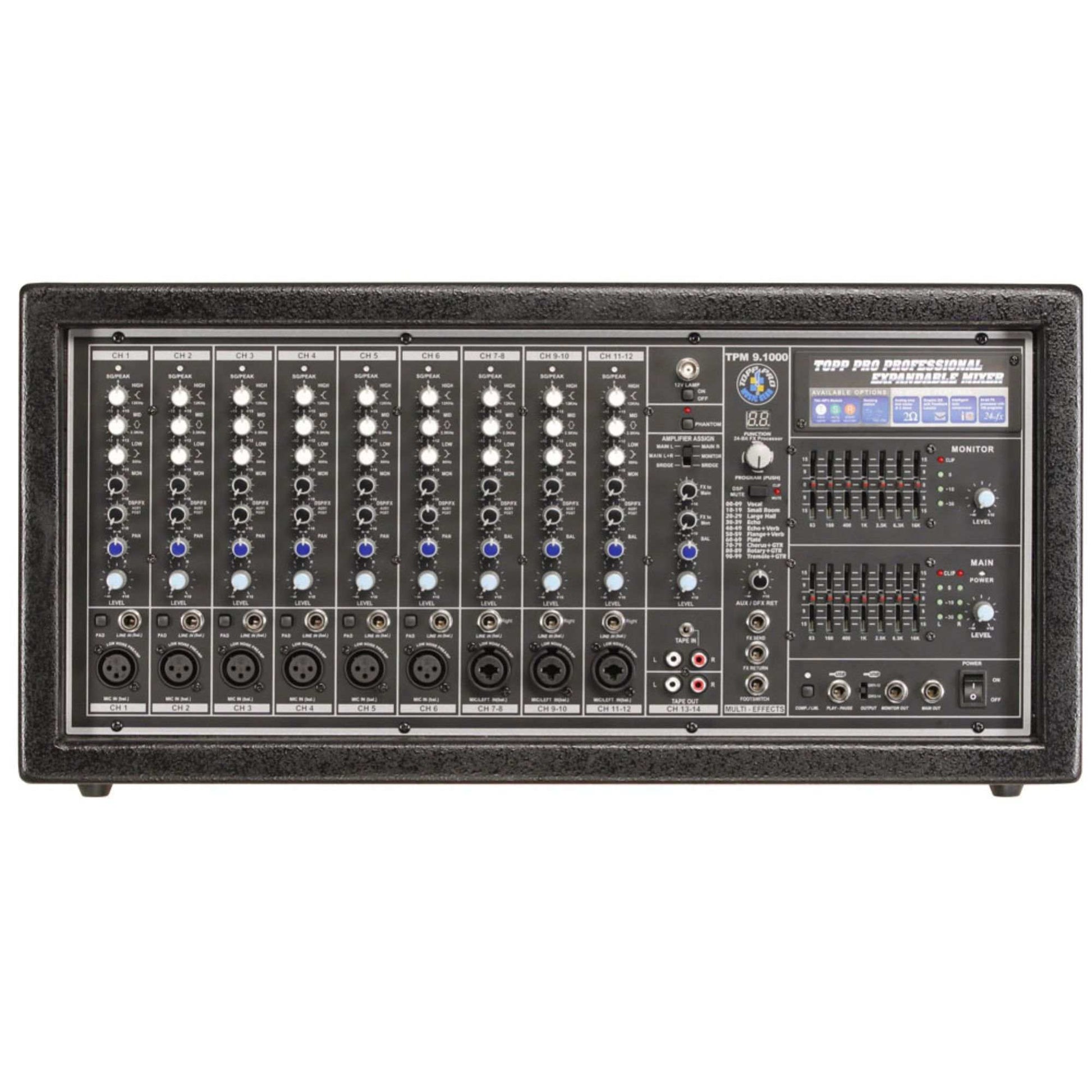

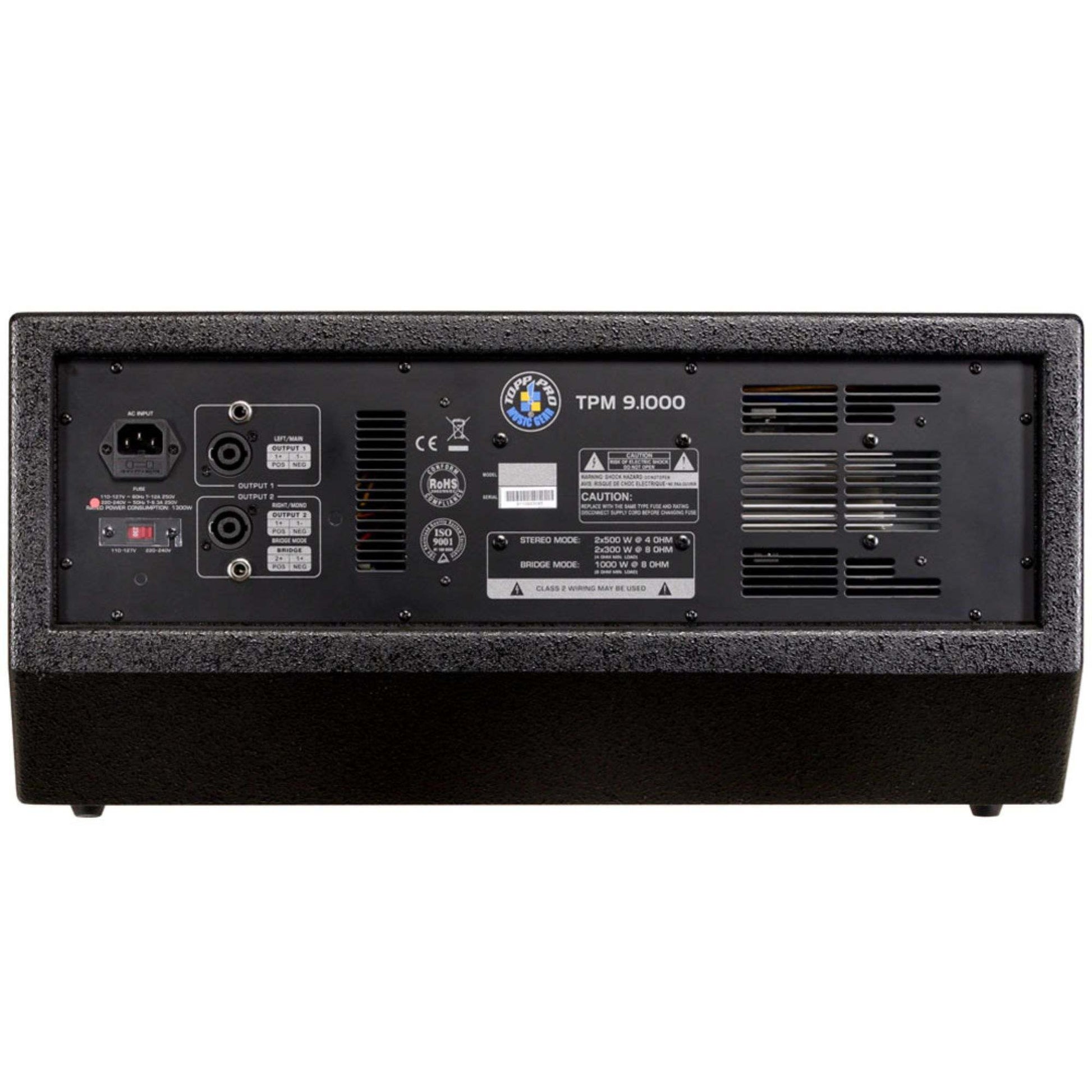

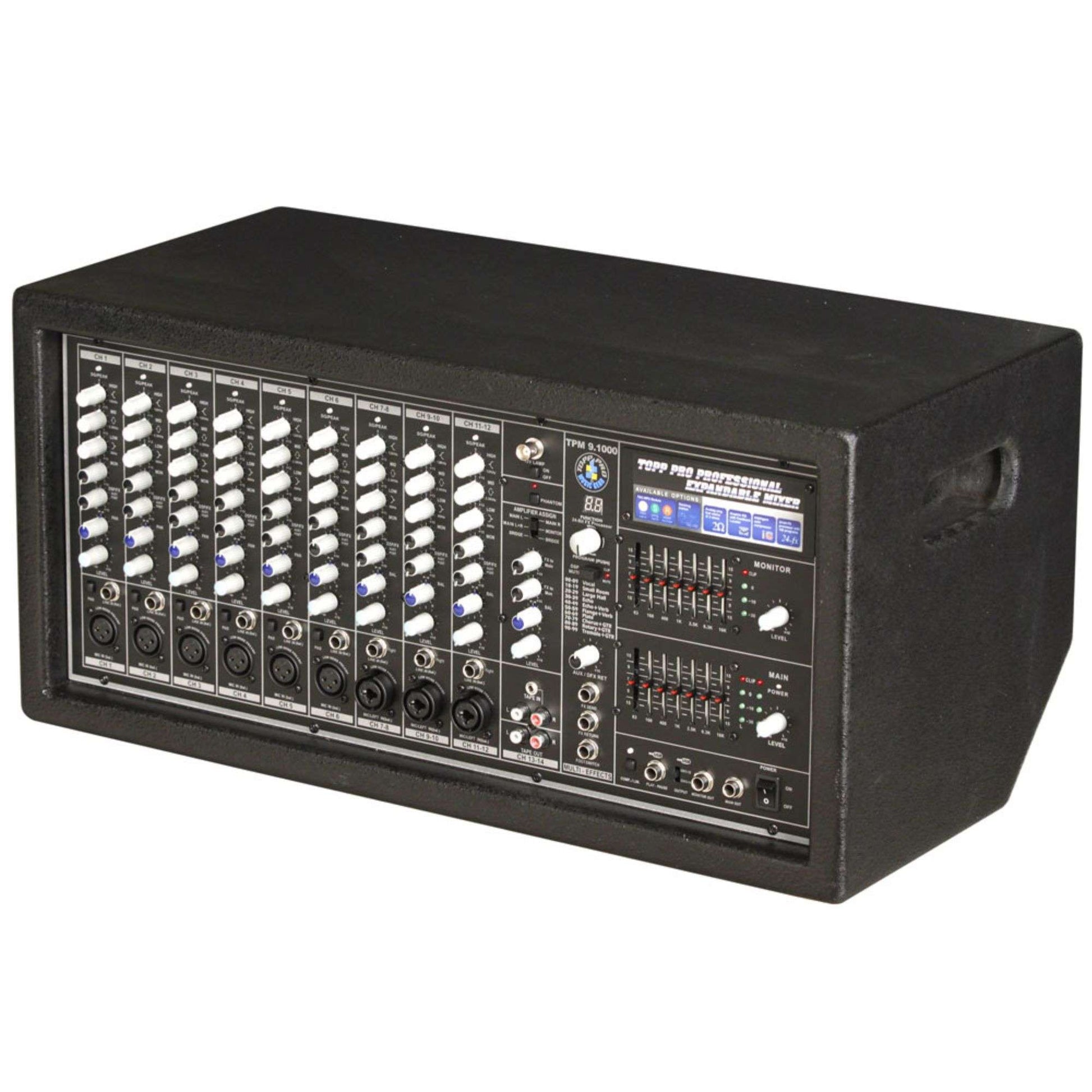

TOPP PRO TPM-9.1000
TOPP PRO TPM-9.1000
|
Key Specifications |
|
|
Product Model |
TPM9.1000 |
|
Product Type |
High-Power Analog Powered Mixer |
|
Bridge Mode Power |
1000 W @ 8 Ω (EIAJ) |
|
Stereo Power (4 Ω) |
2 x 500 W (EIAJ) / 2 x 390 W (Continuous) |
|
Acoustic & Processing Performance |
|
|
Frequency Response |
20 Hz to 220 kHz (±3 dB) |
|
DSP Section |
24-bit Resolution | 100 Presets (Multi-FX) |
|
Master Graphic EQ |
7-Band (63, 160, 400, 1K, 2.6K, 6.3K, 16K Hz) |
|
Channel Dynamics |
Integrated Compressor/Limiter (2:1 to 8:1 Ratio) |
|
Input & Output Stages |
|
|
Mic Input Sensitivity |
-40 dBu (with -20 dB PAD available) |
|
Phantom Power |
+15V DC (Switchable) |
|
Auxiliary Power |
+12V DC Lamp Output (0.5A) |
|
Protection & Physical |
|
|
Safety Features |
Thermal limiting, Short-circuit, Overload, Clip limiter |
|
Dimensions (W x D x H) |
667 x 367 x 370 mm |
|
Net Weight |
19.6 kg (43.2 lbs) |
TOPP PRO TPM-9.1000 Accessories
- No accessories available.
