Key Specifications

Product Model

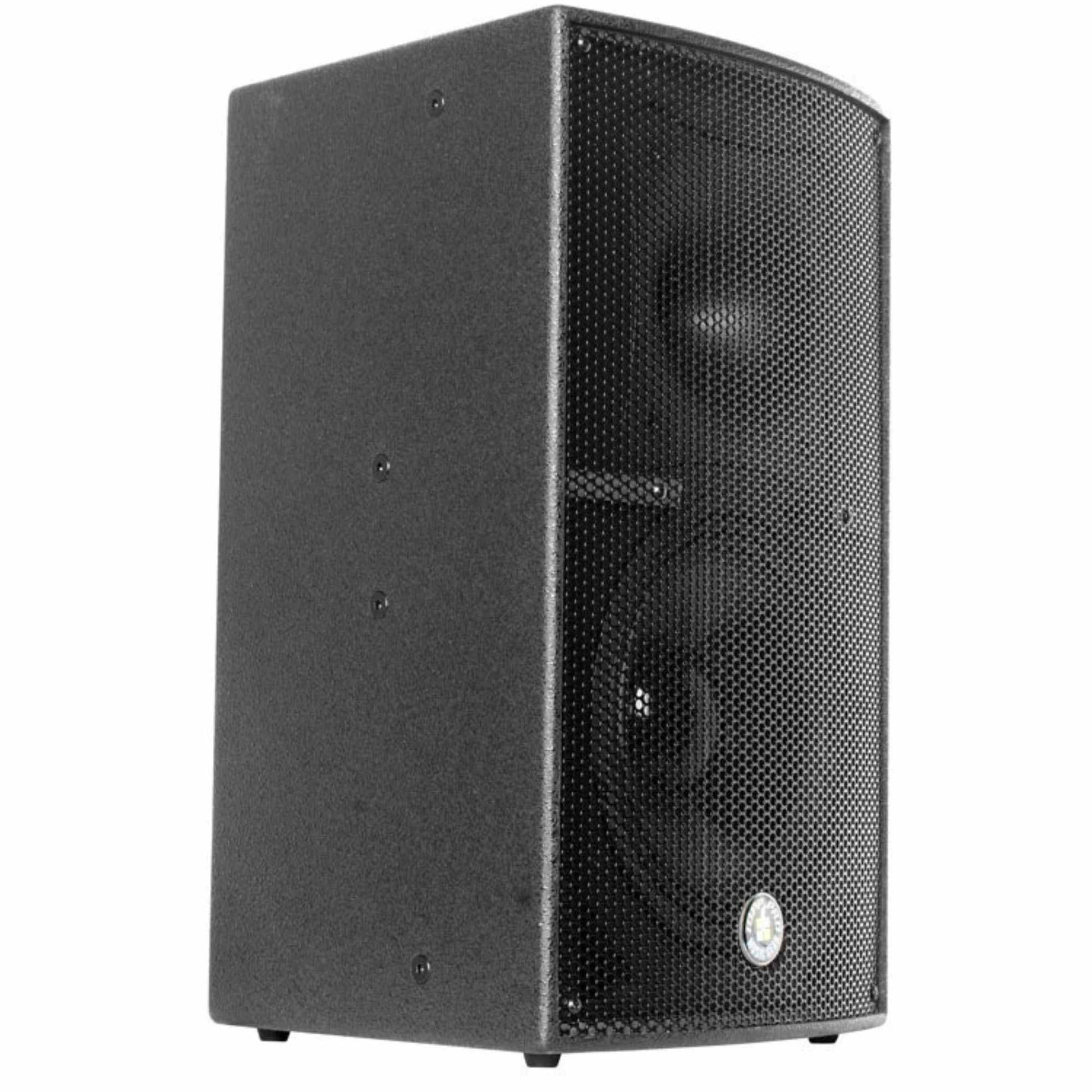

TPS i10H

System Type

2-Way Vented Passive Cabinet

Power Rating

120W Continuous | 240W Program

Nominal Impedance

8 Ω

Acoustic Performance

Frequency Response

58 Hz to 20 kHz (-6 dB)

Maximum SPL

95 dB (Standard) / 118.8 dB (Max)

Horn Coverage

50º x 50º (Nominal)

Crossover Frequency

3.2 kHz

Transducers & Components

Low Frequency (LF)

10" Woofer (2" Voice Coil)

High Frequency (HF)

1" Driver (1" Voice Coil)

Electronic Protection

High Frequency Protection Circuitry

Physical Specifications

Enclosure

Plywood, Black Paint, Metal Grille

Connectors

2 x SPK4 / 2 x NL4 (Parallel)

Dimensions (HxWxD)

41.8 x 40.8 x 63.1 cm

Net Weight

16 kg (35.3 lbs)
