Key Specifications

Product Model

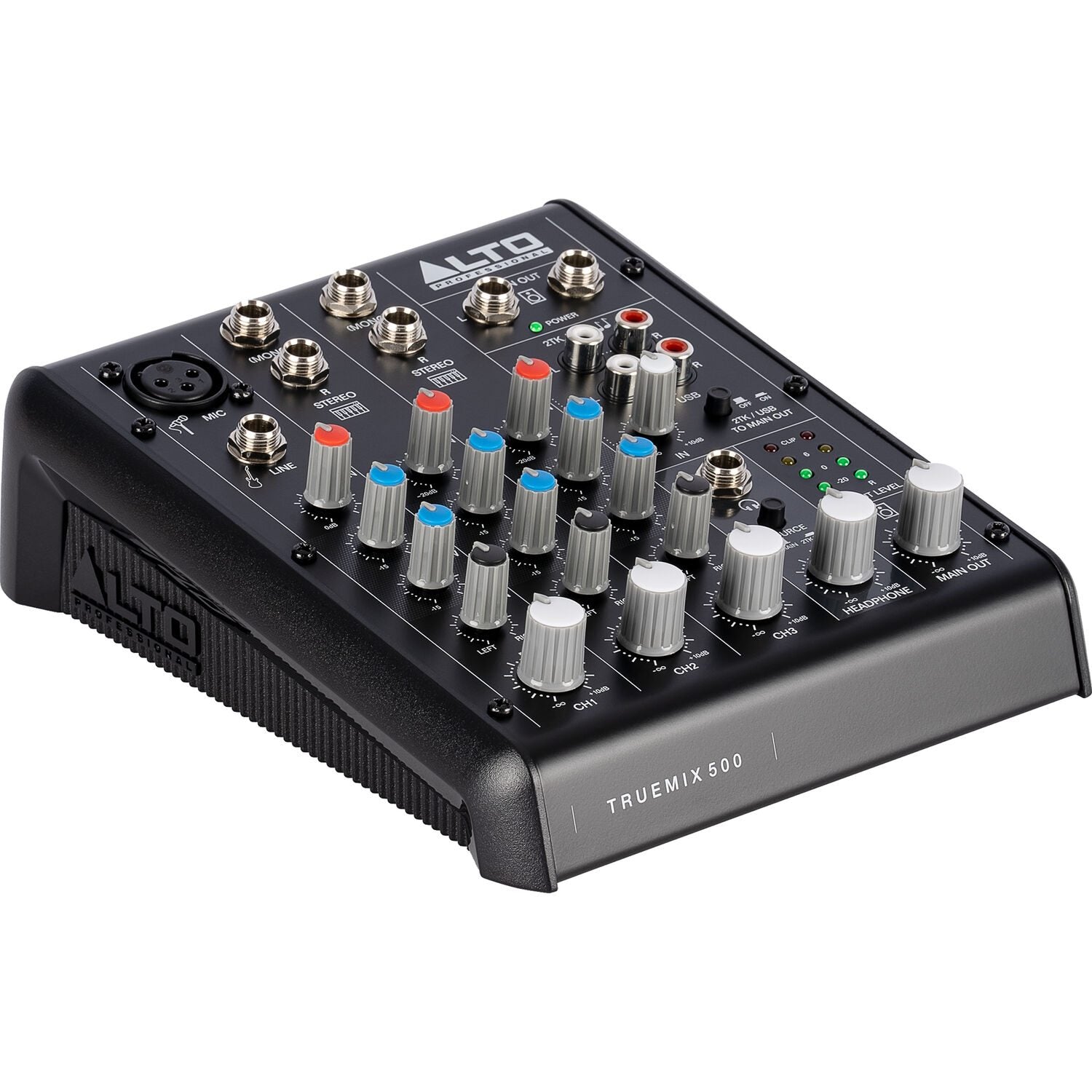

Alto Professional TrueMix 500

Mixer Type

Analog Mixer with USB Audio Interface

Input Channels

5 Total (1 Mono Mic/Line, 2 Stereo Line)

USB Interface

USB-B (Stereo Record & Playback)

Audio Performance

Frequency Response

20 Hz to 22 kHz (±1 dB)

Signal-to-Noise Ratio

> 110 dB (All Inputs)

THD+N

0.005% (@ +4 dBu, 1 kHz)

Mic Preamp Gain

Up to 74 dB (to Main Out)

Channel Strip & EQ

EQ Type

2-Band Shelving (High & Low)

EQ Range

±15 dB @ 12 kHz (High) / 80 Hz (Low)

Phantom Power

+48 V DC (Available on XLR Input)

Connectivity

Mic/Line Input

1 x XLR Balanced / 1/4" TRS Balanced

Stereo Inputs

2 x 1/4" TRS Pairs (L/R)

Main Outputs

2 x 1/4" TRS Balanced (L/R)

Tape/Record I/O

RCA Stereo Input & Output

Physical Specifications

Dimensions

15.9 x 6.6 x 19.3 cm (6.3 x 2.6 x 7.6")

Weight

0.9 kg (2 lb)
