Key Specifications

Power Source

100 - 240 V AC, 50/60 Hz (using supplied AC adapter)

Power Consumption

72 W

Current Consumption

Max. 3 A DC (when 24 V DC is supplied from the accessory AC adapter)

Carrier Frequency

Reception Channels

Audio Channel 1: 7.35 MHz
Audio Channel 2: 8.10 MHz
Audio Channel 3: 8.55 MHz
Audio Channel 4: 9.15 MHz
Control Channel: 6.45 MHz

Transmission Channels

Audio Channel: 1.95 MHz
Translation Language Channel: 2.25 MHz

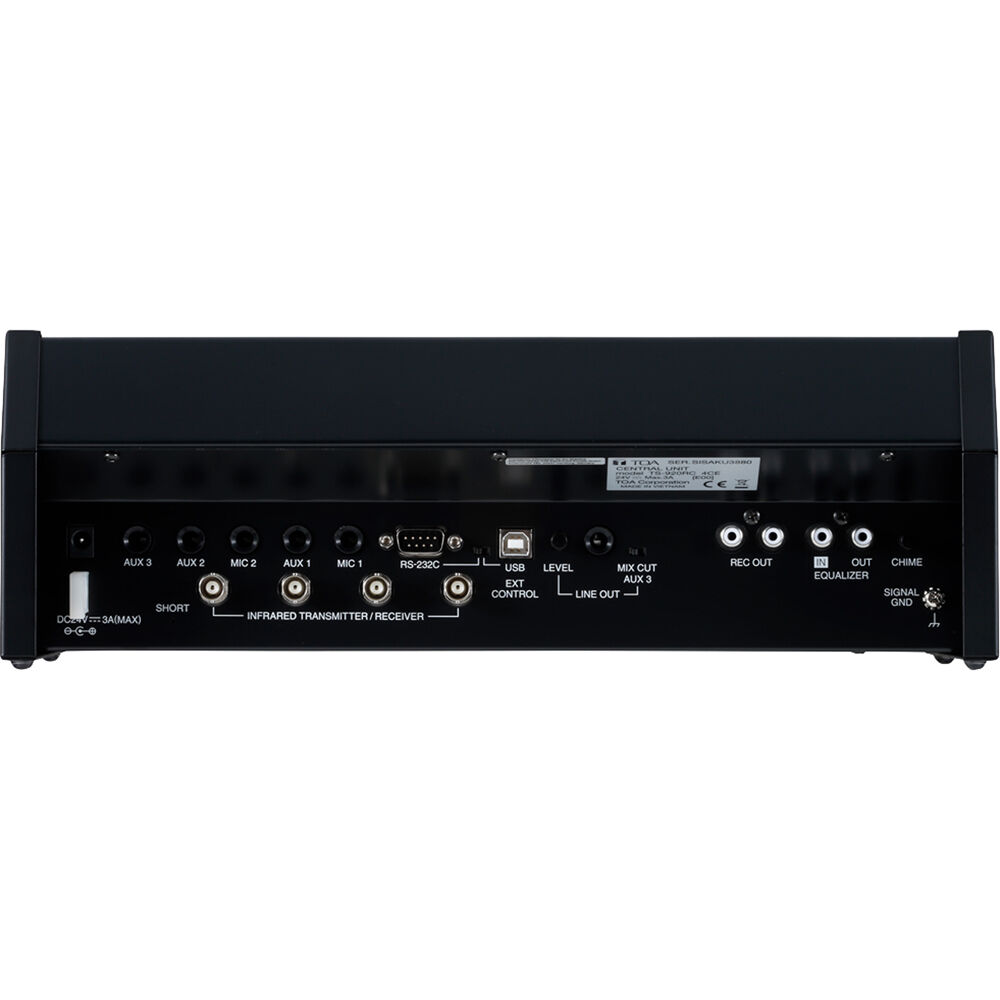

Inputs

MIC 1 (Base Language)

-60 dB, 600 Ω, unbalanced, Ø 6.3 mm phone jack (2P)

MIC 2 (Translation Language)

-60 dB, 600 Ω, unbalanced, Ø 6.3 mm phone jack (2P)

AUX 1 (Base Language)

-20 dB, 10 kΩ, unbalanced, Ø 6.3 mm phone jack (2P)

AUX 2 (Translation Language)

-20 dB, 10 kΩ, unbalanced, Ø 6.3 mm phone jack (2P)

AUX 3 (Base & Translation Language)

-20 dB, 10 kΩ, unbalanced, Ø 6.3 mm phone jack (2P)

Outputs

LINE Output

-10 dB, 10 kΩ, unbalanced, Ø 6.3 mm phone jack (2P)

REC Output

-10 dB, 10 kΩ, unbalanced, RCA pin jack

Headphone Output

Ø 3.5 mm mini jack (3P: monaural)

Equalizer Input / Output

Equalizer Input

-20 dB, 10 kΩ, unbalanced, RCA pin jack

Equalizer Output

-20 dB, 10 kΩ, unbalanced, RCA pin jack

Connectable Chairman / Delegate Units

192 units

Connectable Infrared Transmitter / Receiver Units

Up to 4 units directly
Up to 16 units with distributor (all TS-905)
Up to 12 units when using TS-907 or mixed TS-905 / TS-907

Infrared Transmitter / Receiver I/O

BNC jacks

External Control Connection

D-sub connector (9P, male) / USB-B selectable

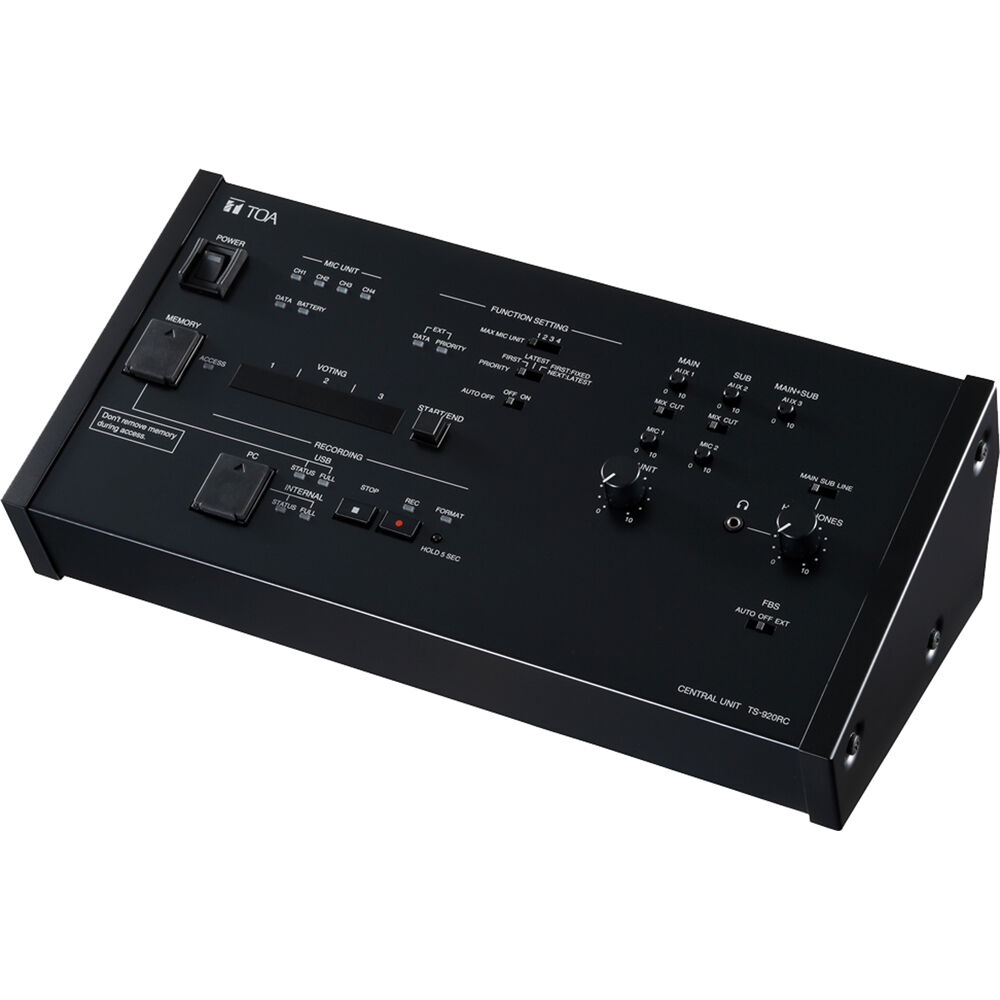

LED Indicators

Indicators

Voting result indicators 1–3 (7-segment LED, 3 digits)
Short-circuit indicator
Audio signal receiving indicators 1–4 CH
Data signal receiving indicator
External control priority indicator
External control communication indicator
Battery indicator
Recording status indicator
Format in-progress indicator
Access indicator
Internal memory status indicator
USB memory status indicator
Remaining memory capacity warning indicators

Recording Functions

Record Switches

Recording Start, Recording Stop, Format

Recording Ports

USB-A (USB memory) and USB mini-B (PC)

Recording Function

Recording to USB memory device or internal memory
Format: MP3 (MPEG-1 Audio Layer-3), monaural
Sampling Frequency: 32 kHz
Bit Rate: 128 kbps

Function Switches

Open Microphone Setting

1 / 2 / 3 / 4

Mic-off Setting

TIME OUT ON / OFF

Speech Priority Selector

FIRST (First-in-first-out priority)
LATEST (Last-in-first-out priority)
FIRST: FIXED NEXT: LATEST

FBS Switch

AUTO / OFF / EXT

Environmental

Operating Temperature

0°C to +40°C (32°F to 104°F)

Operating Humidity

90% RH or less (non-condensing)

Physical Properties

Finish

Surface-treated steel plate, black, 30% gloss paint

Weight

2.8 kg (5.95 lb)

Accessories & Options

Included Accessory

AC adapter with 1.8 m DC cord and 2 m detachable AC cord

Optional Accessory

Rack mounting bracket: MB-TS920

Operating Software Features

Software Functions

Control up to 4 IP cameras (ONVIF)
Control speech time
Selection of Chairman or Delegate unit for speech request and approval
Ability to map actual conference layout in software display
