Key Specifications

System Type

Column Array Loudspeaker System

Power Rating

600W Peak / 300W RMS System (200W LF + 100W HF)

Enclosure Material & Construction

Injection-Molded ABS, Metal Grille, Rubber Feet

Handles

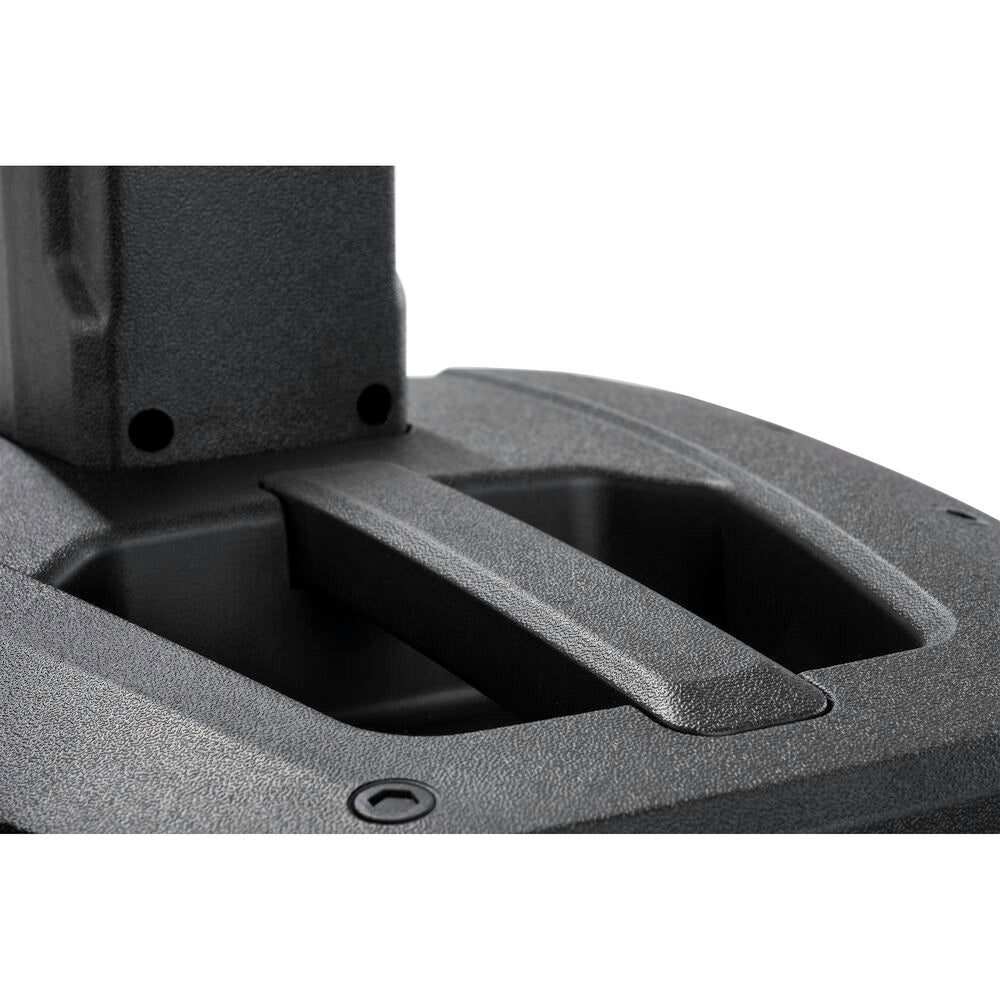

1x Subwoofer Top Handle

Acoustic & Performance Specifications

Maximum SPL (1M)

123 dB

Sensitivity (1W / 1M)

92 dB

Frequency Response

55 Hz to 15 kHz (-3 dB) | 35 Hz to 20 kHz (-10 dB)

Coverage Angle (H × V)

120° x 30°

Low-Frequency (LF) Driver

1x 8" (6 Ω)

High-Frequency (HF) Drivers

6x 2.75" (8 Ω)

Column Array Impedance

6 Ω

Power Specifications & Interfaces

AC Power Input

100-120 VAC / 60 Hz | 220-240 VAC / 50 Hz

Power Connector

IEC

Dimensions & Weight Specifications

Subwoofer Dimensions (H×W×D)

495mm x 318mm x 396mm (19.5" x 12.5" x 15.6")

Column Array Dimensions (H×W×D)

472mm x 86mm x 97mm (18.6" x 3.4" x 3.8")

Assembled System Dimensions (H×W×D)

1859mm x 315mm x 404mm (73.2" x 12.4" x 15.9")

Assembled Height

1.86m (6.4 ft)

Total System Weight

15.9kg (35.1 lbs)
