Key Specifications

System Type

Active Column Array with Subwoofer (2-Way)

Total Output Power

600 W RMS / 1200 W Peak

Amplifier Power & Class

Class-D | LF: 400 W RMS | HF: 200 W RMS

Enclosure Type & Material

Bass-Reflex | ABS Construction, Metal Grille, Rubber Feet

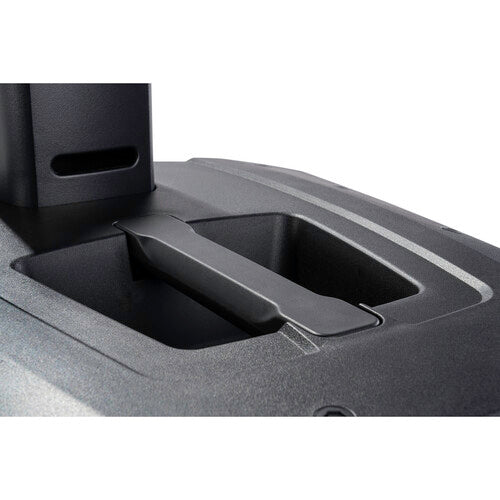

Handles & Color

1x Top Handle | Black Finish

Acoustic & Performance Specifications

Maximum SPL

127 dB

Speaker Sensitivity

94 dB

Frequency Response / Range

50 Hz to 15 kHz (-3 dB) | 30 Hz to 20 kHz (-10 dB)

Coverage Angle (H × V)

110° x 30°

Low-Frequency (LF) Driver

1x 12" (30.5 cm) Woofer

High-Frequency (HF) Drivers

8x 2.75" (6.99 cm) Tweeters

Signal Processing & Software

Equalization & Processing

2-Band EQ | Digital Mixer, Reverb, Voicing Modes (DSP)

Mobile App Control

Alto Pro App (Android & iOS) — Remote Control & Settings Adjustment

Connectivity & Wireless

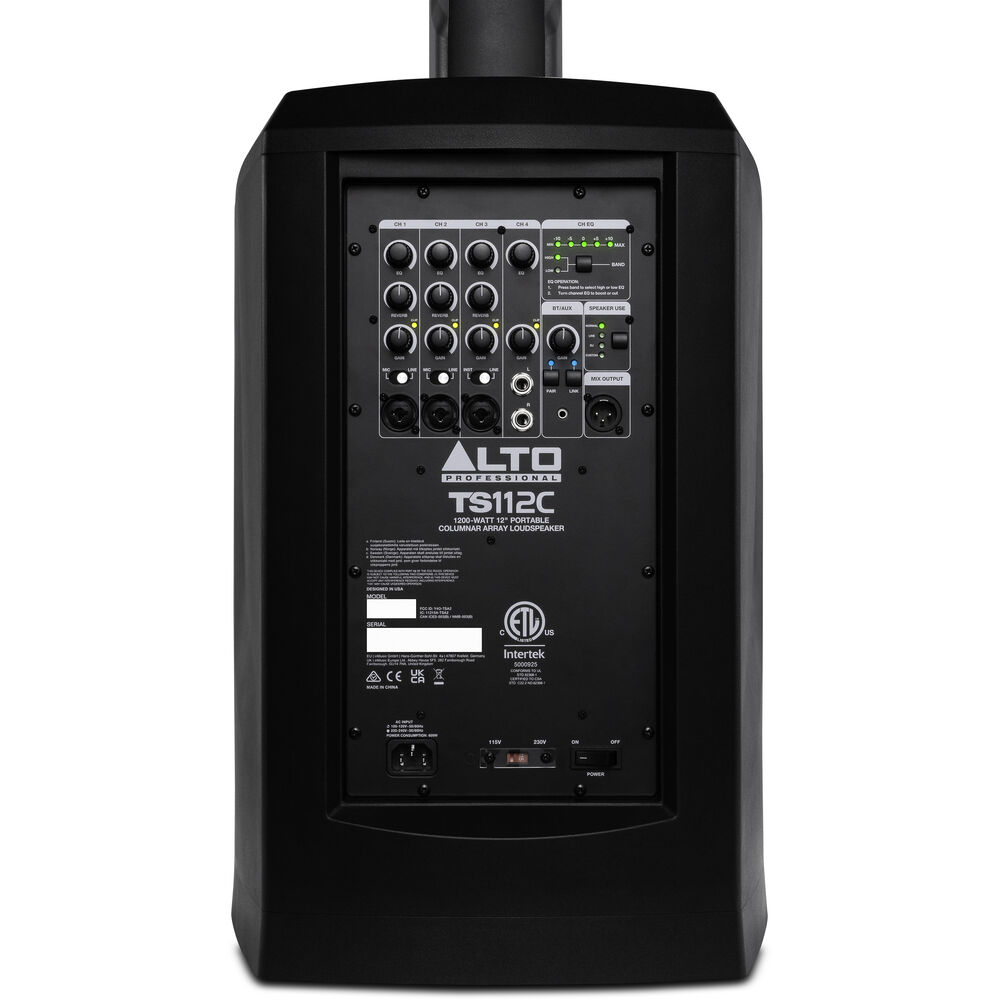

Analog Inputs

2x Combo XLR-1/4" Mic/Line/Hi-Z Inputs

Analog Outputs

1x XLR 3-Pin Mix Output

Wireless Connectivity

Bluetooth

Power Specifications

AC Input Power

100 to 240 VAC, 50 / 60 Hz (1x IEC Input)

Dimensions, Weight & Packaging

Column Array Dimensions (H×W×D)

73.9 to 10.7 cm x 10.4 cm (29.1" to 4.2" x 4.1")

Subwoofer Base Dimensions (H×W×D)

58.7 to 48.5 cm x 40.1 cm (23.1" to 19.1" x 15.8")

Assembled System Dimensions (H×W×D)

200.2 to 47.2 cm x 41.4 cm (78.8" to 18.6" x 16.3")

Item Weight

24.1kg (53.1 lbs)

Box / Package Dimensions (L×W×H)

896.6mm x 711.2mm x 469.9mm (35.3" x 28.0" x 18.5")

Package Weight

32.2kg (71.0 lbs)
