Key Specifications

Product Model

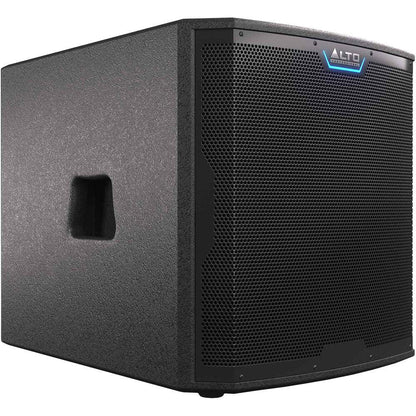

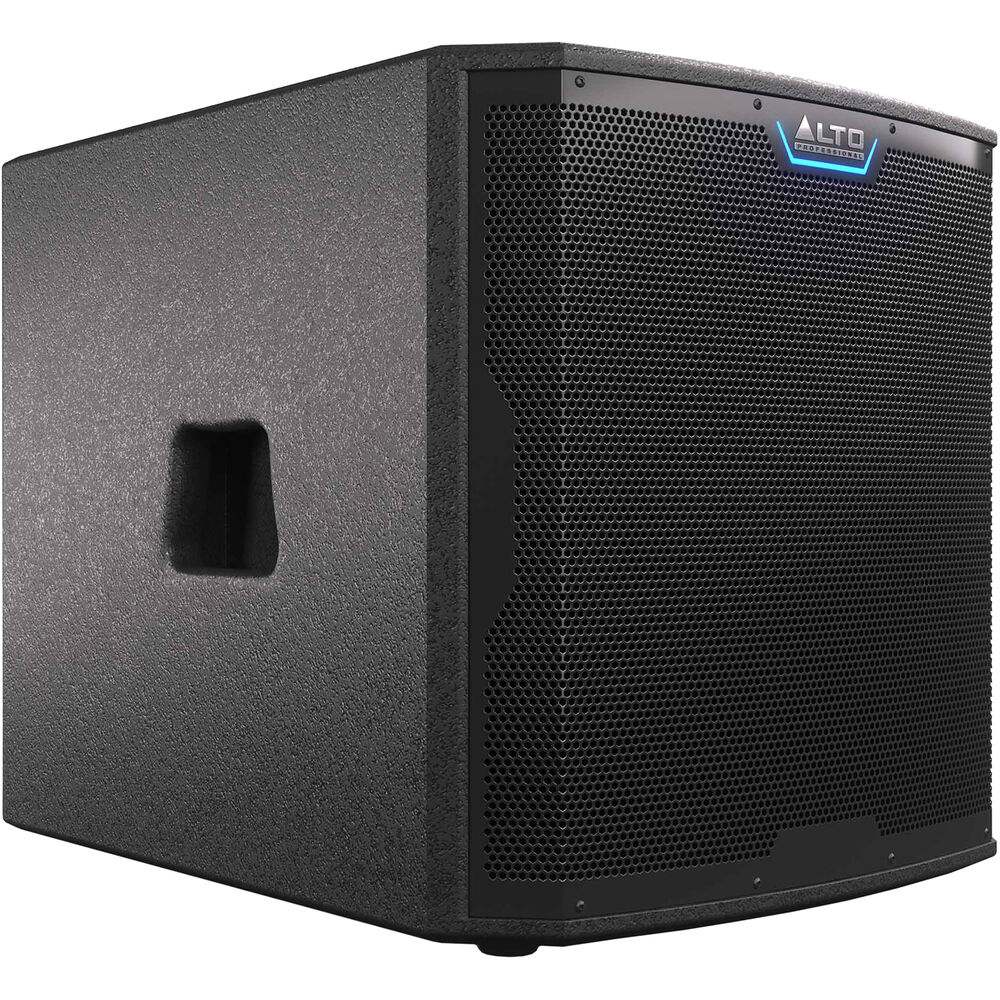

Alto Professional TS15S

Speaker Type

Active Powered Subwoofer

Amplifier Class

Class-D

Total Output Power

2500 W Peak | 625 W RMS

Acoustic Performance

Frequency Response

36 Hz to 110 Hz (±3 dB)

Maximum SPL

132 dB Peak (@ 1m)

LF Driver

15" Woofer | 3" (7.6 cm) High-Temp Voice Coil

Enclosure Type

Bass-Reflex | Internally Braced MDF

Connectivity & Control

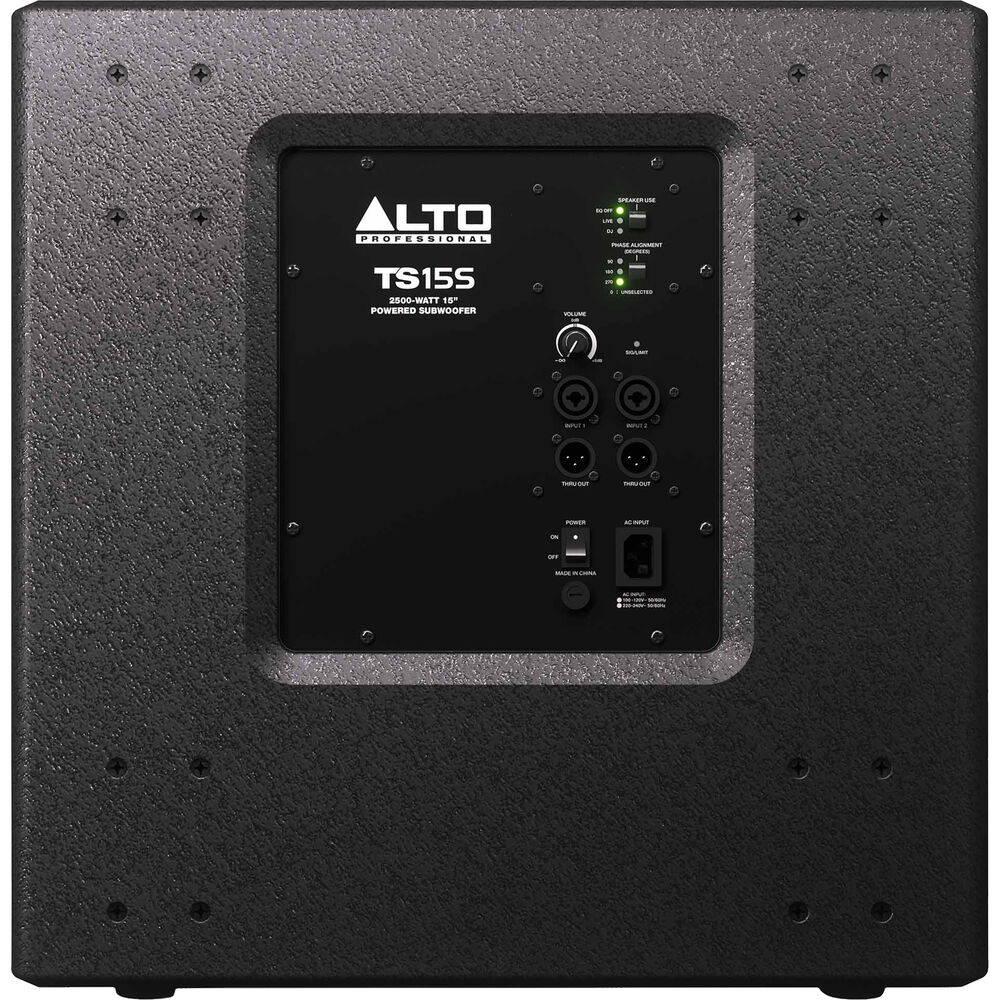

Inputs

2 x Combo XLR-1/4" TRS Line Inputs

Outputs

2 x XLR 3-Pin Line Outputs (Link/Thru)

DSP Presets

Selectable (Off, 80Hz, 100Hz, 120Hz)

Phase Control

0° / 180° Phase Reverse Switch

Physical Specifications

Dimensions

62.7 x 62.7 x 52.3 cm (24.7 x 24.7 x 20.6")

Weight

39.5 kg (87.1 lb)

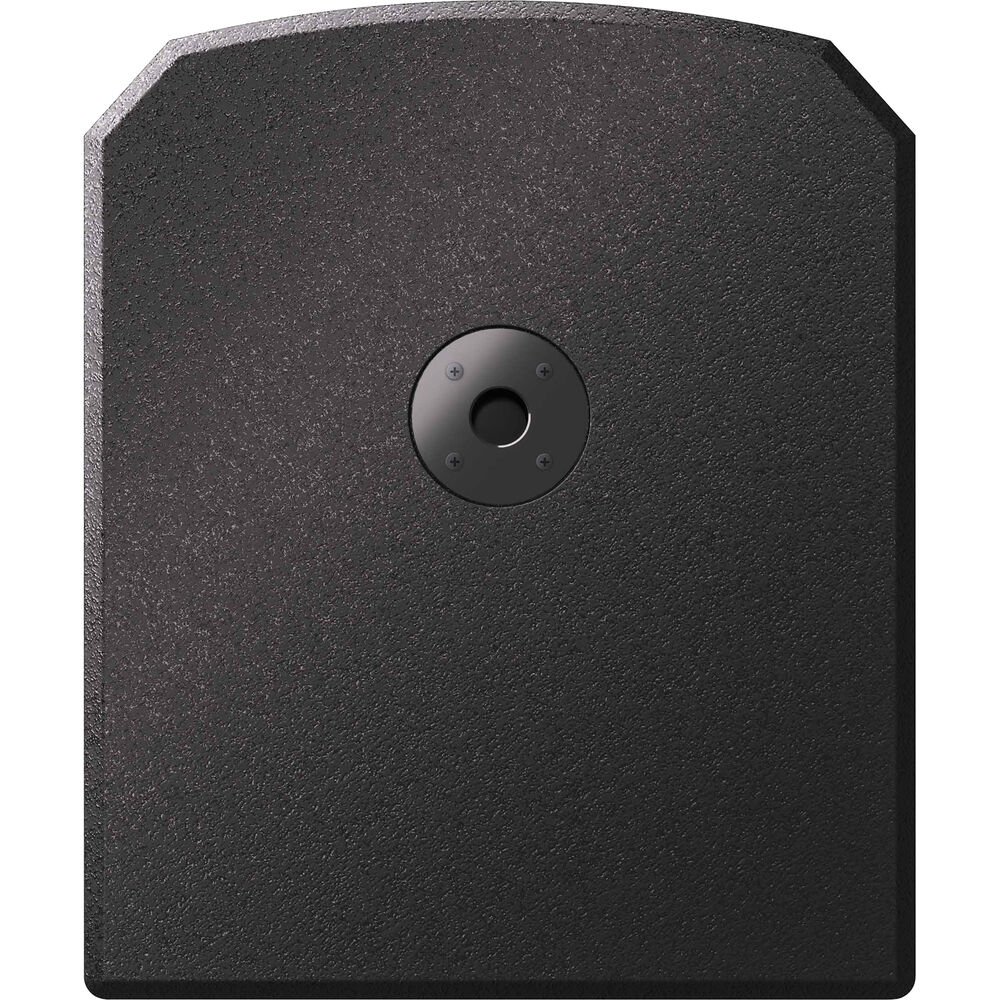

Mounting

36 mm Pole Socket (Top)
