Key Specifications

Speaker Type

Active Loudspeaker

Configuration

2-Way

Enclosure Type

Bass-Reflex

Total Output Power

1600 W RMS / 3200 W Peak

Frequency Range / Response

45 Hz to 20 kHz

Maximum SPL

135 dB

Coverage Angle

100° Horizontal × 25° Vertical

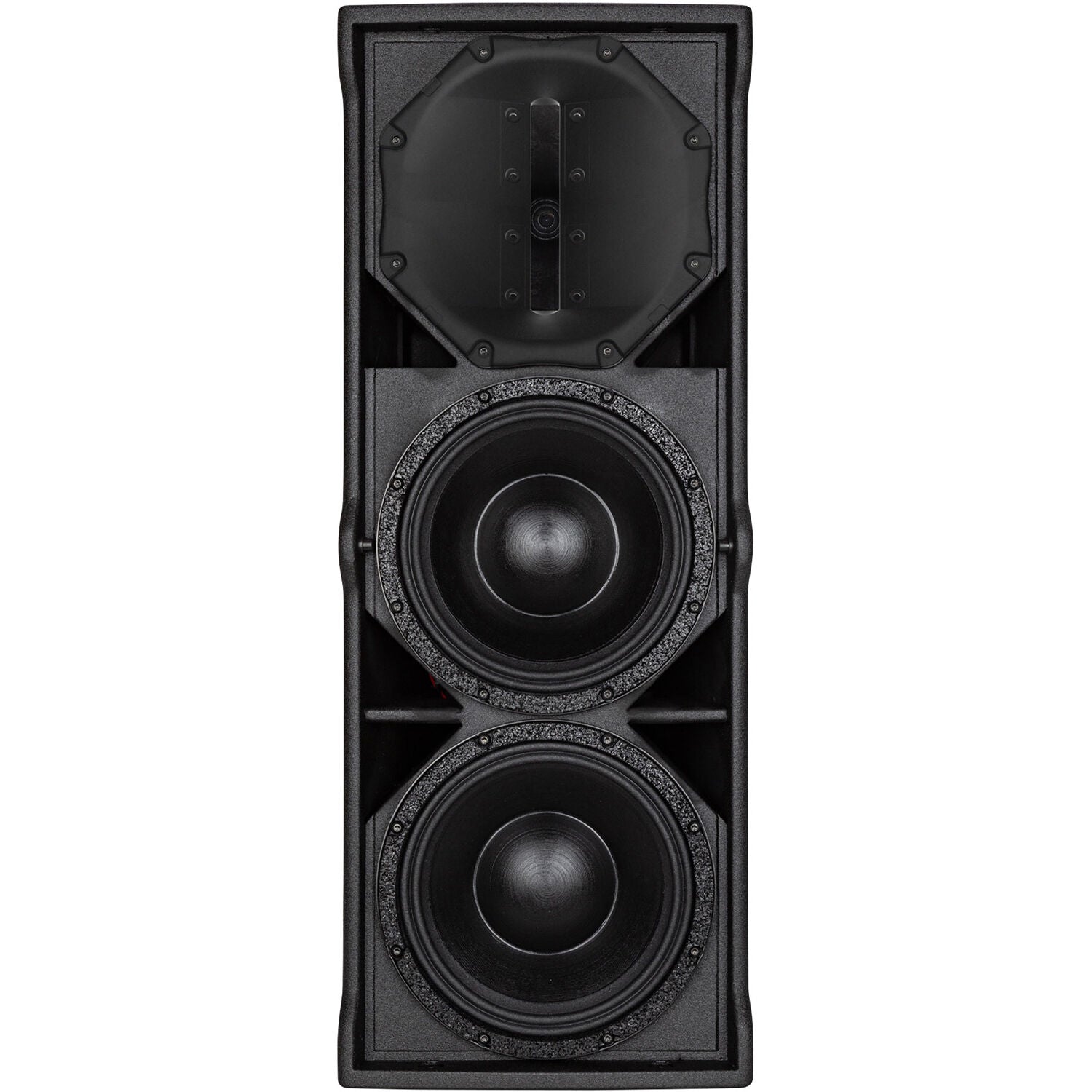

Drivers

Low Frequency Driver

2 × 10" / 25.4 cm Woofer
Voice Coil: 3" / 76.2 mm
Magnet: Neodymium

High Frequency Driver

1 × 1.5" / 38.1 mm Compression Driver
Voice Coil: 4" / 101.6 mm
Magnet: Neodymium

Amplifier Power Rating

Low Frequency (LF)

1000 W RMS / 2000 W Peak

Mid Frequency (MF)

600 W RMS / 1200 W Peak

Amplifier Class

Class-D

Signal Processing

Crossover Frequency

900 Hz

EQ & Filters

High-Pass Filter

Dynamic Processing

Soft Limiter

Alignment Delay

Yes (Time/Distance Unspecified)

Digital Signal Processing

Delay, FIR Filter, Venue Settings, Voicing Modes

Protections

RMS, Thermal

Connectivity

Audio I/O

1 × XLR 3-Pin Input
1 × XLR 3-Pin Output

Network I/O

2 × etherCON / RJ45 (RDNet)

USB I/O

No

Wireless

No

Mobile App Compatible

No

Power

AC Input Power

100 to 240 VAC, 50 / 60 Hz (T 10 A H 250 V)

AC Power I/O

1 × powerCON Input
1 × powerCON Output

Physical

Color

Black

Mounting

Integrated Rigging
2 × M8 Fly Point
2 × M10 Fly Point

Handles

1 × Each Side, 2 × Rear

Construction Material

Metal Grille, Plywood

Environmental Resistance

No

Dimensions (W × H × D)

32.5 × 14.5 × 12.4" / 825.5 × 368.3 × 315 mm

Weight

67 lb / 30.4 kg
