Key Specifications

Speaker Type

Active Line Array Loudspeaker

Configuration

3-Way

Total Output Power

2200 W RMS

Frequency Range / Response

45 Hz to 20 kHz (-3 dB)

Maximum SPL

139 dB

Coverage Angle

90° Horizontal × 30° Vertical

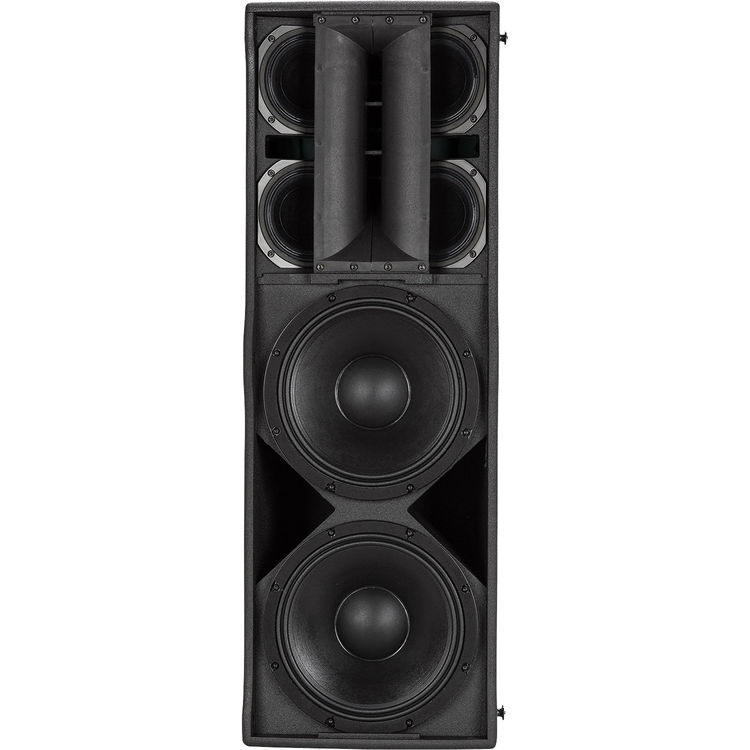

Drivers

Low Frequency Driver

2 × 12" / 30.48 cm Woofer
Voice Coil: 3" / 76.2 mm
Magnet: Neodymium

Mid Frequency Driver

4 × 6" / 15.24 cm Cone
Voice Coil: 2" / 50.8 mm

High Frequency Driver

1 × 1.4" / 35.6 mm Tweeter
Voice Coil: 3" / 76.2 mm
Magnet: Neodymium

Amplifier Power Rating

Low Frequency (LF)

1100 W RMS

Mid Frequency (MF)

700 W RMS

High Frequency (HF)

400 W RMS

Signal Processing

Crossover Frequency

200 / 800 Hz

EQ & Filters

No

Dynamic Processing

Soft Limiter

Alignment Delay

No

Digital Signal Processing

No

Protections

Thermal

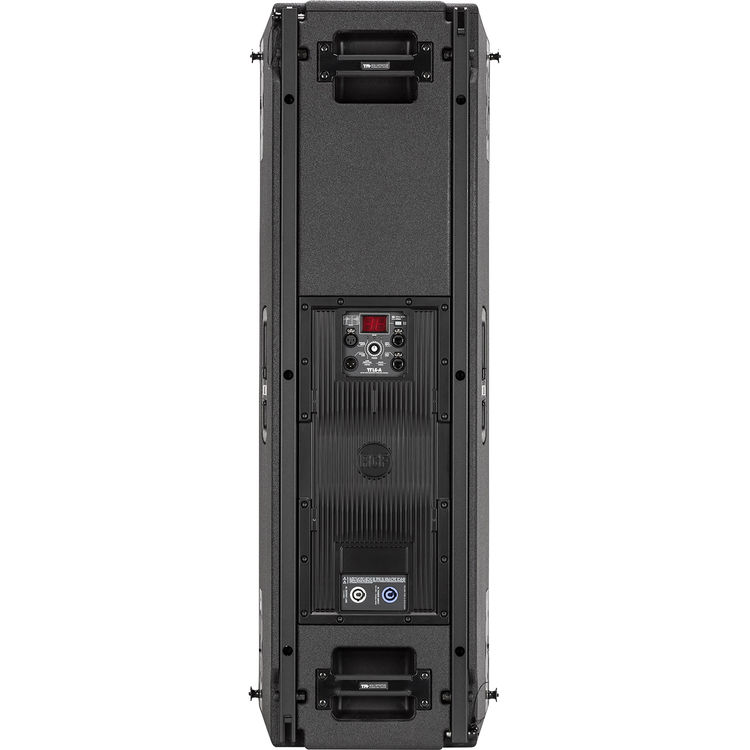

Connectivity

Audio I/O

1 × XLR 3-Pin Input
1 × XLR 3-Pin Output

Network I/O

2 × etherCON / RJ45 (RDNet)

USB I/O

No

Wireless

No

Mobile App Compatible

No

Power

AC Power I/O

1 × powerCON Input
1 × powerCON Output

Physical

Color

Black

Mounting

1 × Pole Socket (Size Unspecified)

Handles

2 × Side, 2 × Rear

Construction Material

Plywood

Environmental Resistance

No

Dimensions (W × H × D)

43.3 × 14.9 × 18.4" / 1100 × 378 × 468 mm

Weight

116.8 lb / 53 kg
