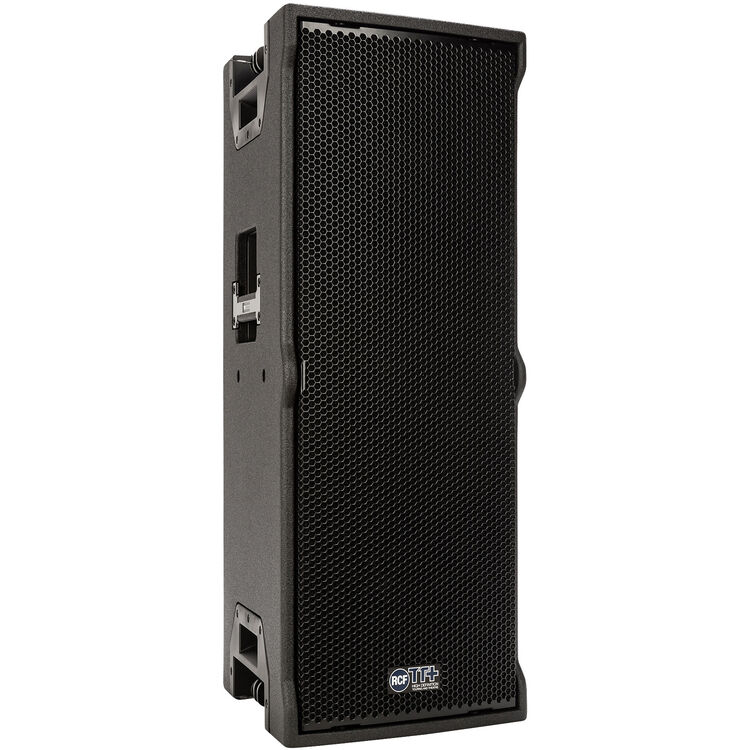

TTW 4-A
TTW 4-A
RCF
UNIT: PIECE/S
Product Code: SKU:RCF-TTW4A-CHN-0291
Key Features

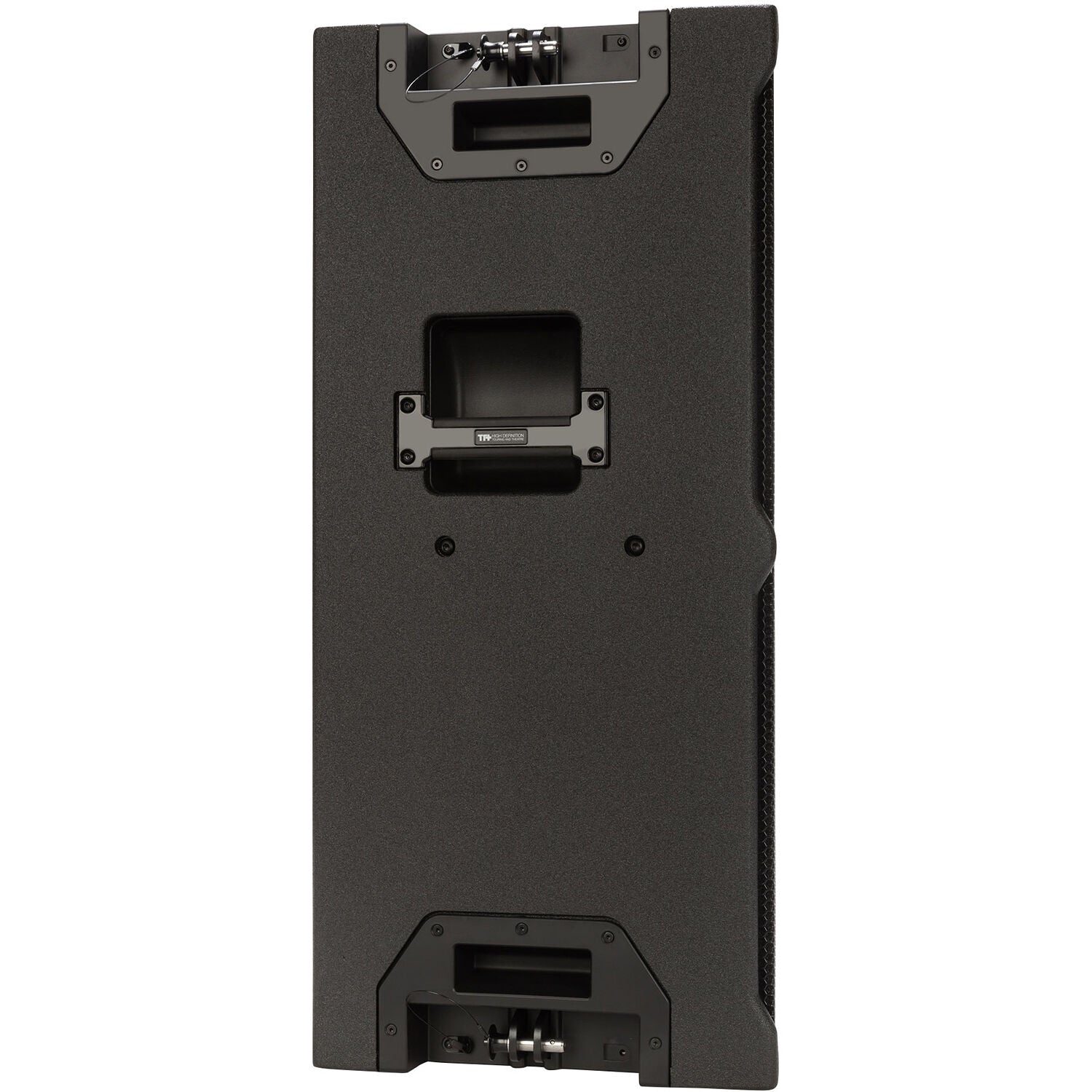

RCF TTW 4-A
RCF TTW 4-A
|
Key Specifications |
|
|
Speaker Type |
Active Loudspeaker |
|
Configuration |
2-Way |
|
Total Output Power |
1600 W RMS / 3200 W Peak |
|
LF Driver |
2x 10" / 25.4 cm Woofer |
|
HF Driver |
1x 1.5" / 38.1 mm Compression Driver |
|
Frequency Range/Response |
45 Hz to 20 kHz |
|
Speaker |
|
|
Speaker Type |
Active Loudspeaker |
|
Configuration |
2-Way |
|
Enclosure Type |
Bass-Reflex |
|
Total Output Power |
1600 W RMS / 3200 W Peak |
|
Amplifier Power Rating |
Low Frequency (LF) |
|
Amplifier Class |
Class-D |
|
Drivers |
|
|

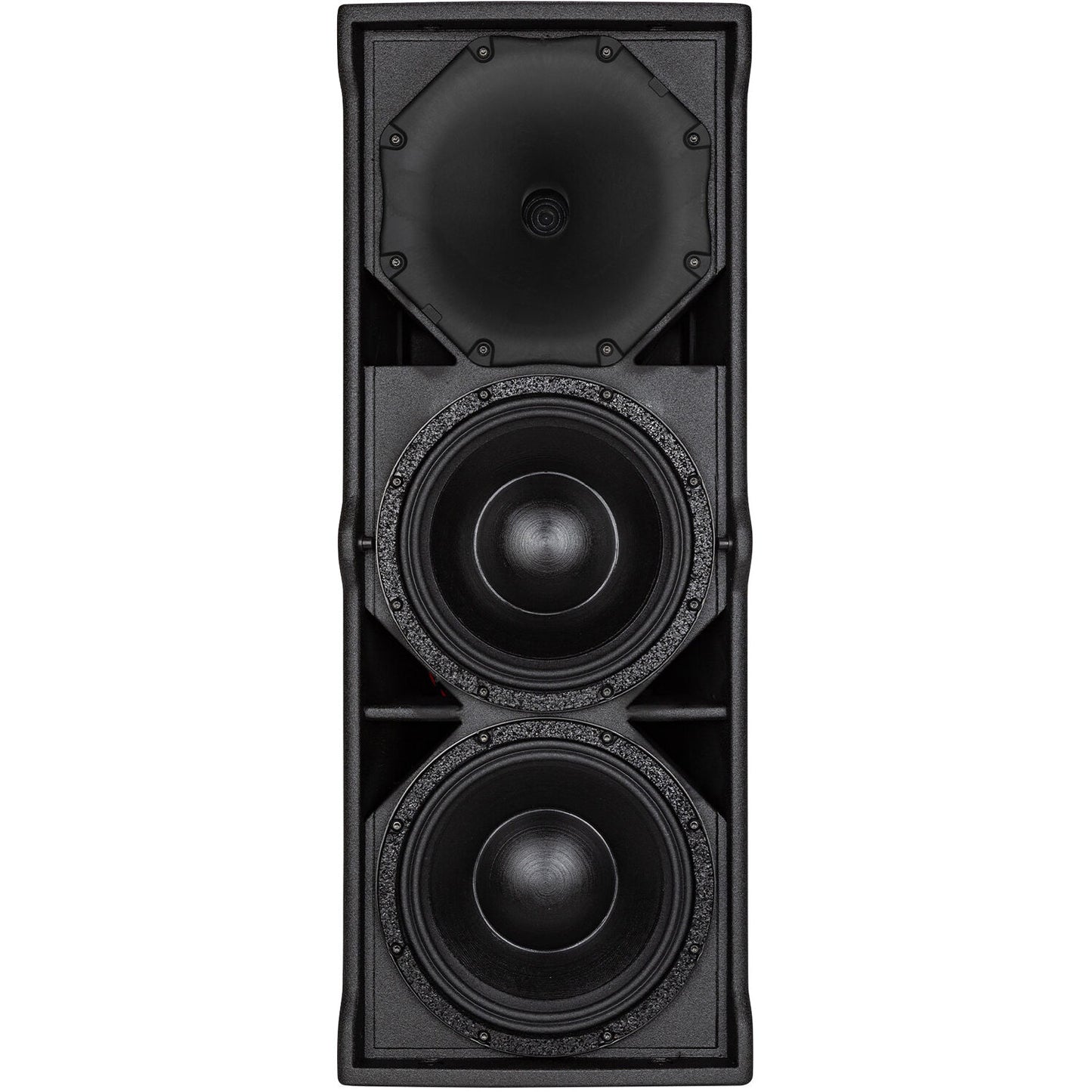

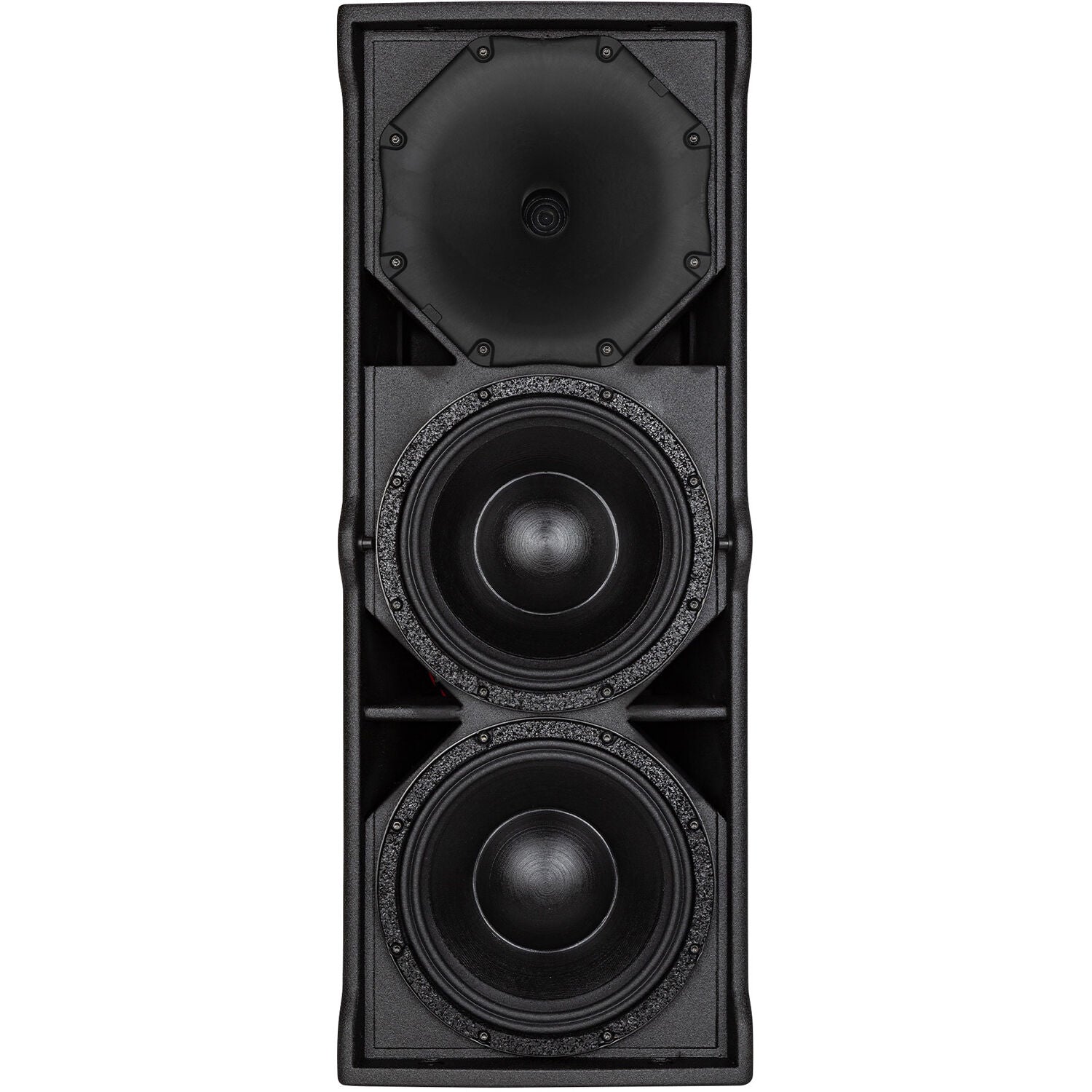

LF Driver |
2x 10" / 25.4 cm Woofer |
|
HF Driver |
1x 1.5" / 38.1 mm Compression Driver |
|
Performance |
|
|
Frequency Range/Response |
45 Hz to 20 kHz |
|
Maximum SPL |
134 dB |
|
Coverage Angle |
100° H x 50° V |
|
Protections |
RMS, Thermal |
|
Signal Processing |
|
|
Crossover Frequency |
900 Hz |
|
EQ & Filters |
High-Pass Filter |
|
Dynamic Processing |
Soft Limiter |
|
Alignment Delay |
Yes: Delay Time/Distance is Unspecified |
|
Digital Signal Processing |
Delay, FIR Filter, Venue Settings, Voicing Modes |
|

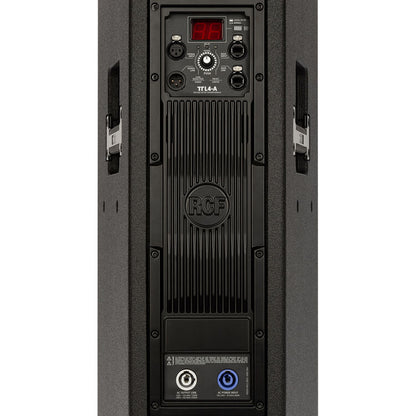

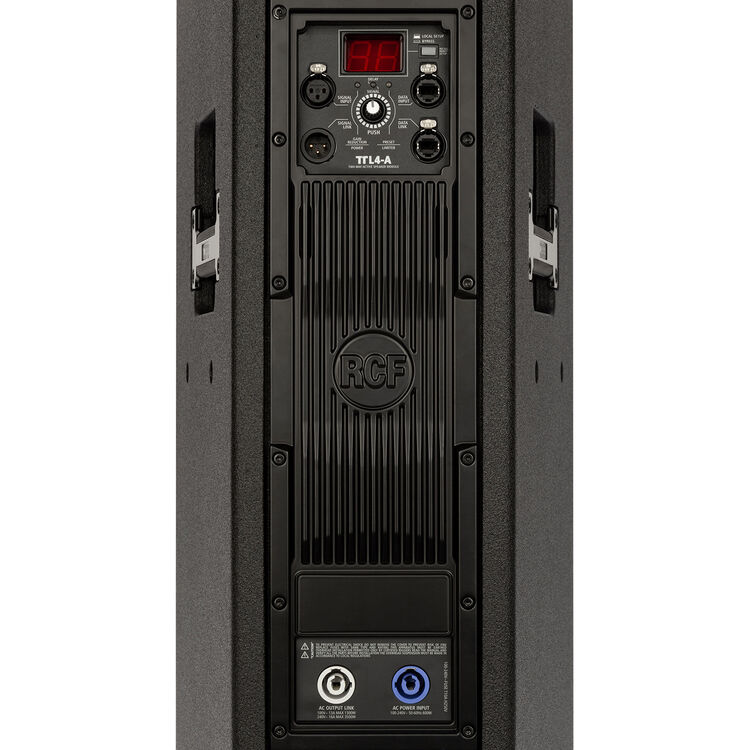

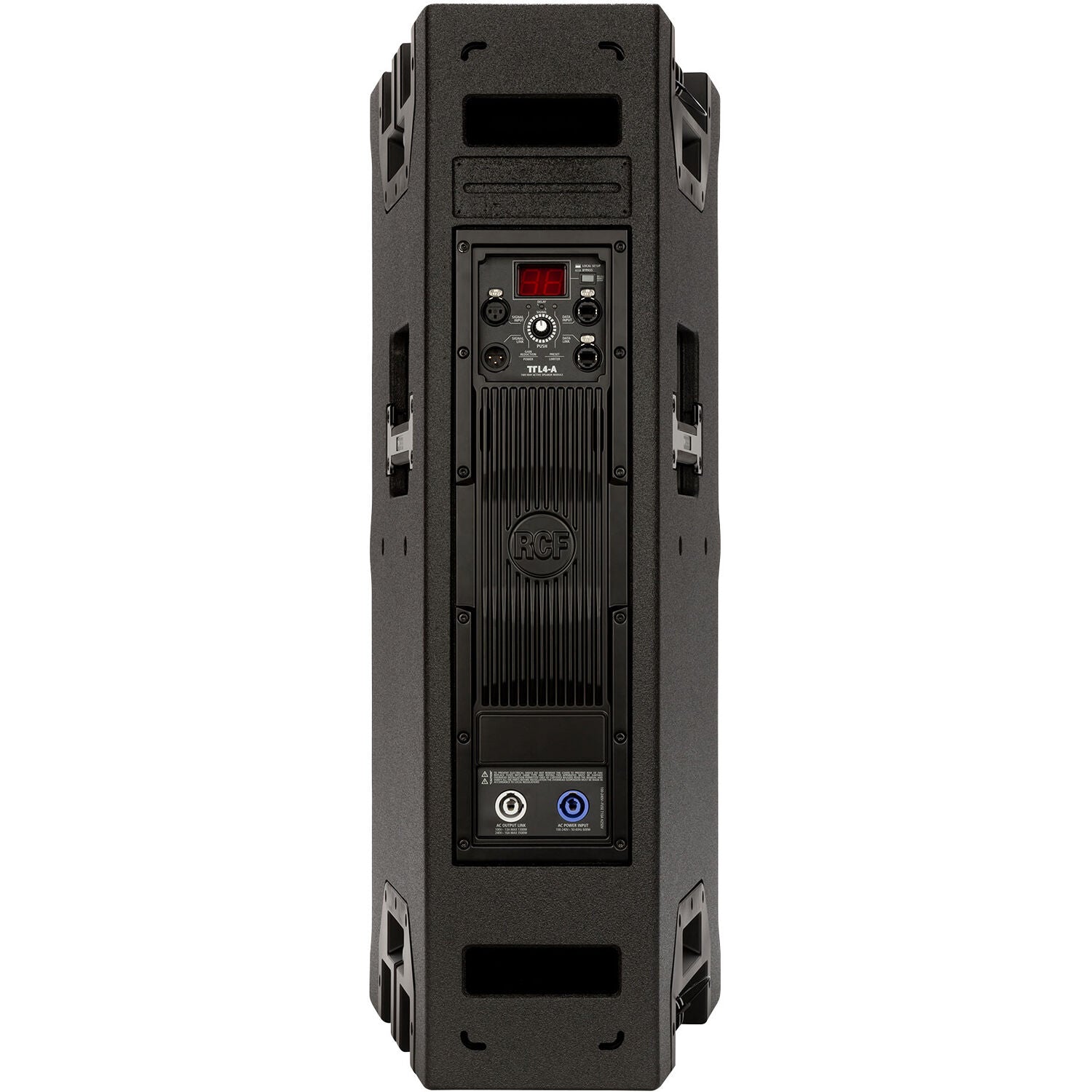

Connectivity |
|
|
Audio I/O |
1x XLR 3-Pin Input |
|
Network I/O |
2x etherCON/RJ45 (RDNet) |
|
USB I/O |
No |
|
Wireless |
No |
|
Mobile App Compatible |
No |
|
Power |
|
|
AC Input Power |
100 to 240 VAC, 50 / 60 Hz (T 10 A H 250 V) |
|
AC Power I/O |
1x powerCON Input |
|
Physical |
|
|
Color |
Black |
|

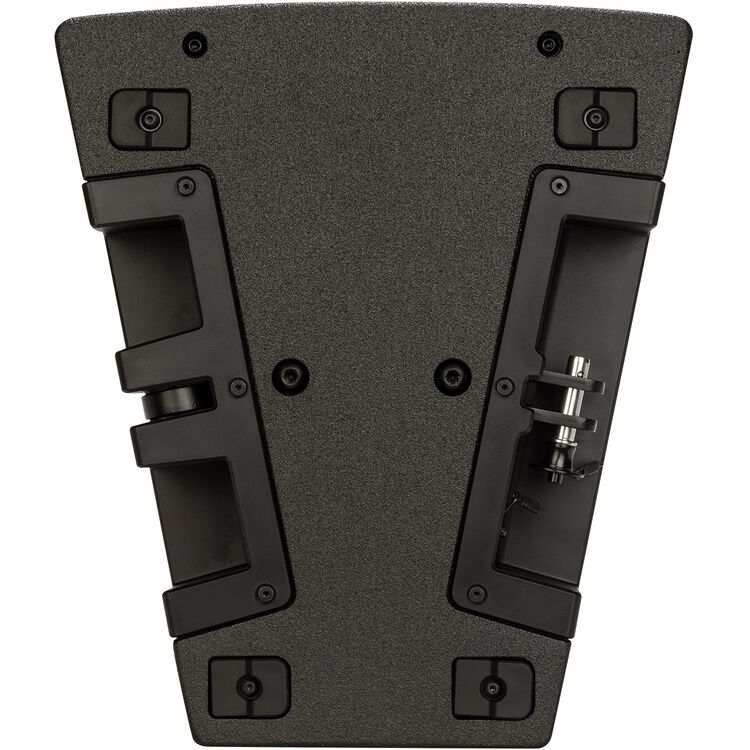

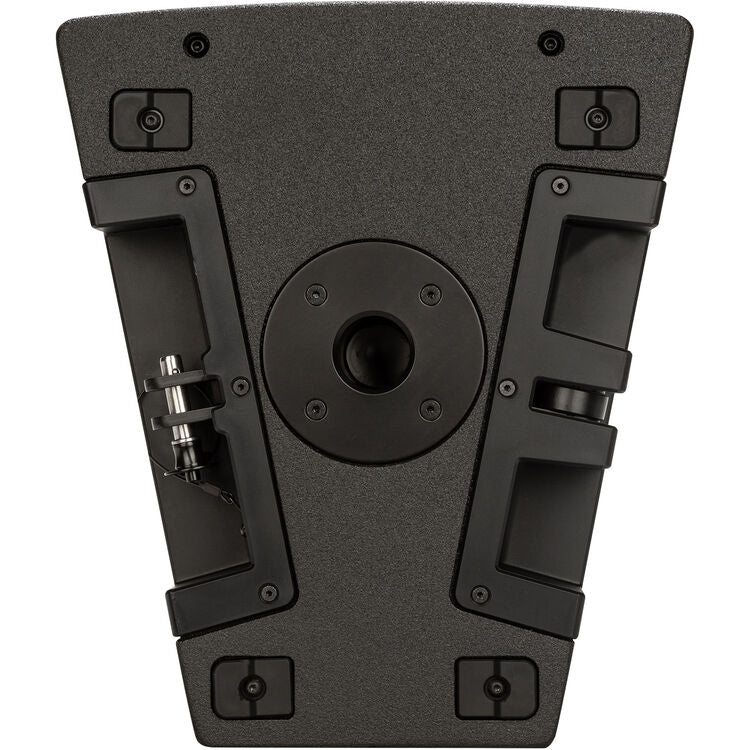

Mounting |
2 x M8 Fly Point |
|
Handles |
1x Each Side |
|
Construction Material |
Metal Grille, Plywood |
|
Environmental Resistance |
No |
|
Dimensions |
32.5 x 14.5 x 12.4" / 825.5 x 368.3 x 315 mm |
|
Weight |
66.1 lb / 30 kg |
