Key Specifications

DVR (DS-7208HGHI-K1)

Channels

8 Video Channels, 1 Audio Channel

Video Compression

H.265 Pro+, H.265 Pro, H.265

Video Inputs

HDTVI, AHD, CVI, CVBS, and IP Cameras (up to 6 MP)

Transmission Distance

Up to 800 m (1080p HDTVI)
Up to 1200 m (720p HDTVI)

Video Outputs

HDMI and VGA

Remote Viewing

PC, Mac, Smartphone, and Tablet via iVMS-4500 App

Hard Drive Support

Supports Surveillance HDD up to 10 TB (Sold Separately)

Dome Camera (DS-2CE76D0T-EXIPF)

Image Sensor

2.0 Megapixel High-Performance CMOS

Maximum Resolution

1920 × 1080 (1080p)

Day/Night Function

True Day/Night

Infrared Distance

Up to 20 m Smart IR

Weather Protection

IP66 Rated

Video Output Modes

TVI / AHD / CVI / CVBS Switchable

Bullet Camera (DS-2CE16D0T-EXIPF)

Image Sensor

2.0 Megapixel High-Performance CMOS

Maximum Resolution

1920 × 1080 (1080p)

Day/Night Function

True Day/Night

Infrared Distance

Up to 20 m Smart IR

Weather Protection

IP66 Rated

Additional Features

OSD Menu, Up-the-Coax (Hikvision-C Protocol)

Video Output Modes

TVI / AHD / CVI / CVBS Switchable

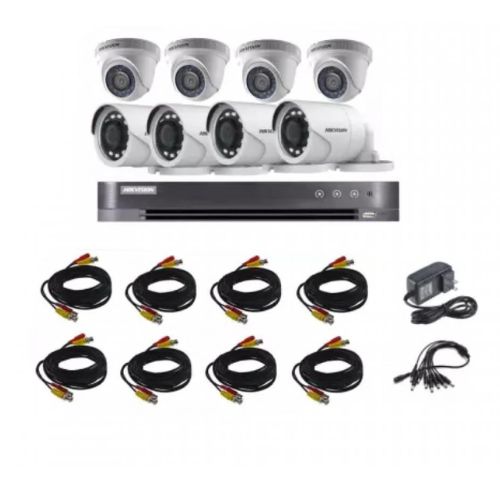

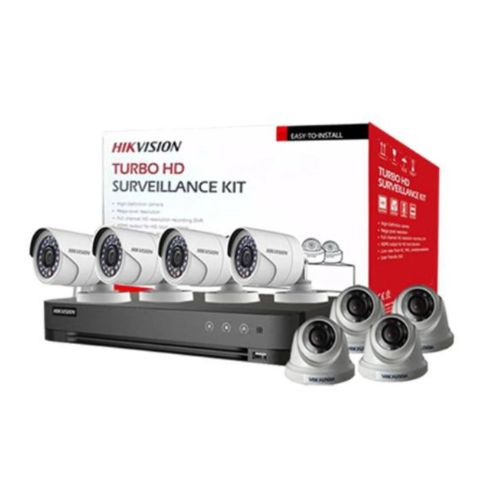

Package Inclusions

DVR

1 × DS-7208HGHI-K1 DVR

Dome Cameras

4 × DS-2CE76D0T-EXIPF

Bullet Cameras

4 × DS-2CE16D0T-EXIPF

Coaxial Cables

8 × 18 m Coaxial Cables

Power Supply

1 × 8-Way Splitter with Power Adapter

Accessories

USB Mouse, User Manual
