Key Specifications

System Type

Active Loudspeaker / Stage Monitor (2-Way)

Total Output Power

300 W RMS / 600 W Peak

Amplifier Class

Class-D

Enclosure Type & Construction

Bass-Reflex | Polypropylene Enclosure, Metal Grille, Rubber Feet

Mounting & Handling

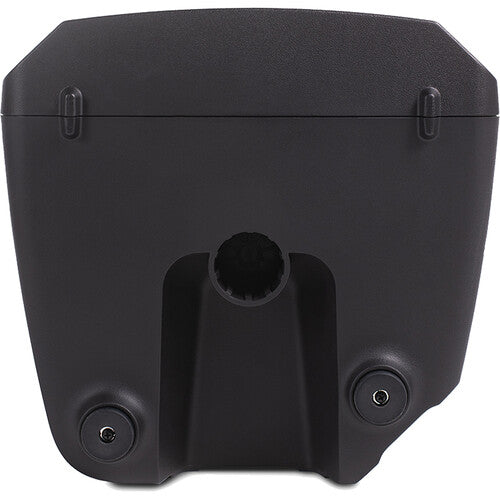

1x 36 mm (1.42") Pole Socket (Bottom) | 1x Handle on Each Side

Color

Black

Acoustic & Performance Specifications

Maximum SPL

120 dB (Peak)

Frequency Response / Range

70 Hz to 20 kHz (-3 dB)

Coverage Angle (H × V)

90° x 60°

Low-Frequency (LF) Driver

1x 12" (30.5 cm) Woofer | Voice Coil: 2" (50.8 mm)

High-Frequency (HF) Driver

1x 1" (25.4 mm) Titanium Compression Driver | Voice Coil: 1" (25.4 mm)

System Protection

Output Limiter, Thermal Protection

Signal Processing & Software

DSP & Equalization

None (No DSP, No EQ/Filters, No Alignment Delay)

Mobile App Control

No

Connectivity & Wireless

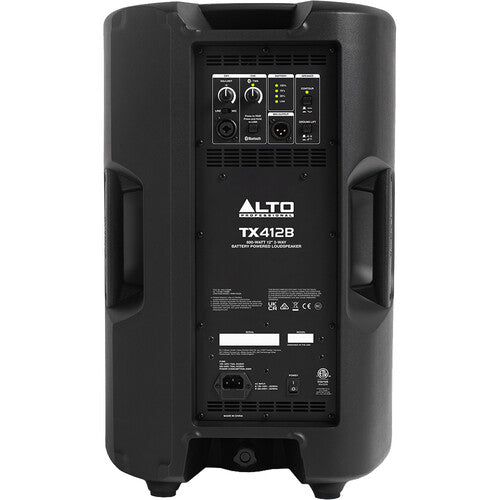

Analog Inputs

1x Combo XLR-1/4" TRS Mic/Line Input

Analog Outputs

1x XLR 3-Pin Link Output

Wireless Connectivity

Bluetooth 5.0

Power Specifications

AC Input Power

100 to 240 VAC, 50 / 60 Hz (1x IEC Input)

Dimensions, Weight & Packaging

Item Dimensions (H×W×D)

602mm x 381mm x 342.9mm (23.7" x 15.0" x 13.5")

Item Weight

13.3kg (29.3 lbs)

Box / Package Dimensions (L×W×H)

692.2mm x 457.2mm x 431.8mm (27.25" x 18.0" x 17.0")

Package Weight

16.8 kg (37.05 lbs)
