Key Specifications

Model Name

Typhon-AX12-BT

System Type

Active 12" 2-way with Bluetooth

Frequency Response (+/-3 dB)

55 Hz - 20 kHz

Frequency Range (-10 dB)

50 Hz - 20 kHz

Maximum SPL @ 1m

129 dB

Sensitivity @ 1W / 1m

98 dB

Low Frequency Transducer

Size

305 mm / 12"

Voice Coil Size

65 mm / 2.5"

Rated Impedance

4 Ω

High Frequency Transducer

HF Driver Type

Compression Driver

Coil Size

44 mm / 1.75"

Exit Size

25 mm / 1"

Diaphragm Material

Titanium

Rated Impedance

8 Ω

Nominal Coverage (H x V)

Hybrid Symmetry Horn 100° x 80°

Amplifiers

Amplifier Design

2 x Class D

Power Rating

1440 W Peak (1200 W LF + 240 W HF), 720 W Continuous (600 W LF + 120 W HF)

DSP Controls

FLAT / MONITOR / BASS / PUNCH

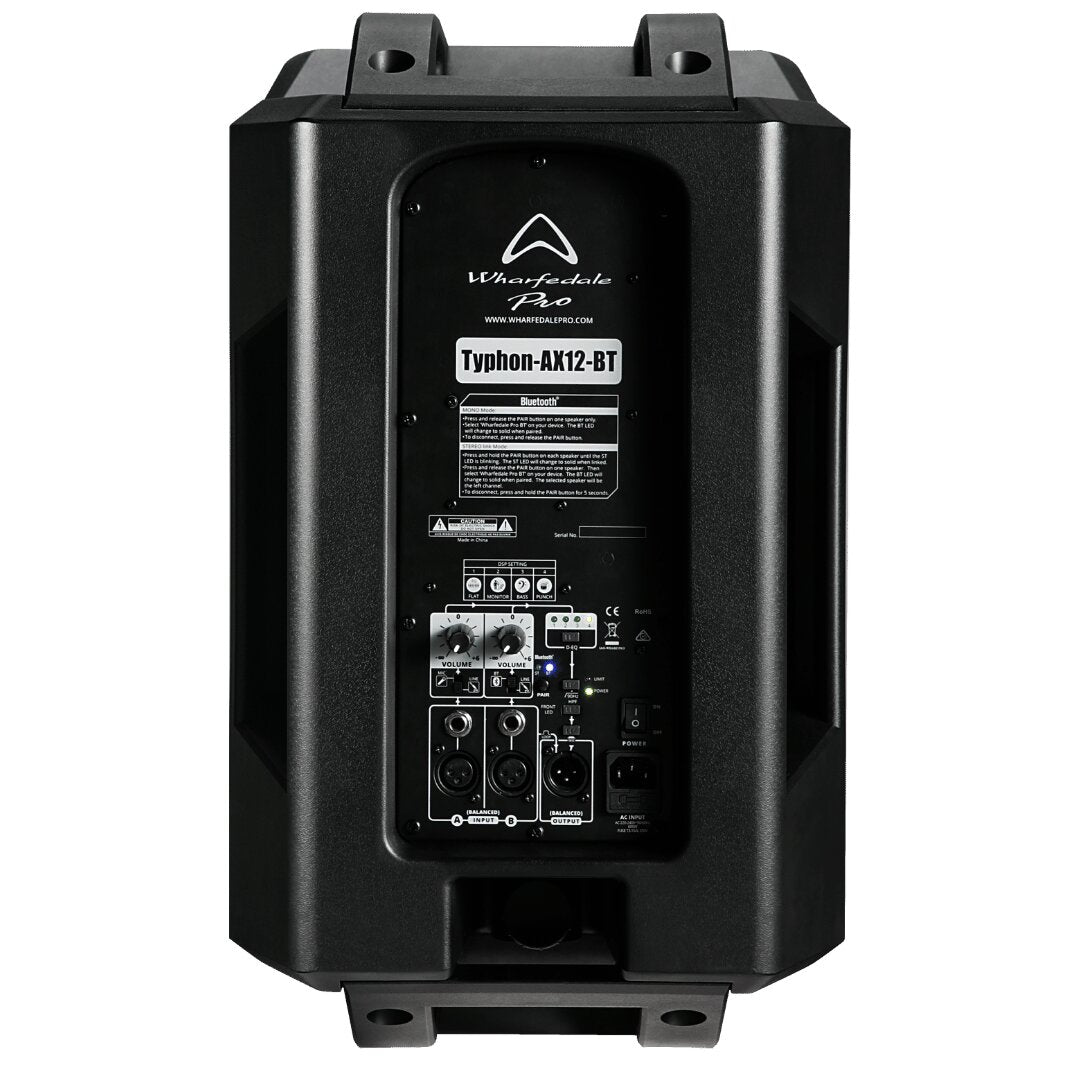

Inputs

Input - A

B Enhanced

Input Sensitivity

775 mV (0 dBu)

Input Connectors A / B

2 x XLR, 2 x 6.3 mm Jack

Input Impedance

20 KΩ

Line Output

Balanced XLR

Loop Gain

0 dB

AC Power

220–240 VAC / 100–120 VAC, 50 / 60 Hz

Rigging

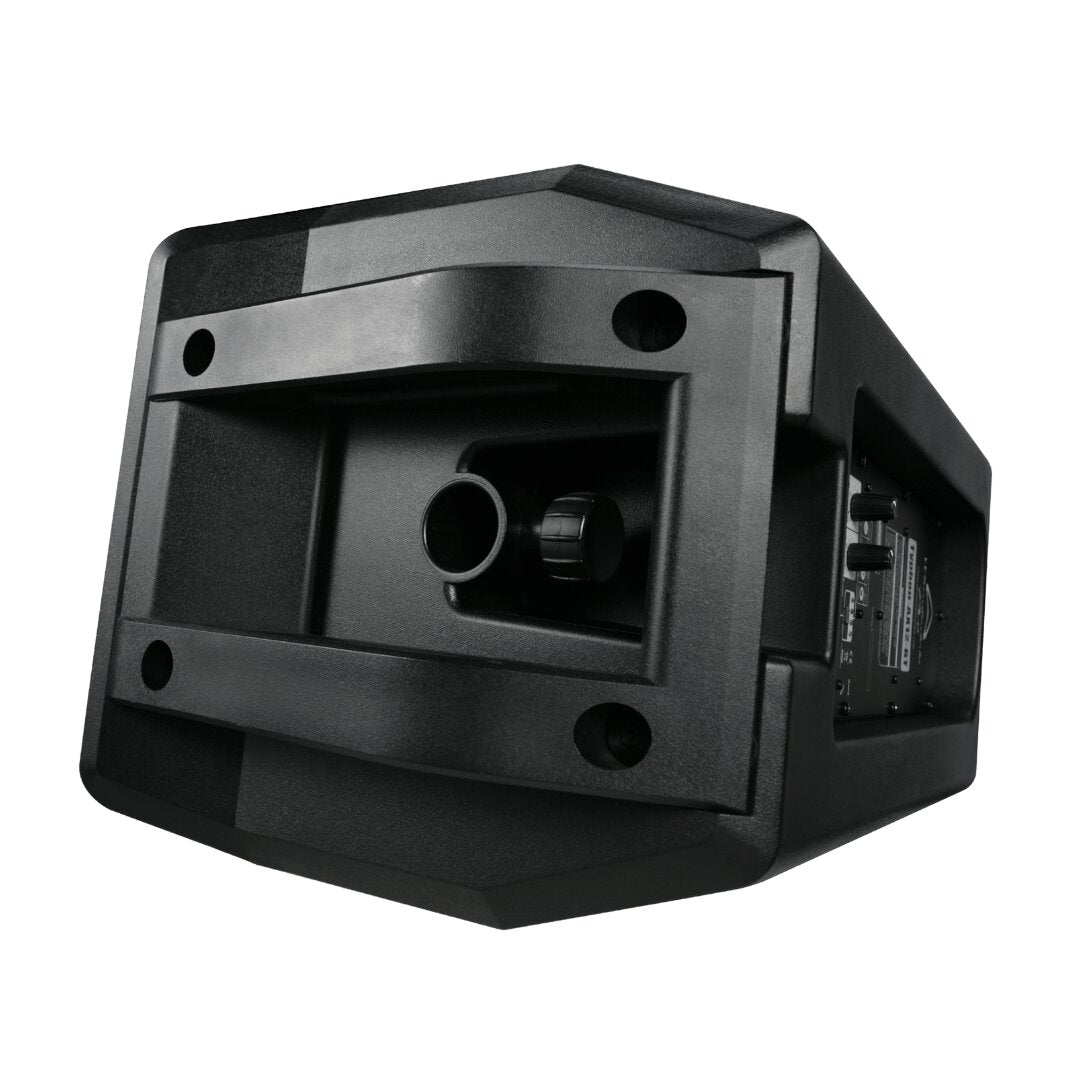

9 x M8 threaded inserts, 35 mm pole socket with lock screw, 5 x carry handles, Optional WPB-2 wall-mount bracket

Enclosure

Injection Molded Polypropylene

Grille Material & Finish

Full Front Steel

Dimensions - Unpacked

Height

558 mm / 22.0"

Width Front

344 mm / 13.6"

Width Rear

245 mm / 9.6"

Depth

340 mm / 13.4"

Dimensions - Packed

Height

645 mm / 25.4"

Width Front

425 mm / 16.7"

Width Rear

425 mm / 16.7"

Depth

419 mm / 16.5"

Packaging Info

Net Weight

16.2 kg / 35.64 lbs

Gross Weight

19.2 kg / 42.24 lbs

What's In The Box

• Typhon-AX12-BT
• Power Cord
• Manual
