Key Specifications

Active or Passive

Active

System Type

Full-Range

Configuration

2-way

System Continuous Power

770 W

System Peak Power

1540 W

Max SPL @ 1m

130 dB

Freq Range (-10 dB)

40 Hz - 20 kHz

Freq Response (+/-3 dB)

45 Hz - 20 kHz

Bluetooth

Yes

IP Certification

IP54

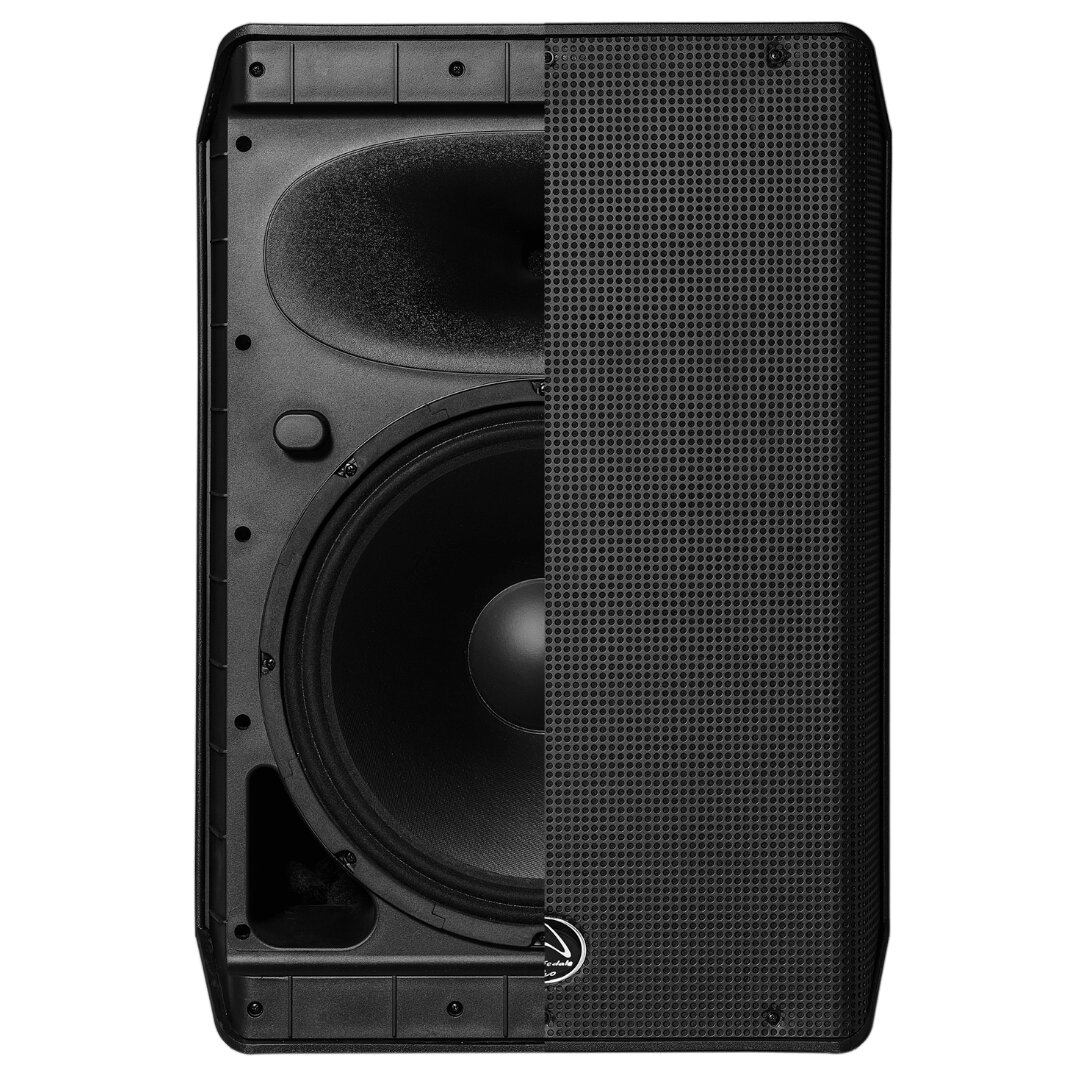

Driver Brand

Wharfedale Pro

LF Driver Size

15"

LF Voice Coil Size

3"

LF Rated Impedance

4 Ω

LF Power (RE:AES2-2012)

400 W

HF Driver Type

Compression Driver

HF Voice Coil Size

1.75"

HF Diaphragm Material

Titanium

HF Exit Size

1"

HF Power (RE:AES2-2012)

40 W

HF Rated Impedance

8 Ω

HF Nominal Coverage (H x V)

100° x 80°

Preset Library

No

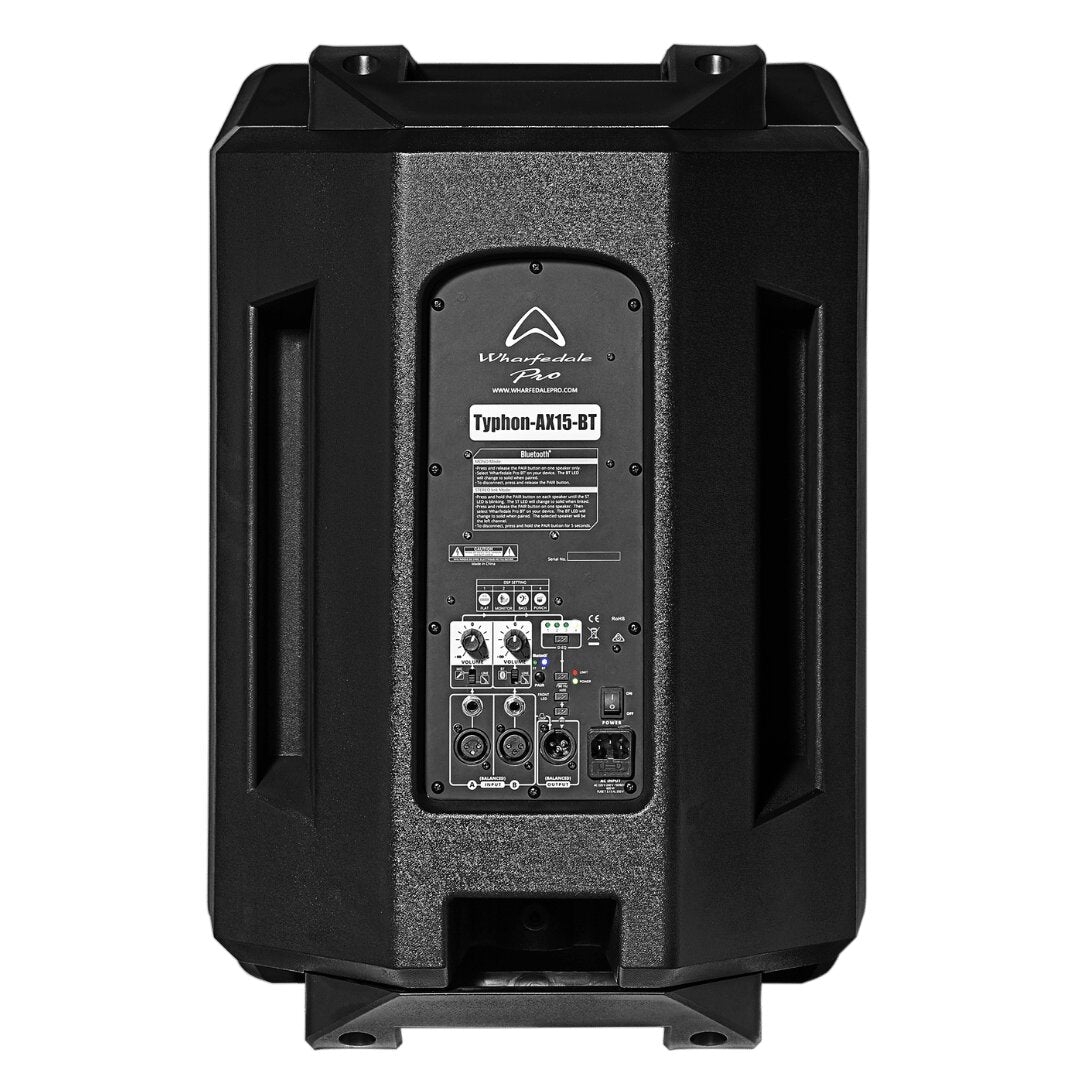

Input Connector

2 x XLR, 2 x 6.3mm Jack, BT

Waveguide Type

Hybrid Symmetry Horn

Enclosure Material

Polypropylene

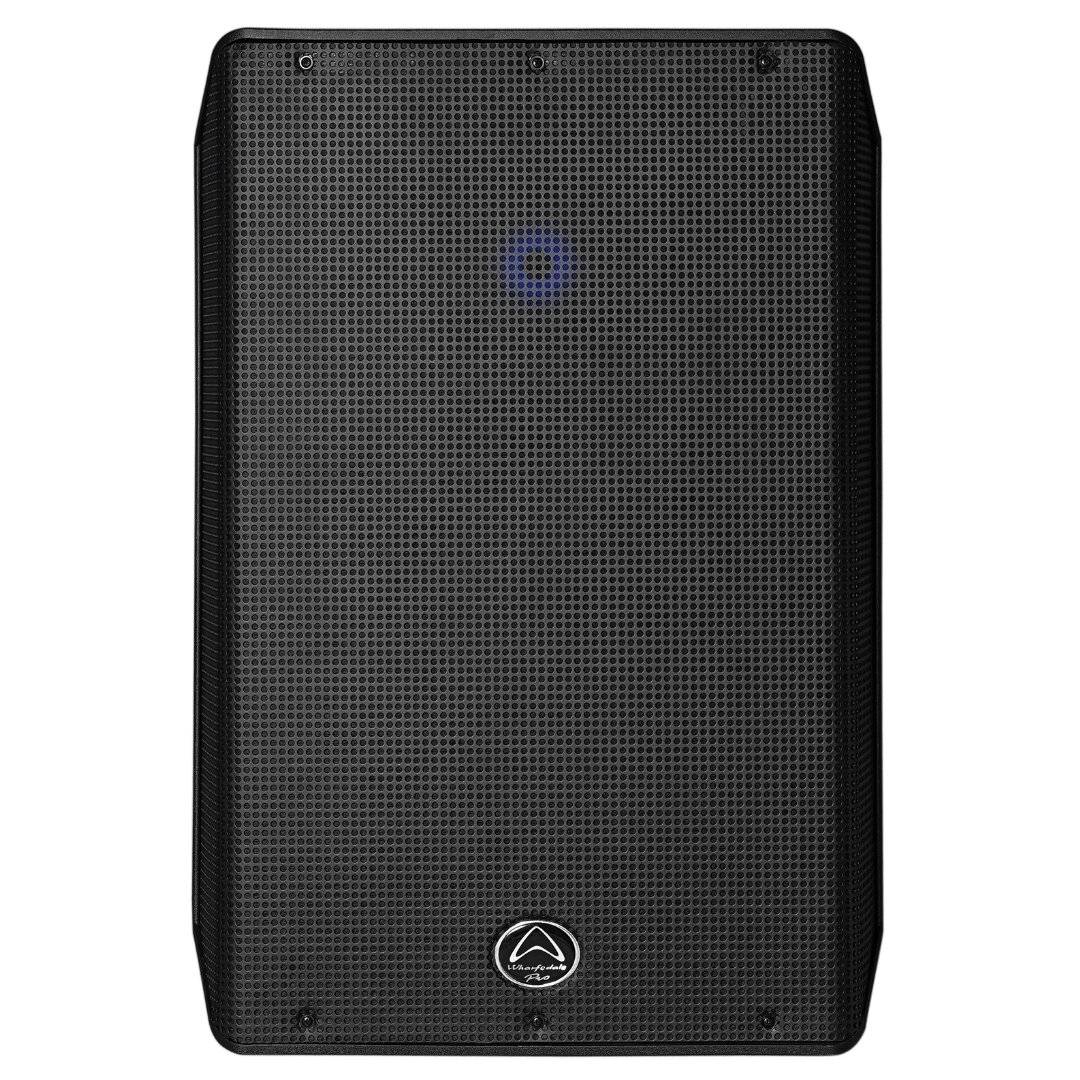

Grille Material and Finish

Steel Black

Finish

Black Polypropylene

Handles

4

Deployment

Flying, Pole, Wall Mount, Ground

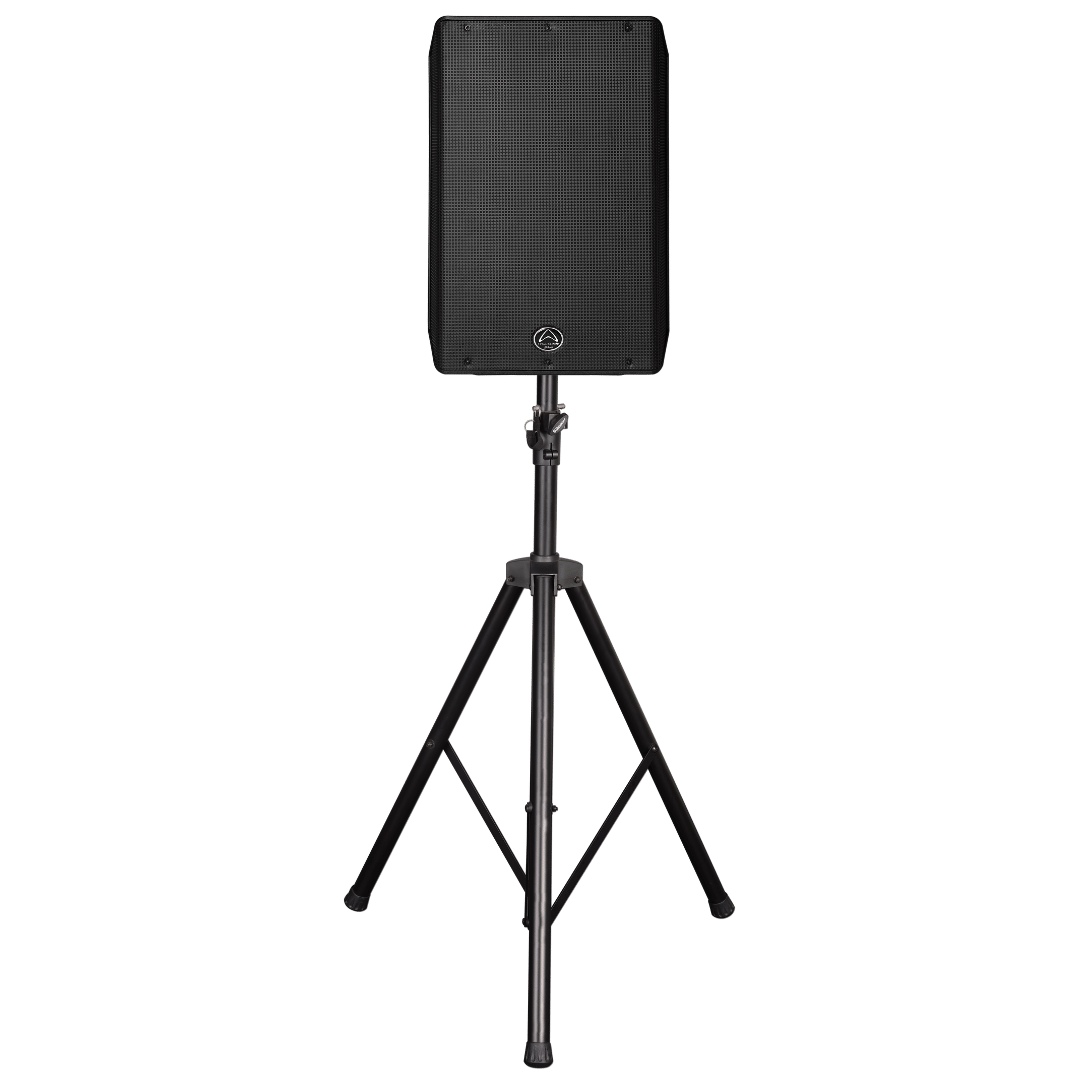

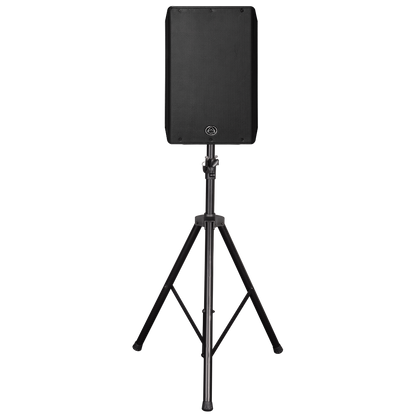

Pole Mount

35 mm With Lock Screw

Brackets Included

No

Rigging

Yes

M8

9

Sensitivity 2.83v / 1m

99 dB

System Rated Impedance

n/a

Crossover Frequency

2.0 kHz

Recommended HPF = BW 18 dB/OCT.

40 Hz

Amplifier design

Class D

DSP Controls

Flat / Monitor / Bass / Punch

Preset list

Flat / Monitor / Bass / Punch

Active loudspeaker Input Impedance

20 KΩ

Link Connector

pin XLR

Input sensitivity

775 mV (0 dBu)

Max input level

4 V

Line output

Pin XLR

Main Power

100-120 V~/200-240 V~, 50/60 Hz

Power Supply

SMPS

Unpacked - Height (mm)

698

Unpacked - Width Front (mm)

480

Unpacked - Width Rear (mm)

186

Unpacked - Depth (mm)

400

Packed - Height (mm)

788

Packed - Width Front (mm)

550

Packed - Width Rear (mm)

550

Packed - Depth (mm)

475

Weight - Nett (kg)

27.3

Weight - Gross (kg)

30
