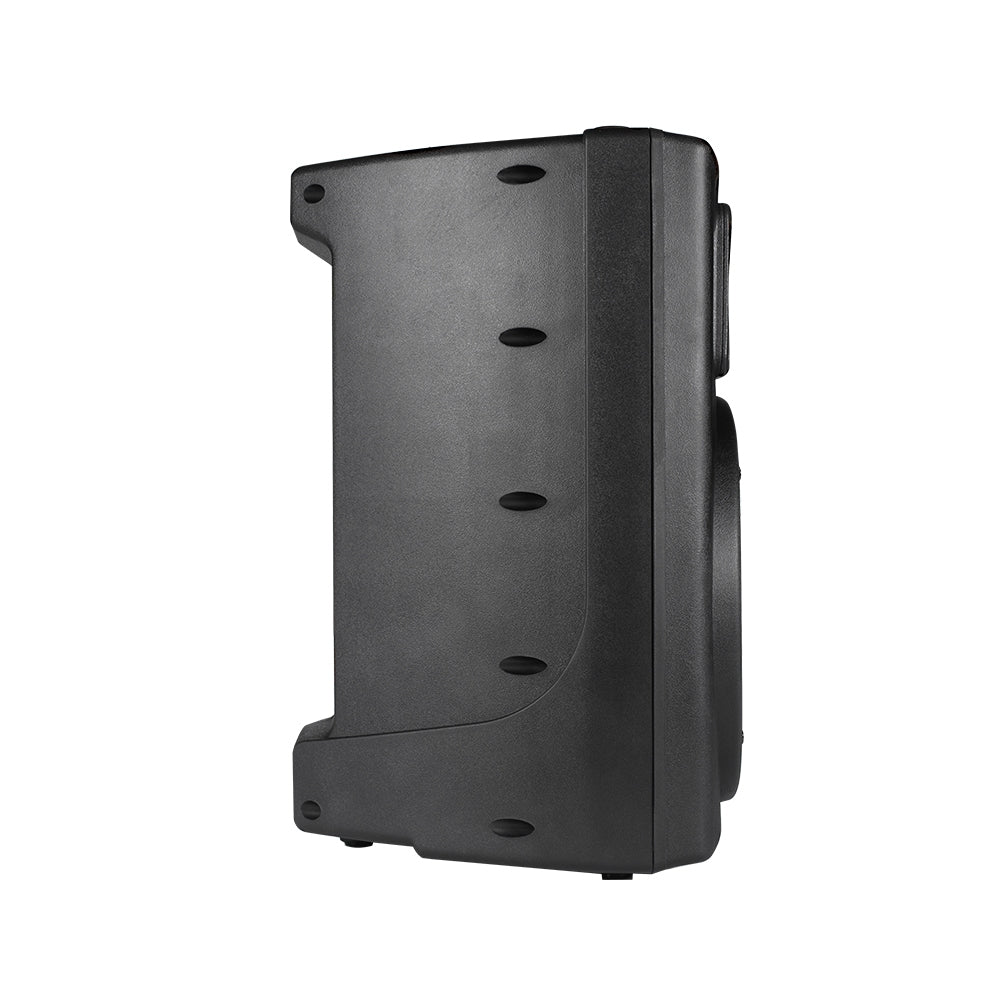

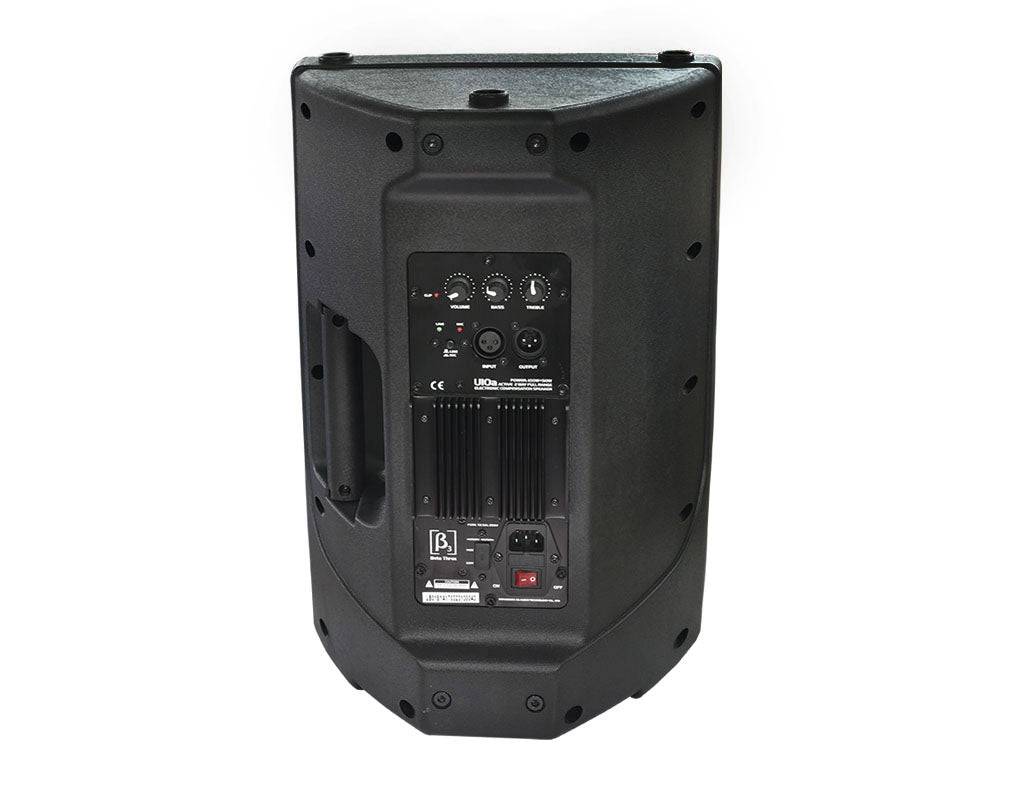

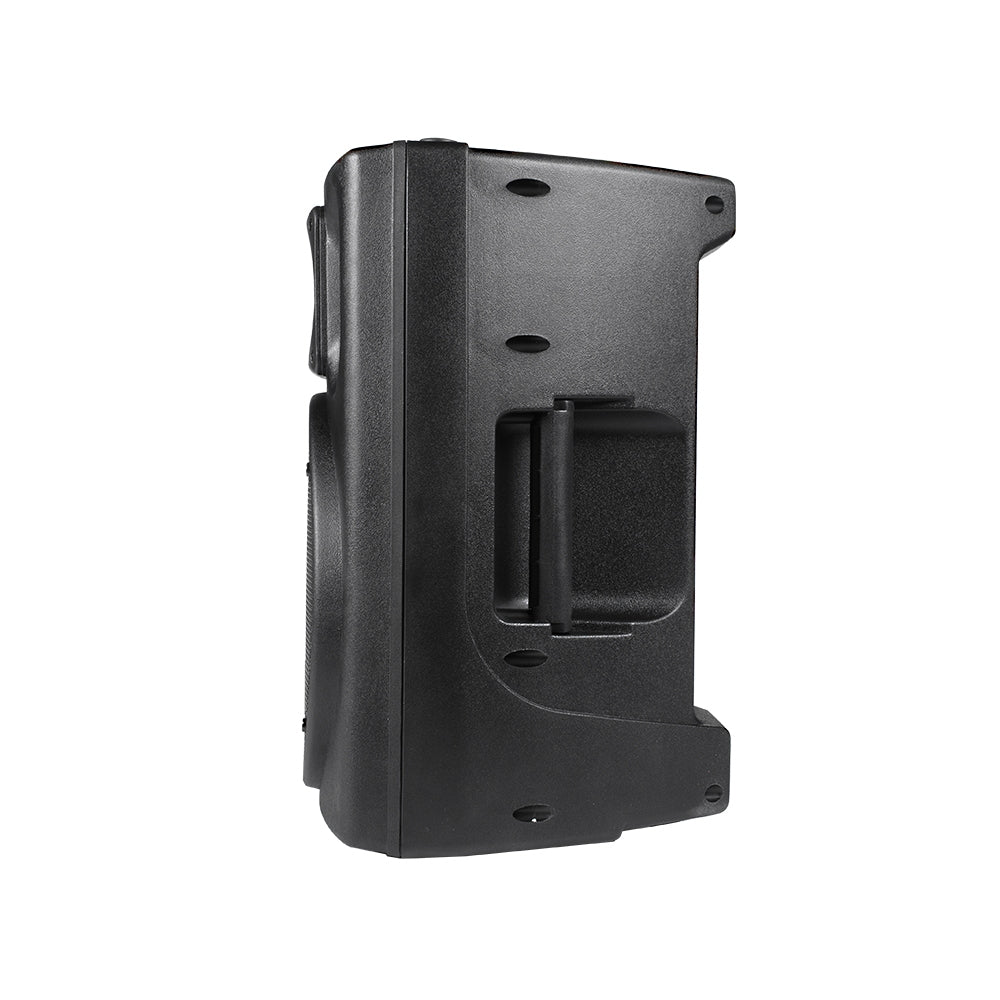

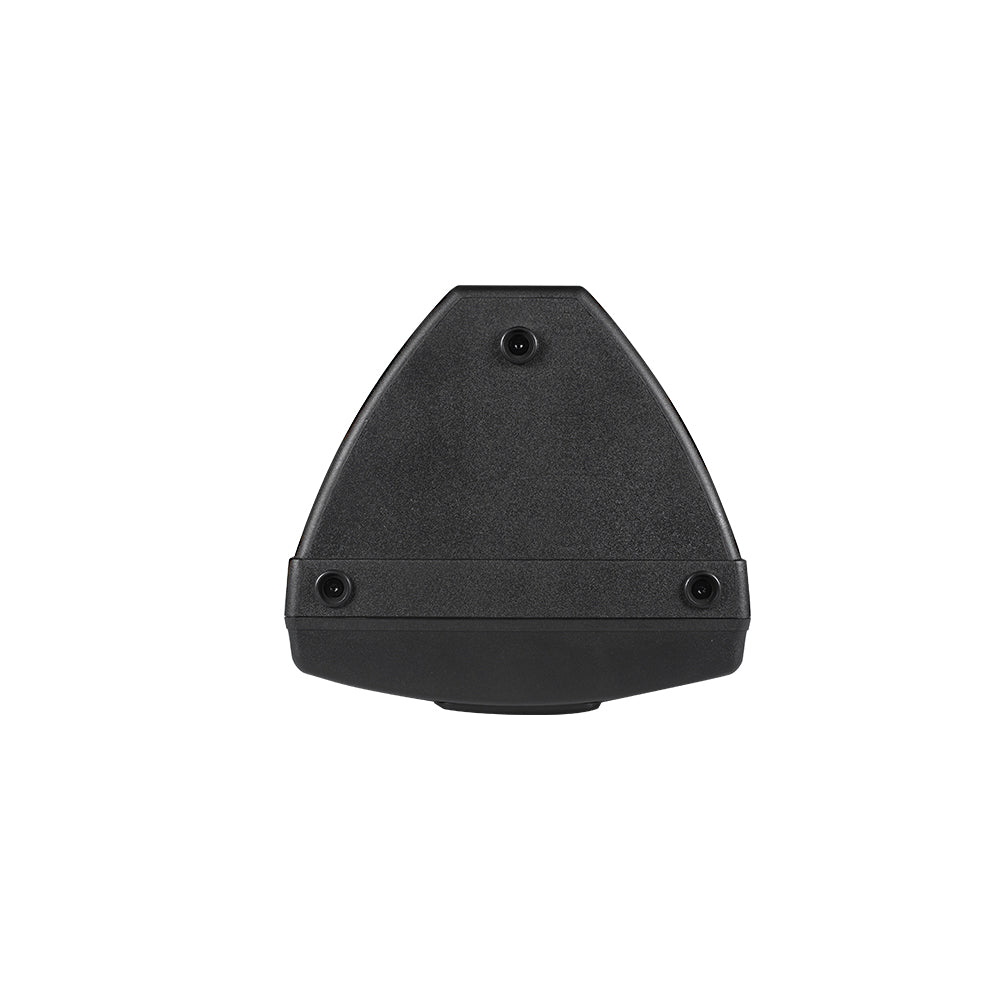

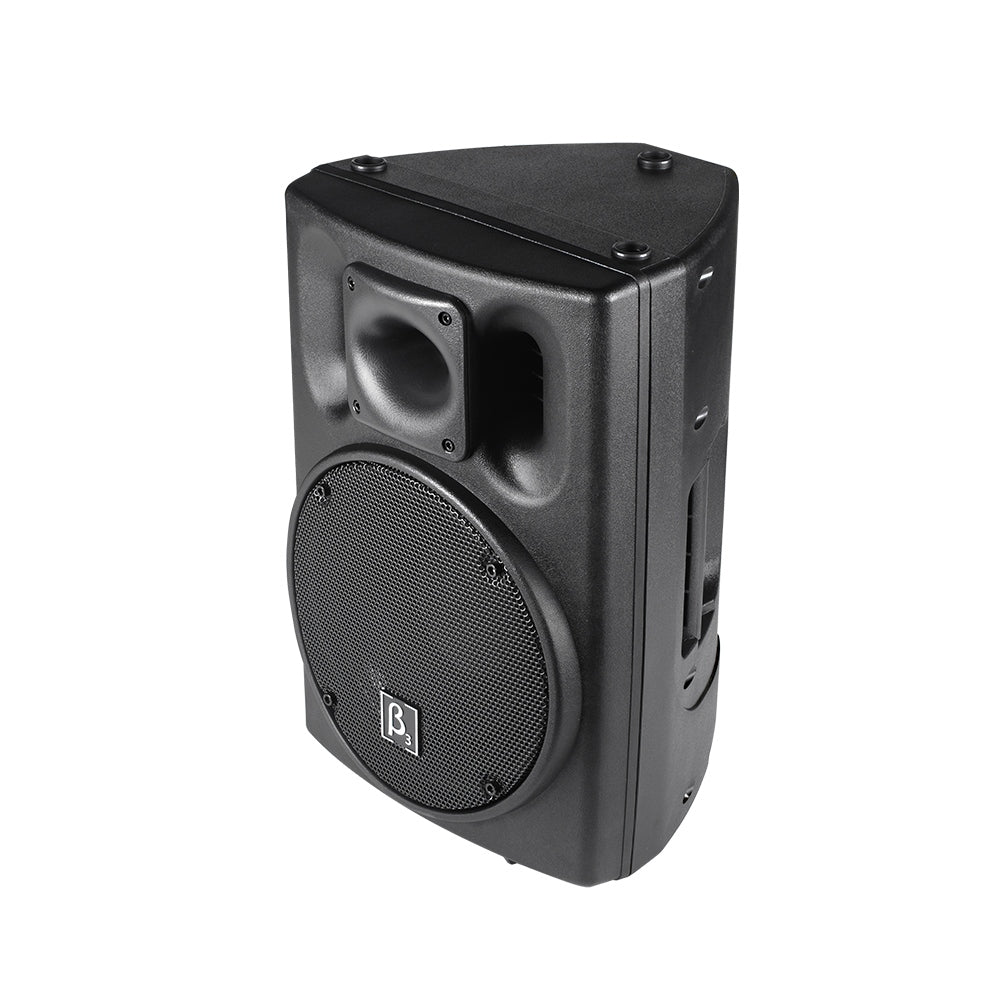

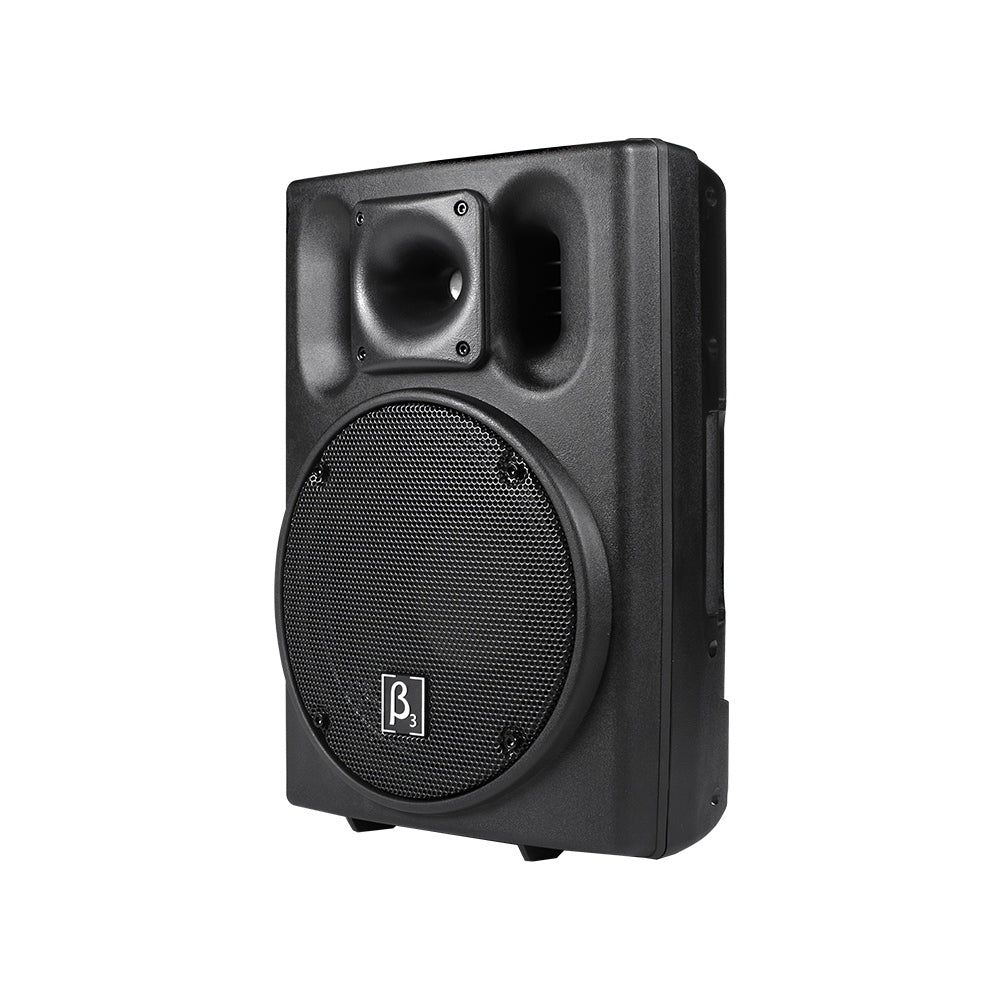

BELDEN U10a
BELDEN U10a
|
Key Specifications |
|
|
Acoustical Specifications |
|
|
Frequency Response (-3 dB) |
55 Hz–18 kHz |
|
Max SPL @ 1 m |
111 dB / 117 dB (Peak) |
|
Dispersion (H × V) |
90° × 60° |
|
Transducers |
|
|
Compression Driver |
1 × 1.3" HF |
|
Woofer |
1 × 10" LF |
|
Input / Output Section |
|
|
Input Signal |
Balanced 20 kΩ, Unbalanced 10 kΩ |
|
Input Connectors |
2 × XLR |
|
Power Section |
|
|
Total Power |
50 W HF; 100 W LF (RMS) |
|
Nominal Impedance |
8 Ω |
|
Cooling |
Internal horn vibration auxiliary air cooling + convective radiation outside the back plate |
|
Voltage Range |
AC 220V–240V~, 50/60Hz (or AC 110V–120V~, 50/60Hz) |
|
Physical Specifications |
|
|
Cabinet / Case Material |
Polypropylene Injection Moulding |
|
Hardware |
8 × M8 Hanging Points, SMART Pole Mount System |
|
Handles |
Two Side, One Rear |
|
Grille |
Powder Coated Grille |
|
Color |
Black |
|
Size |
|
|
Dimensions (W × D × H) |
321 × 321 × 464 mm (12.6 × 12.6 × 18.3 in) |
|
Package Dimensions (W × D × H) |
375 × 355 × 535 mm (14.8 × 14 × 21.1 in) |
|
Weight |
|
|
Net Weight |
10.5 kg (23.1 lb) |
|
Gross Weight |
11.8 kg (26 lb) |
