Key Specifications

Acoustical Specifications

Frequency Response (-3 dB)

40 Hz–18 kHz

Max SPL @ 1 m

115 dB / 121 dB (Peak)

Dispersion (H × V)

100° × 55°

Transducers

Compression Driver

1 × 1.7" HF

Woofer

1 × 15" LF

Input / Output Section

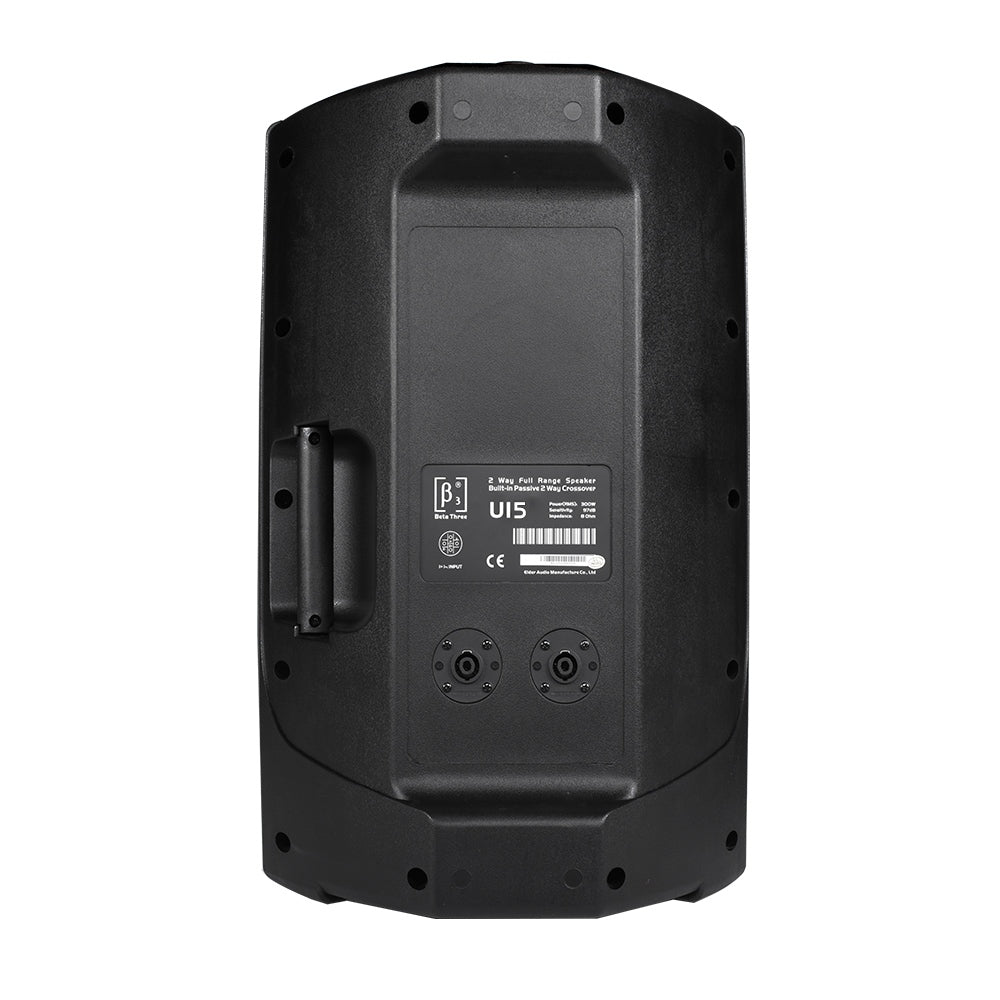

Input Connectors

2 × NL4

Sensitivity (1 W @ 1 m)

98 dB

Power Section

Total Power

300 W (RMS); 600 W (Music); 1200 W (Peak)

Nominal Impedance

8 Ω

Physical Specifications

Cabinet / Case Material

Polypropylene Injection Moulding

Hardware

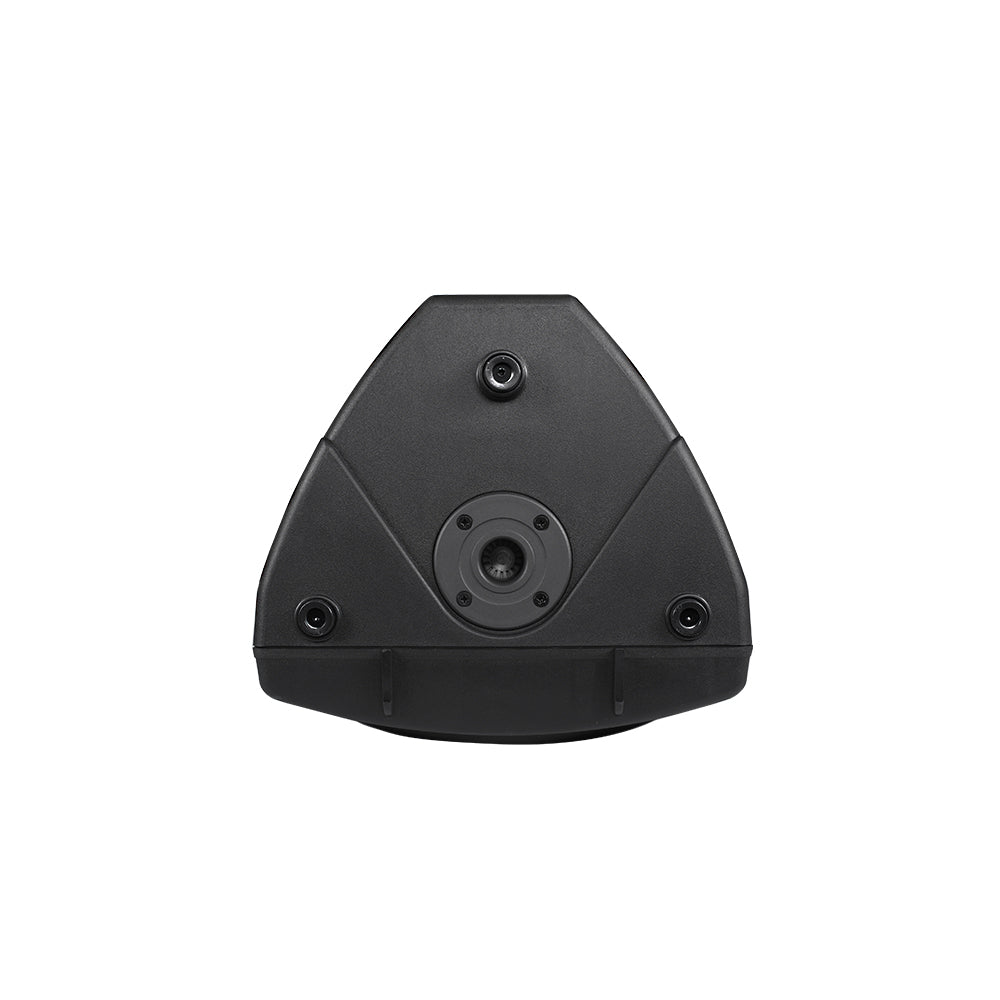

8 × M8 Hanging Points, SMART Pole Mount System

Handles

Two Side, One Rear

Grille

Powder Coated Grille

Color

Black

Size

Dimensions (W × D × H)

485 × 460 × 700 mm (19.1 × 18.1 × 27.6 in)

Package Dimensions (W × D × H)

545 × 515 × 800 mm (21.5 × 20.3 × 31.5 in)

Weight

Net Weight

26 kg (57.3 lb)

Gross Weight

28 kg (61.7 lb)
