Key Specifications

Acoustical Specifications

Frequency Response (-3 dB)

40 Hz–18 kHz

Max SPL @ 1 m

114 dB / 120 dB (Peak)

Dispersion (H × V)

100° × 55°

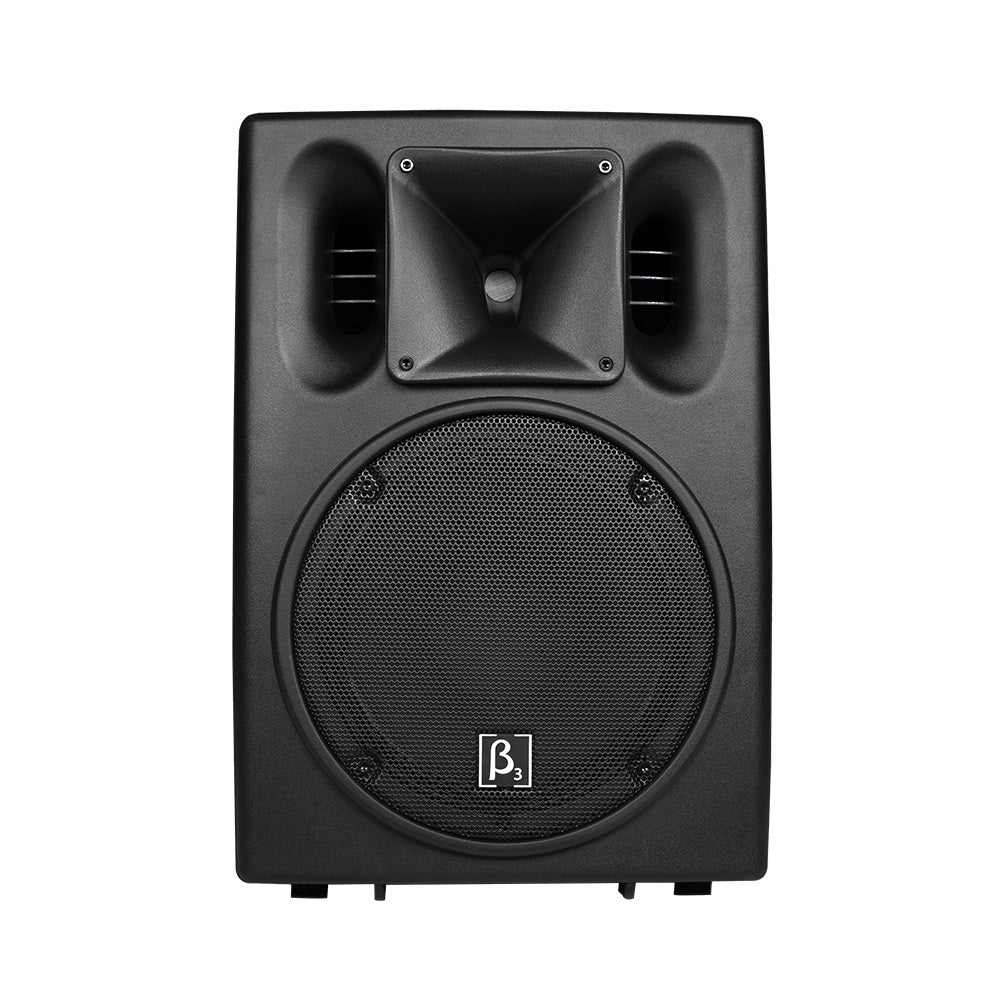

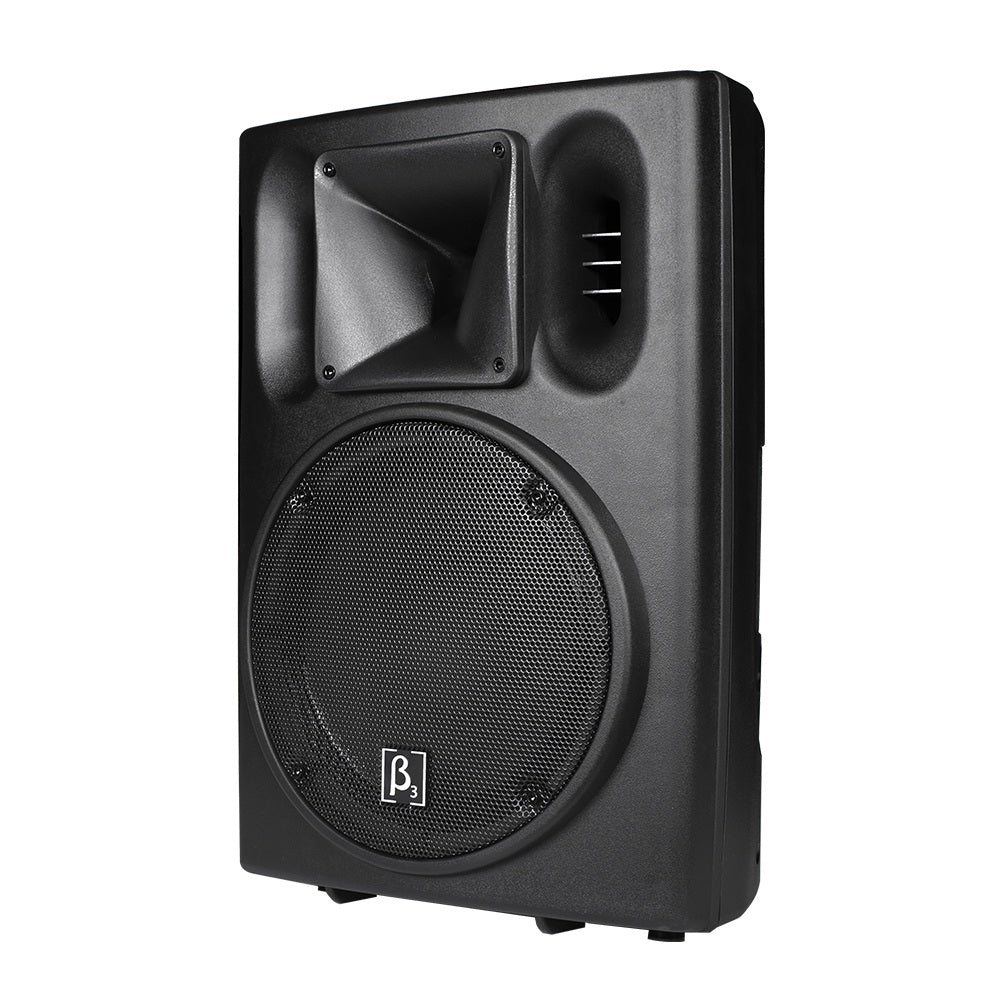

Transducers

Compression Driver

1 × 1.7" HF

Woofer

1 × 15" LF

Input / Output Section

Input Signal

Balanced 20 kΩ, Unbalanced 10 kΩ

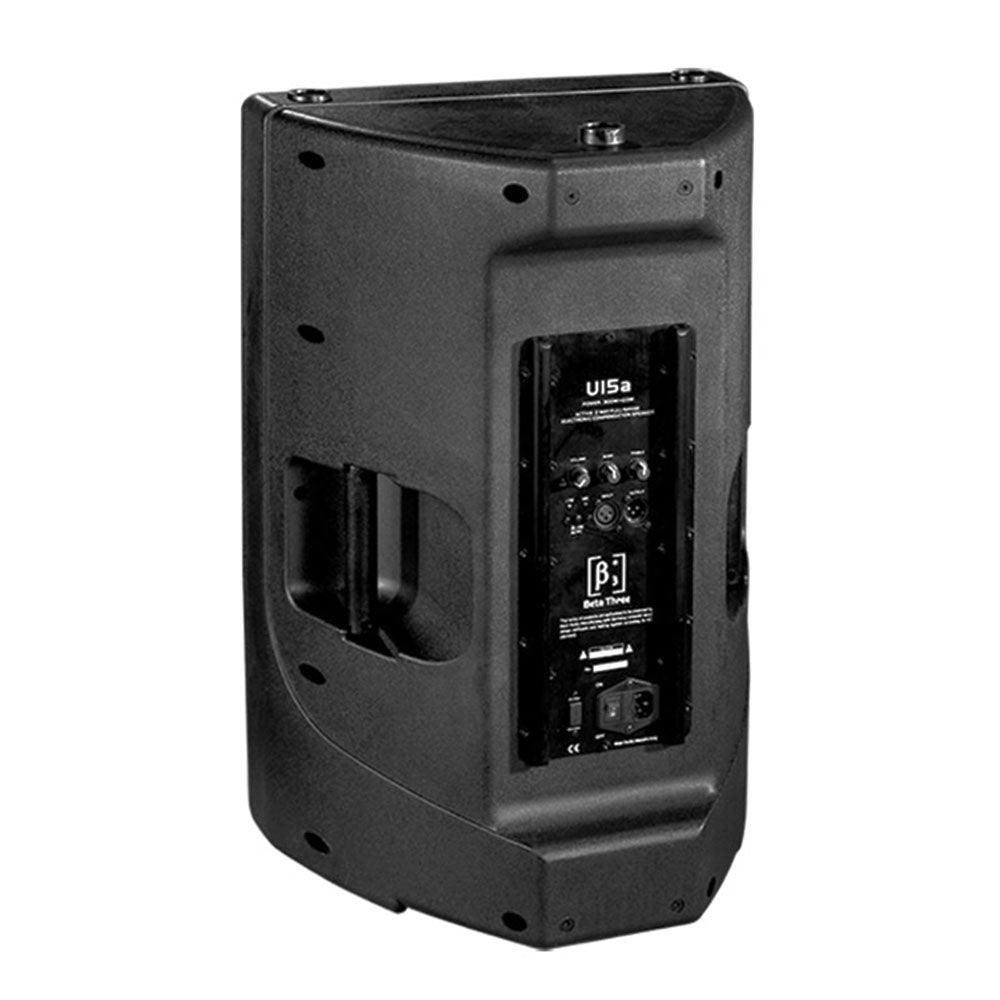

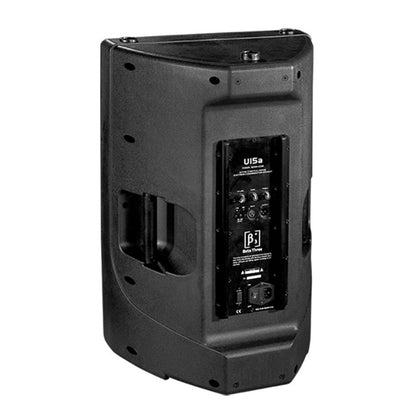

Input Connectors

2 × XLR

Power Section

Total Power

400 W (RMS); 800 W (MUSIC); 1600 W (PEAK)

Nominal Impedance

8 Ω

Cooling

Internal horn vibration auxiliary air cooling + convective radiation outside the back plate

Power Consumption (Static)

22 W

Power Consumption (Rated)

70 W

Voltage Range

AC 220V–240V~, 50/60Hz (or AC 110V–120V~, 50/60Hz)

Physical Specifications

Cabinet / Case Material

Polypropylene Injection Moulding

Hardware

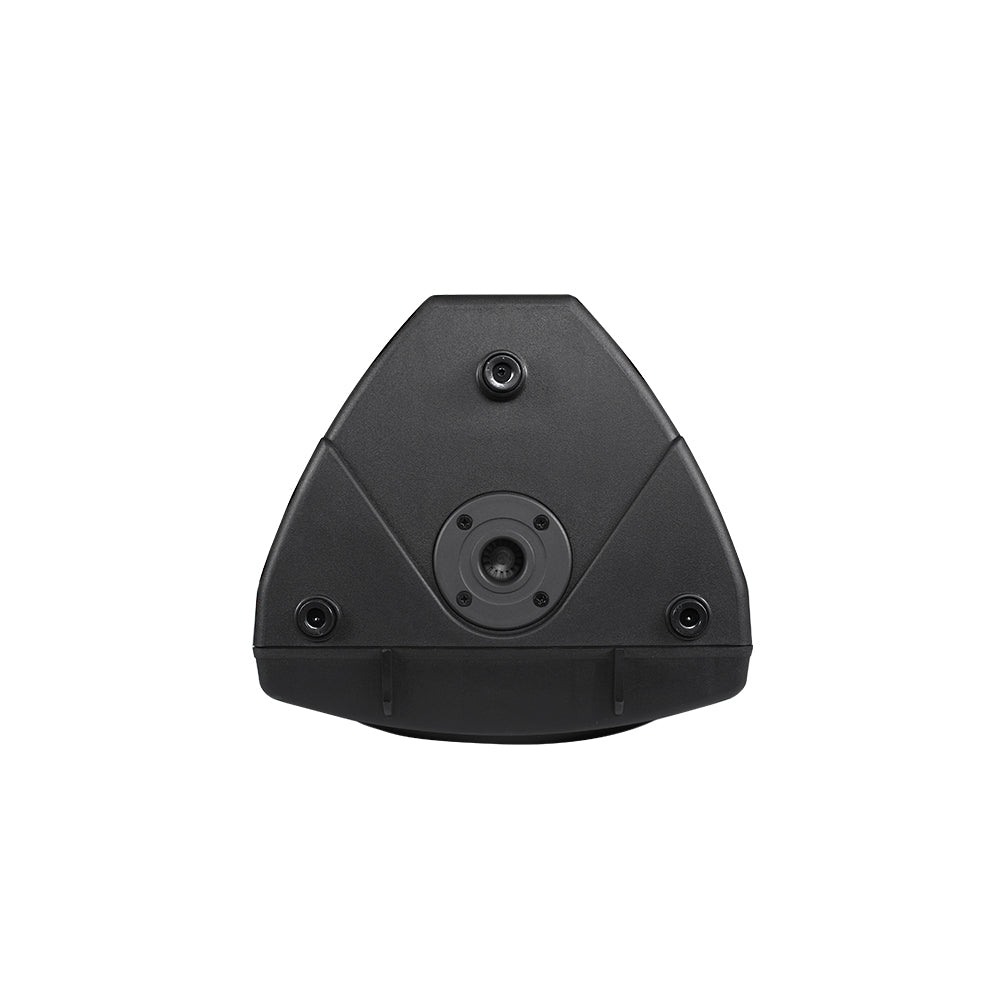

8 × M8 Hanging Points, SMART Pole Mount System

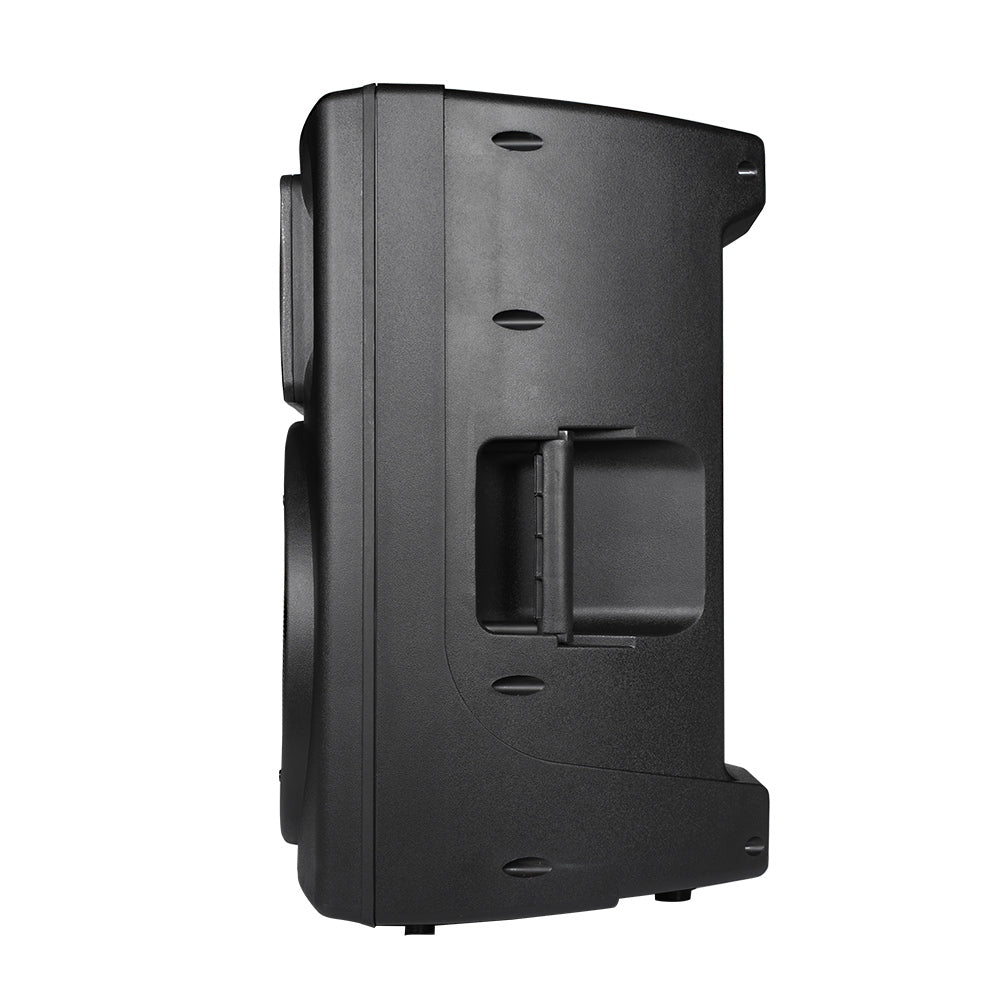

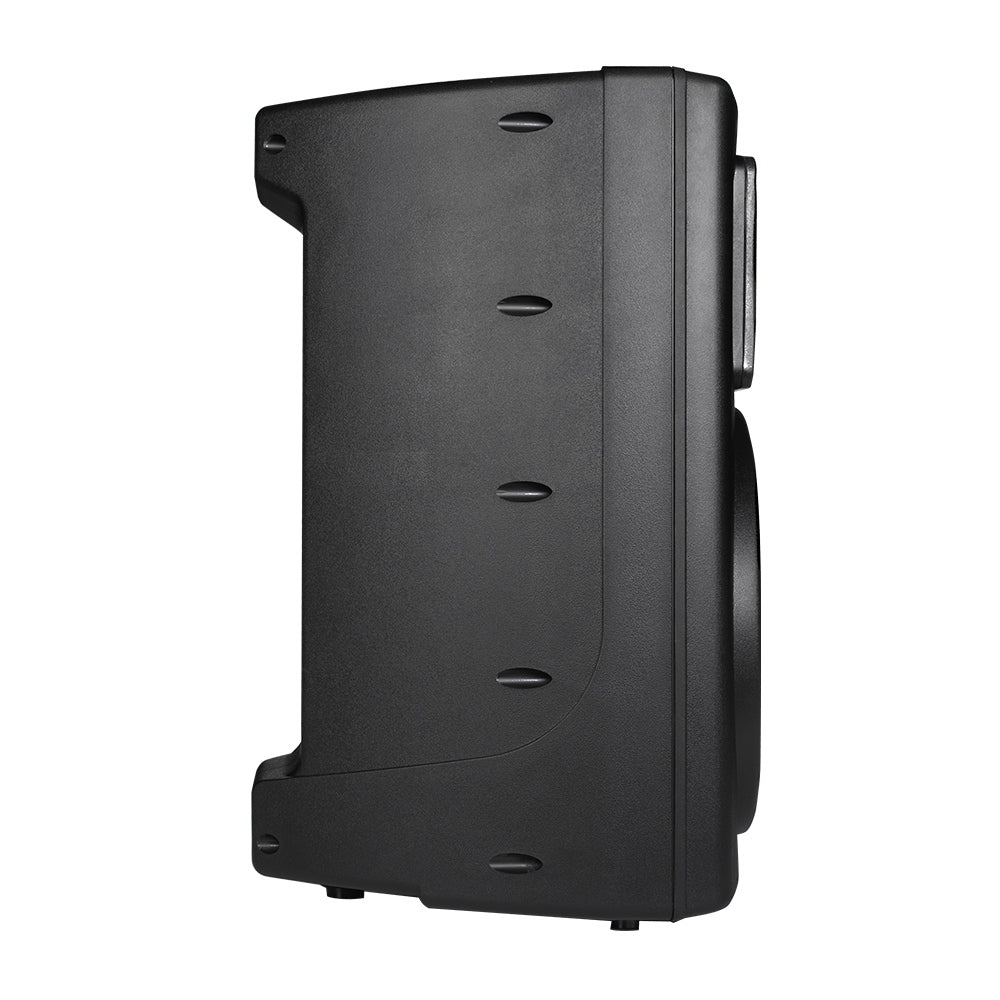

Handles

Two Side, One Rear

Grille

Powder Coated Grille

Color

Black

Size

Dimensions (W × D × H)

485 × 460 × 700 mm (19.1 × 18.1 × 27.6 in)

Package Dimensions (W × D × H)

545 × 515 × 800 mm (21.5 × 20.3 × 31.5 in)

Weight

Net Weight

30.5 kg (67.2 lb)

Gross Weight

33.7 kg (74.3 lb)
