Key Specifications

Product / Accessory Type

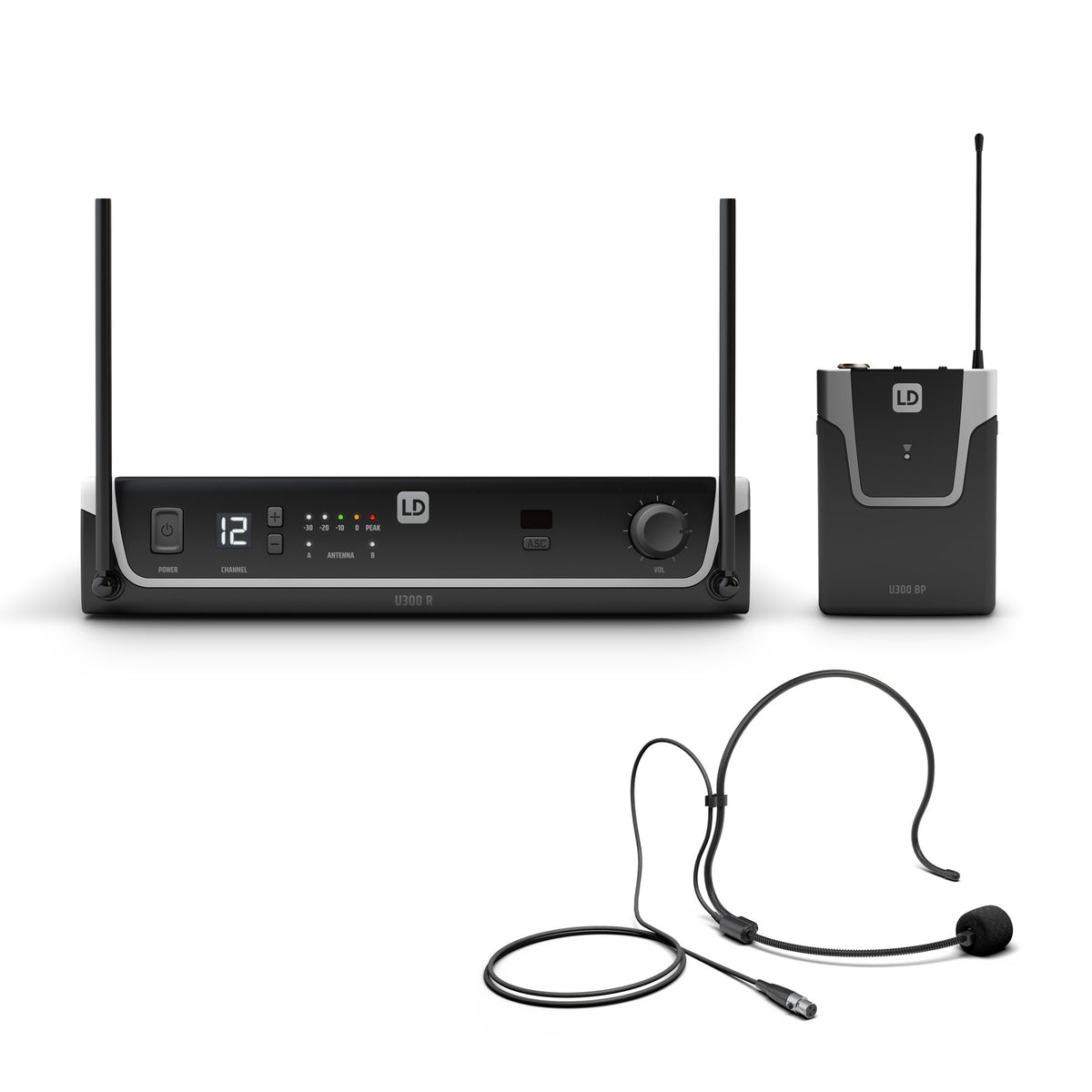

Wireless Bodypack & Headset Microphone System (Receiver, Transmitter & Headset Set)

Scope of Delivery / Included Package

1x Wireless Desktop Receiver (U306 R), 1x Wireless Bodypack Transmitter (U306 BP), 1x Headset Microphone (WS 100 MH 1)

Wireless Operating Frequency Range

655 MHz to 679 MHz

Overall System Frequency Response

25 Hz to 16,000 Hz (±0.5 dB, rel. Avg)

Overall System Net Weight

0.85 kg (1.87 lbs)

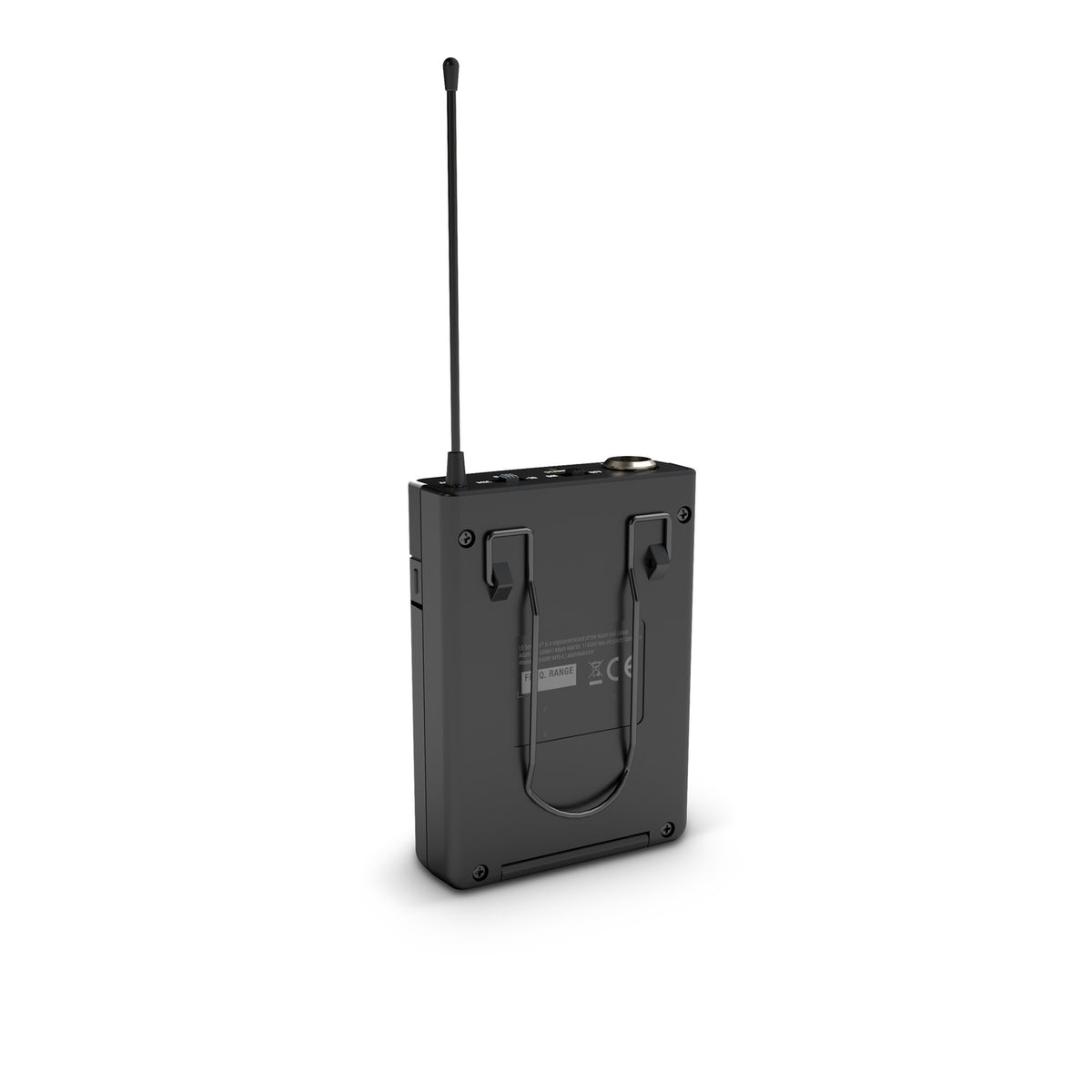

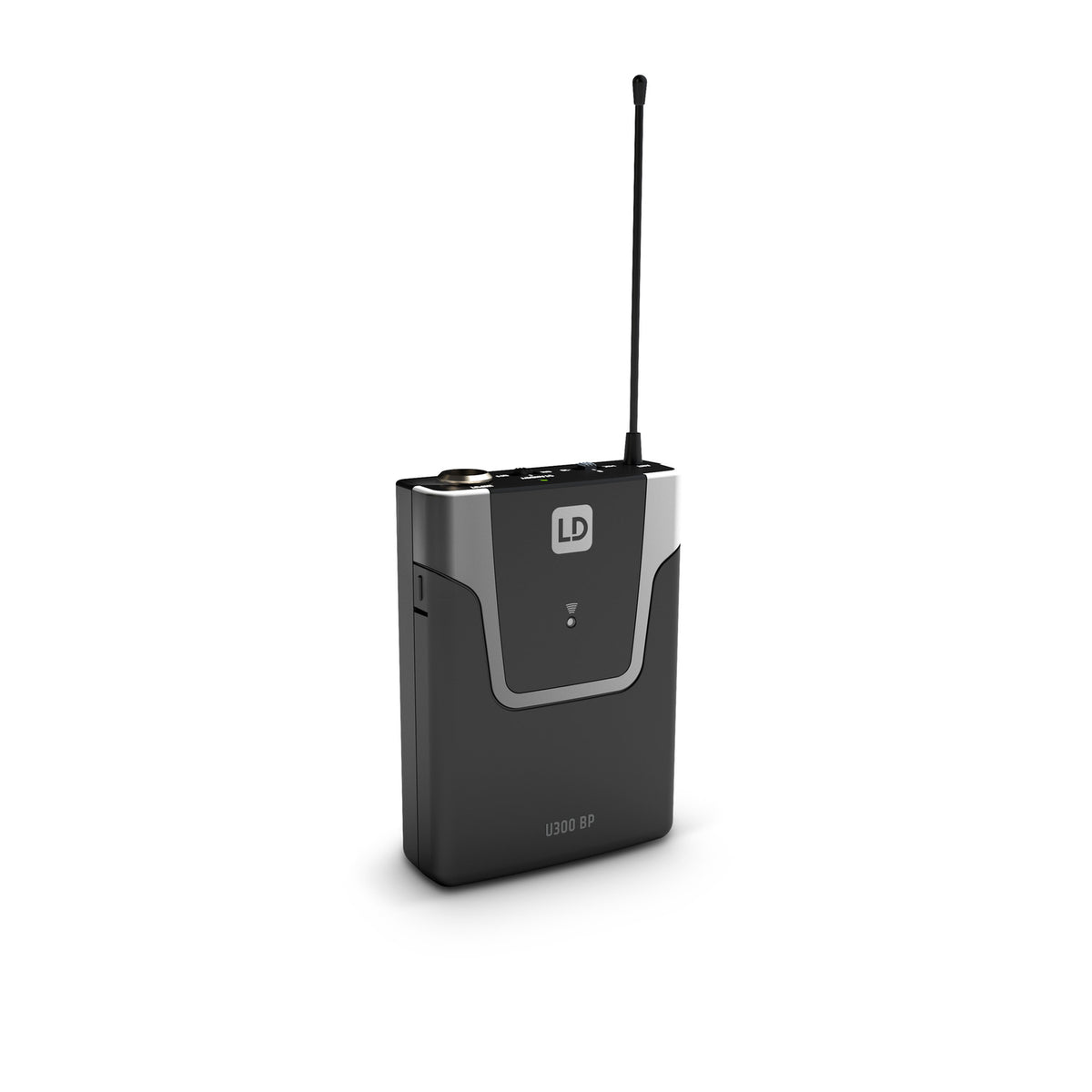

Bodypack Transmitter Specifications (U306 BP)

Enclosure Material & Finish

Durable Plastic Housing (Black Finish with Silver Accent)

Transmitter Frequency Response

25 Hz to 16,000 Hz (-6 dB, rel. Avg)

Radio Transmission & Power

1 Channel Group, 12 Selectable Channels; 10 mW RF Output Power (IR Sync Not Supported)

Antenna System

1x Fixed Antenna

Audio Input & Signal Selection

1x Mini-XLR Male Input Connector;
Selectable Modes: Balanced, Instrument, Dynamic Mic, Condenser Mic (Phantom Powered)

Input Pad Settings

Selectable Attenuation: 0 dB, 10 dB, Mic Level

Signal Processing & Audio Quality

Signal-to-Noise Ratio (SNR): > 104 dB

Battery Operation & Runtime

2x 1.5 V AA / LR6 Batteries (Up to 10 Hours Operating Time);
Integrated Battery Tester Indicator

Environmental Operating Limits

Ambient Temperature: 5 °C to 40 °C (41 °F to 104 °F);
Max Air Humidity: 80% (Non-Condensing)

Transmitter Dimensions (W×H×D)

65 mm x 91 mm x 25 mm (2.56" x 3.58" x 0.98")

Transmitter Net Weight

0.085 kg (0.19 lbs)

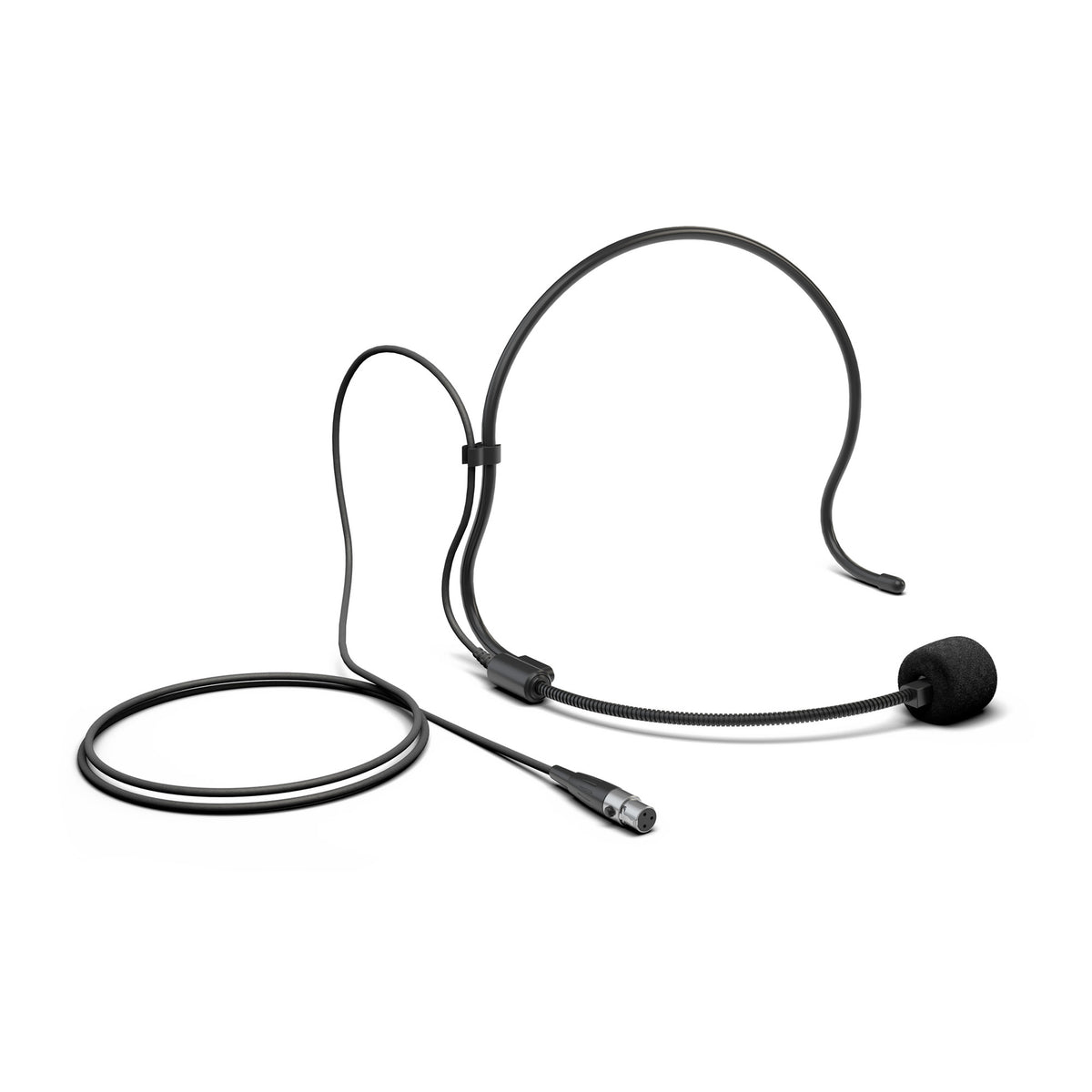

Headset Microphone Specifications (WS 100 MH 1)

Capsule Type & Directivity

Condenser Capsule, Cardioid Polar Pattern

Microphone Frequency Response

100 Hz to 12,000 Hz (-6 dB, rel. Avg)

Sensitivity & Nominal Impedance

6.31 mV/Pa; 680 Ohms

Powering & Cable Connection

5 V Phantom Power Requirement; 1.00 m (3.28 ft) Cable with Mini-XLR Female Connector

Construction Material & Color

ABS Housing; Black Finish

Microphone Weight

0.049 kg (0.11 lbs / 1.73 oz)

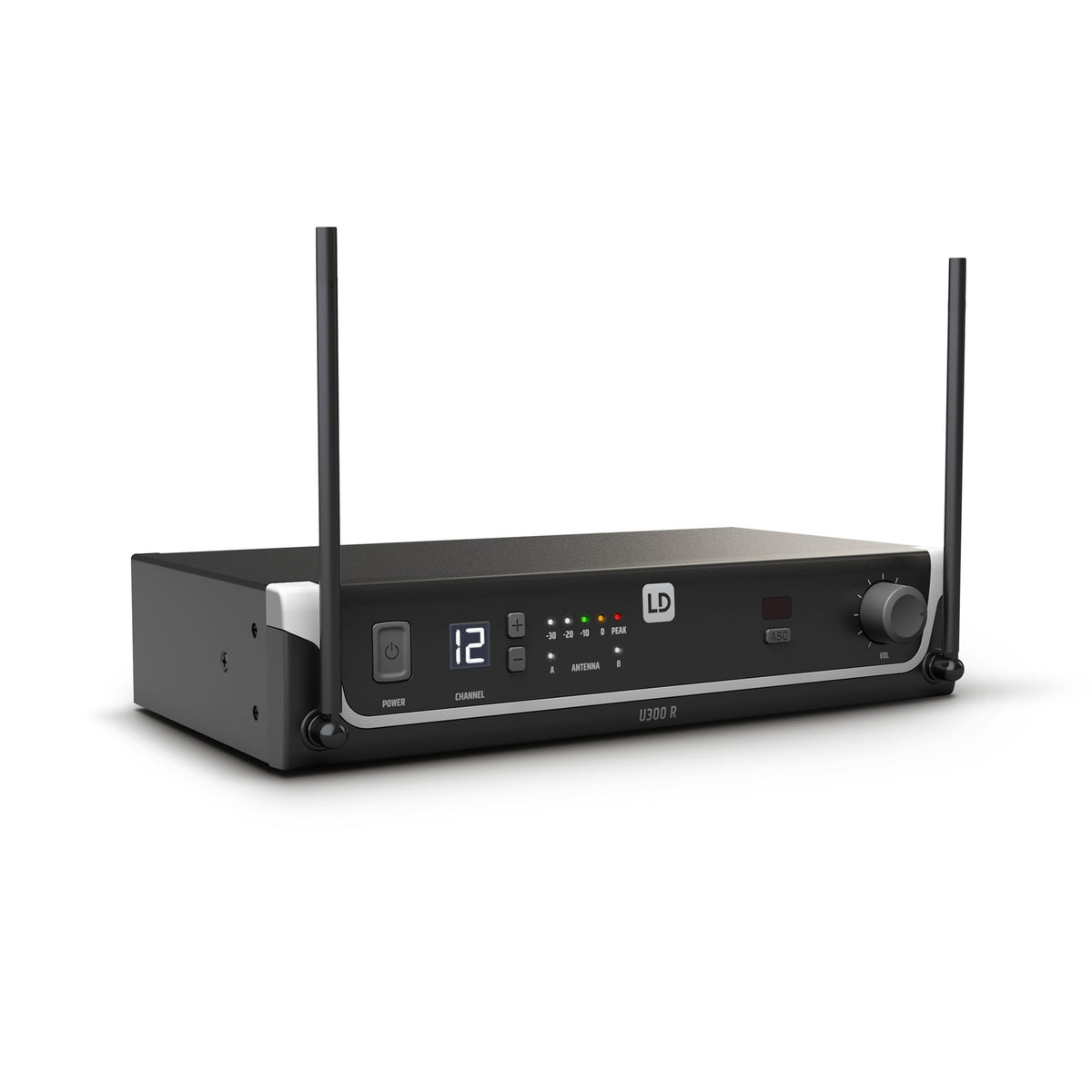

Receiver Specifications (U306 R)

Form Factor & Construction Material

1U Half-Rack / 9.5" Rackmountable; Powder-Coated Steel Sheet Housing

Receiver Frequency Response

25 Hz to 16,000 Hz (-6 dB, rel. Avg)

RF Sensitivity & Antennas

10 dBµV Sensitivity; 2x Fixed Antennas

Channel Capacity

1 Channel Group, 12 Selectable Channels

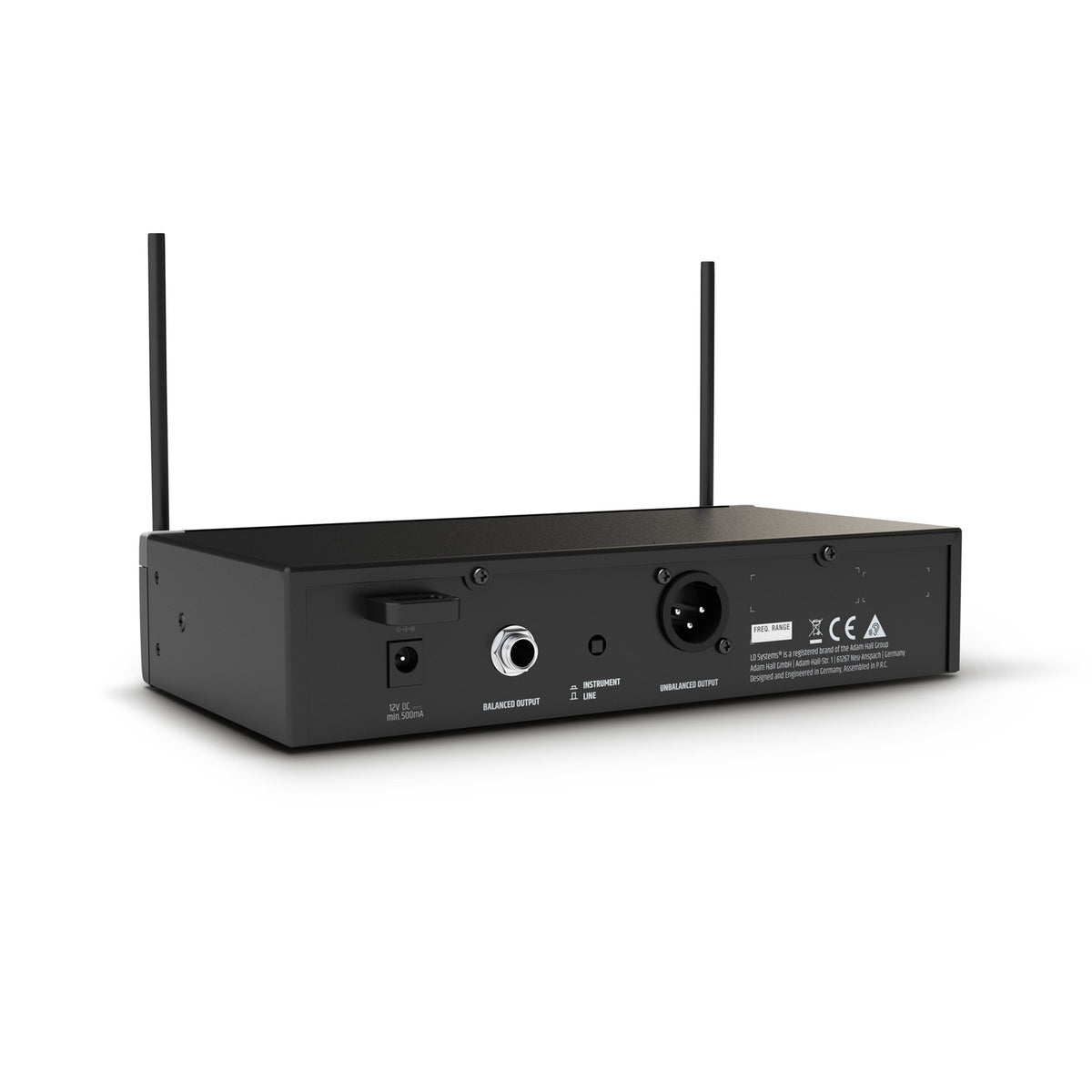

Audio Line Outputs

2x Line Outputs: 1x Balanced XLR 3-Pin Male, 1x Unbalanced 1/4" (6.3 mm) TRS Female Jack

Signal Processing & Audio Quality

THD+N: < 0.3% (1 kHz, +4 dBu, Unity, Unweighted)

Operating Voltage

12 V DC to 18 V DC (External Power Supply Included)

Receiver Dimensions (W×H×D)

211 mm x 43 mm x 120 mm (8.31" x 1.69" x 4.72")

Receiver Net Weight

0.70 kg (1.54 lbs)
