Key Specifications

Product / Accessory Type

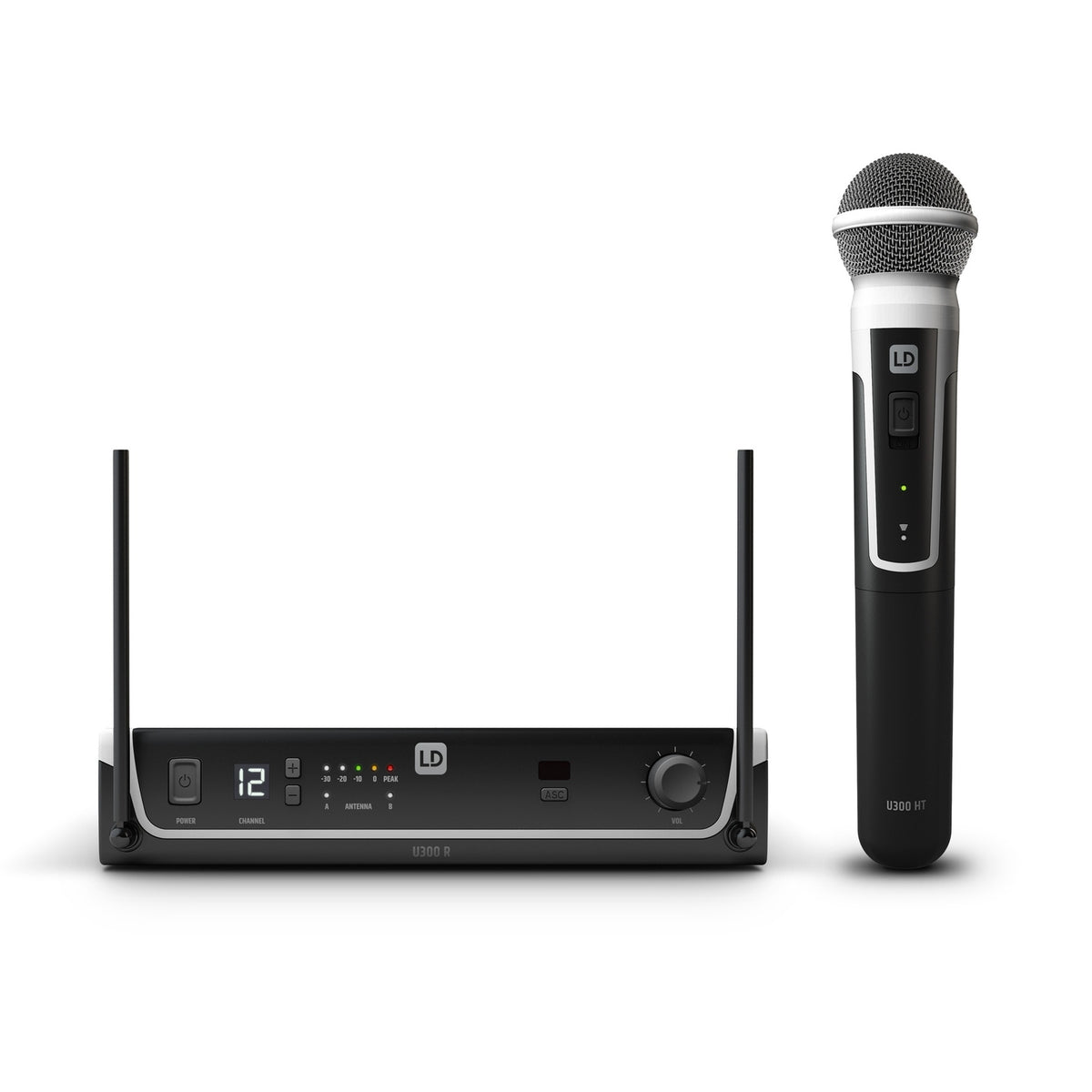

Wireless Handheld Microphone System (Receiver & Transmitter Set)

Scope of Delivery / Included Package

1x Wireless Desktop Receiver (U306 R), 1x Handheld Dynamic Microphone Transmitter (U306 MD)

Wireless Operating Frequency Range

655 MHz to 679 MHz

Overall System Frequency Response

25 Hz to 16,000 Hz (±0.5 dB, rel. Avg)

Overall System Net Weight

0.94 kg (2.07 lbs)

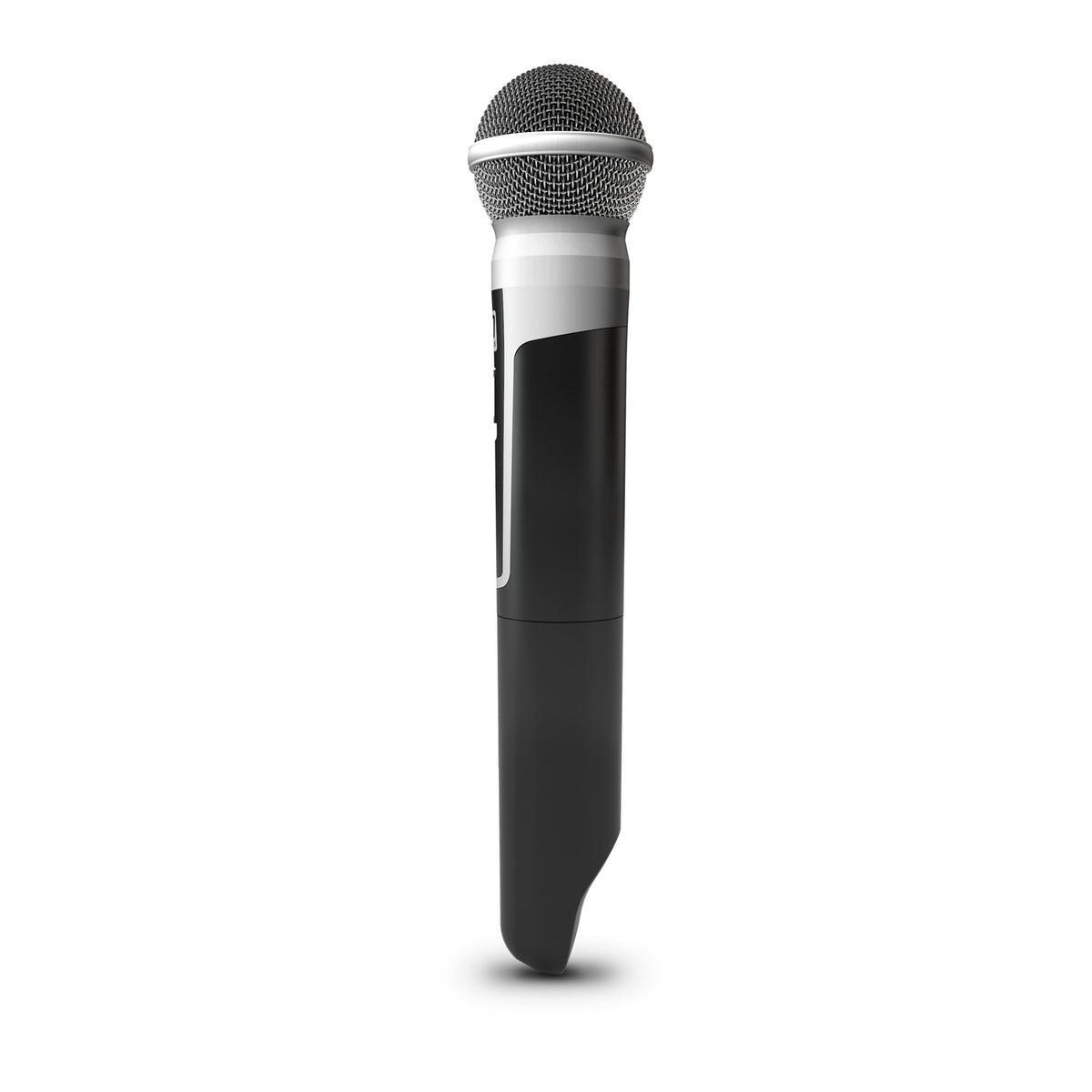

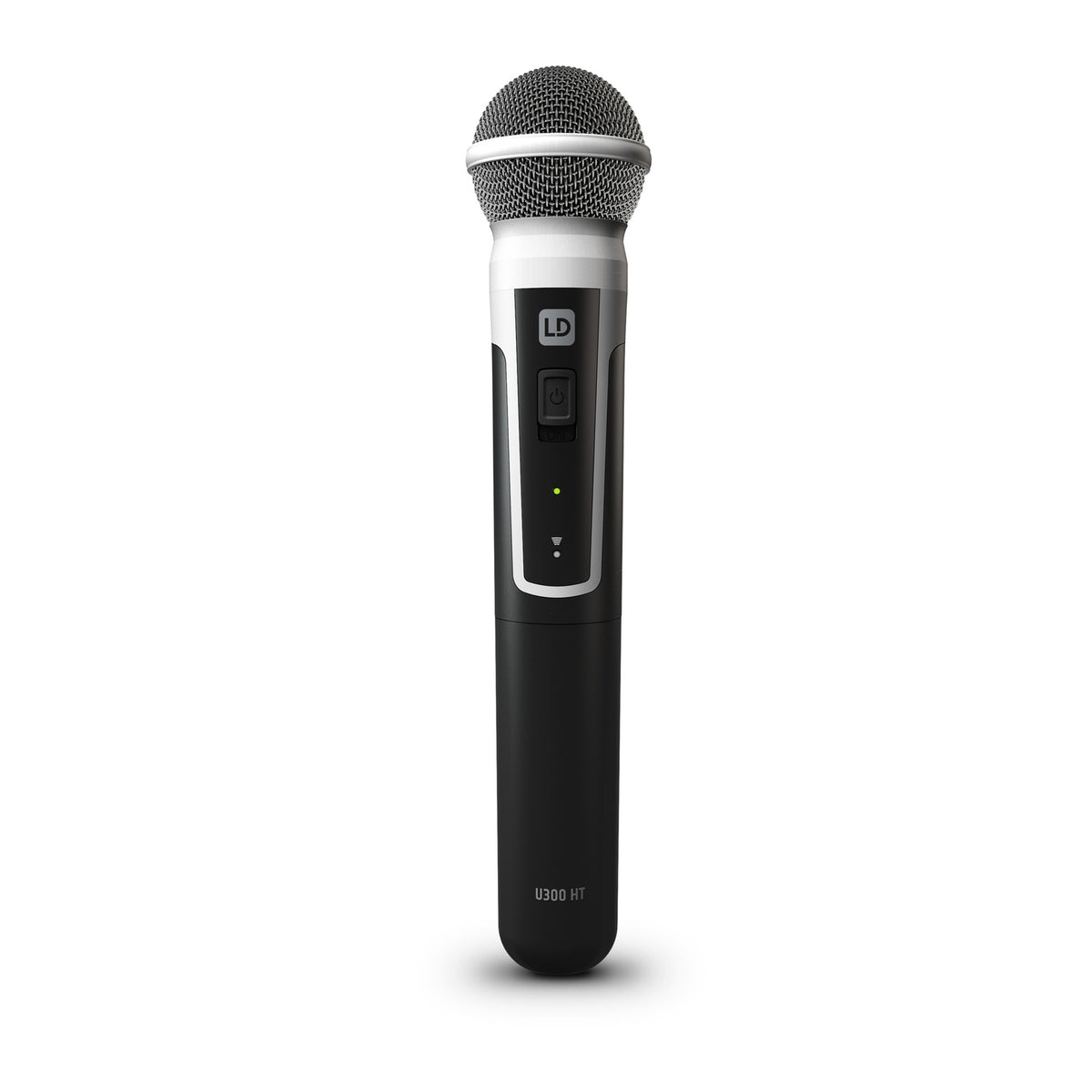

Handheld Transmitter Specifications (U306 MD)

Microphone Capsule Type & Directivity

Dynamic Capsule, Cardioid Polar Pattern

Enclosure Material & Finish

Continuous Cast Aluminum Housing (Black Finish with Silver Accent)

Transmitter Frequency Response

55 Hz to 16,000 Hz (-10 dB, rel. Avg)

Radio Transmission & Channels

1 Channel Group, 12 Selectable Channels (IR Sync Not Supported)

Battery Operation & Runtime

2x 1.5 V AA / LR6 Batteries (Up to 10 Hours Operating Time)

Transmitter Dimensions (L×Ø)

257 mm x 50 mm Diameter (10.12" x 1.97" Diameter)

Transmitter Net Weight

0.235 kg (0.52 lbs)

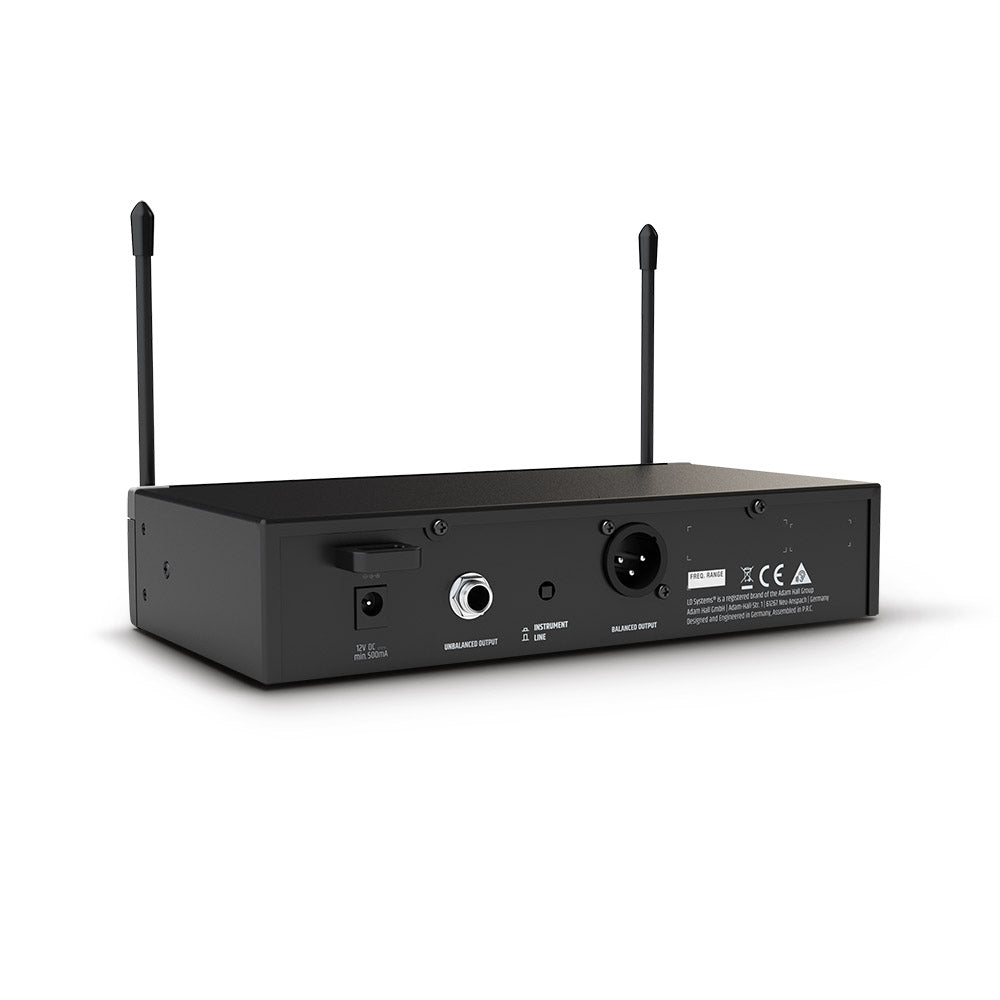

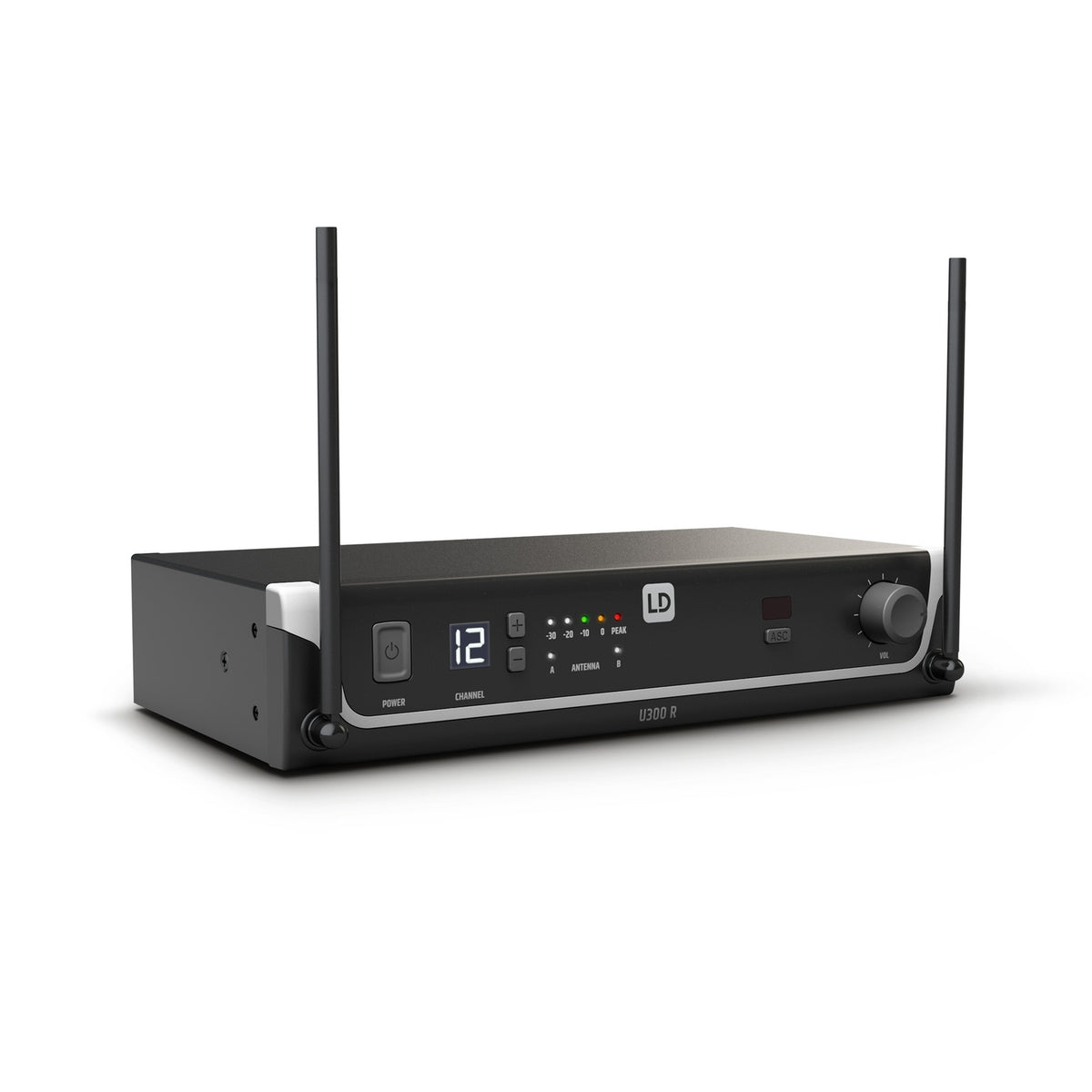

Receiver Specifications (U306 R)

Form Factor & Construction Material

1U Half-Rack / 9.5" Rackmountable; Powder-Coated Steel Sheet Housing

Receiver Frequency Response

25 Hz to 16,000 Hz (-6 dB, rel. Avg)

RF Sensitivity & Antennas

10 dBµV Sensitivity; 2x Fixed Antennas

Channel Capacity

1 Channel Group, 12 Selectable Channels

Audio Line Outputs

2x Line Outputs: 1x Balanced XLR 3-Pin Male, 1x Unbalanced 1/4" (6.3 mm) TRS Female Jack

Signal Processing & Audio Quality

THD+N: < 0.3% (1 kHz, +4 dBu, Unity, Unweighted)

Operating Voltage

12 V DC to 18 V DC (External Power Supply Included)

Receiver Dimensions (W×H×D)

211 mm x 43 mm x 120 mm (8.31" x 1.69" x 4.72")

Receiver Net Weight

0.70 kg (1.54 lbs)
