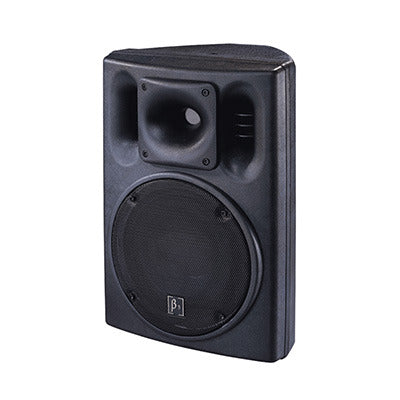

U8

High output SPL and sensitivity
1 x 8” high power transducer with 50mm voice coil
1 x 1.3” diaphragm compression driver
90º x 60º controlled coverage pattern
Rotatable Horn
Heavy duty protective grill
Injection molded
1 x NL4 connector
Cabinet design for FOH and Monitor use
Suitable for use as a main system with or without sub speaker augmentation
Portable system (stand), or permanent installation (wall, ceiling, under balcony)

BETATHREE

₱8,000.00 VAT INC.

₱8,000.00

UNIT: PIECE/S

Product Code: SKU:BETA3-U8-CHN-7394

High output SPL and sensitivity
1 x 8” high power transducer with 50mm voice coil
1 x 1.3” diaphragm compression driver
90º x 60º controlled coverage pattern
Rotatable Horn
Heavy duty protective grill
Injection molded
1 x NL4 connector
Cabinet design for FOH and Monitor use
Suitable for use as a main system with or without sub speaker augmentation
Portable system (stand), or permanent installation (wall, ceiling, under balcony)

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

BETATHREE U8

Key Specifications
Construction	Plastic
Transducers	1 × 1.3" HF + 1 × 8" LF
Frequency Response (-3 dB)	65 Hz–18 kHz
Rated Power	100 W (RMS)
Sensitivity (1 W @ 1 m)	92 dB
Maximum SPL (1 W @ 1 m)	111 dB (Peak)
Rated Impedance	8 Ω
Dispersion (H × V)	90° × 60°
Connector	1 × NL4
Physical Properties
Dimensions (W × D × H)	277 mm (10.9") × 257 mm (10.1") × 400 mm (15.7")
Packaging Dimensions (1 Pair/Pack)	595 mm (23.4") × 310 mm (12.2") × 600 mm (23.6")
Net Weight (1 Piece/Pack)	6.5 kg (14.3 lb)
Gross Weight (1 Pair/Pack)	15 kg (33.1 lb)
