Key Specifications

Image Sensor

1/2.8" CMOS Sensor

Effective Resolution

8.51 Megapixels

Shutter Speed

1/20000 to 1/25 Second

Optical Zoom

12x Optical Zoom

Digital Zoom

15x Digital Zoom

Broadcast Output

NTSC / PAL

Wireless Control

IR Remote

PoE Support

PoE 802.3af Supported

Mounting

1 x 1/4"-20 Female Thread

Imaging

Sensor Type

1/2.8" CMOS

Focus Control

Auto Focus / Manual Focus

Signal-to-Noise Ratio

50 dB

Minimum Illumination

0.5 Lux

White Balance

Auto, Manual, One Push

Lens

Field of View

Horizontal: 70.9° to 6.5°

Maximum Aperture

f/1.6 to f/2.8

Video Output

HDMI Output

Up to UHD 4K (3840 x 2160) at 25/30 fps
1080p at 25/29.97/30 fps

SDI Output

1080p at 25/29.97/30 fps

USB Output

Up to 3840 x 1920 at 30 fps
Supports multiple resolutions from 320 x 240 up to 3840 x 1920

Internal Recording

No

Audio Recording

AAC Audio / G.711 Audio

Control

Preset Positions

255 via IP / 10 via IR

Pan Range

340° (-170° to 170°) at 0.1 to 60°/s

Tilt Range

120° (-30° to 90°) at 0.1 to 30°/s

Tally Light

Yes

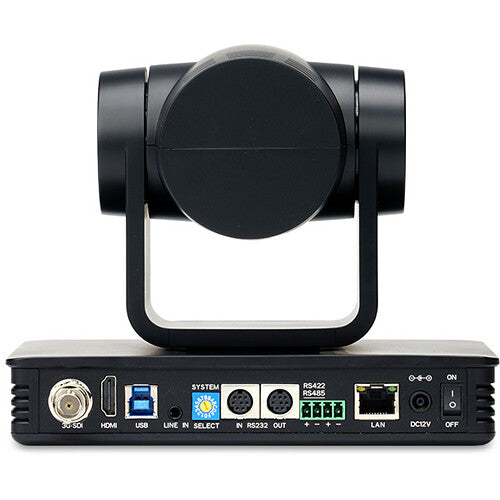

Interface

Video Outputs

1 x 3G-SDI (BNC)
1 x HDMI
1 x USB-B 3.0
1 x RJ45 LAN

Audio Input

1 x 3.5 mm TRS Stereo Line Input

Control Interfaces

RS-232 Input / Output
RS-422 / RS-485 Control Input

Built-in Microphone

No

Power

Power Input

12V DC Barrel Input (12VDC at 1A)

Power Consumption

12 W

Environmental

Operating Conditions

14 to 122°F (-10 to 50°C) at 20 to 80% Humidity

Storage Conditions

14 to 158°F (-10 to 70°C) at 20 to 95% Humidity

Physical Properties

Dimensions

7.1 x 4.5 x 5.9 in. (181 x 115 x 149 mm)

Weight

2.6 lb (1.2 kg) Body Only
