Key Specifications

Max I/O Capacity

16x Input / 4x Output

Number of Analog Input Channels

16 (12 Mono / 0 Stereo)

Number of Mic Preamps

8

Number of Analog Output Channels

4

Faders & Level Adjustment

2 Knob

Built-In Effects

No

Analog Inputs

1x Stereo RCA Stereo Line Input (1 Stereo Pair)
6x Combo XLR-1/4" Mic/Line Input
2x Combo XLR-1/4" Mic/Line/Hi-Z Input
4x XLR Mic Input

Analog Outputs

2x 1/4" Headphone Output
2x XLR Main Output
2x 1/4" Main Output
4x XLR Aux Send

Digital I/O

1x RJ45 (Control)

USB I/O

1x USB-A (Audio Playback, Recording)

Wireless

Wi-Fi

Rack Mountable

Yes

Mixer

Max I/O Capacity

16x Input / 4x Output

Number of Analog Input Channels

16 (12 Mono / 0 Stereo)

Number of Mic Preamps

8

Number of Analog Output Channels

4

Mix Routing

1x Subgroup

Groups

1x Subgroup
1x Mute Group

Presets

No

Faders & Level Adjustment

2 Knob

Signal Processing

Gain / Trim Range

Line/Mic: -40 dB to +50 dB
Main: +23 dBu

Dynamic Processing

Compressor

EQ

4-Band EQ

EQ Parameters

Notch: ±20 dB at 20 Hz to 22 kHz, 0.5 to 15 Q

Filters

High-Pass: 20 Hz to 1 kHz

Solo / Mute

Solo, Mute per Input Channel

Built-In Effects

No

Audio Delay

No

Automatic Mic Mixing

Yes

Digital Audio

Bit Depth

16 / 24 / 32-Bit

Performance

Frequency Response

20 Hz to 20 kHz

Headphone Output Power

500 mW

I/O Impedance

Mic Input: 10 Kilohms
Line Input: 10 Kilohms
Hi-Z Input: 250 Kilohms
Output: 100 Ohms

Signal Generator

No

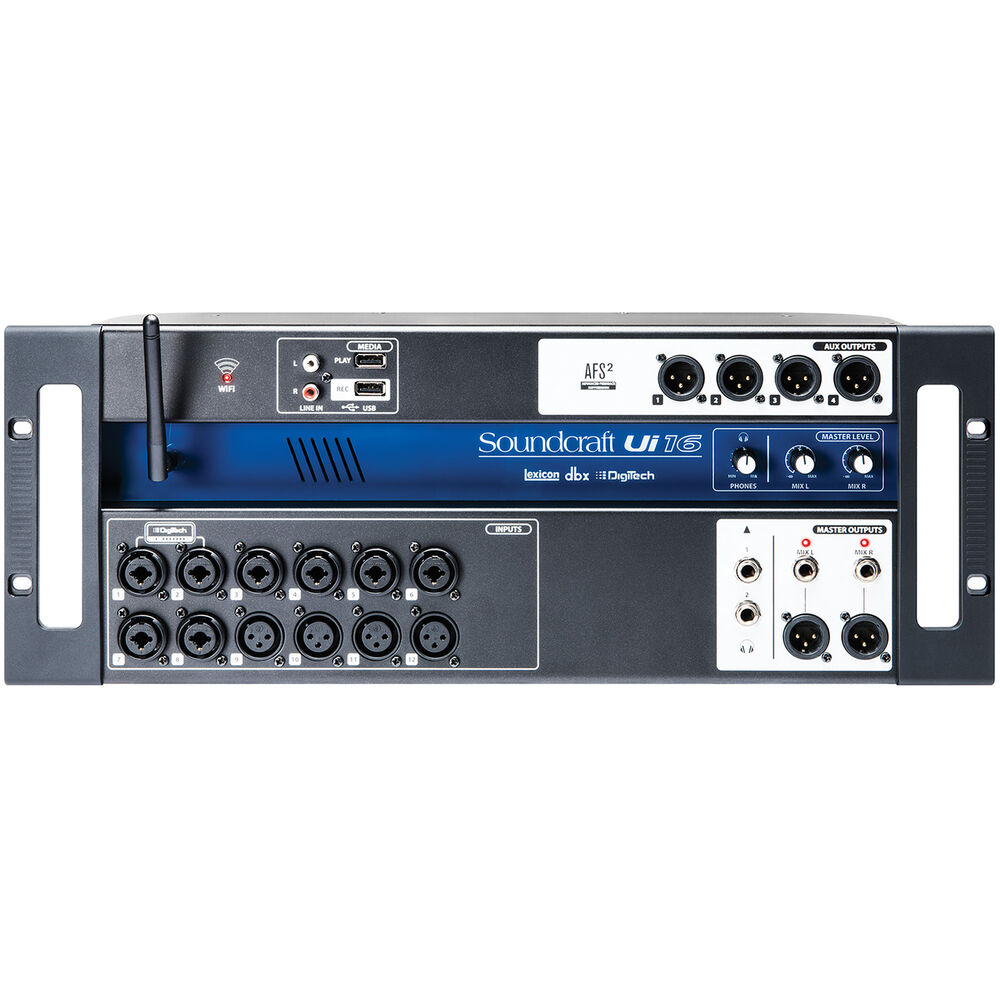

Connectivity

Analog Inputs

1x Stereo RCA Stereo Line Input (1 Stereo Pair)
6x Combo XLR-1/4" Mic/Line Input
2x Combo XLR-1/4" Mic/Line/Hi-Z Input
4x XLR Mic Input

Analog Outputs

2x 1/4" TRS Headphone Output
2x XLR Main Output
2x 1/4" Main Output
4x XLR Balanced Aux Send

Phantom Power

+48 V

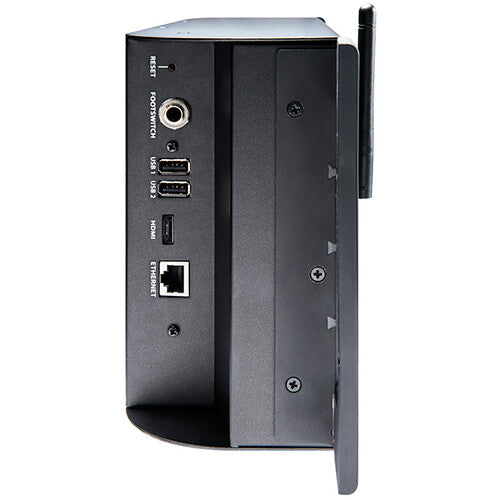

Digital I/O

1x RJ45 (Control)

MIDI I/O

No

USB I/O

1x USB-A (Audio Playback, Recording)

Wireless

Wi-Fi

External Display I/O

HDMI

Recording

Max Multitrack Recording

12 Tracks

Compatibility

OS Compatibility

Computer: Windows / macOS / Linux
Mobile: Android / iPadOS

Mobile Device Compatibility

iPad
Android Tablet

Power

Input Power

88 to 265 VAC, 50 / 60 Hz

Physical

Rack Mountable

Yes

Rackmount Size

4 U

Dimensions

4.3 x 7 x 19" / 110 x 177 x 483 mm

Weight

7.9 lb / 3.6 kg

Packaging Info

Package Weight

11.05 lb

Box Dimensions (L × W × H)

22.4 x 10.4 x 7"
