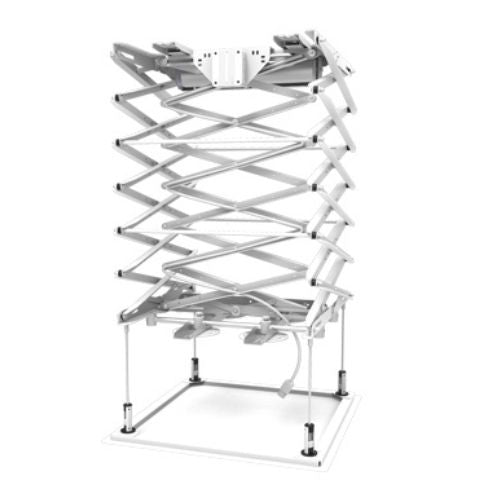

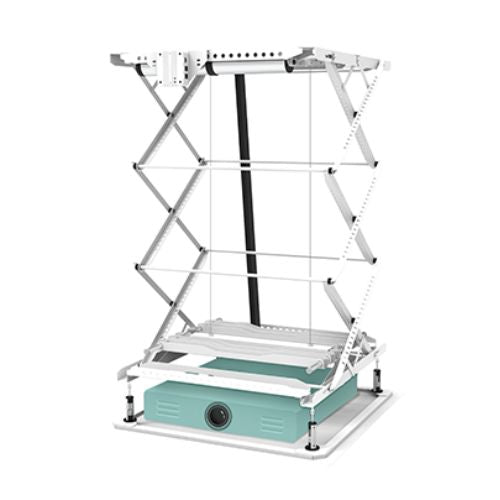

Ultra Thin Projector Lift

PRICE FOR INQUIRY

1 2

Anti-snapping joints design prevents dropping accidents.
The minimal thickness without projector is only 163mm.
The provided AC power cable is ﬁxed on the middle arm with simple wiring and protection.
Max travel distance reaches 4000mm, and the max loading weight is 20kg.

SEEMAX

Price for Inquiry

UNIT: PIECE/S

Product Code: SKU:SEEMX-CM1000X-CHN-8372

Anti-snapping joints design prevents dropping accidents.
The minimal thickness without projector is only 163mm.
The provided AC power cable is ﬁxed on the middle arm with simple wiring and protection.
Max travel distance reaches 4000mm, and the max loading weight is 20kg.

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

SEEMAX Ultra Thin Projector Lift

Key Specifications
CM1000X
Model	CM1000X
Body Thickness	163 mm
Max Travel Distance	1000 mm
Distance from Ceiling to False Ceiling	>436 mm
CM1500X
Model	CM1500X
Body Thickness	185 mm
Max Travel Distance	1500 mm
Distance from Ceiling to False Ceiling	>485 mm
CM2000X
Model	CM2000X
Body Thickness	234 mm
Max Travel Distance	2000 mm
Distance from Ceiling to False Ceiling	>534 mm
Structure Type	Projector Lift
Body Size	580 × 589 mm
Cut-out Size	600 × 600 mm
Maximum Projector Size	500 × 500 mm
Loading Capacity	≤ 20 kg
Suitable Projector Power	200V, <1200W
Built-in Cable	AC Power Cord
Smart Control	RF, RS232, RS485
CM3000X
Model	CM3000X
Body Thickness	281 mm
Max Travel Distance	3000 mm
Distance from Ceiling to False Ceiling	>581 mm
CM4000X
Model	CM4000X
Body Thickness	375 mm
Max Travel Distance	4000 mm
Distance from Ceiling to False Ceiling	>675 mm
