Key Specifications

System Connection

USB-C (Thunderbolt 3)

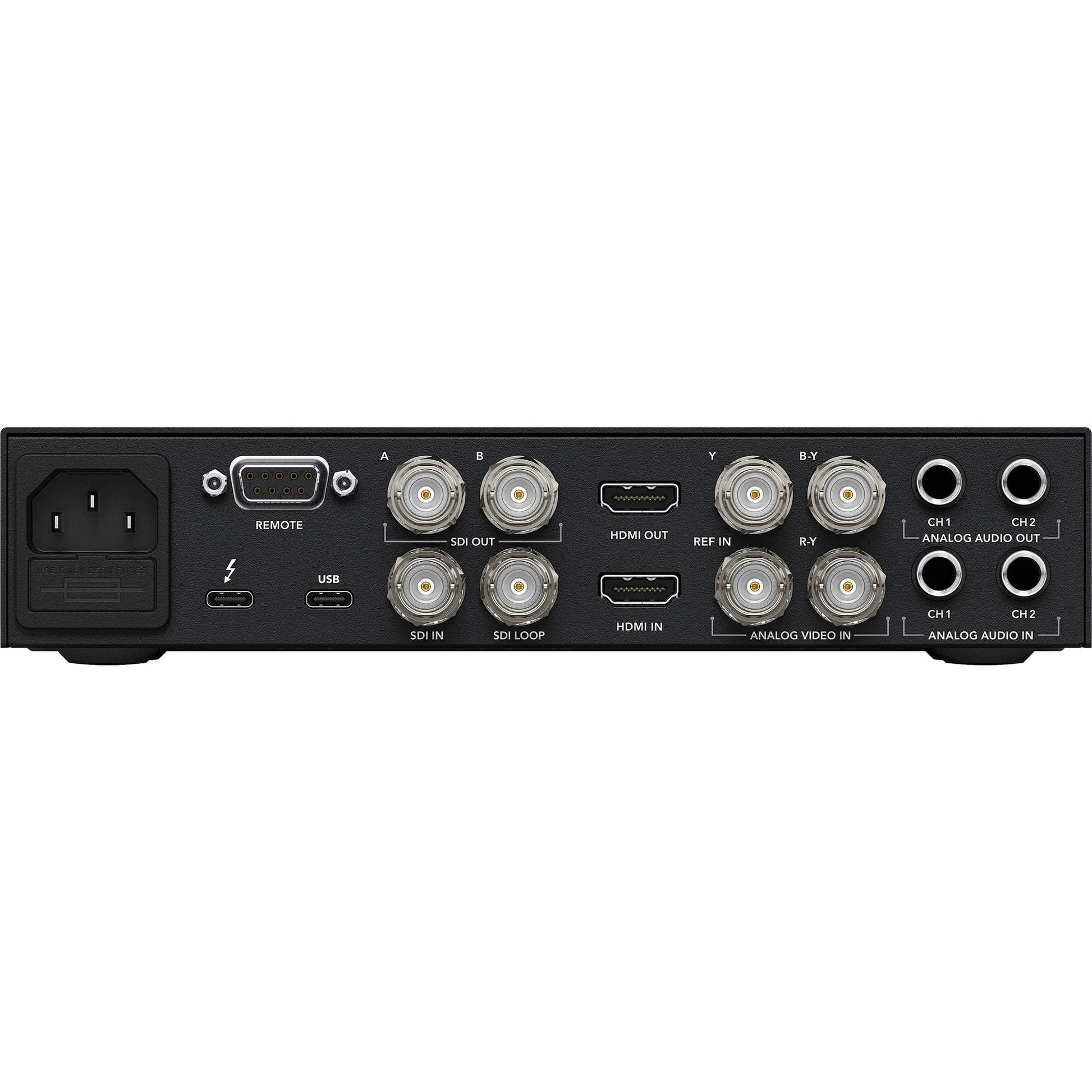

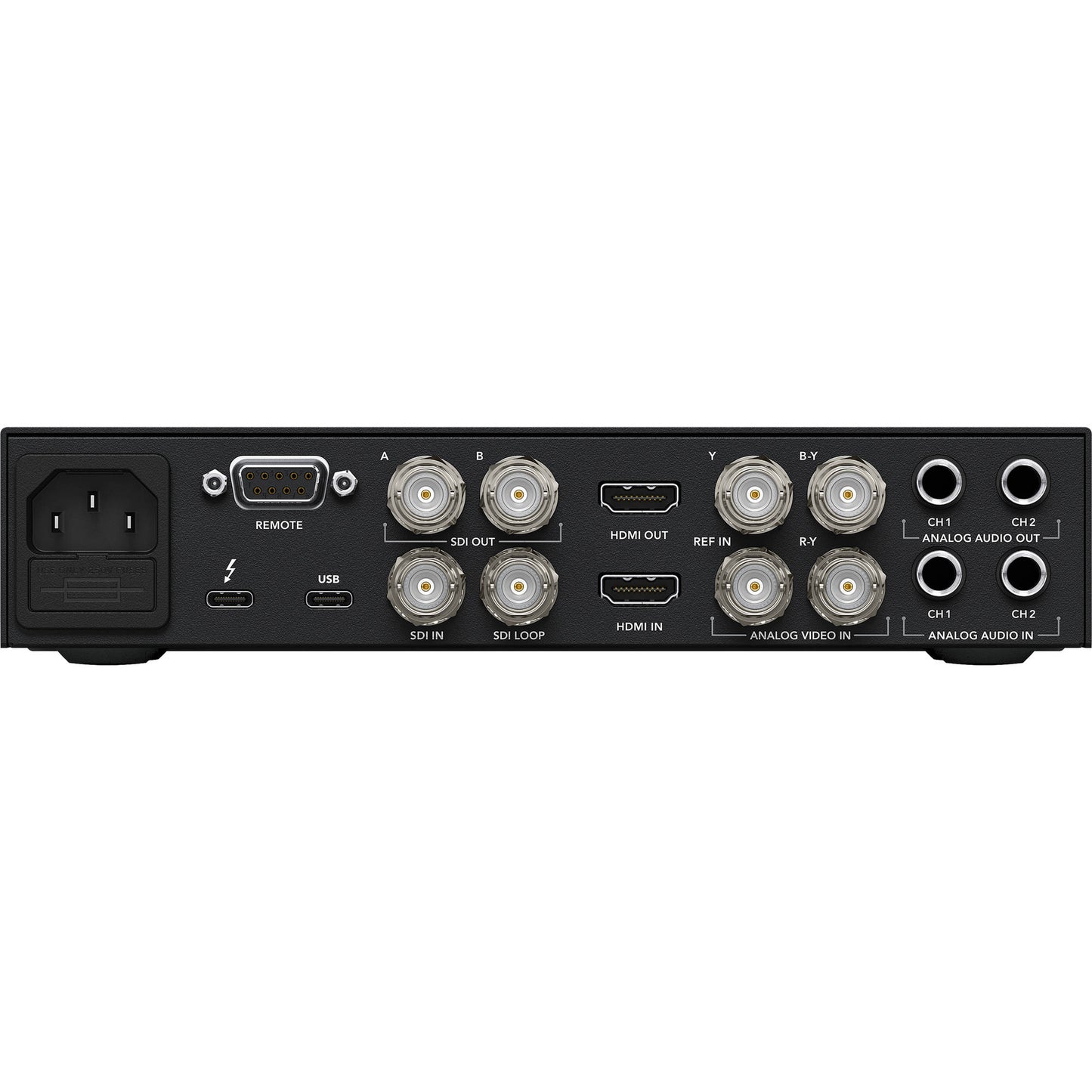

Video I/O

Input:
1x BNC (12G-SDI)
1x HDMI 2.0b
1x 3BNC (Component/Composite)
1x BNC

Output:
2x BNC (Program)
1x BNC (Loop Output)
1x HDMI 2.0b

Audio I/O

Input:
1x XLR 3-Pin
2x 1/4" Balanced TS Analog

Output:
2x 1/4" Balanced TS Analog
1x 1/8" / 3.5 mm TRRS Headphone/Microphone

Other I/O

Input/Output:
1x USB-C 3.0 / 3.1/3.2 Gen 1
1x DE-9/DB-9 (Remote)

Video Resolution (BNC Input)

4096 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps
3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps
2048 x 1080 at 23.98/24/25/29.97/30/50/59.94/60 fps
2048 x 1080PsF at 23.98/24/25/29.97/30 fps
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1920 x 1080PsF at 23.98/24/25/29.97/30 fps
1920 x 1080i at 50/59.94/60 fps
1280 x 720 at 50/59.94/60 fps
720 x 576i at 50 fps
720 x 480i at 59.94 fps

Video Resolution (HDMI Input)

4096 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps
3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1920 x 1080i at 50/59.94/60 fps
1280 x 720 at 50/59.94/60 fps
720 x 576i at 50 fps
720 x 480i at 59.94 fps

Audio Format

Analog, Unspecified Digital Signal Input/Output

Embedded Audio

SDI: 16-Channel
HDMI: 8-Channel

HDR Support

Yes: HDR10/Hybrid Log Gamma

Broadcast System Compatibility

NTSC, PAL

Media / Memory Card Slot

Slot 1: SD/SDHC/SDXC (UHS-II)

OS Compatibility

macOS 11.1 to 12.0 or Later
Windows 10 to 11 (64-Bit Only)
Linux

Power I/O

1x USB-C Output
1x IEC C13 Input

Power Consumption

Power Supply: 100 to 240 VAC (75.3 W)

Operating Conditions

41 to 104°F / 5 to 40°C up to 90% Humidity

Storage Conditions

-4 to 113°F / -20 to 45°C up to 90% Humidity

Certifications

FCC, ICES

Dimensions

7 x " / 17.8 x cm

Weight

2.65 lb / 1.2 kg

Package Weight

3.275 lb

Box Dimensions (LxWxH)

11.2 x 8.6 x 3.5"
