Key Specifications

Inputs/Outputs

System Connection

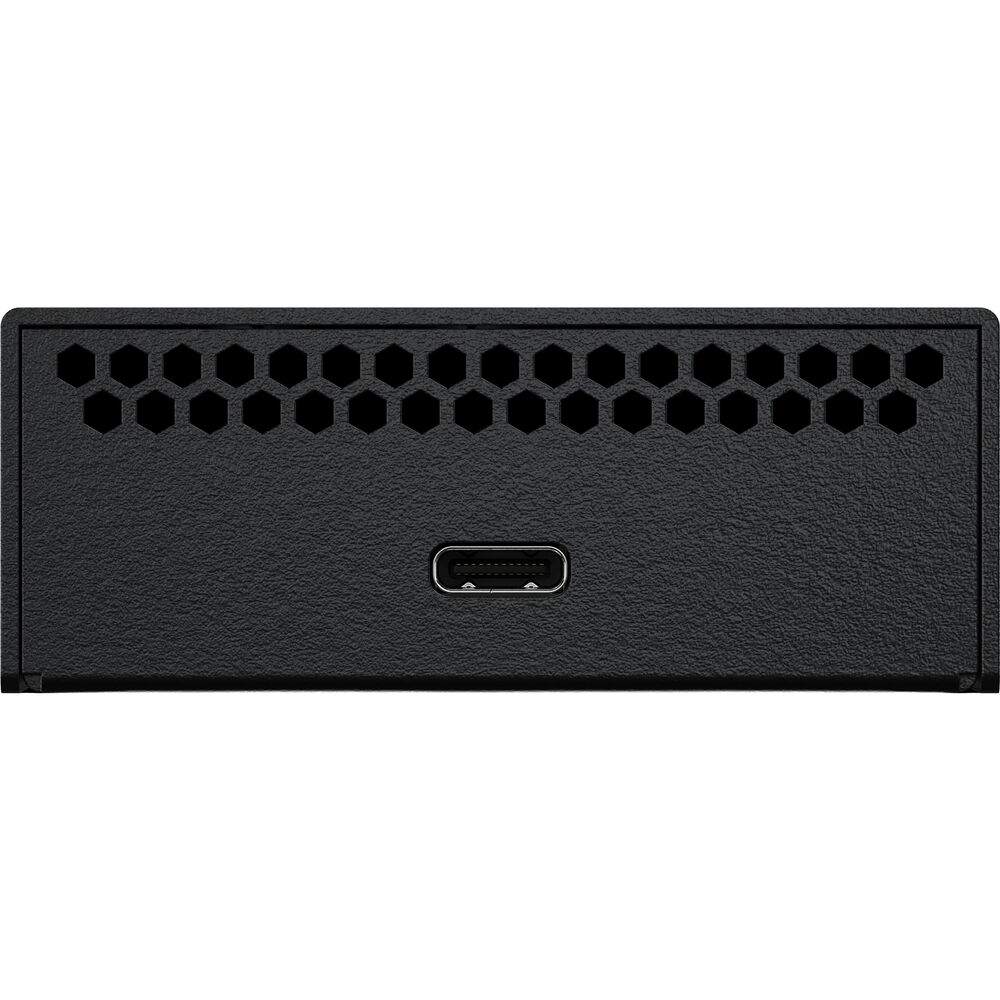

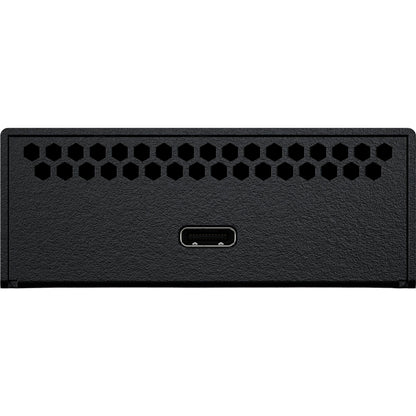

USB-C (Thunderbolt 4)

Video I/O

Output

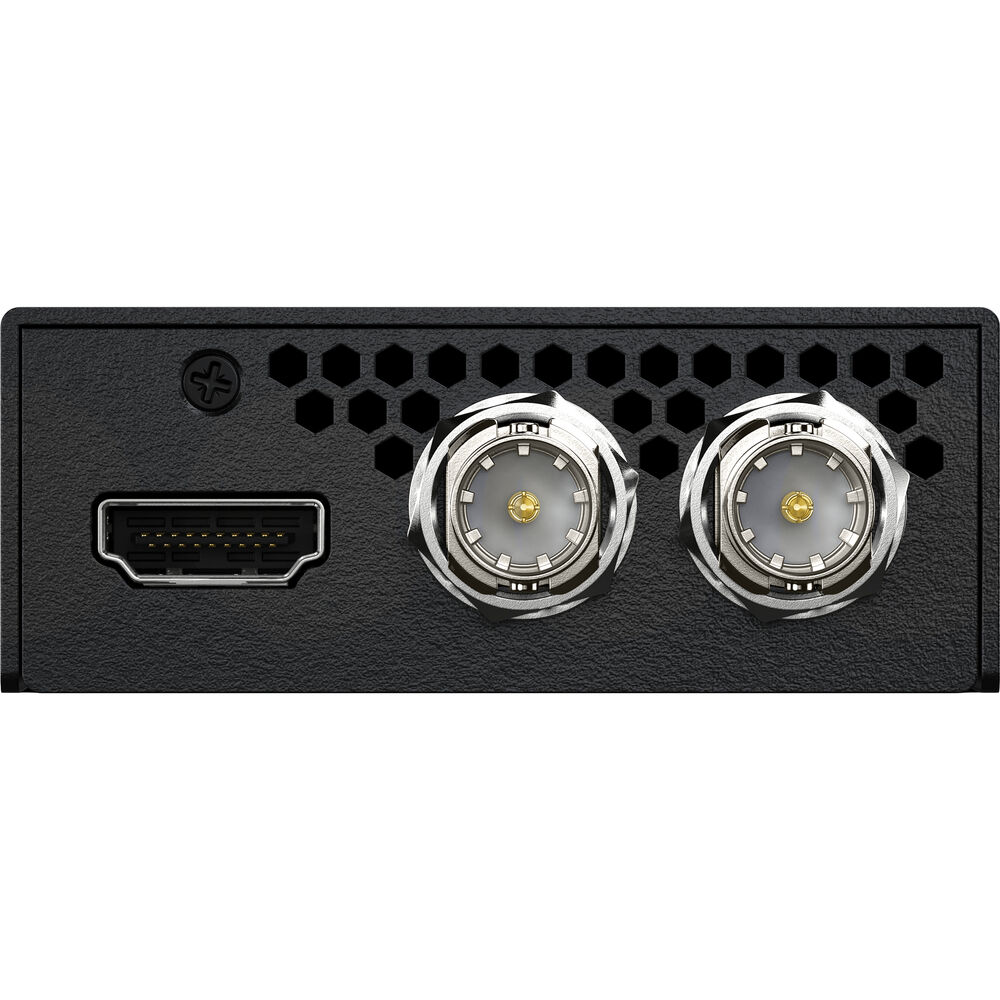

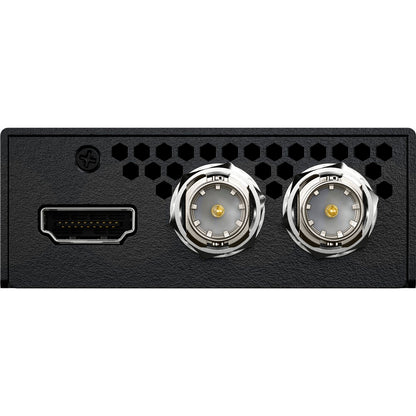

2 × BNC (12G-SDI) Female
1 × BNC (12G-SDI) Female (Fill)
1 × BNC (12G-SDI) Female (Key)
1 × HDMI 2.0 Female

Audio I/O

No

Format Support

Video Resolution

BNC Input/Output (8-Bit 4:2:2 YUV)
1920 × 1080 up to 60 fps

Audio Format

Unspecified Digital Signal Input/Output: 48 kHz / 24-Bit

Embedded Audio

HDMI: 8-Channel

Standards

Broadcast System Compatibility

NTSC, PAL

Hardware

OS Compatibility

macOS 26
Windows 10 to 11 (64-Bit Only)
Linux

Power

Power Consumption

15 W

General

Operating Conditions

32 to 104°F / 0 to 40°C up to 90% Humidity

Storage Conditions

-4 to 113°F / -20 to 45°C up to 90% Humidity

Dimensions

5.83 × 2.6 × 1" / 148.08 × 66 × 25.4 mm

Weight

8.11 oz / 229.92 g

Packaging Info

Package Weight

0.715 lb

Box Dimensions (LxWxH)

7.1 × 4.25 × 1.5"
