Key Specifications

Main Frame Size

EIA standard 1U

Carrier Frequency Range

521.25MHz-936.85MHz

Bandwidth

130MHz

Oscillation

PLL synthesized

Frequency Stability

±0.005%

Sensitivity

5dBu , S/N>60dB at 25KHz deviation

Max. Deviation Range

±45KHz

Operation Range with Line of Sight

Approx. 80 meters

Audio Performance

Audio Sampling Rate

96KHz 24-bit

Audio Expansion

Relacart DSP Digital Audio Extension Algorithm

Frequency Response

80Hz～18KHz ±3dB

S/N

>105dB

T.H.D.

<0.7%@1KHz

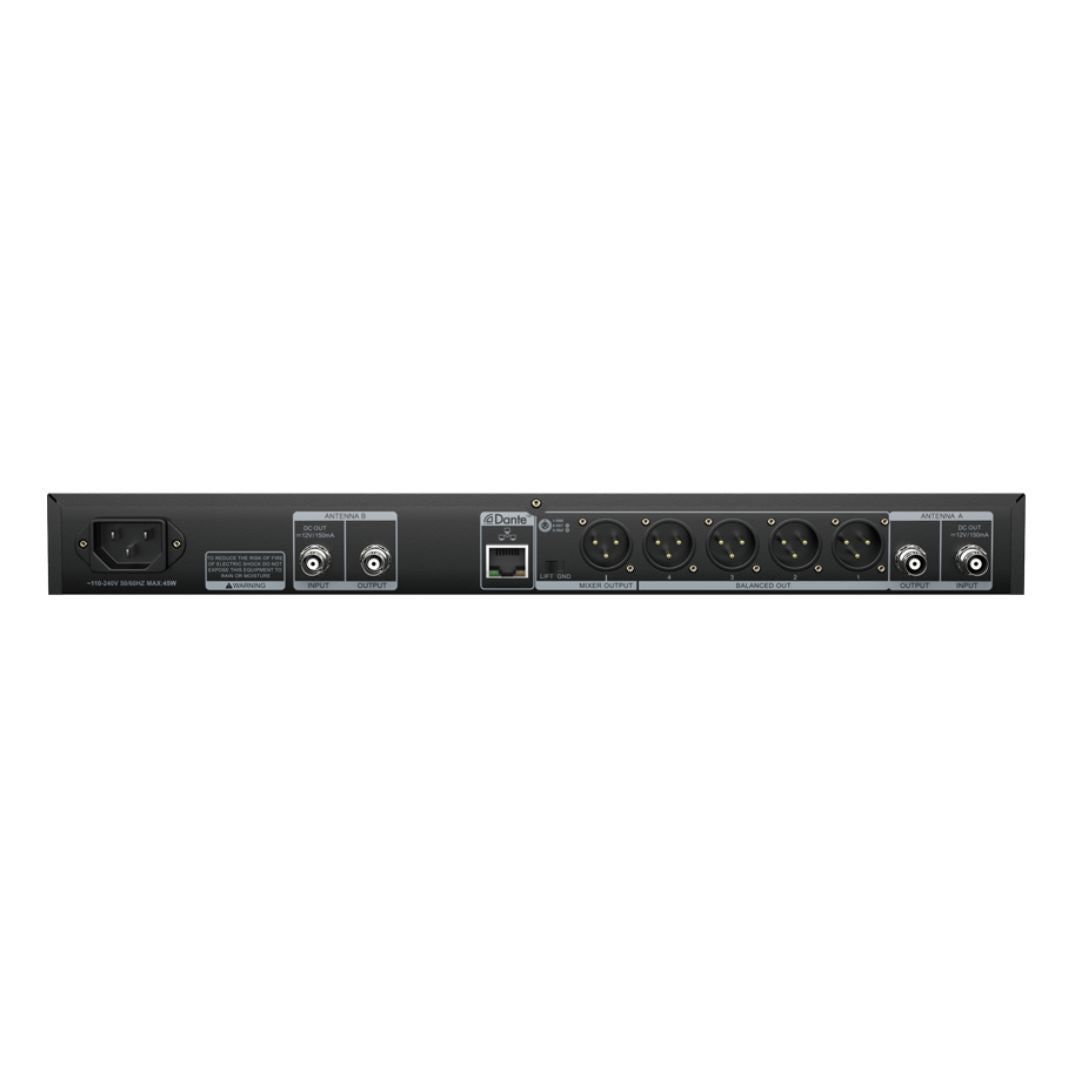

Interfaces & Connectivity

External Antenna Interface

Dual BNC support +12V/150mA output

External Audio Interface

Mixed balanced audio output, BALANCED single channel balanced audio output

Ethernet Port

Support Dante communication protocol

Power Supply

Power Supply

AC input, ICE connector, 100-240 VAC

Dimensions & Weight

Dimensions (mm)

480（W）x350（D）x43（H）
