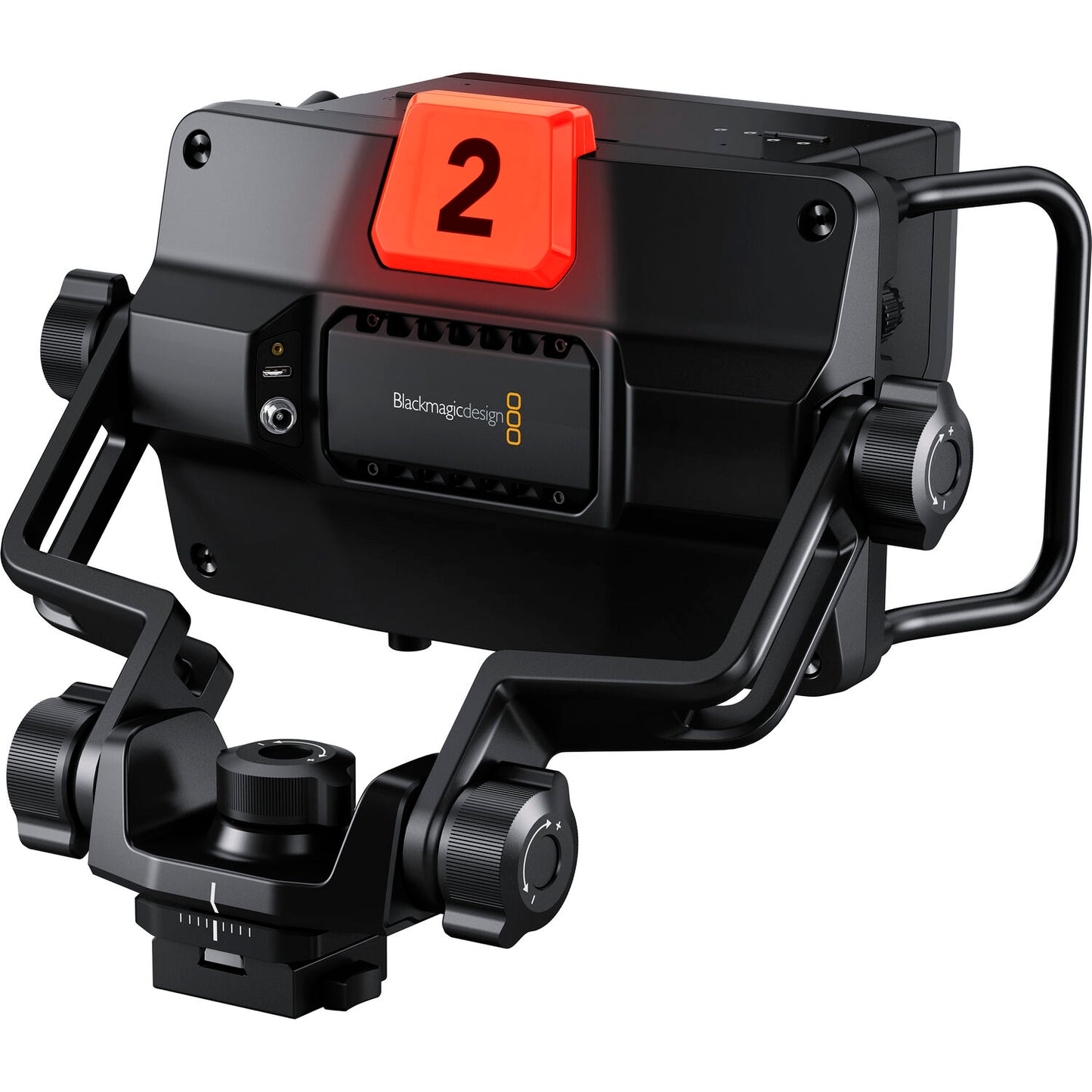

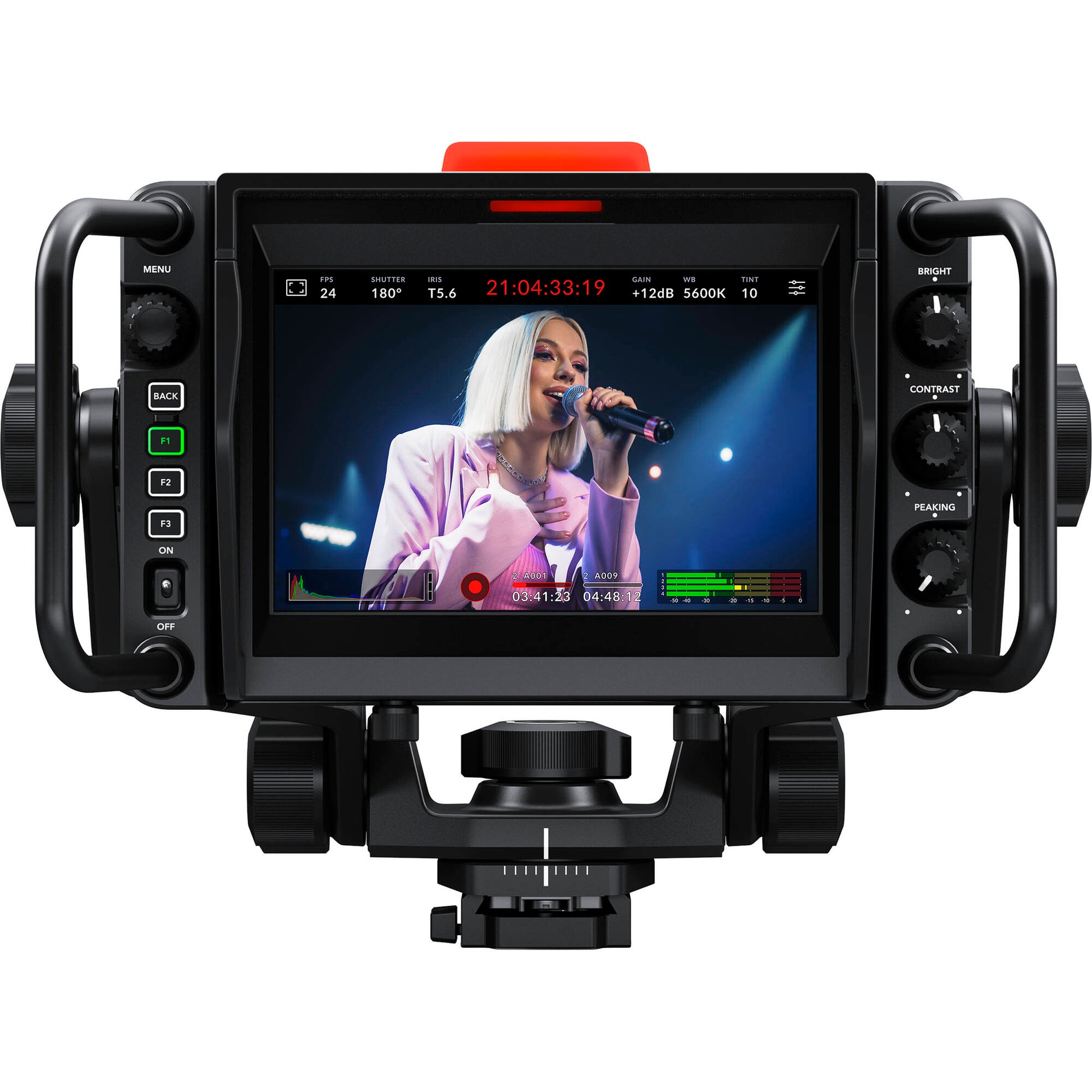

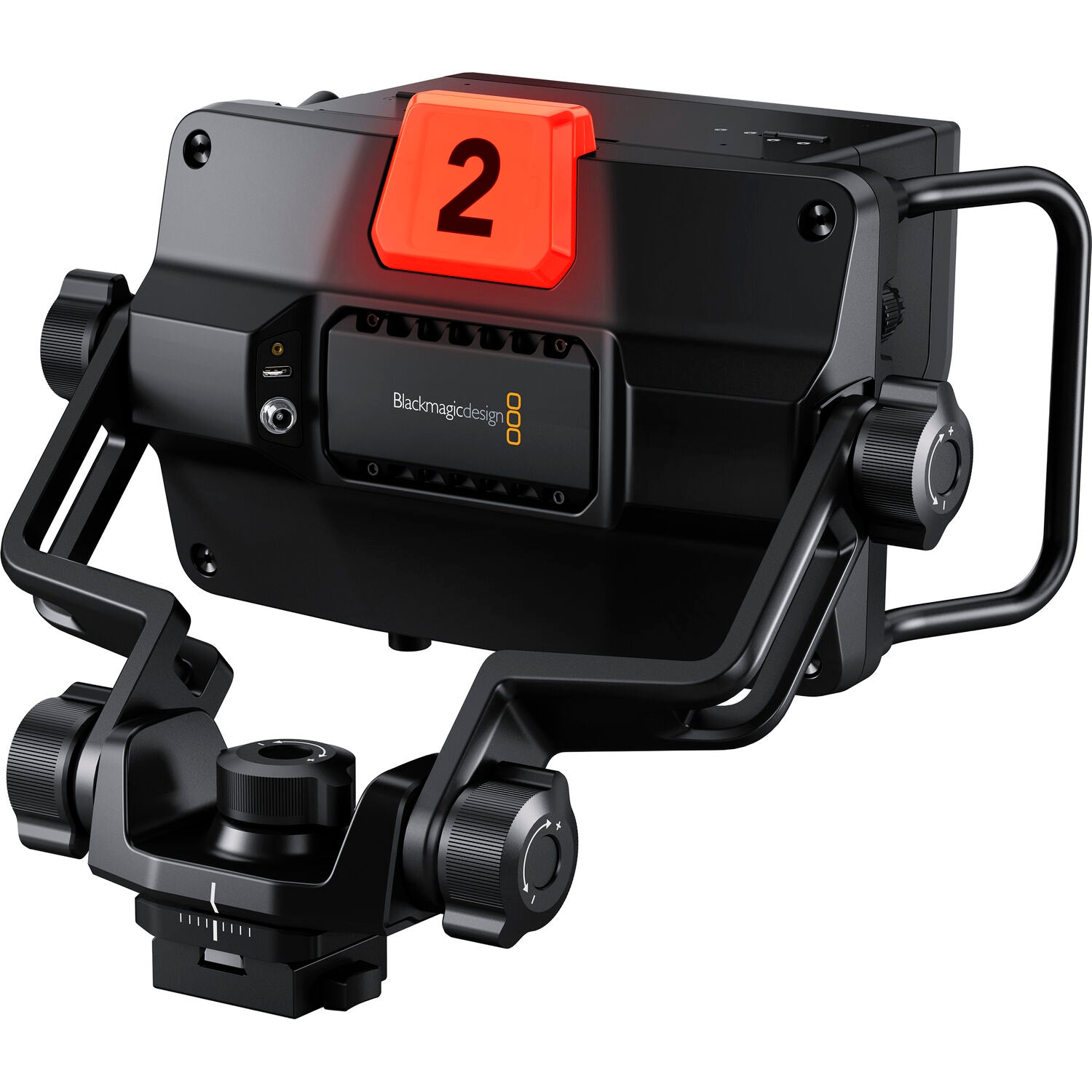

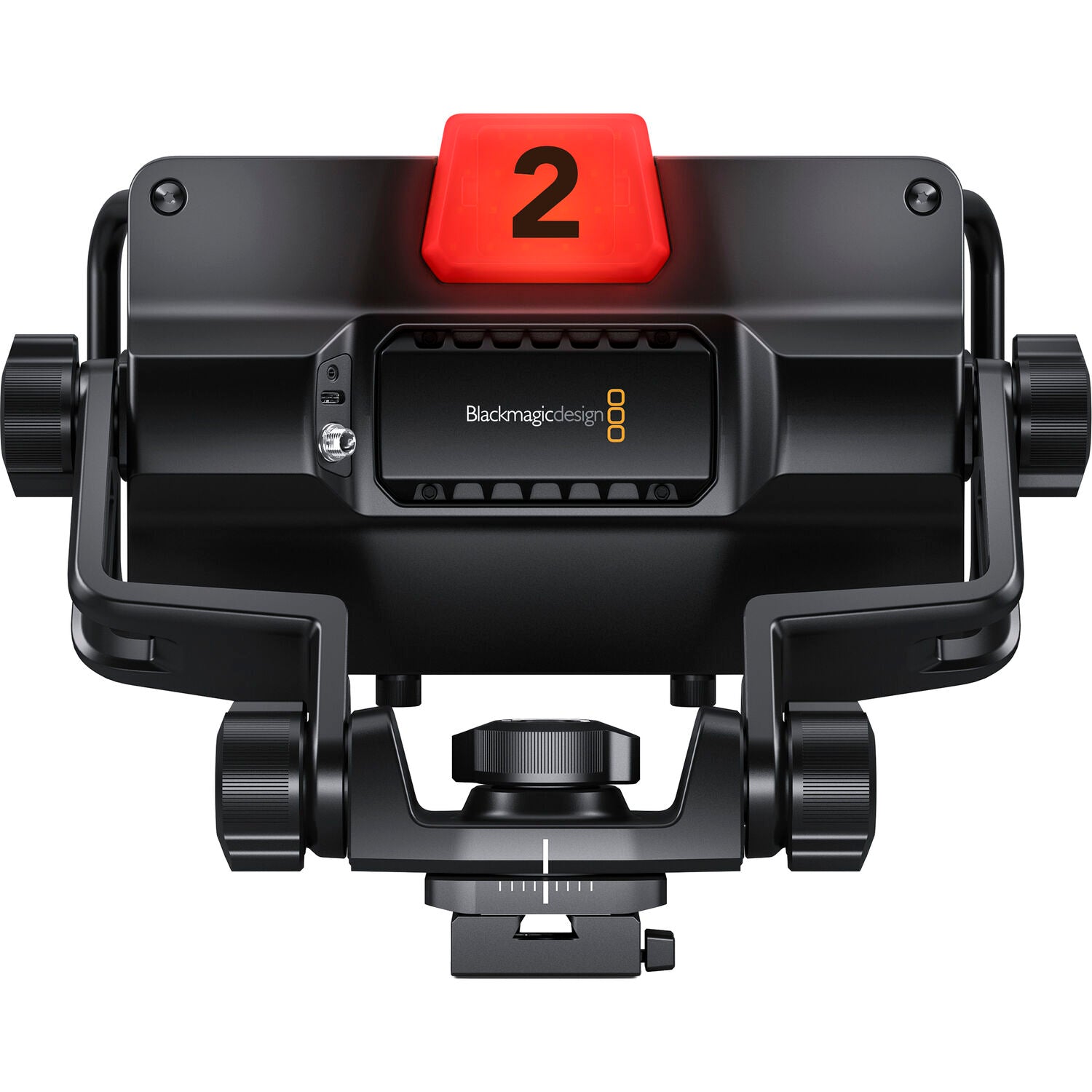

BLACKMAGICDESIGN URSA Cine Studio Viewfinder
BLACKMAGICDESIGN URSA Cine Studio Viewfinder
Key Specifications |
|
Panel Type |
TFT LCD |
Display Size |
7.0" / 17.8 cm |
Screen Resolution |
1920 x 1200 |
Image Controls |
False Color, Focus Assist, Focus Peaking, Screen Markers |
Inputs/Outputs |
1x USB-C Video Input |
Display |
|
Panel Type |
TFT LCD |
Display Size |
7.0" / 17.8 cm |
Screen Resolution |
1920 x 1200 |
Aspect Ratio |
16:10 |
Touchscreen |
Yes |
Maximum Brightness |
2000 nits / cd/m2 |
Pixels Per Inch (ppi) |
323 ppi |
Image Controls |
False Color, Focus Assist, Focus Peaking, Screen Markers |
Inputs / Outputs |
|
Inputs/Outputs |
1x USB-C Video Input |
Video Format |
USB (10-Bit 4:2:2 YUV) |
Input Power |
12 VDC |
General |
|
Operating Conditions |
32 to 104°F / 0 to 40°C up to 90% Humidity |
Storage Conditions |
-4 to 140°F / -20 to 60°C up to 90% Humidity |
Tripod/Accessory Mounting |
Bottom/Bracket |
Dimensions |
11.97 x 9.17" / 30.4 x 23.29 cm (Including Bracket) |
Weight |
5.27 lb / 2.39 kg |
