Key Specifications

Model

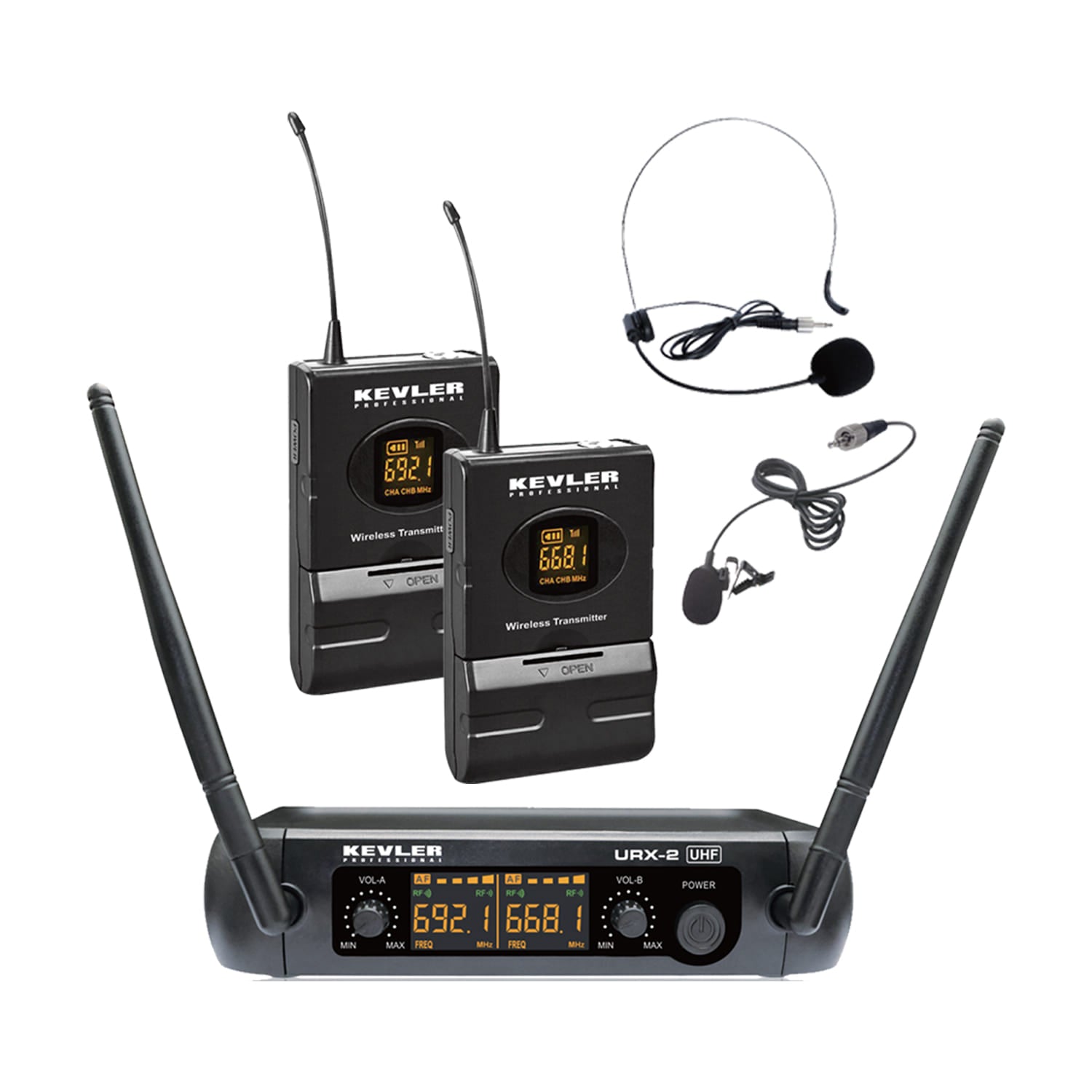

URX-2B

System Type

Dual UHF Wireless Microphone Receiver

Frequency Range

500 – 980 MHz

Selectable Frequencies

16 Channels

Channel Interval

600 kHz

Modulation Model

π/4 DQPSK

Signal-to-Noise Ratio (SNR)

96 dB

Sensitivity

-96 dBm

Frequency Response

30 Hz – 20 kHz

Total Harmonic Distortion (THD)

0.03%

Output Impedance

600 ohms

Operating Distance

Up to 30 meters

Power Supply

5V

Power Consumption

< 85 mA

Display

LED Display

Antenna

Front Antenna Design

Battery Indicator

Low Battery LED Indicator
