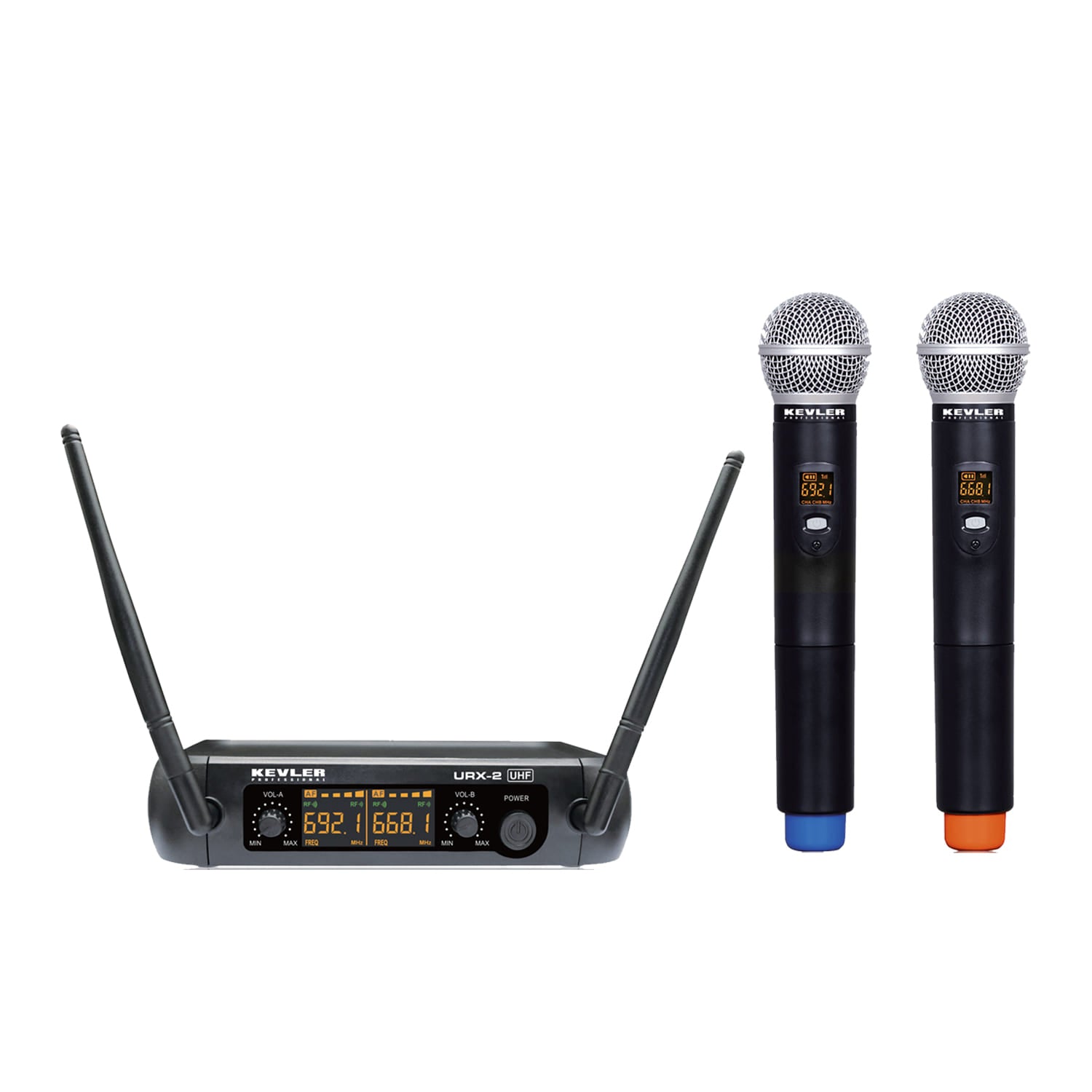

KEVLER URX-2H
KEVLER URX-2H
|
Key Specifications |
|
|
System Type |
Dual UHF Wireless Microphone |
|
Selectable Frequencies |
16 Channels |
|
Frequency Range |
600 – 700 MHz |
|
Receiver Frequency Range |
500 – 980 MHz |
|
Channel Interval |
600 kHz |
|
Modulation Mode |
π/4 DQPSK |
|
Frequency Response |
30 Hz – 20 kHz |
|
Sensitivity |
-96 dBm |
|
Signal-to-Noise Ratio (SNR) |
96 dB |
|
Total Harmonic Distortion (T.H.D) |
0.03% |
|
Output Impedance |
600 ohms |
|
Operating Distance |
Up to 30 meters |
|
Receiver Power Supply |
5 Volts |
|
Receiver Power Consumption |
< 85 mA |
|
Transmitter Power Output |
10 dBm |
|
Handheld Transmitter Power Supply |
3V (2× AA Battery – Normal or Lithium) |
|
Bodypack Transmitter Power Supply |
3V |
|
Display |
LED Display with Low Battery Indicator |
|
Antenna Type |
Front Antenna Design |
KEVLER URX-2H Accessories
- No accessories available.
