Key Specifications

Model

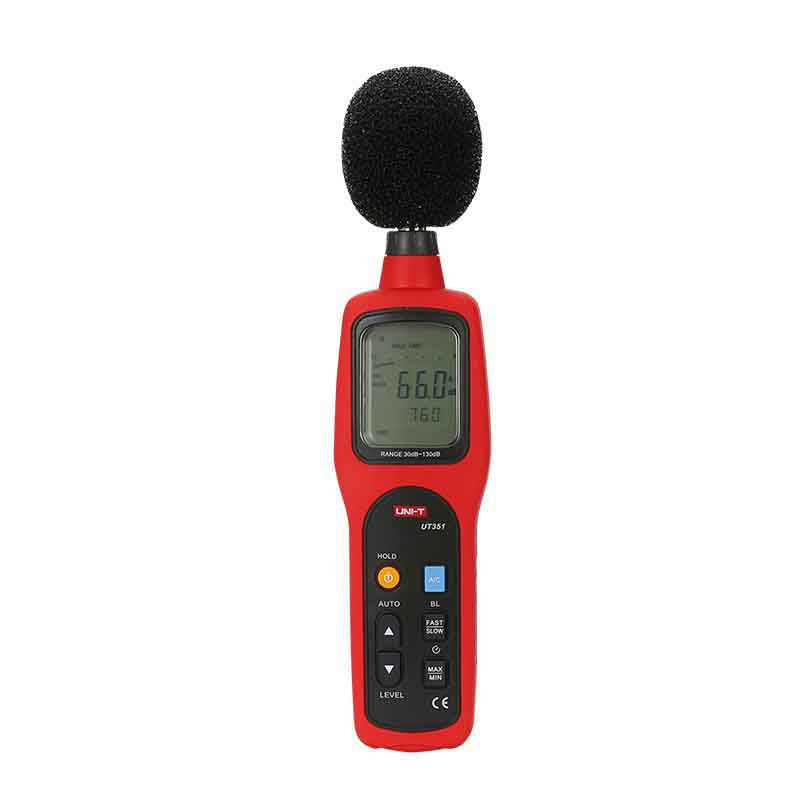

UT351

Range

30～80dB ±1.5dB

Range

50～100dB ±1.5dB

Range

60～110dB ±1.5dB

Range

80～130dB ±1.5dB

Frequency

31.5Hz～8000Hz

Frequency Weighting

A&C

Sample Rate (FAST)

8 Times/s

Sample Rate (SLOW)

1 Times/s

Features

Analogue Outputs (AC)

0.707Vrms full scale; Output impedance: around 600Ω

Analogue Outputs (DC)

2Vrms full scale; 10mV/dB; Output impedance: around 100Ω

Data Hold

√

Auto Power Off

√

Low Battery Indication

≤4.8V

MAX Mode

√

MIN Mode

√

High Alarm

Display “OVER”

Lower Alarm

Display “UNDER”

LCD Backlight

√

Analogue Bar Graph

30～130dB

General Characteristics

Power

1.5V Batteries (LR6) X 4

LCD Size

53mm X 41mm

Product Color

Red and Grey

Product Net Weight

330g

Product Size

273mm X 70mm X 39 mm

Standard Accessories

Batteries, Windscreen, Leather Box

Standard Individual Packing

Gift Box, English Manual

Standard Quantity Per Carton

30pcs

Standard Carton Measurement

670mm X 385mm X 300mm (0.077 CBM Per Standard Carton)

Standard Carton Gross Weight

18kg
