Key Specifications

System Type

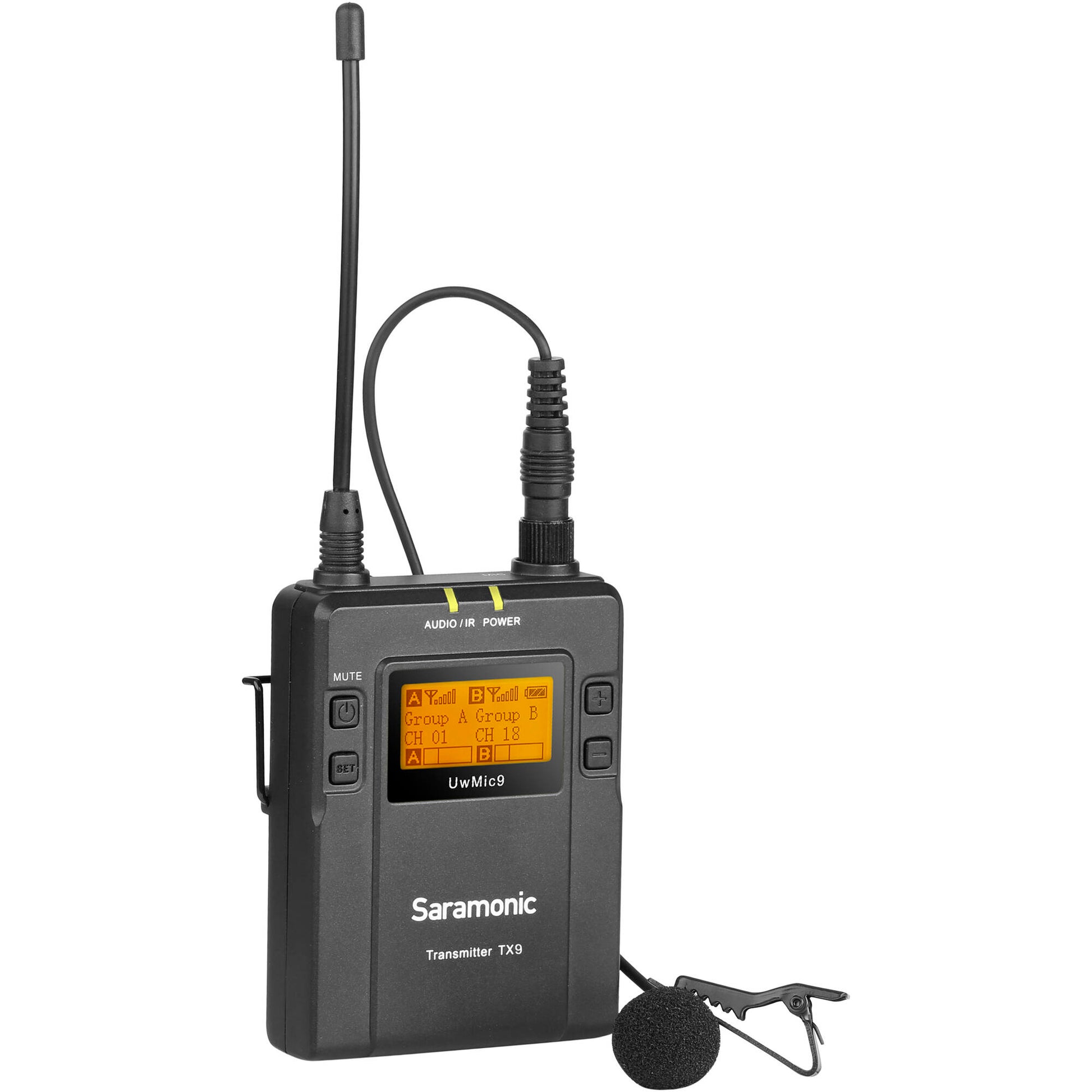

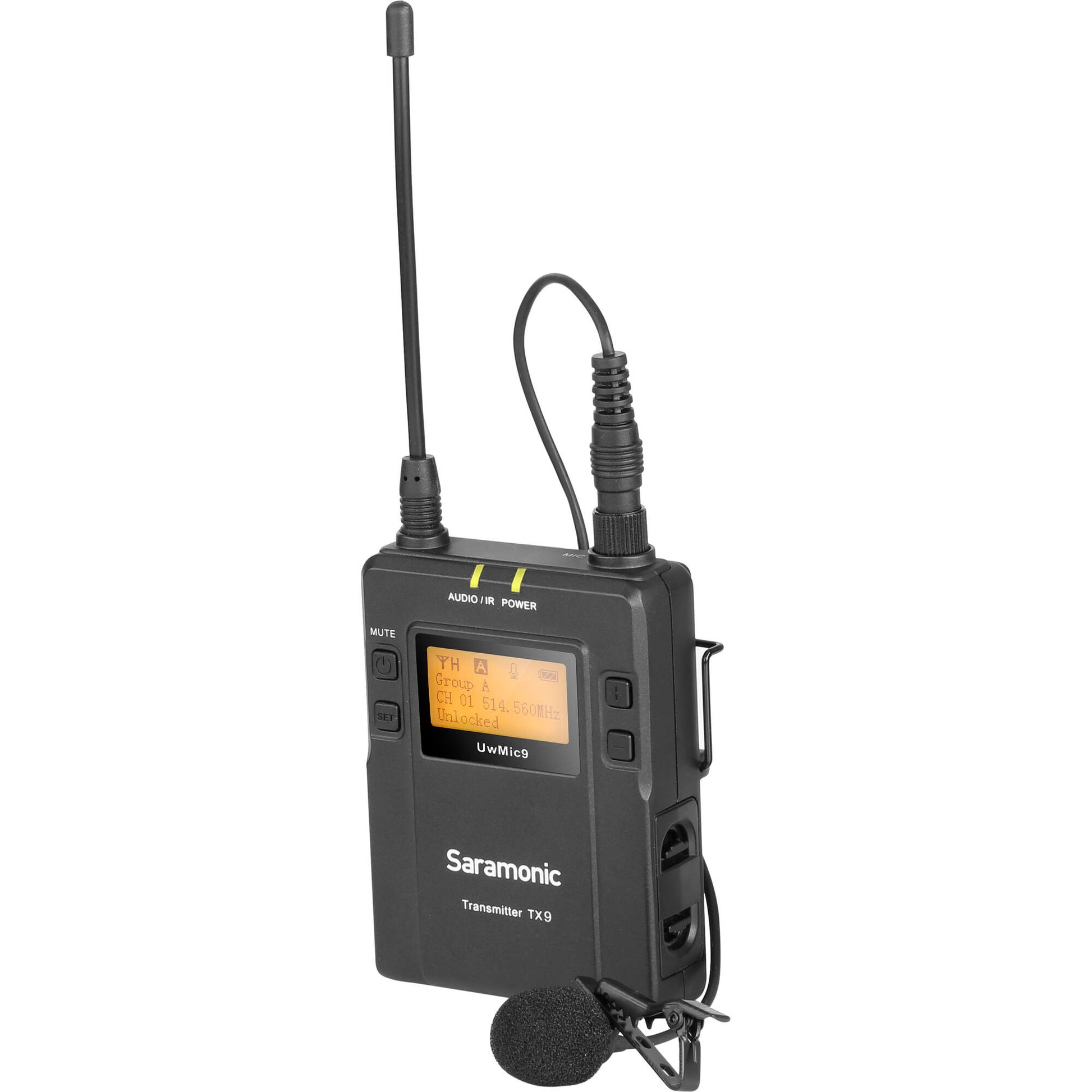

• Model: Saramonic UwMic9 TX9 (Add-on Transmitter)
• Technology: Digital UHF (Ultra High Frequency)
• Frequency Band: 514 to 596 MHz
• Max Range: 328.1' / 100 m (Line of Sight)

Transmitter Performance

Audio & Sync

• Input: 1x Locking 3.5mm TRS (Mic/Line Level)
• Sync Method: Infrared (IR) for rapid pairing
• Muting: Dedicated Mute Function
• Frequency Response: 40 Hz to 18 kHz

Microphone Specifications

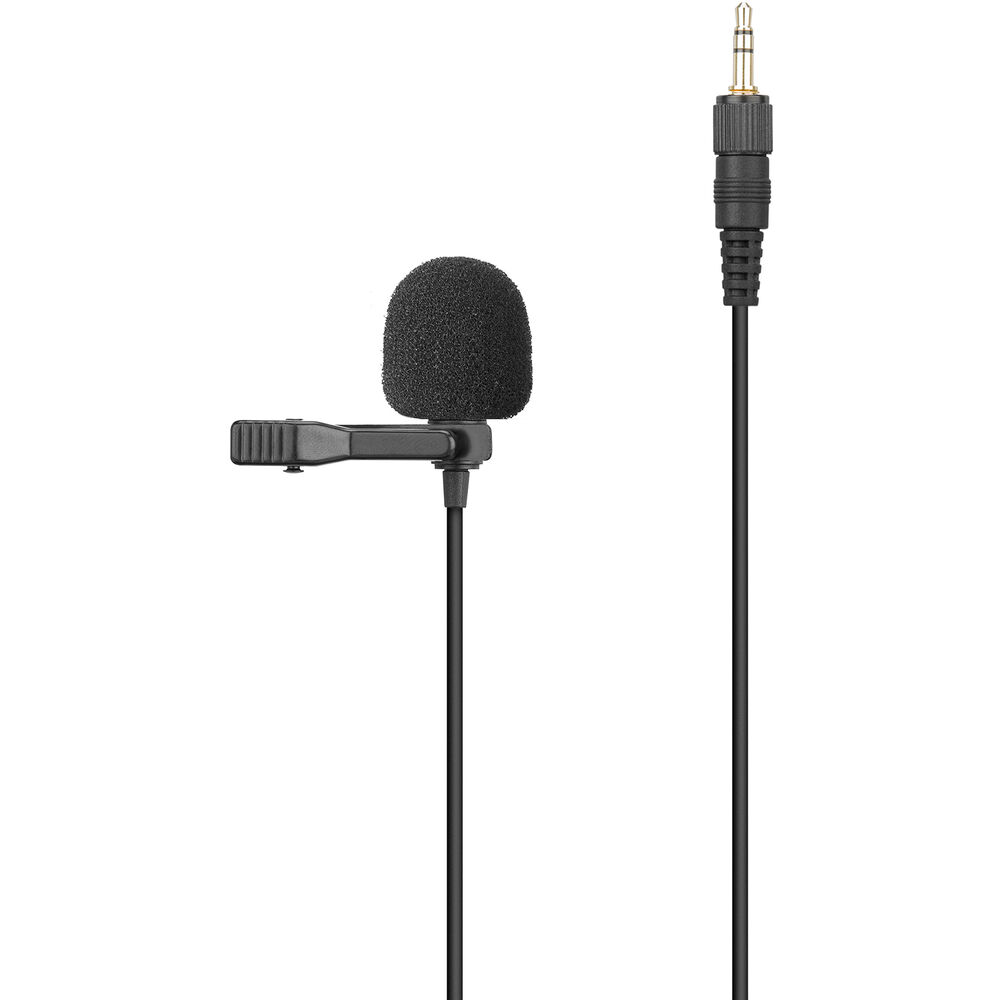

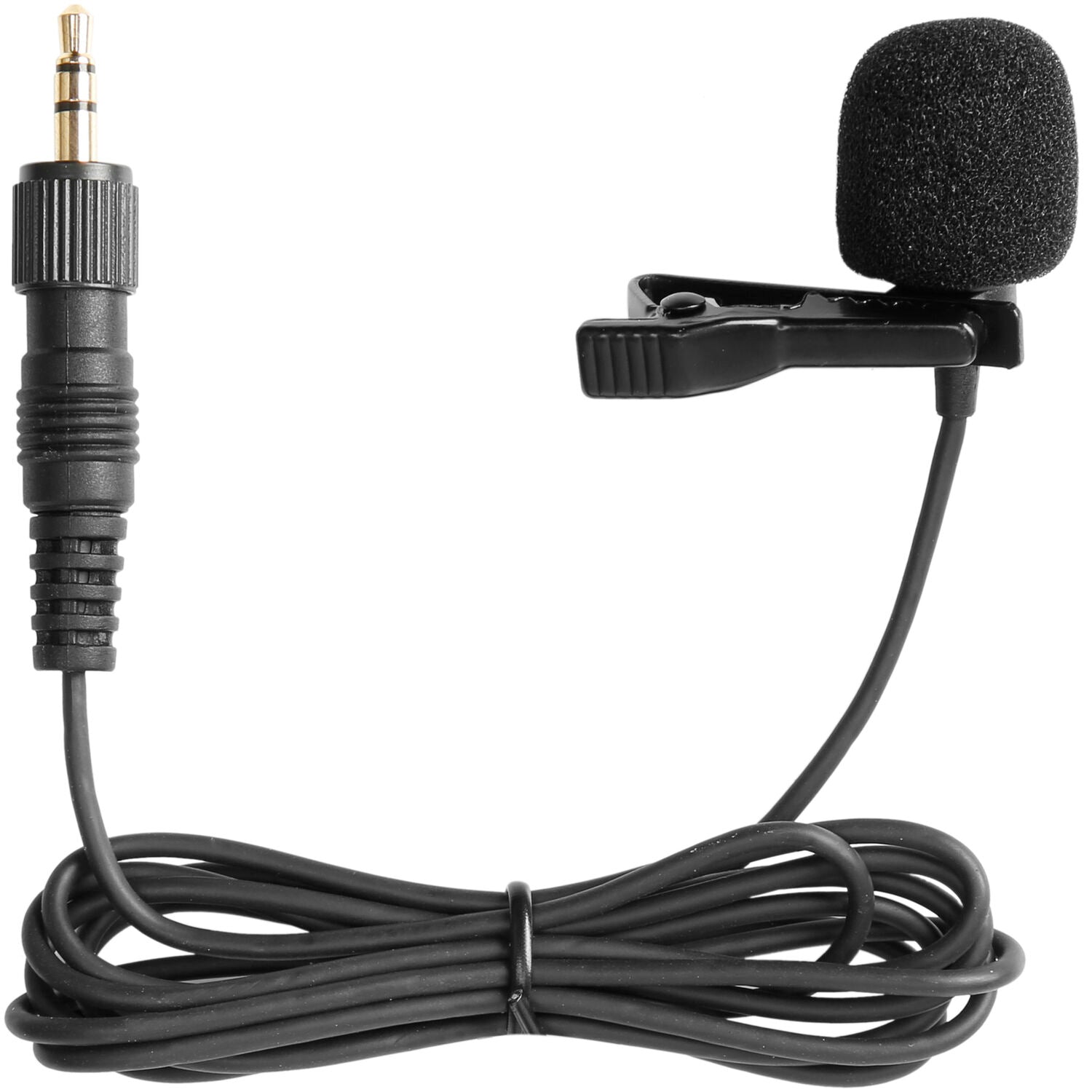

Lavalier Details

• Type: Omnidirectional Condenser (SR-M1)
• Connector: Locking 3.5mm TRS Male
• Cable: Standard 1.2m length

Power & Physical

Power Details

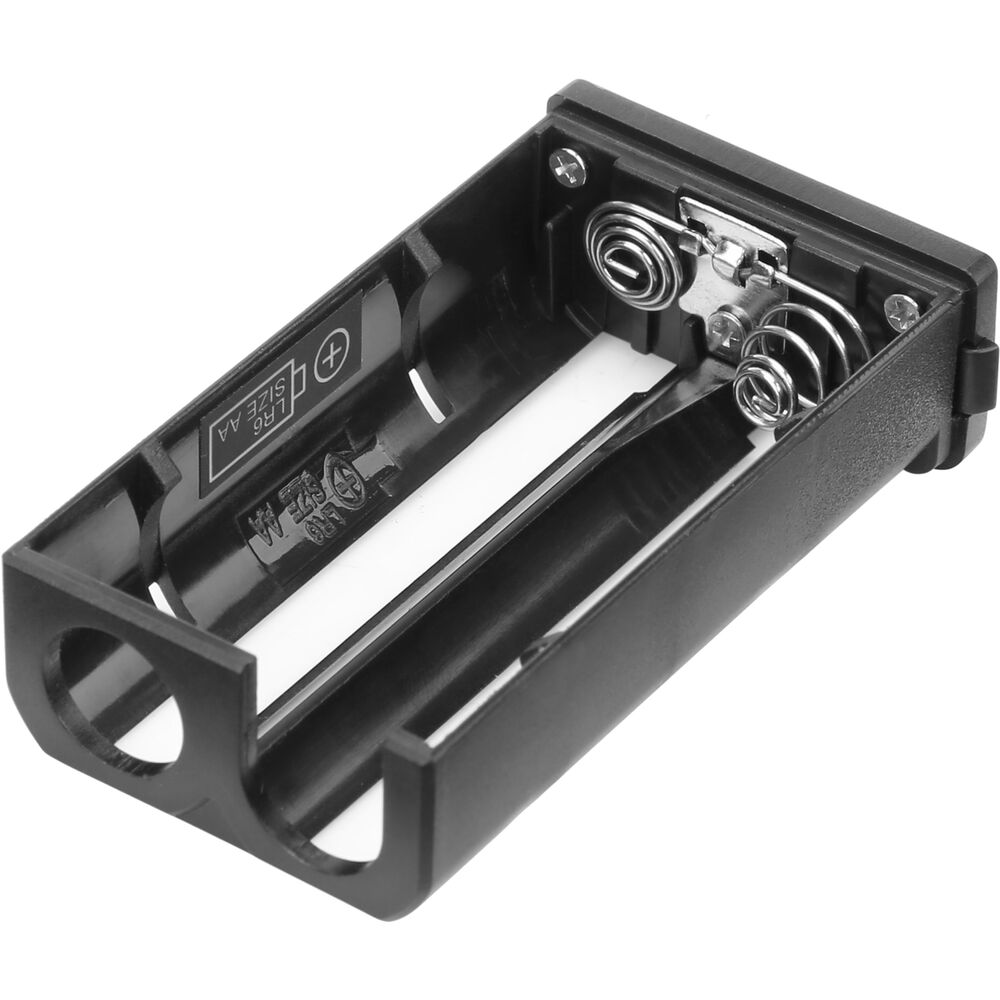

• Battery: 2x AA Batteries (Not Included)
• Display: High-Contrast Backlit LCD
• Construction: Rugged Metal Chassis

Hardware Specs

• Weight: 7.4 oz / 210 g (Without batteries)
• Dimensions: 6.7 x 2.5 x 1.2" (With Antenna)
