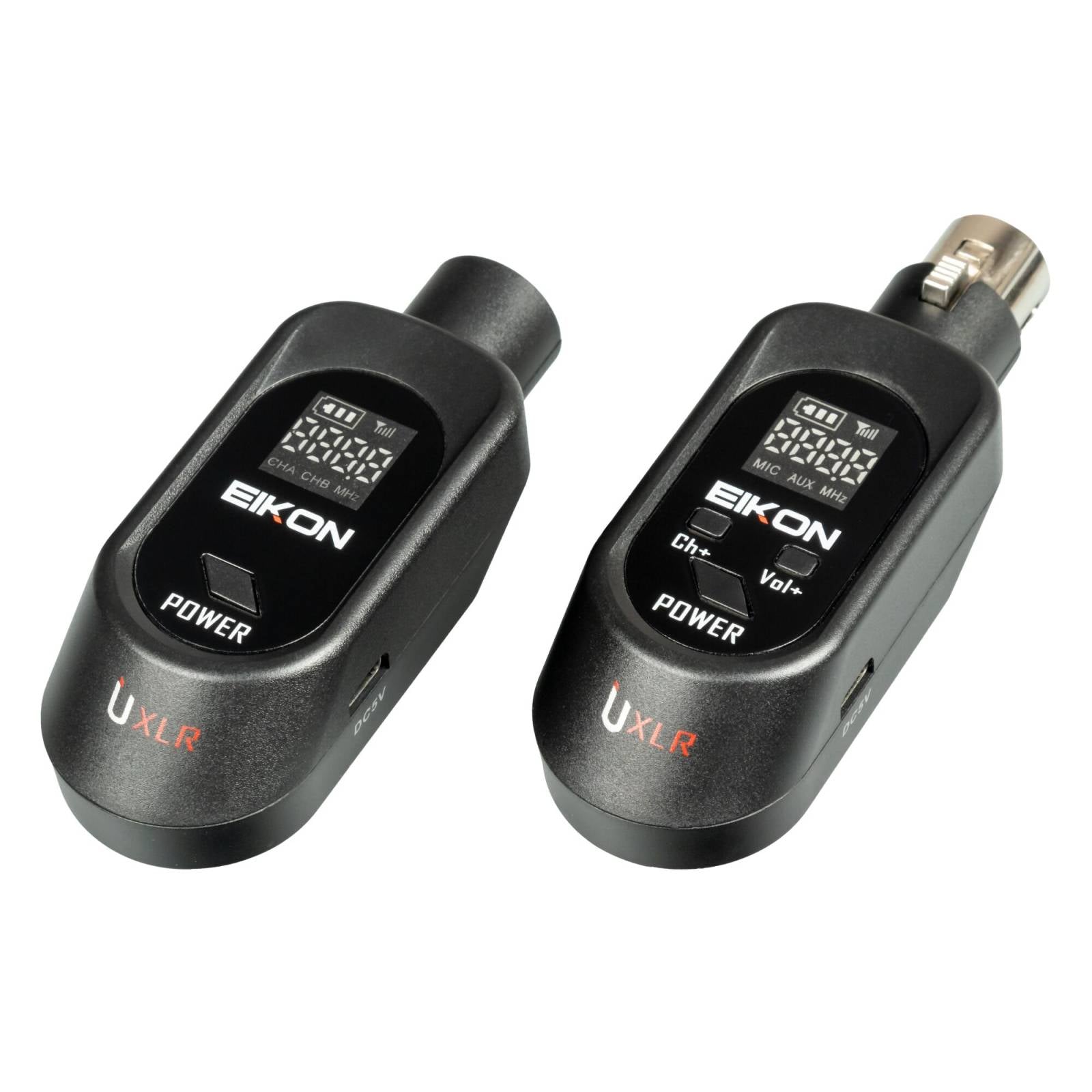

EIKON UXLR
EIKON UXLR
Key Specifications |
|
UXLR – UHF PLL Transmitter |
|
RF Channels |
|
Frequency Presets |
16 or 30 frequency presets depending on band |
RF Frequency Band |
UHF: 863-865 MHz or 568.500 – 580.100 MHz |
RF Frequency Stability |
±0.002% |
RF Oscillation Mode |
PLL Synthesized |
RF Modulation Type |
DQPSK |
RF Output Power |
10 mW |
Sub-harmonic |
< 40 dB |
Operating Current |
130 mA |
Operating Time |
3 to 5 hrs |
Operating Power Supply |
3.7 V / 800 mA - Built-In Lithium Battery |
Charging Mode |
USB Charging 5V – Type C Connector |
Charging Time |
3 hours |
Weight |
0.10 kg |
UXLR – UHF PLL Receiver |
|
RF Channels |
16 or 30 frequency presets depending on band |
RF Frequency Band |
UHF: 863-865 MHz or 568.500 – 580.100 MHz |
RF Frequency Stability |
±0.005% |
RF Oscillation Mode |
PLL Synthesized |
RF Modulation Type |
DQPSK |
RF Receiving Sensitivity |
< -98 dBm |
RF Receiving Range |
Up to 30 meters |
Audio Dynamic Range |
106 dBm |
THD Distortion |
< 0.5% |
S/N Ratio |
> 102 dBA |
Operating Current |
85 mA |
Operating Time |
3 to 5 hrs |
Operating Power Supply |
3.7 V / 800 mA - Built-In Lithium Battery |
Charging Mode |
USB Charging 5V – Type C Connector |
Charging Time |
4 hours |
Weight |
0.10 kg |
