Key Specifications

Stereo Power @ 8Ω

2 × 2350W

Stereo Power @ 4Ω

2 × 4400W

Stereo Power @ 2Ω

2 × 7000W (High Current Stable)

Bridge Mono Power

8800W @ 8Ω / 14000W @ 4Ω

Amplifier Topology

Class TDP (Tracking Class D)

Reference-Grade Audio Performance

Signal to Noise Ratio

112 dB (Studio Grade)

Frequency Response

2 Hz – 34 kHz

Damping Factor

800:1

Slew Rate

44v/µs

Configuration & Intelligence

Adjustable Gain

23, 26, 29, 32, 35, 38, 41, 44 dB

Diagnostics / Indicators

VPL, CPL, VHF, TEM, Signal, Hi-Z

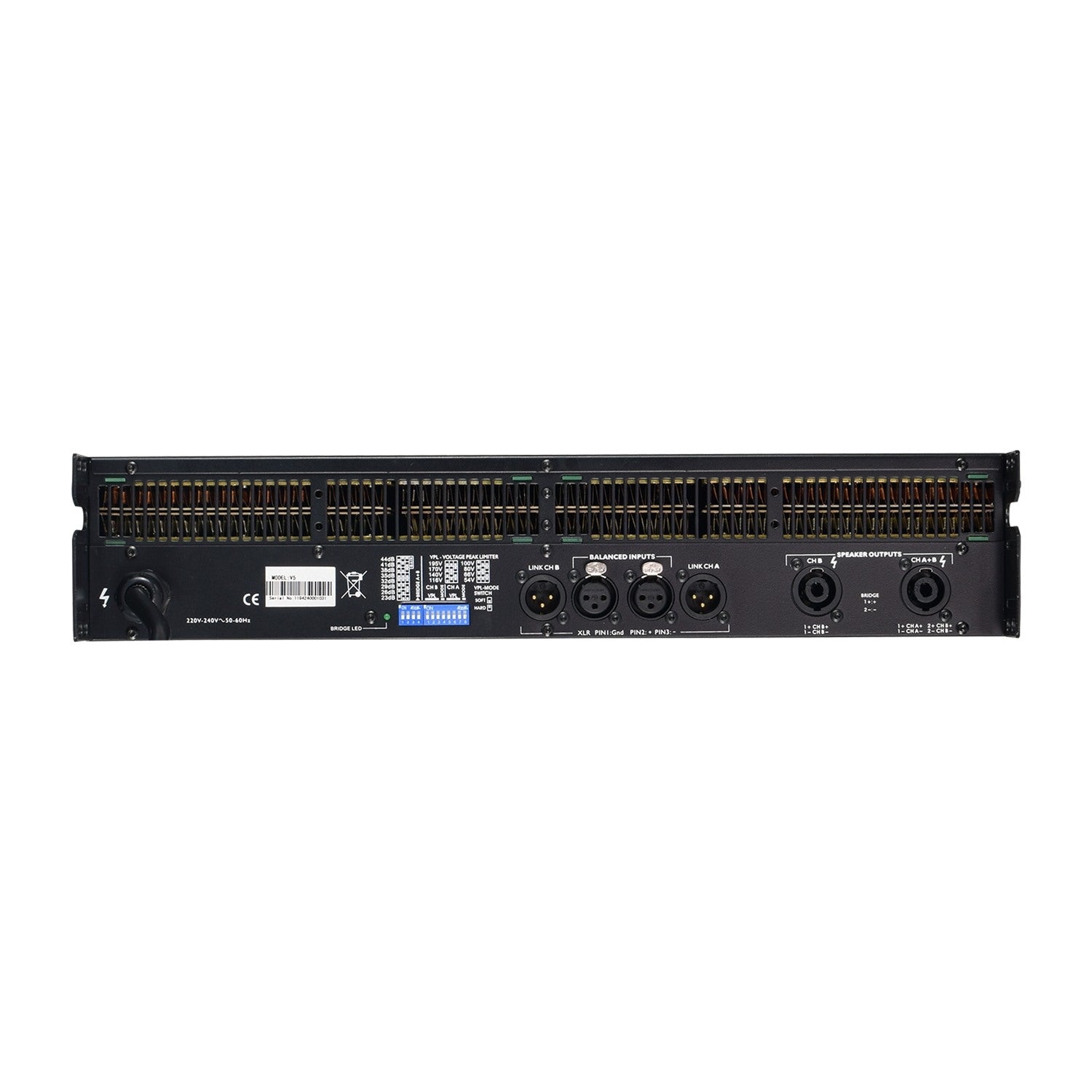

Input / Output

XLR Balanced (Female In / Male Thru)

Physical & Electrical

Net Weight

14 kg (High Power-to-Weight Ratio)

Power Supply / Fuse

220V / 60Hz (T30A)

Dimensions (mm)

483 (W) × 410 (D) × 88 (H)
