YAMAHA VC6NW
YAMAHA VC6NW
|
Key Specifications |
|
|
Type |
Passive 2-Way Speaker |
|
Included Speakers |
1 |
|
Power Handling |
25 W Nominal | 50 W Program | 100 W Peak |
|
Constant Voltage / Transformer Taps |
70 V: 12 / 6 / 3 / 1.5 W or 16Ω bypass |
|
Impedance |
16 Ω |
|
HF Driver |
1× 0.8" / 2 cm Soft-Dome Tweeter |
|
LF Driver |
1× 6.5" / 16.5 cm |
|
Frequency Range |
63 Hz – 20 kHz (-10 dB) |
|
Maximum SPL |
109 dB SPL (Peak) |
|
Sensitivity |
89 dB SPL (Half-Space) |
|
Coverage Angle |
120° Conical (Half-Space) |
|
Protections |
VI Limiting |
|
Input Connectors |
1× Push Terminal Pair 2-Pin (Locking, Removable) |
|

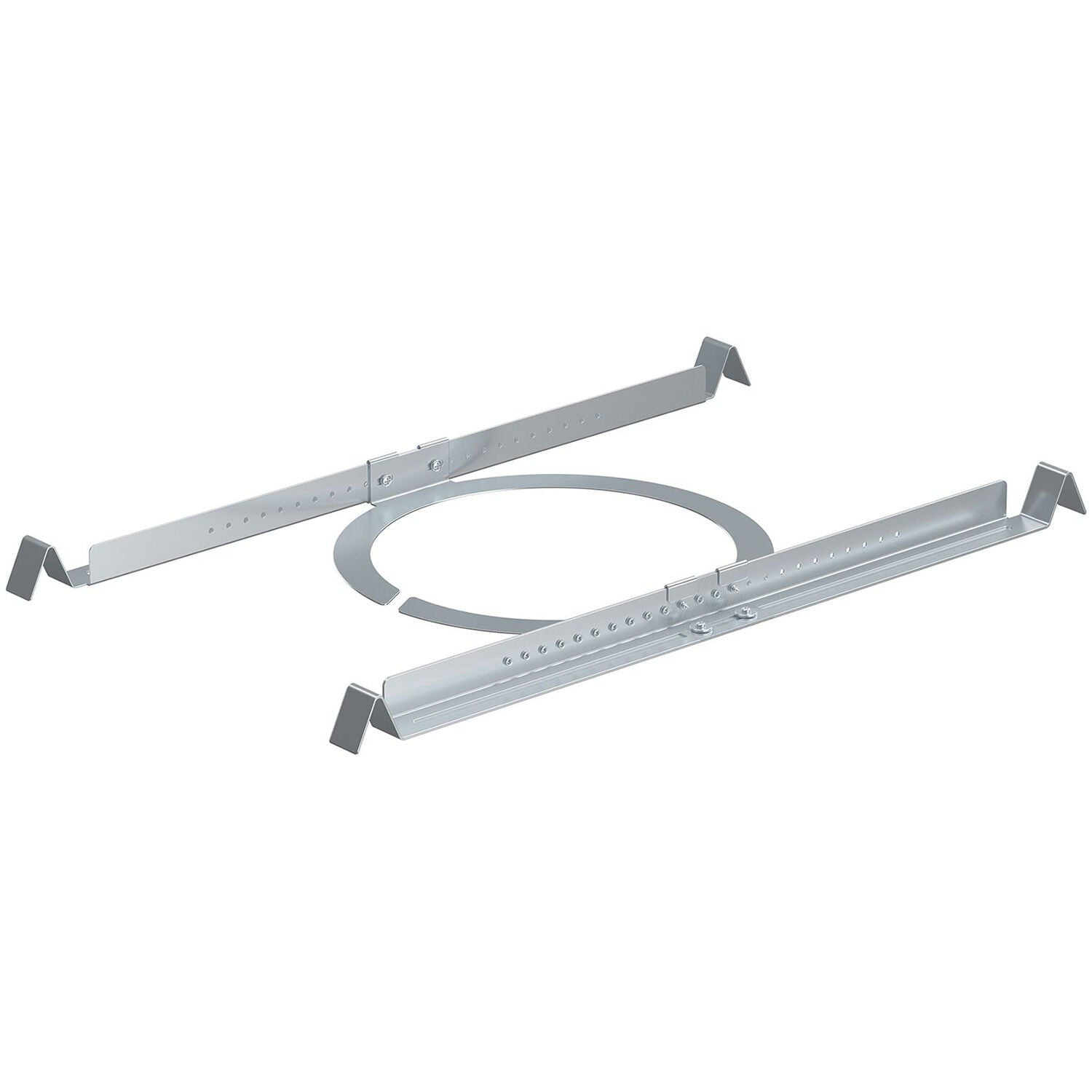

Mounting |
Ceiling Tile |
|
Cutout Size |
9.7" / 24.7 cm |
|
Mount Surface Thickness |
0.1 – 1.5" / 0.2 – 3.7 cm |
|
Enclosure |
Sealed, Metal/Steel Construction |
|
Dimensions |
11.3 × 4.5" / 28.6 × 11.4 cm |
|
Weight |
5.1 lb / 2.3 kg |
|
Color |
White |
|
Certifications |
CE, NFPA70, RoHS, UL1480, UL2043 |
|
Environmental Resistance |
No |
