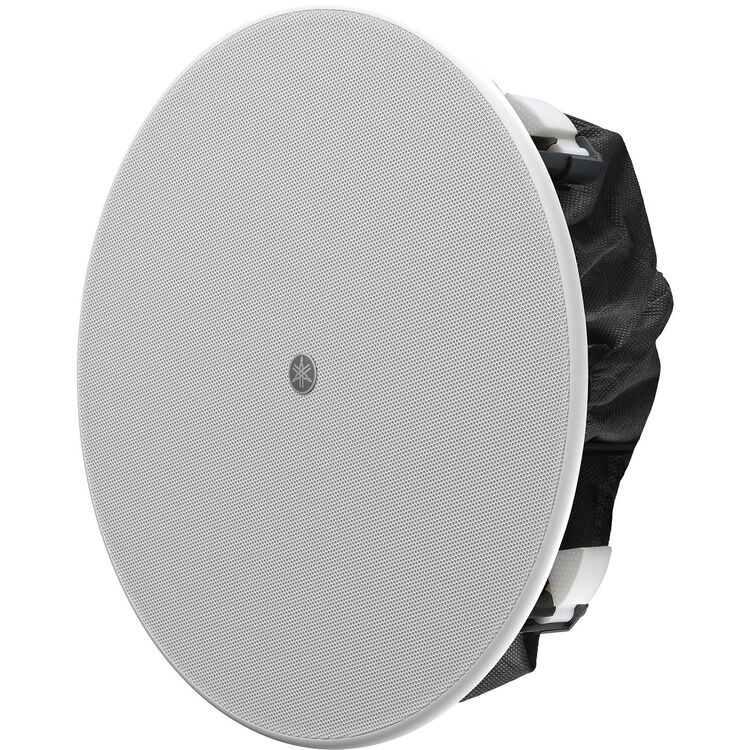

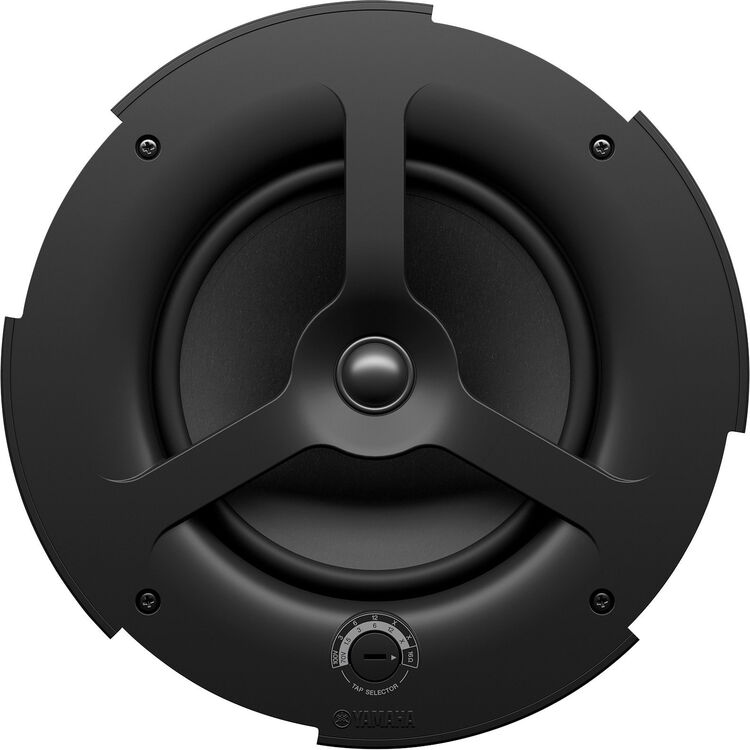

Engineered to provide crystal-clear background music and voice reproduction for installed audio systems, the Yamaha VC8N is a passive, 2-way coaxial loudspeaker featuring one 8" cone and one 1" soft-dome tweeter. With a low-profile design ideal for limited ceiling space and support for either high- or low-impedance systems, this loudspeaker can facilitate a range of setups.

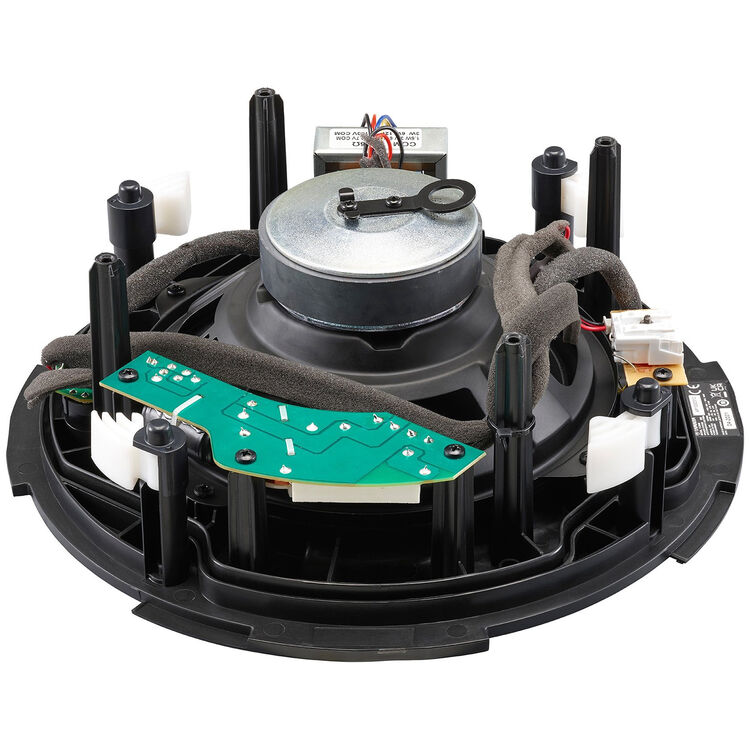

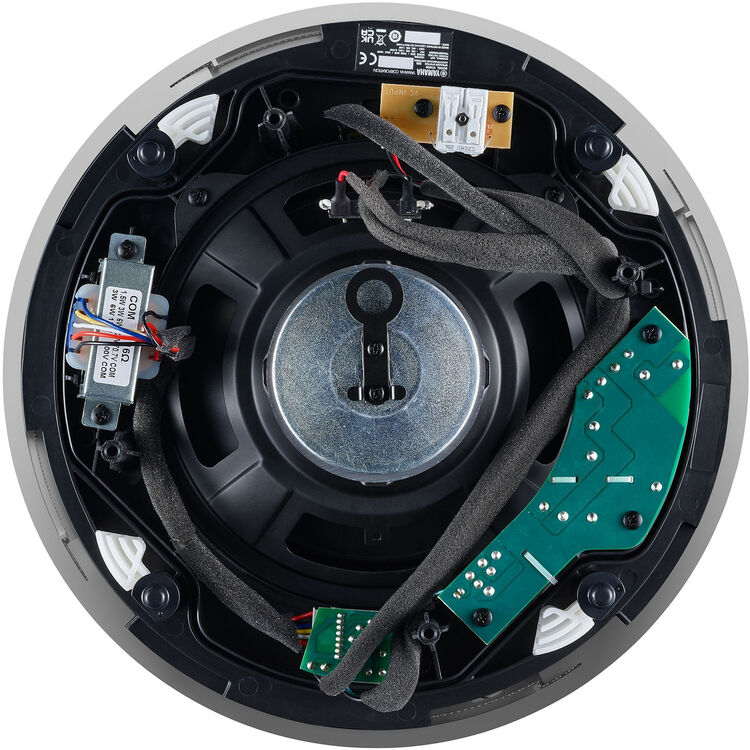

The VC8N sports a 12W 70/100V multi-tap transformer and can also be used in a 16-ohm low-impedance direct connection. The 110° conical dispersion provides a balanced spot coverage that can be used to ensure even coverage of large or complex spaces. The VC8N can handle up to 100W of power from an amplifier. Installation is easy and fast, with a built-in carrying band for safety and double-threaded speaker clamp screws for rapid tightening. The grilles can be painted to match the decor of any environment, and they easily attach to the loud speaker via magnetic catches. The VC8N includes a C-ring, two tile rails, a grille, a safety wire, and a ceiling cutout template.
YAMAHA VC8NW
Key Specifications
Type
Passive 2-Way Speaker
Included Speakers
1
Power Handling
25 W Nominal | 50 W Program | 100 W Peak
Constant Voltage / Transformer Taps
70 V: 12 / 6 / 3 / 1.5 W or 16Ω bypass 100 V: 12 / 6 / 3 W or 16Ω bypass
