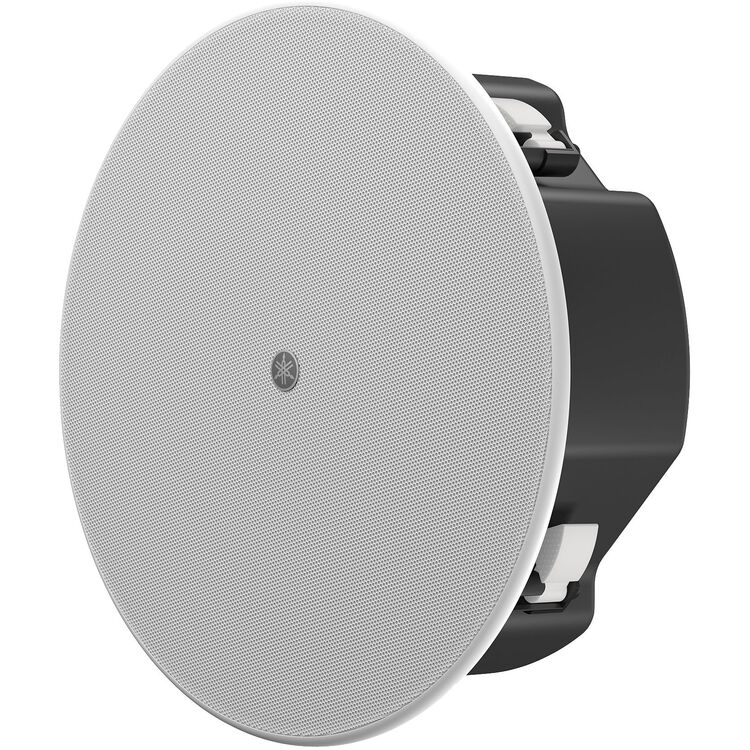

YAMAHA VC8W
YAMAHA VC8W
|
Key Specifications |
|
|
Type |
Passive 2-Way Speaker |
|
Included Speakers |
1 |
|
Power Handling |
25 W Nominal | 50 W Program | 100 W Peak |
|
Constant Voltage / Transformer Taps |
70 V: 12 / 6 / 3 / 1.5 W or 16Ω bypass |
|
Impedance |
16 Ω |
|
HF Driver |
1× 1" / 2.5 cm Soft-Dome Tweeter |
|
LF Driver |
1× 8" / 20.3 cm |
|
Frequency Range |
96 Hz – 20 kHz (-10 dB) |
|
Maximum SPL |
111 dB SPL (Peak) |
|
Sensitivity |
91 dB SPL (Half-Space) |
|
Coverage Angle |
110° Conical (Half-Space) |
|
Protections |
VI Limiting |
|
Input Connectors |
1× Block 4-Pin Speaker Input (Locking, Removable) |
|
Mounting |
Ceiling Tile |
|
Cutout Size |
11.2" / 28.5 cm |
|
Enclosure / Construction |
Sealed, Metal |
|
Dimensions |
12.8 × 4.8" / 32.5 × 12.2 cm |
|
Weight |
9.3 lb / 4.2 kg |
|
Color |
White |
|
Certifications |
CE, NFPA70, RoHS, UL1480, UL2043 |
|
Environmental Resistance |
No |
