Key Specifications

System Type

• Model: Hollyland Vcore
• Technology: Wireless Video Transmission (Camera-to-App)
• Max Range: 350' / 106.7 m (Line of Sight)
• Latency: < 80 ms

Video & Audio

Resolution & Formats

• Max Input: UHD 4K at 30/29.97/25/24/23.98 fps
• SD Recording: 1080p up to 60 fps (H.264/ProRes)
• Audio: Embedded HDMI/USB

Connectivity (I/O)

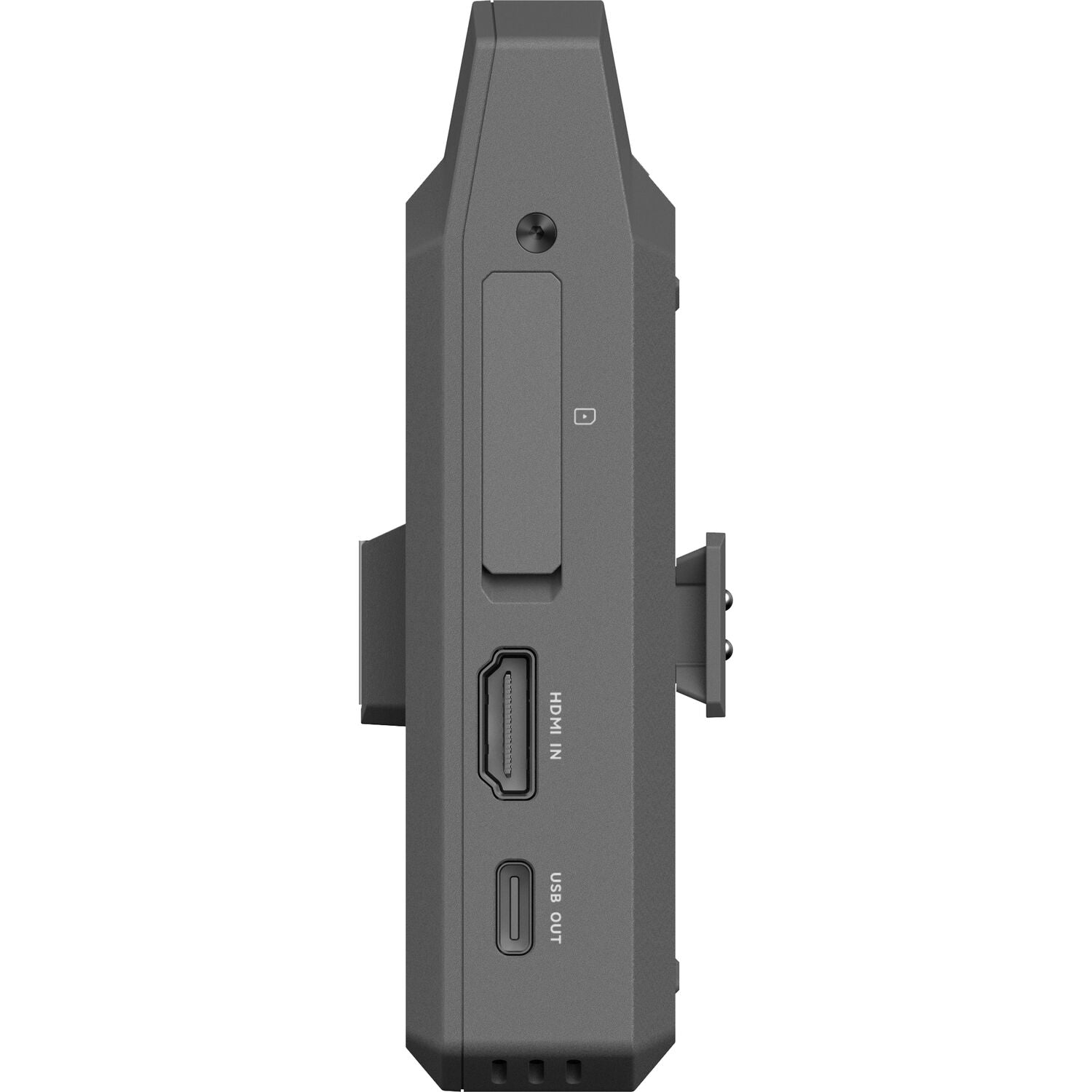

• Video Input: 1x HDMI 1.4b
• Mobile Output: 1x USB-C (Direct Phone Link)
• Storage: Single SD Slot (Record/LUTs/Firmware)

Power & Battery

Internal Battery

• Capacity: 5150 mAh (Built-In)

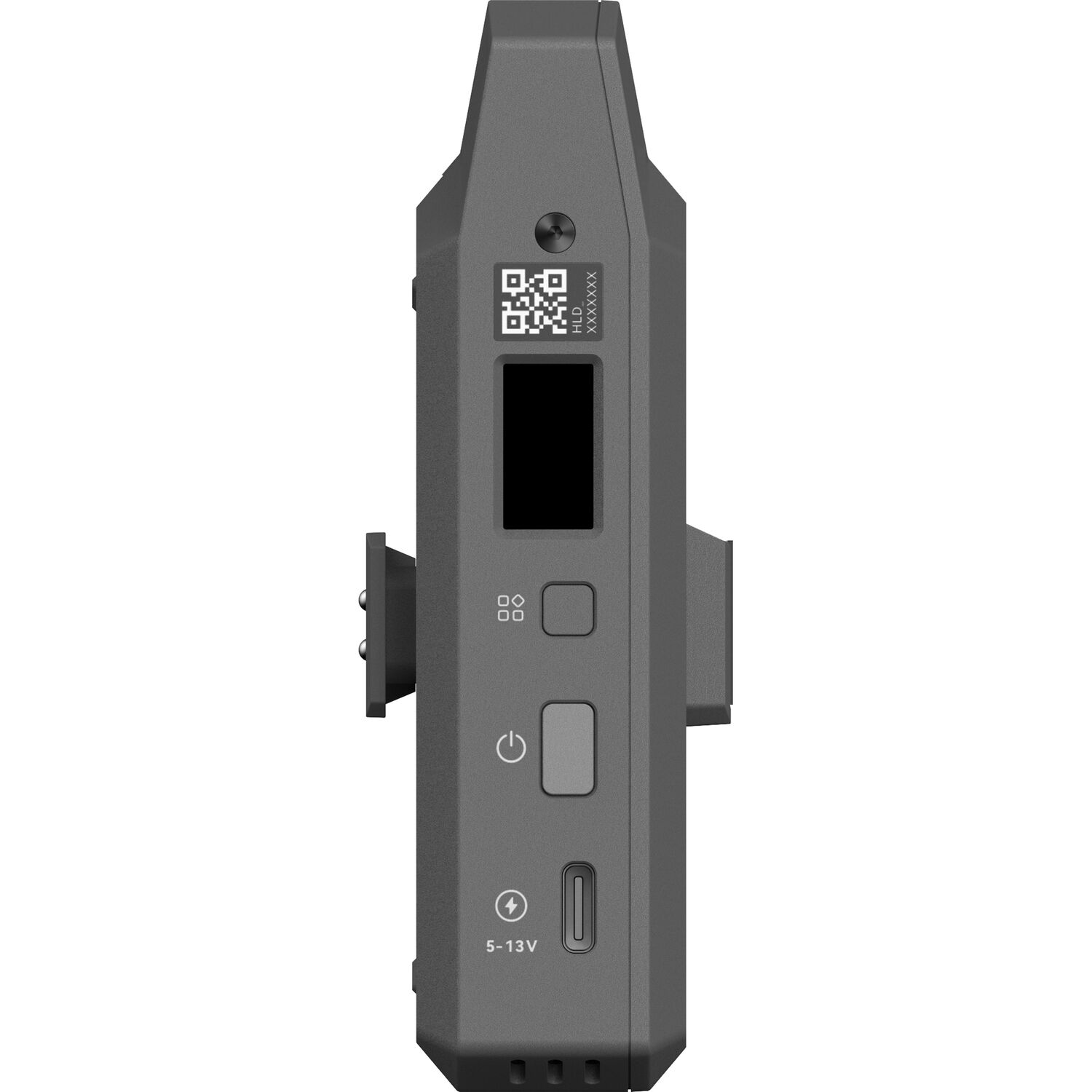

• Input Power: 5 to 13 VDC (Barrel or USB-C)
• Power Consumption: 4.5 W

Physical & General

Dimensions & Weight

• Weight: 7.8 oz / 220 g
• Dimensions: 4.3 x 2.8 x 1.1"
• Mounting: 1x 1/4"-20 Female (Bottom)
