Key Specifications

Product Type

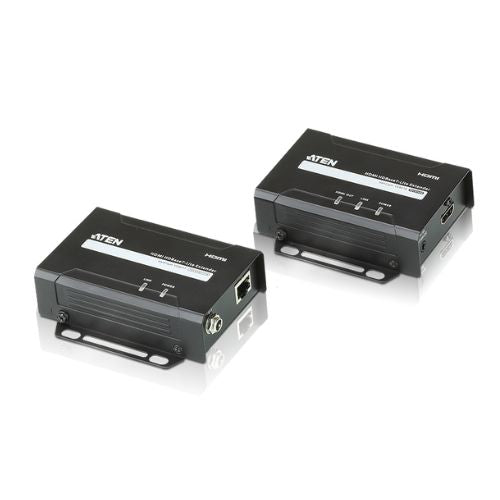

HDMI HDBaseT Extender

Model

ATEN VE801

Maximum Data Rate

10.2 Gbps (3.4 Gbps per Lane)

Maximum Pixel Clock

340 MHz

Video Input

Video Input Interface

1 x HDMI Type A Female (Black)

Input Impedance

100 Ohms

Maximum Input Cable Length

5.9 ft (1.8 m)

Video Output

Video Output Interface

1 x HDMI Type A Female (Black)

Output Impedance

100 Ohms

Video Performance

HDMI Support

HDMI (3D, Deep Color, 4K)

HDCP Support

HDCP Compatible

CEC Support

Consumer Electronics Control (CEC)

Maximum Distance (4K)

115 ft (35 m) over Cat 5e/6, 131 ft (40 m) over Cat 6a

Maximum Distance (1080p)

197 ft (60 m) over Cat 5e/6, 230 ft (70 m) over Cat 6a

Audio

Audio Input

1 x HDMI Type A Female (Black)

Audio Output

1 x HDMI Type A Female (Black)

Power

Power Connector

1 x Locking DC Jack (Black)

Power Consumption (VE801T)

DC 5 V, 1.85 W

Power Consumption (VE801R)

DC 5 V, 4.23 W

Environmental

Operating Temperature

32°F to 122°F (0°C to 50°C)

Storage Temperature

-4°F to 140°F (-20°C to 60°C)

Humidity

40% to 85% RH (Non-Condensing)

Physical Specifications

Housing Material

Metal

Dimensions (Each Unit)

4.5 x 3.54 x 1.18 in (10.30 x 8.70 x 3.00 cm)

Weight (VE801T)

0.53 lb (0.24 kg)

Weight (VE801R)

0.55 lb (0.25 kg)

Packaging Information

Package Weight

1.75 lb

Box Dimensions (L × W × H)

9.4 x 6.2 x 2.2 in
