Key Specifications

Product Type

HDMI HDBaseT Extender Kit

Model

ATEN VE811 (VE811T + VE811R)

Maximum Data Rate

10.2 Gbps (3.4 Gbps per Lane)

Maximum Pixel Clock

340 MHz

Video Performance

HDMI Support

HDMI (3D, Deep Color, 4K)

HDCP Support

HDCP Compatible

CEC Support

Consumer Electronics Control (CEC)

Maximum Distance (4K)

Up to 70 m over Cat 5e/6, Up to 100 m over Cat 6a / ATEN 2L-2910 Cat6

Maximum Distance (1080p)

Up to 100 m over Cat 5e/6/6a

Supported 4K Formats

4096 × 2160 / 3840 × 2160 @ 60 Hz (4:2:0), 4096 × 2160 / 3840 × 2160 @ 30 Hz (4:4:4)

Transmitter (VE811T)

Video Input

1 x HDMI Type A Female (Black)

Input Impedance

100 Ohms

Maximum HDMI Input Distance

1.8 m

Audio Input

1 x HDMI Type A Female (Black)

Weight

0.16 kg (0.35 lb)

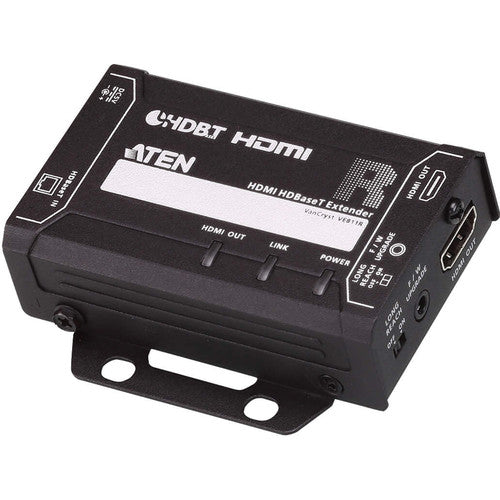

Receiver (VE811R)

Video Output

1 x HDMI Type A Female (Black)

Output Impedance

100 Ohms

Audio Output

1 x HDMI Type A Female (Black)

Weight

0.17 kg (0.37 lb)

Connectivity

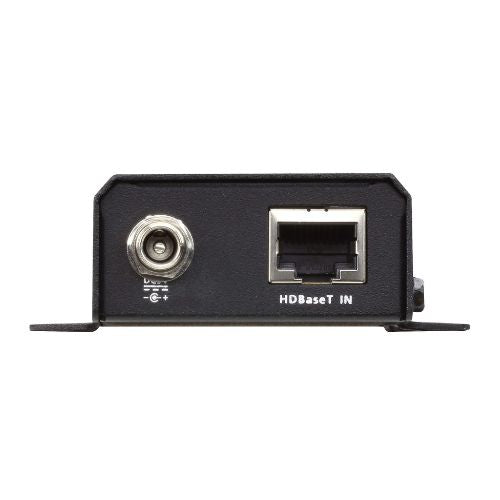

Unit-to-Unit Connection

1 x RJ-45 Female

Firmware Upgrade Port

1 x Mini Stereo Jack Female (Black)

Power Connector

1 x Locking DC Jack (Black)

Controls

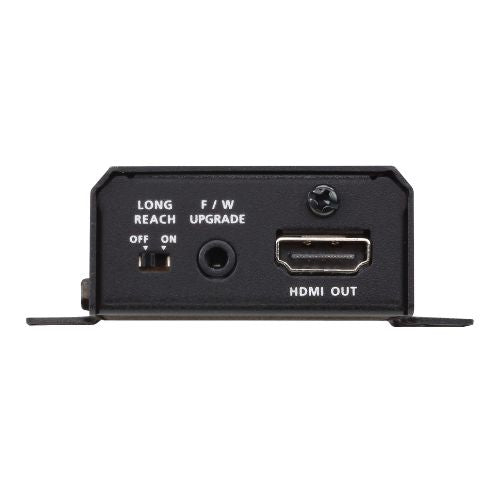

Long Reach Mode Switch

1 x Slide Switch (ON/OFF)

Power

Power Consumption (VE811T)

DC 5 V, 3.84 W

Power Consumption (VE811R)

DC 5 V, 3.77 W

Environmental

Operating Temperature

0°C to 40°C

Storage Temperature

-20°C to 60°C

Humidity

0% to 80% RH (Non-Condensing)

Physical Specifications

Housing Material

Metal

Dimensions with Bracket (L × W × H)

8.64 × 7.30 × 2.47 cm (3.4 × 2.87 × 0.97 in)

Dimensions without Bracket (L × W × H)

8.20 × 5.20 × 2.37 cm (3.23 × 2.05 × 0.93 in)

In the Box

Included Items

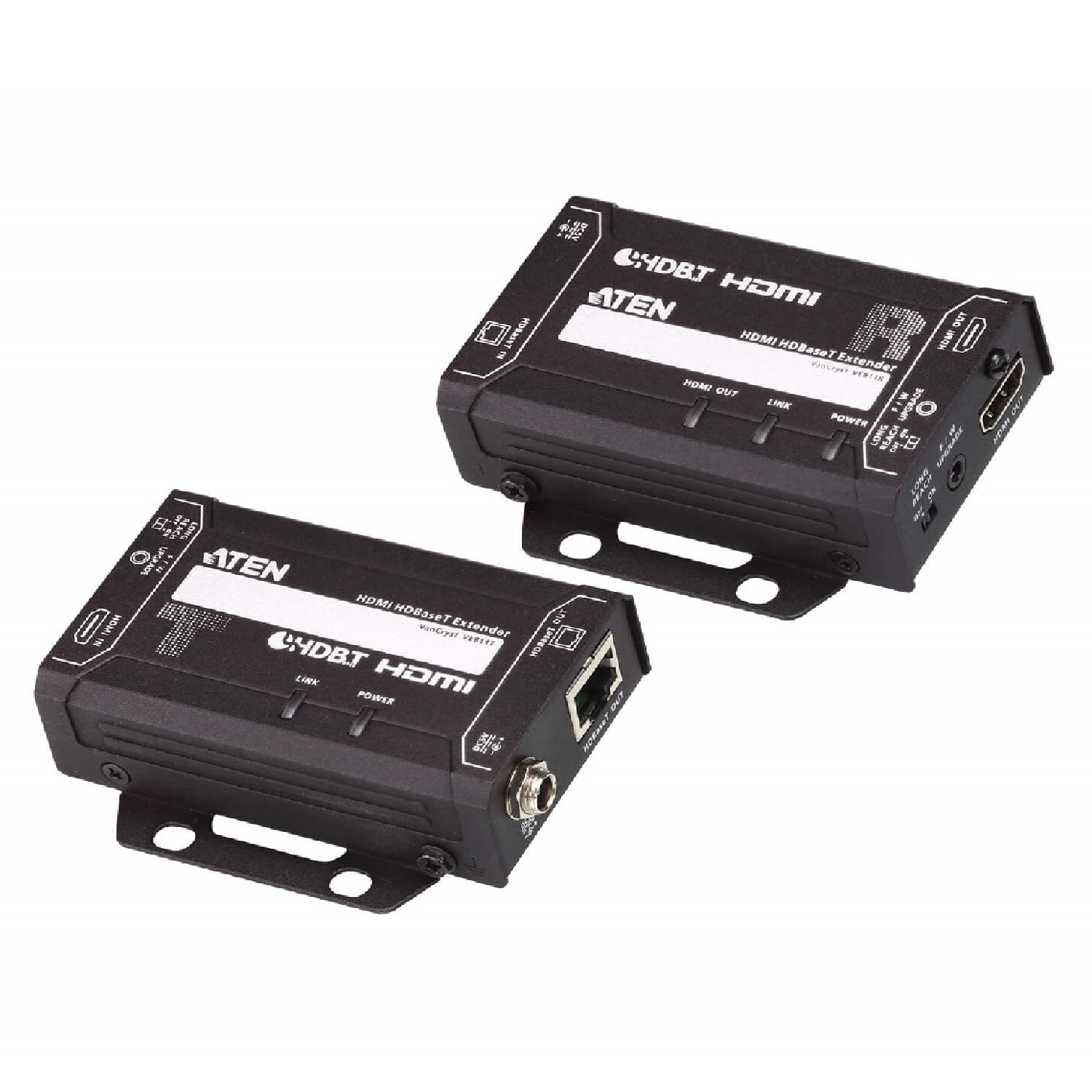

1 x VE811T HDMI HDBaseT Transmitter, 1 x VE811R HDMI HDBaseT Receiver, 2 x Power Adapters, 1 x User Instructions
