Key Specifications

Number of Channels

3

Amplifier Power Rating

4 Ohms: 2×160 W
8 Ohms: 2×80 W

Load Impedance / Voltage

4 Ohms, 8 Ohms

DSP

Yes

Performance

Protections

Overvoltage, Short Circuit, Thermal, Undervoltage

Frequency Response

20 Hz to 20 kHz

Input Sensitivity

Line: -8 dBu to +22 dBu
Page: -58 dBV to +12 dBu

Input Impedance

Line: 20 Kilohms
Page: 2 Kilohms

Max Input Level

22 dBu

THD+N

≤ 0.5%

Crosstalk

≤ -58 dBu

Signal Processing

DSP

Yes

Audio Delay

No

Crossover

No

Ducking/Muting

No

Compressor

Yes

Limiting

Yes

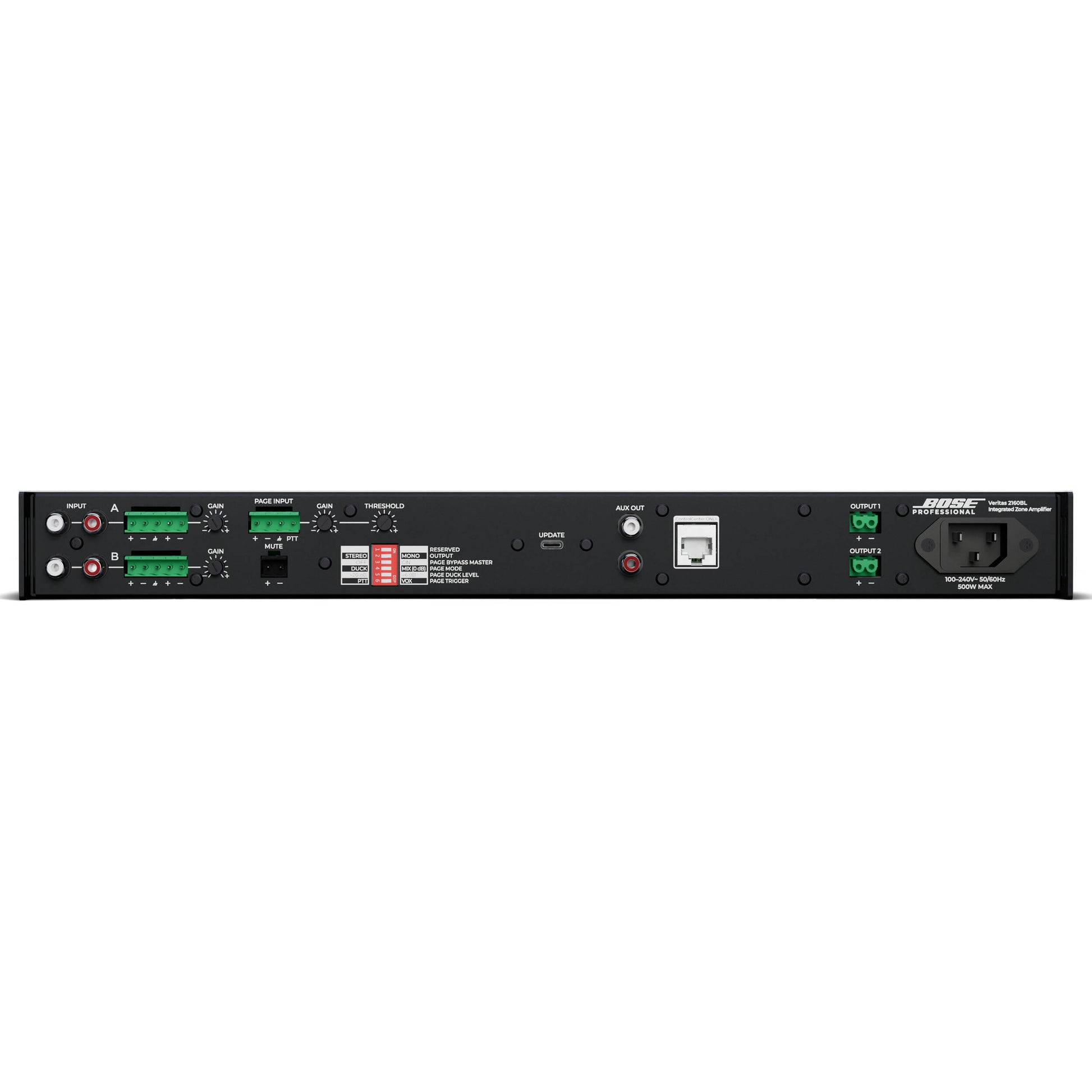

Connectivity

Analog Audio I/O

2× Block 2-Pin Balanced Line Input
1× Block 4-Pin Balanced Page Input
2× Block 2-Pin Speaker Output
1× Stereo 2RCA Coaxial Output

Digital I/O

No

Network I/O

No

USB I/O

No

Wireless

Bluetooth 5.0

Power

AC Input Power

100 to 240 VAC, 50 / 60 Hz

AC Power Connector

1× IEC

Power Consumption

500 W (Max)
13.6 W (Standby)

Physical

Display & Indicators

OLED

Rackmount Size

1 U (with Included Hardware)

Cooling

Fan

Dimensions

19.1 × 12.8 × 1.7" / 484 × 324 × 44 mm

Weight

9.7 lb / 4.4 kg
