Key Specifications

Form Factor/Type

Rackmount

Number of Channels

2

Amplifier Power Rating

4 Ohms: 2×50 W
8 Ohms: 2×25 W

Load Impedance / Voltage

4 Ohms, 8 Ohms

DSP

Yes

Performance

Protections

Short Circuit, Thermal

Frequency Response

40 Hz to 18 kHz ±3 dB

Input Gain/Trim Range

Line Input: -10 dBV to +10 dBV
Page Input: -60 dBV to +10 dBV

VCA Control

Yes

THD+N

≤ 0.3%

Signal Processing

Sample Rate

48 kHz

AD/DA Conversion

24-Bit / 48 kHz

DSP

Yes

EQ

Yes

Ducking/Muting

No

Compressor

Yes

Limiting

Yes

Connectivity

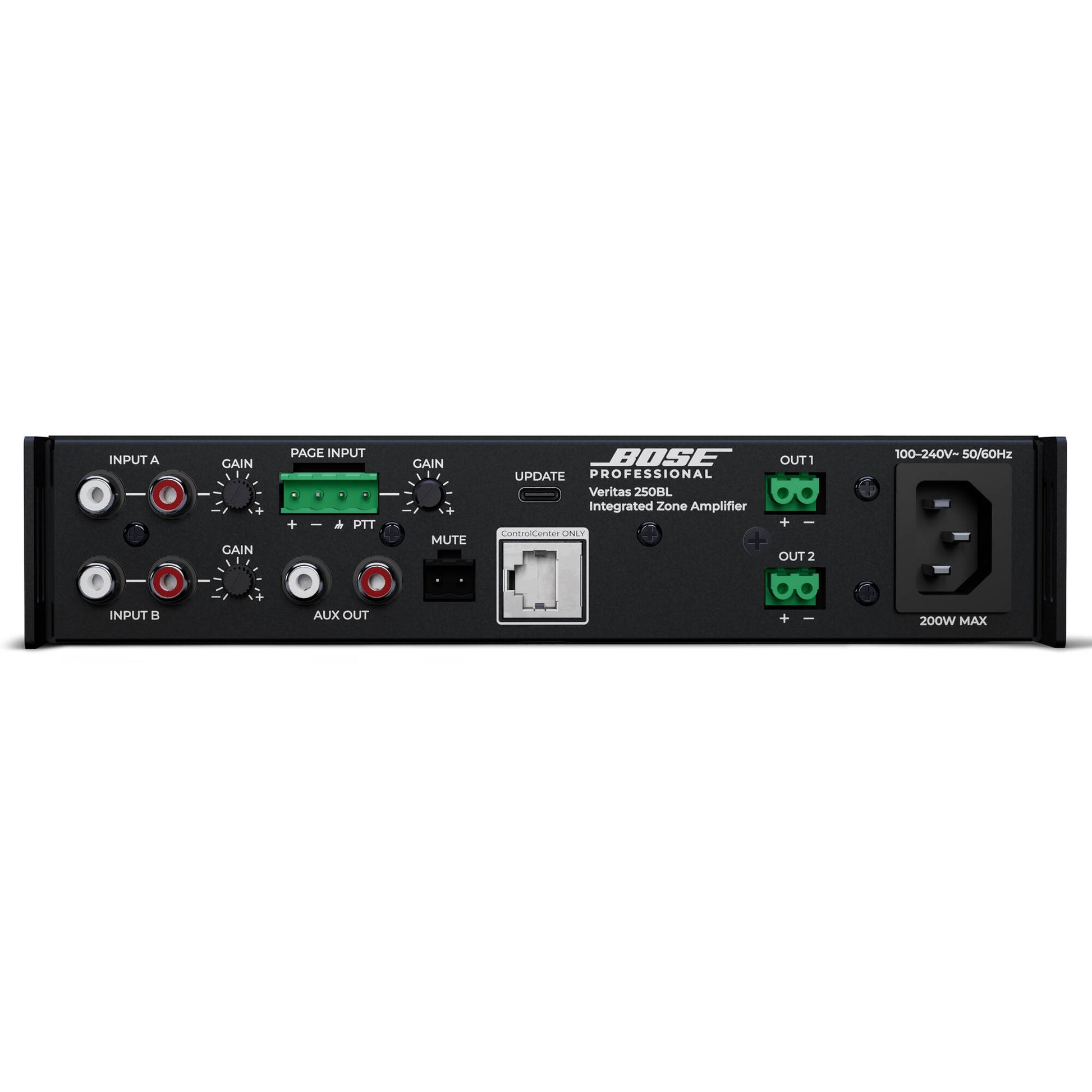

Audio I/O

2× Stereo RCA Coaxial Unbalanced Input
1× Combo XLR-1/4" Balanced Input
1× Block 4-Pin Balanced Input
2× Block 2-Pin Balanced Output
1× Stereo RCA Unbalanced Output

Digital Audio I/O

No

Network I/O

No

Speaker Outputs

2× Block 2-Pin Main

USB I/O

1× USB-C (Service/Update)

Wireless

Bluetooth 5.0

Power

AC Input Power

100 to 240 VAC, 50 / 60 Hz

AC Power Connector

1× IEC

Power Consumption

200 W (Max)
15 W (Idle)

Physical

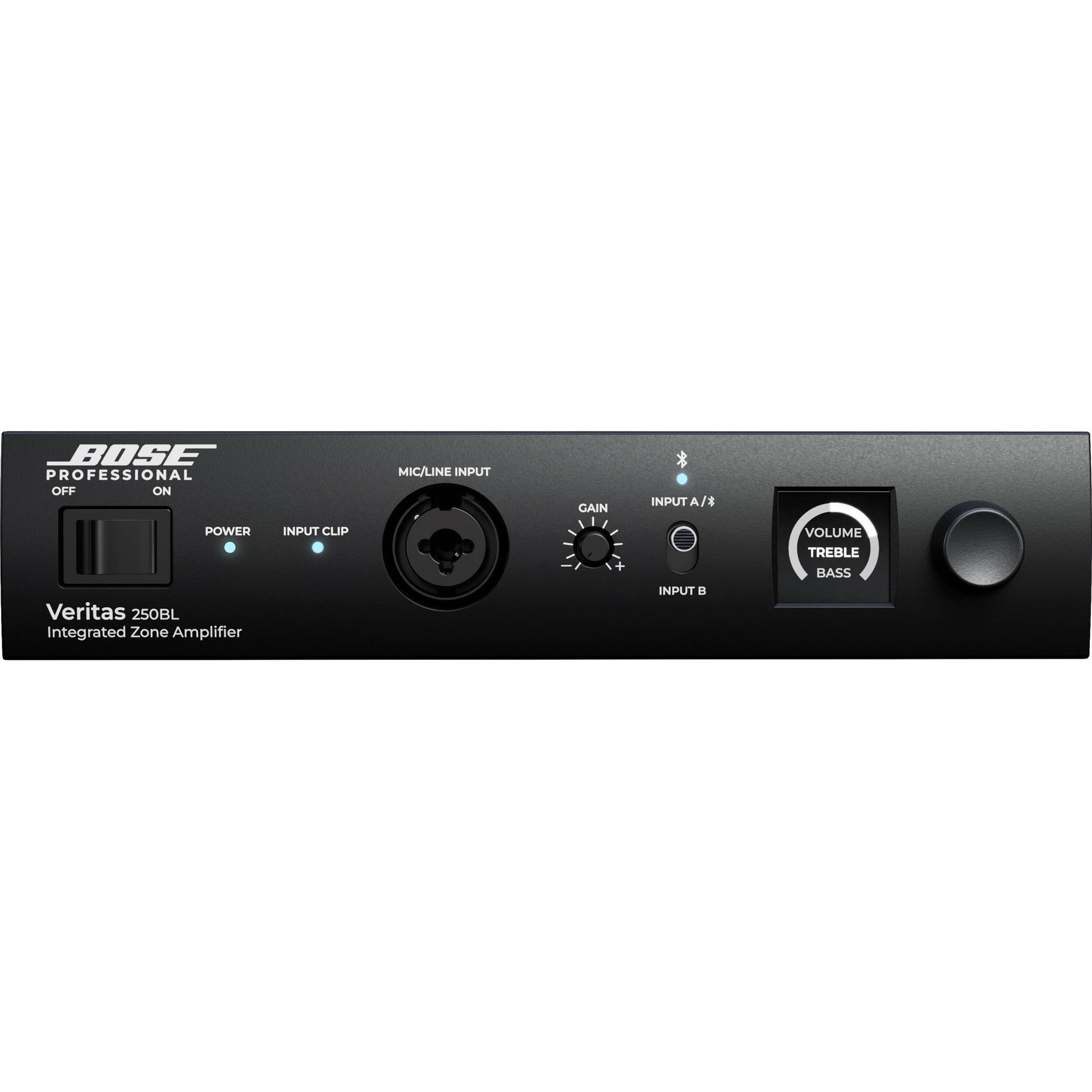

Display & Indicators

OLED

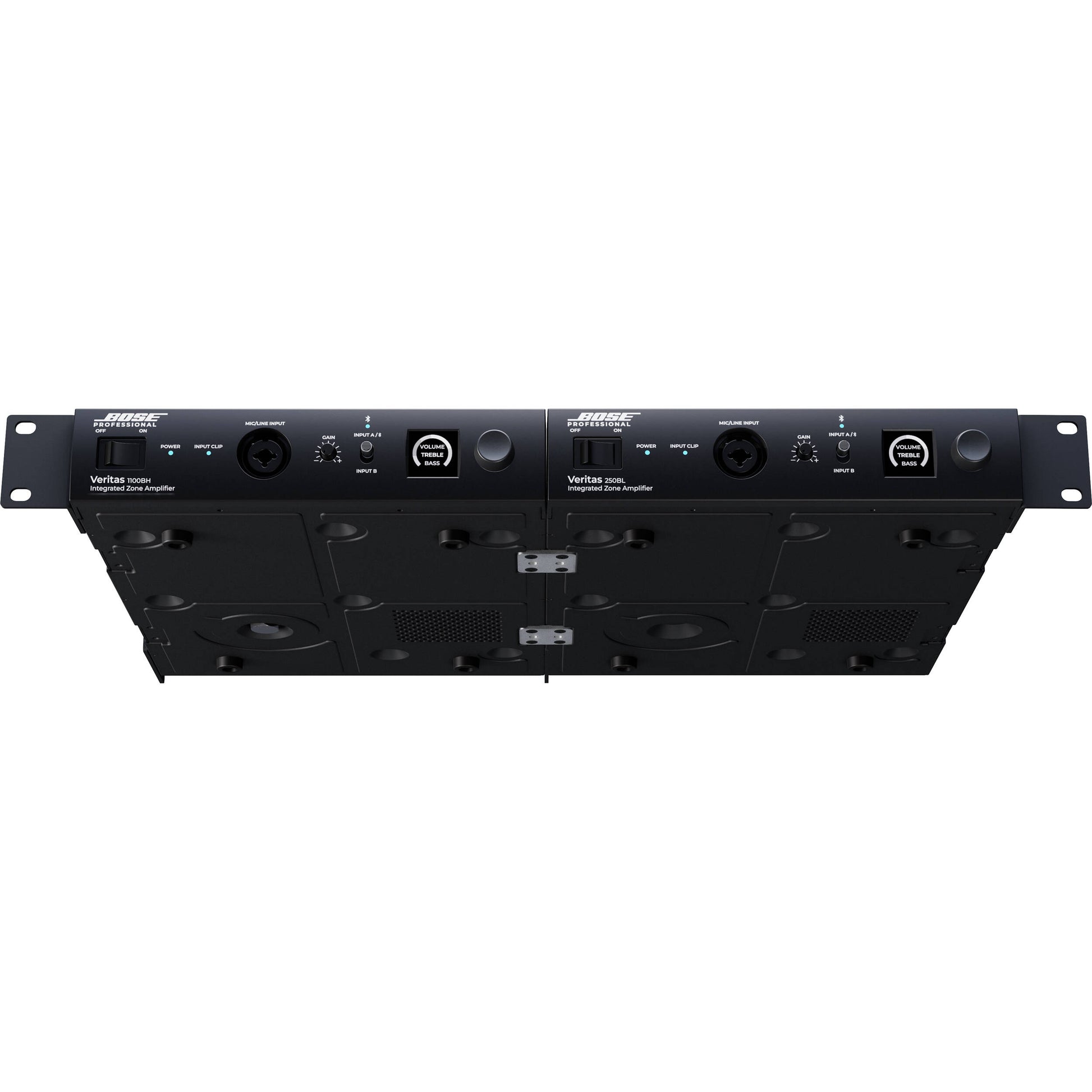

Rackmount Size

1 U (1/2-Rack)

Cooling

Convection

Dimensions

12.2 × 8.4 × 1.7" / 310 × 214 × 44 mm

Weight

6.4 lb / 2.9 kg
