Key Specifications

Product / Accessory Type

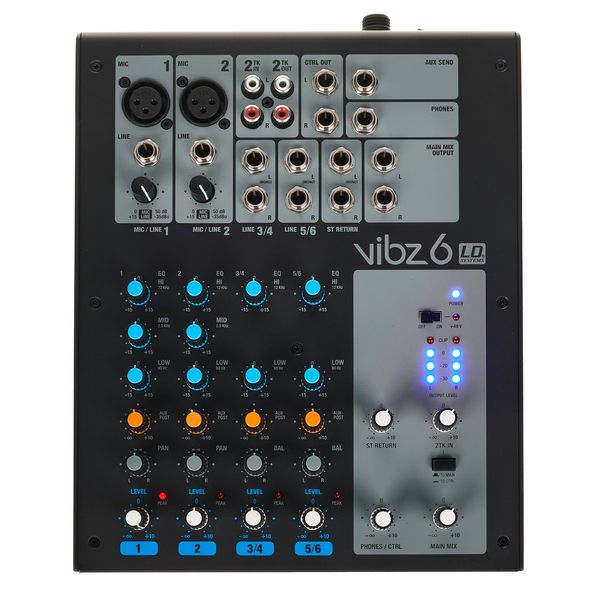

Compact Live Mixing Console

Total Input Channels

6 Channels (2 Mono Mic/Line, 2 Stereo Line)

Mono Mic & Line Input Specifications

Mono Microphone Inputs

2x Electronically Balanced XLR / 1/4" (6.3 mm) TRS Combo Jacks

Mono Mic Input Frequency Range

10 Hz to 45,000 Hz

Mono Mic Gain Range & Impedance

0 dB to +50 dB Gain Range; 4 kOhms Input Impedance

Mono Mic Input THD+N & S/N Ratio

0.0058% THD+N; 113 dB Signal-to-Noise Ratio

Mono Line Input Specifications

2x Electronically Balanced 1/4" (6.3 mm) TRS Jacks;
Frequency Range: 10 Hz to 45,000 Hz;
Gain: 0 dB to +50 dB; Impedance: 21 kOhms;
THD+N: 0.0045%; S/N Ratio: 116 dB

Mono Channel Equalization

3-Band EQ: High (±15 dB @ 12 kHz), Mid (±15 dB @ 2.5 kHz), Low (±15 dB @ 80 Hz)

Mono Channel Controls

Gain, 3-Band EQ, AUX Post-Fader Send, Pan, Channel Volume

Phantom Power Supply

+48 V DC Switchable Global Phantom Power

Stereo Line Input Specifications

Stereo Line Inputs

2x Unbalanced Stereo 1/4" (6.3 mm) TS Channel Pairs

Stereo Line Input Performance

Frequency Response: 10 Hz to 45,000 Hz;
Impedance: 3.7 kOhms; THD+N: 0.0045%; S/N Ratio: 116 dB

Stereo Channel Equalization & Controls

2-Band EQ: Treble (±15 dB @ 12 kHz), Bass (±15 dB @ 80 Hz);
Controls: Balance, 2-Band EQ, AUX Post-Fader Send, Channel Volume

Main & Routing Specifications

Integrated Digital Effects (DFX)

Not Available

AUX Sends & Returns

1x AUX Send (Unbalanced 1/4" Stereo Jack),
1x Stereo AUX Return (2x 1/4" TRS Jacks)

Tape & Auxiliary Inputs/Outputs

1x Stereo 2-Track Tape In (2x RCA), 1x Stereo 2-Track Tape Out (2x RCA)

Master & Monitoring Outputs

1x Unbalanced Stereo Main Out (2x 1/4" TRS, 120 Ohms, Max +20 dBu),
1x Stereo Control Room Out (1/4" Unbalanced Jack),
1x Headphone Output (1/4" TRS Jack)

Main Section Controls & Indicators

Controls: Master Volume, Phones/Control Room Volume, Stereo Return Volume, 2-Track In Volume, 2-Track Assignment (Main/Control Room), Phantom Power Switch;
Indicators: Power LED, Phantom Power LED, 4-Segment LED Level Meter, Channel Peak LEDs

Power & Electrical Specifications

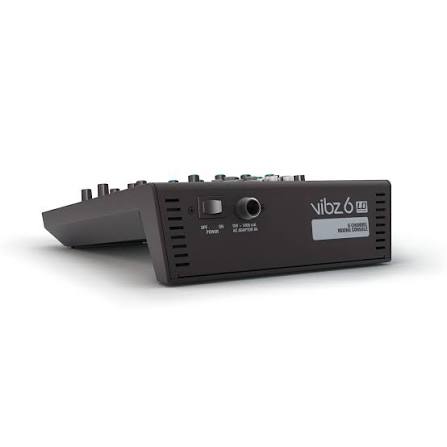

Power Supply Unit

External AC Power Supply Adapter (230 VAC Input, 18 V DC, 1 A Output)

Dimensions & Weight Specifications

Product Dimensions (W×H×D)

210 mm x 67 mm x 262 mm (8.27" x 2.64" x 10.31")
