Blackmagic Design Video Assist 12G HDR

Key Specifications

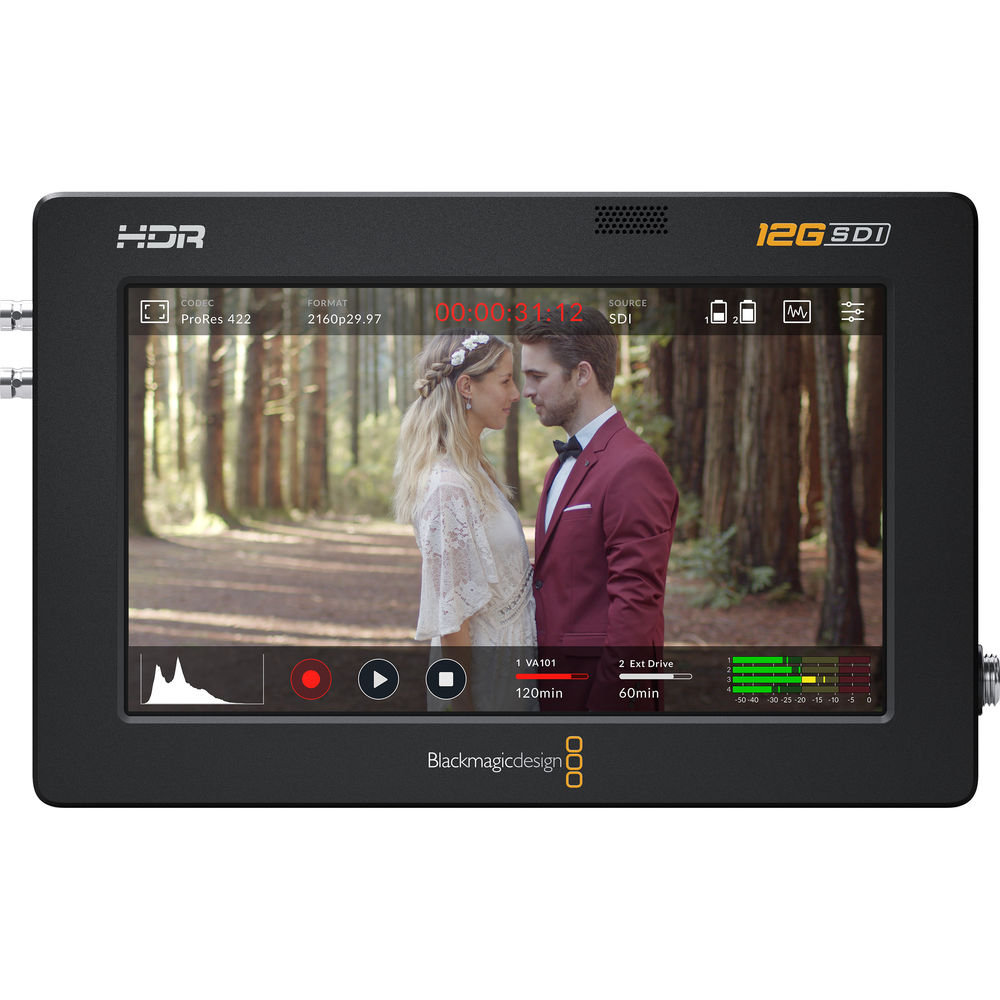

Display

• Display Size: 5.0" / 12.7 cm
• Resolution: 1920 x 1080
• Panel Type: IPS-Type LCD
• Brightness: 2500 nits / cd/m²
• Touchscreen: Yes
• HDR Support: Yes (HDR10/Hybrid Log Gamma)
• Color Support: 1.07 Billion Colors (10-Bit)
• Color Gamut: 100% Rec. 709, 100% Rec. 2020
• Image Controls: Histogram, Picture-in-Picture, RGB Parade, Vectorscope, Waveform

Video & Audio I/O

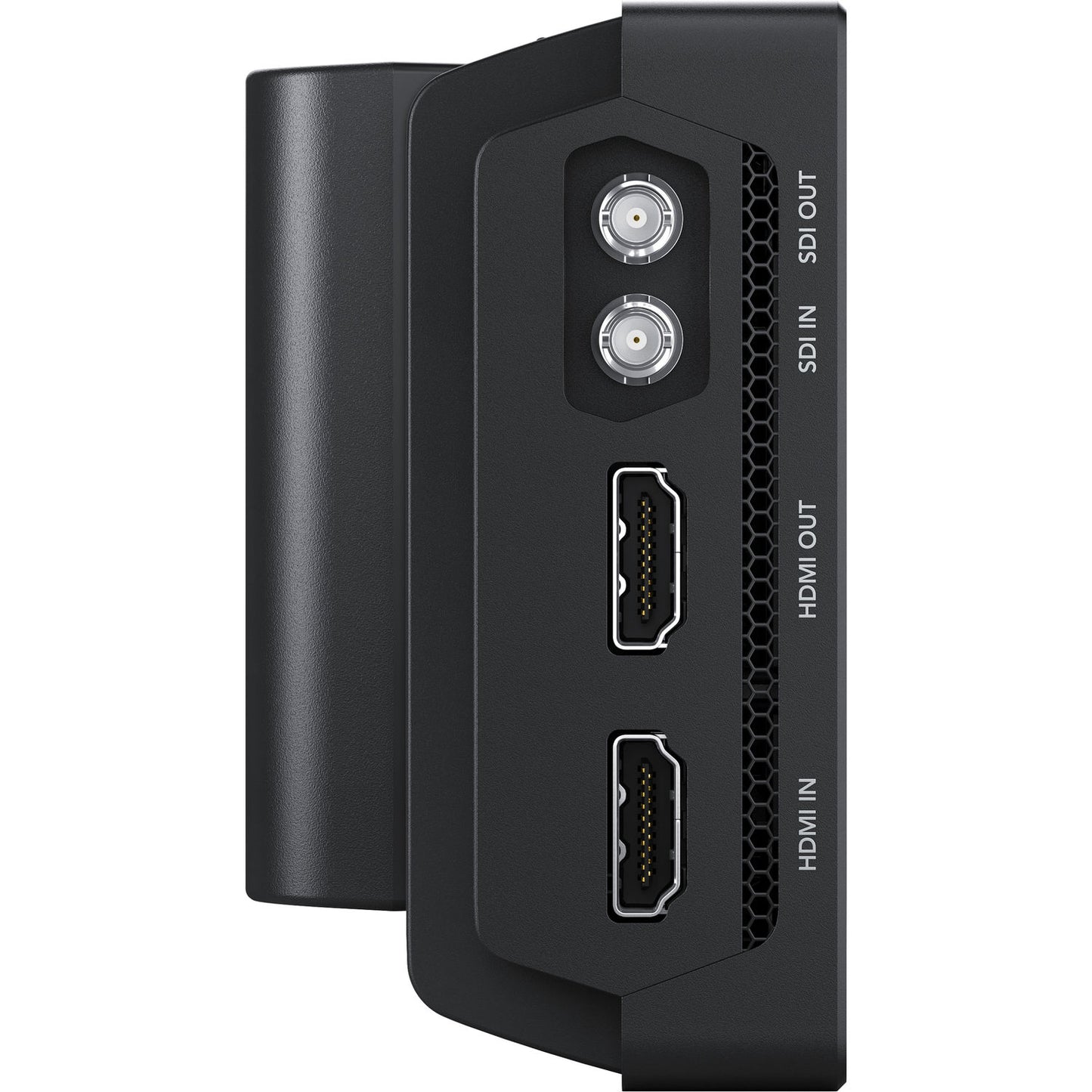

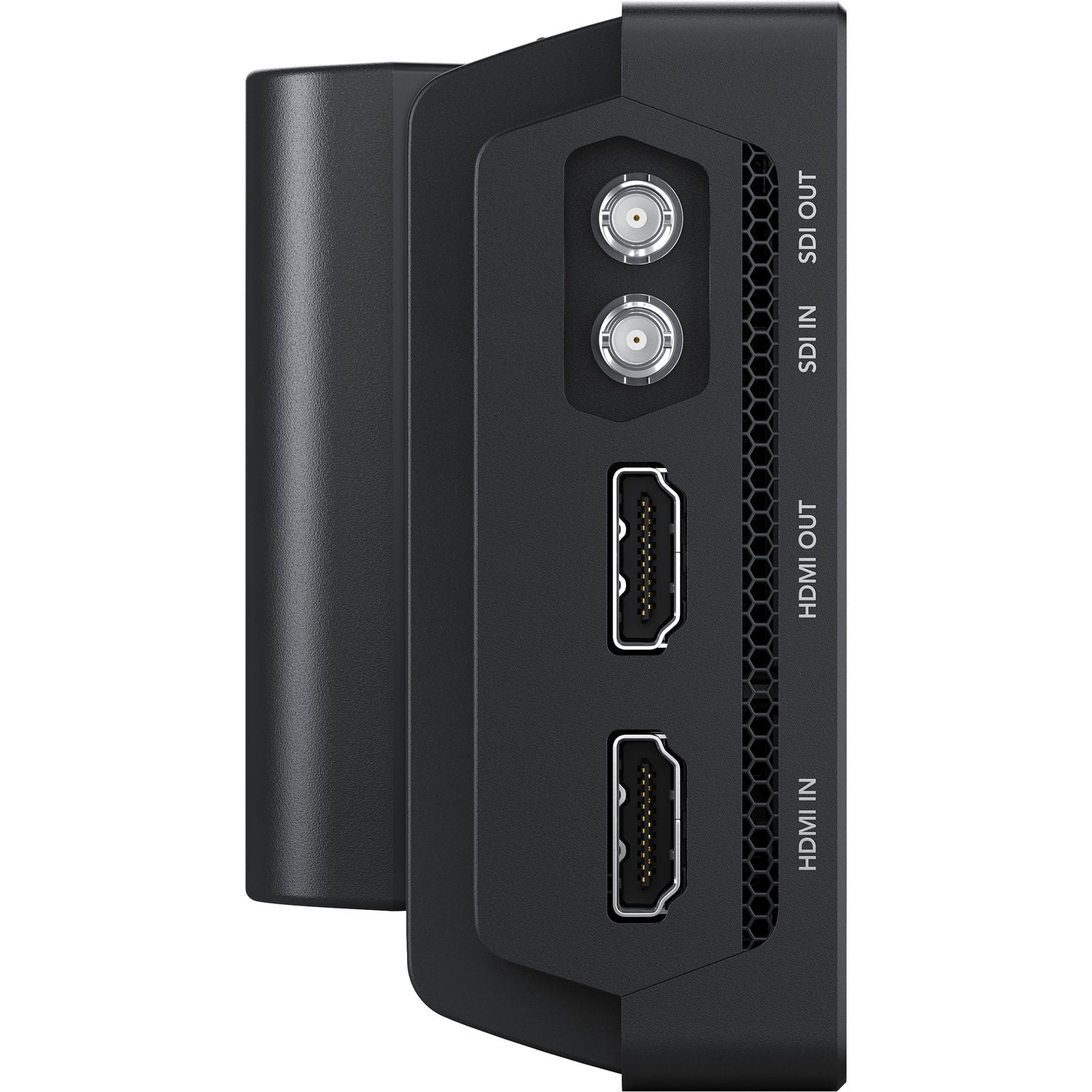

• Video I/O: 1x HDMI 2.0a Input/Output, 1x Micro BNC (12G-SDI) Input/Output
• Embedded Audio: HDMI (8-Channel), SDI (16-Channel)
• Audio I/O: 1x 3.5 mm Headphone Output
• Built-In Speaker: Mono
• Timecode Support: Yes

Recording

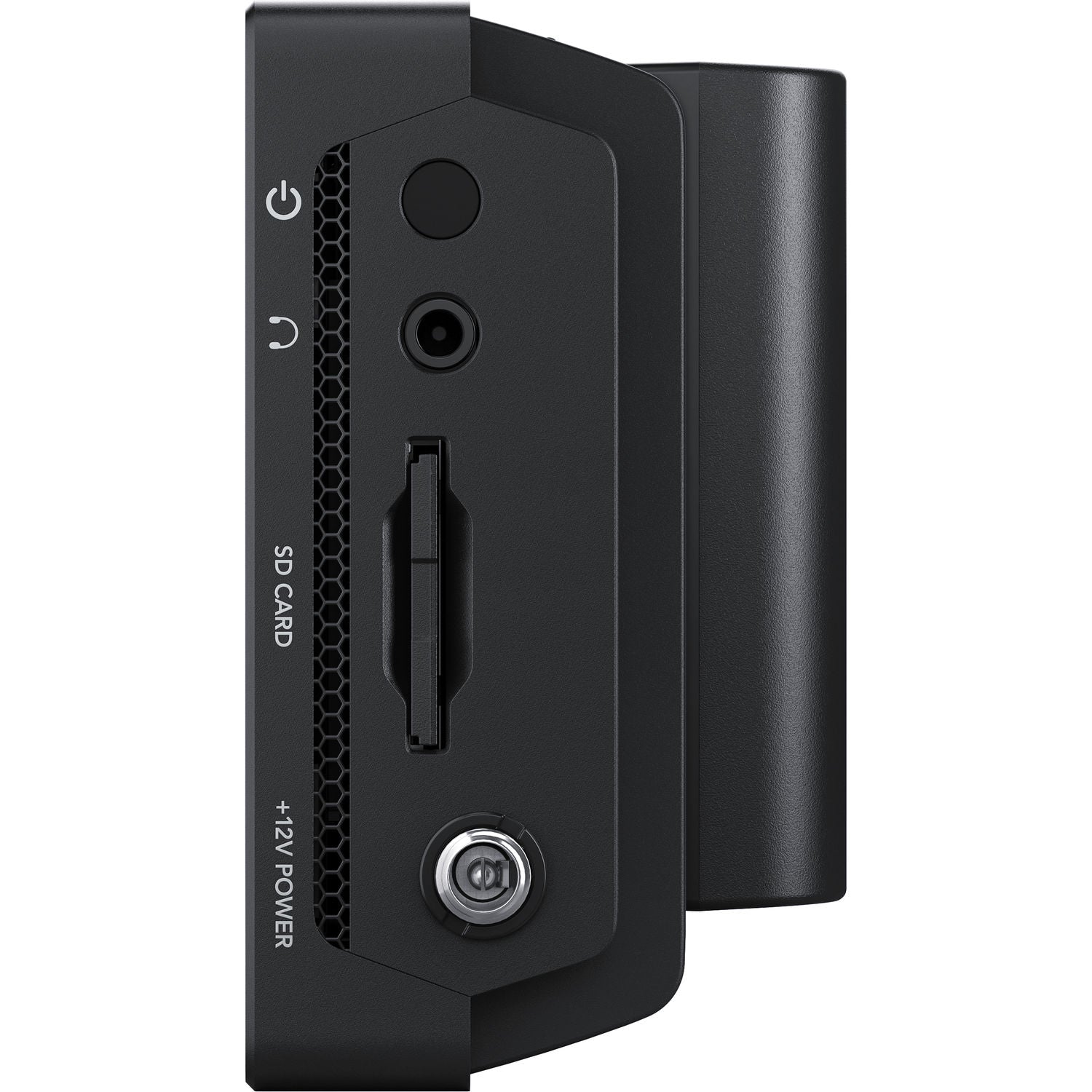

• Media Slot: Single SD/SDHC/SDXC (UHS-II)
• Encoding Formats: Blackmagic Raw, ProRes (422, 422 HQ, LT, Proxy), DNxHD (HQX, LB, SQ)
• Maximum Audio Tracks: 16

General & Power

• Power I/O: 1x Barrel (12 VDC) Input

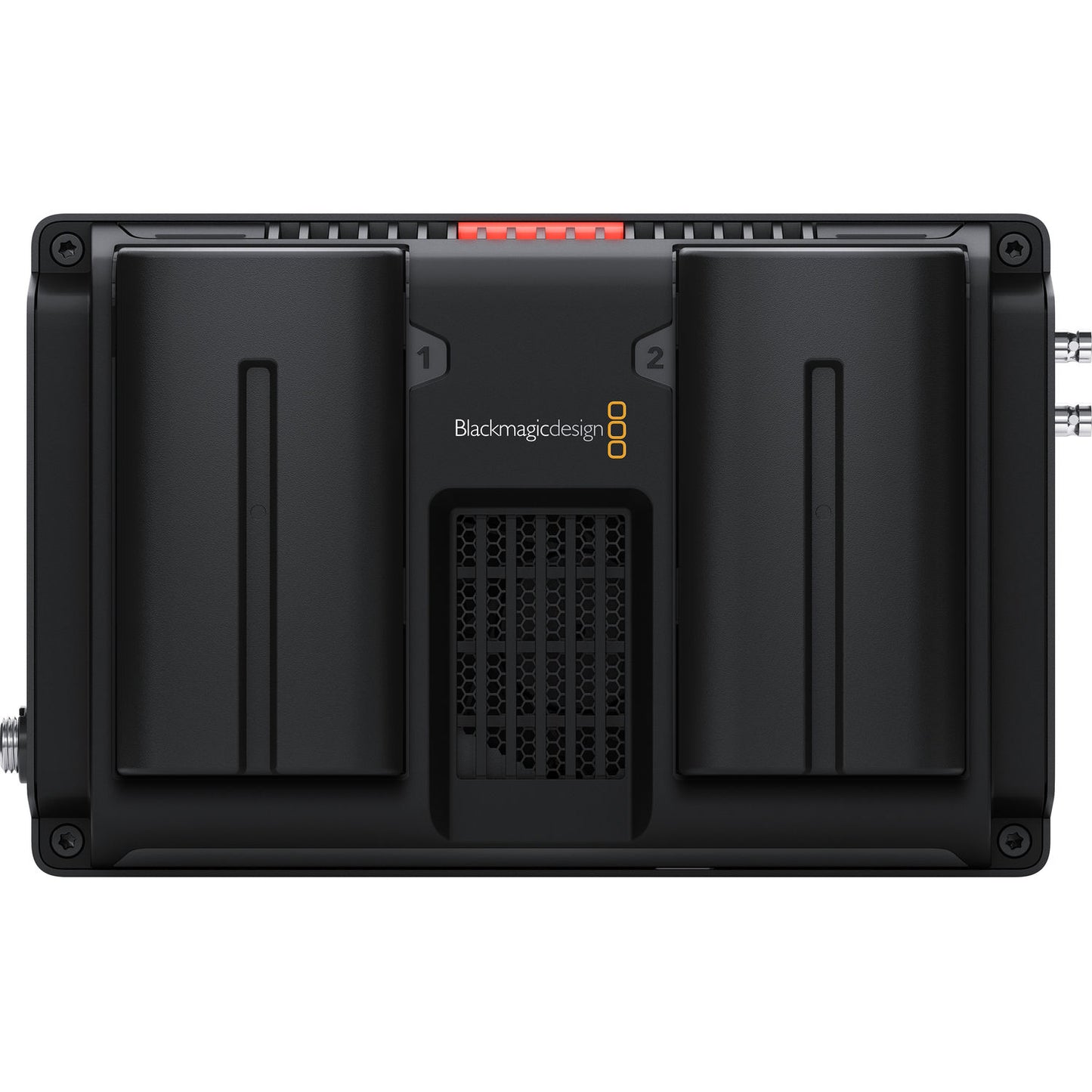

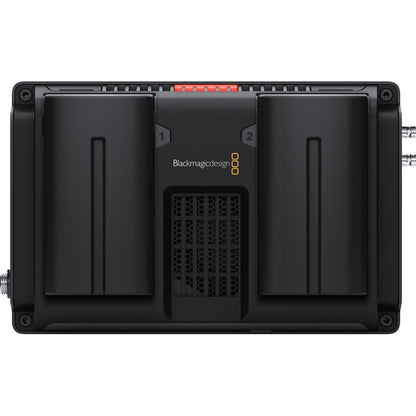

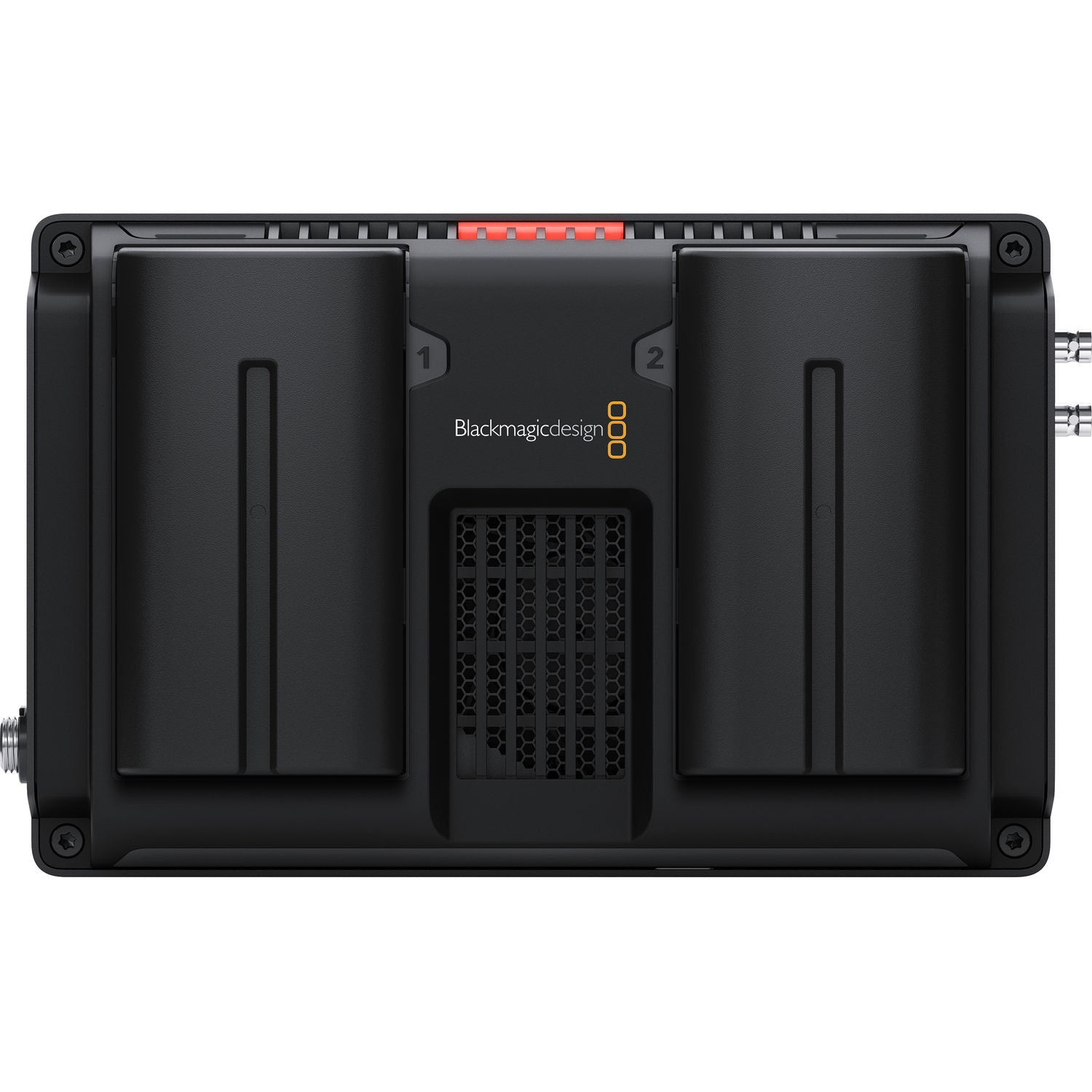

• Battery: 2x L-Series Mounts
• Power Consumption: 36 W
• Mounting: Top/Bottom (3x 1/4"-20 Female)
• Dimensions: 5.83 x 3.54 x 1.44" / 14.81 x 8.99 x 3.66 cm
• Weight: 14.46 oz / 409.94 g
• Operating Conditions: 32 to 72°F / 0 to 40°C, up to 90% Humidity
• Storage Conditions: -4 to 113°F / -20 to 45°C
