Videobar VB1 All-in-One USB Conferencing System
Videobar VB1 All-in-One USB Conferencing System
BOSE
UNIT: EACH
Product Code: SKU:BOSE-VIDEOBARVB1-CHN-503
Key Features

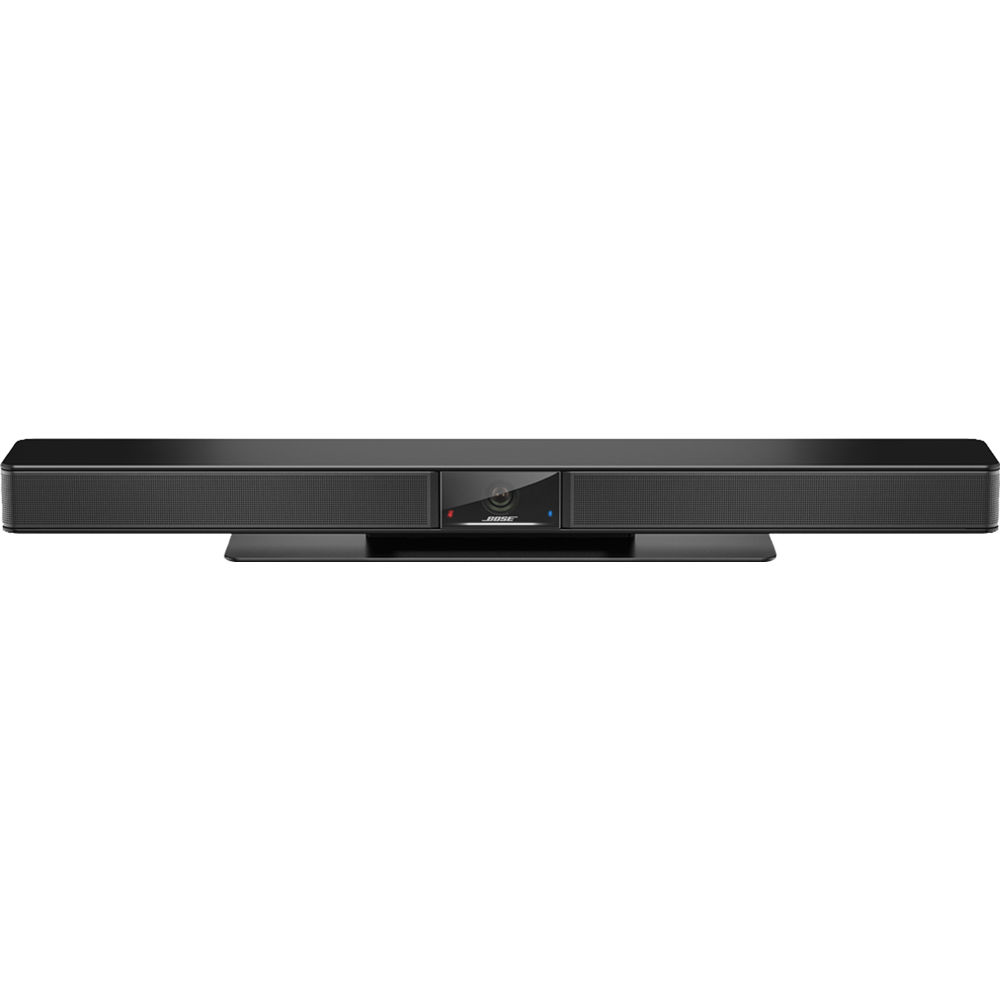

BOSE Videobar VB1 All-in-One USB Conferencing System
BOSE Videobar VB1 All-in-One USB Conferencing System
|
Key Specifications |
|
|
Operating Systems |
macOS 10.10 or Later |
|
Microphone Setup |
|
|
Microphones |
6 |
|
Frequency Response |
20 Hz to 15 kHz |
|
Pickup Range |
20' / 6 m |
|
Beamforming |
Static and Dynamic Adaptive Beamforming |
|
Noise Cancellation |
Noise Suppression and Stereo Acoustic Echo Cancellation |
|
Speakers |
|
|
Enclosure |
Ported |
|
Number of Speakers |
2 |
|
Amplifier Power |
20 W per Channel |
|
Distortion |
<0.3% over Frequency Response |
|
Maximum SPL |
89 dB SPL at 3.3' / 1 m, IEC 60268-5 |
|
Frequency Response |
85 Hz to 20 kHz (−10 dB) |
|
Video |
|
|
Supported Resolutions |
UHD 2160p (4K), 1080p, 720p, 960 × 480, 848 × 480, 640 × 480, 640 × 360, 432 × 240 (30 fps) |
|
Encoding |
H.264, M-JPEG |
|
Camera |
|
|
Field of View (FOV) |
Diagonal: 120° |
|
Sensor |
8 MP, 4K Resolution |
|
Digital Zoom |
5× |
|
Focus Distance |
1.6' / 0.5 m to Infinity |
|
UVC Video Class |
v1.1 |
|
White Balance |
Automatic |
|
Brightness Control |
Automatic |
|

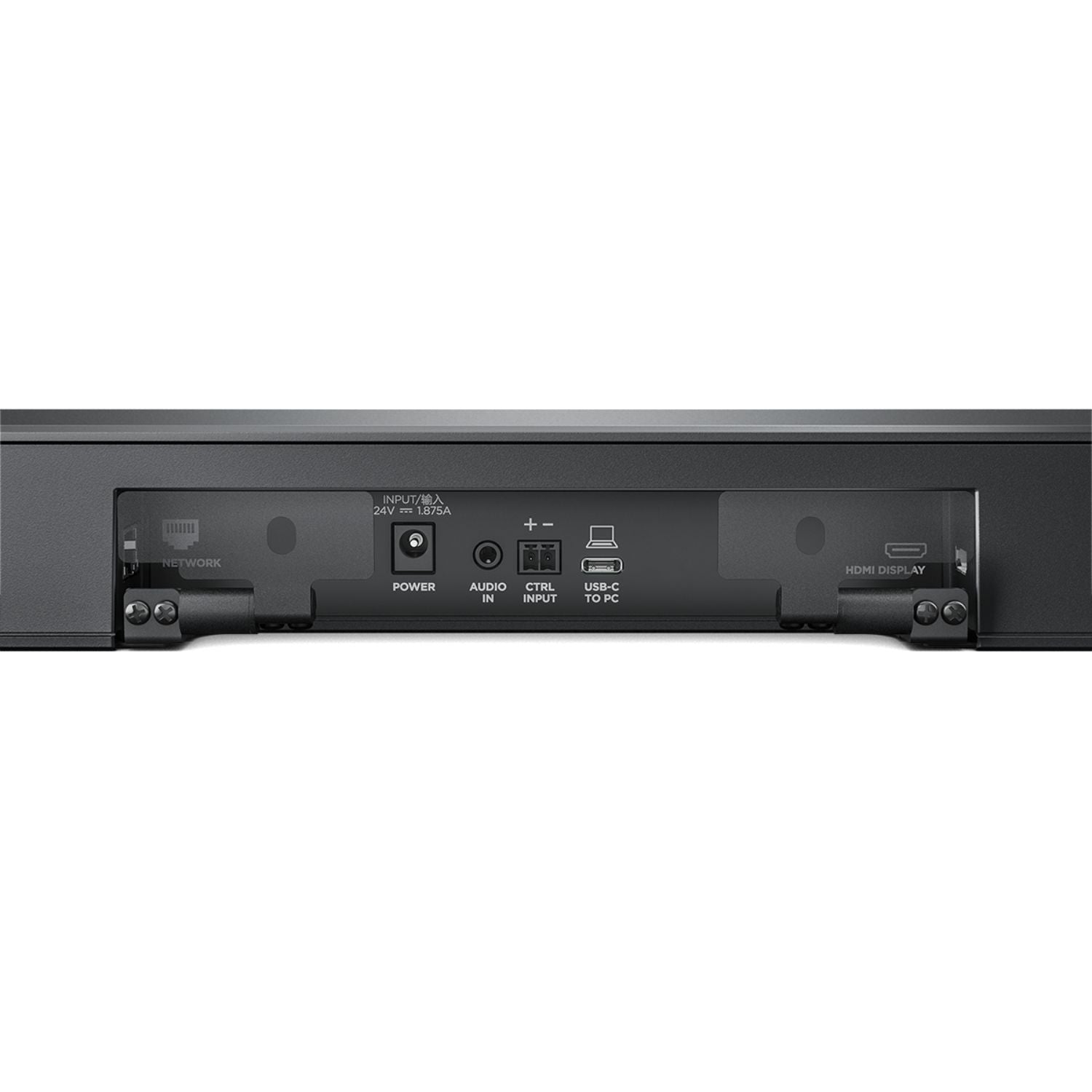

I/O |
|
|
USB Connectors |
1 × USB 3.0 Type-C |
|
HDMI Connector |
1 × HDMI 1.4 Type-D |
|
Audio Input |
1 × 1/8" (3.5 mm) TRS |
|
Ethernet |
1 × RJ45 |
|
GPI |
1 × 2-Pin Euroblock |
|
Communications |
|
|
Ethernet Specifications |
IEEE 802.3 |
|
Wi-Fi Standard |
802.11ac (Wi-Fi 5) |
|
USB Specifications |
USB 3.0 UAC, UVC, HID |
|
Bluetooth Version |
4.2 |
|
Bluetooth Profiles |
HSP, A2DP, AVRCP, BLE |
|
Display |
DisplayLink |
|
Regulatory |
|
|
Safety |
IEC/UL/EN 60065:2014/A11:2017, IEC/UL/EN 62368-1:2014/A11:2017 |
|
EMC |
FCC Part 15B Class B, ICES-003 Class B, CISPR 13, EN55032 Class B, EN55035, EN61000-3-2, EN61000-3-3, BSMI CNS13439 |
|
Wi-Fi |
FCC Part 15C, RSS-GEN, RSS-247, RSS-102, EN300328, EN301893, EN301489 |
|
Environmental |
RoHS |
|
Environmental Conditions |
|
|
Operating Humidity |
Up to 90% (Non-Condensing) |
|
Storage Humidity |
Up to 93% Relative Humidity |
|
Storage Temperature |
−40°F to 158°F / −40°C to 70°C |
|
Power |
|
|
Power Supply Input |
110 to 240 VAC, 50/60 Hz, 1.5 A Max |
|
Power Supply Output |
24 VDC, 1.875 A |
|
Physical |
|
|
Mounting |
Table Stand (Included) |
|
Dimensions |
Videobar VB1: 1.9 × 27 × 3.8 in / 4.8 × 68.6 × 9.6 cm |
|
Weight |
5.6 lb / 2.5 kg |
|
Packaging Info |
|
|
Package Weight |
11 lb |
|
Box Dimensions (L × W × H) |
29 × 5.7 × 5.5 in |
BOSE Videobar VB1 All-in-One USB Conferencing System Accessories
- No accessories available.
