Support a mix of multiple video formats using the Videohub 20x20 12G Zero-Latency Video Router from Blackmagic Design. This advanced router provides 20 12G-SDI inputs and 20 12G-SDI outputs for routing any combination of SD, HD, UHD 4K, and DCI 4K video. The Videohub 20x20 12G centralizes all your SDI cables in one hub, enabling you to connect any video input to any video output, or a single video input to multiple video outputs while eliminating clusters of cables and the need for complex diagrams. This versatile unit can be used with multiple HyperDeck recorders for redundant mastering, to route video to multiple streaming processors for all your broadcast platforms, or to add extra inputs to an ATEM switcher.
BLACKMAGICDESIGN Videohub 20x20 12G
Key Specifications
Processing
Switching Type: Pushbutton, Software
Processing Resolution: DCI 4K at 60
Color Processing: 8-Bit 4:2:2, 10-Bit 4:2:2, 12-Bit 4:4:4
Audio Processing: 48 kHz / 24-Bit
Input
Video Inputs: 20x BNC (12G-SDI)
Input Video Format:
SDI (10/12-Bit 4:4:4 RGB, YUV)
DCI 4K up to 30 fps
UHD 4K up to 30 fps
DCI 2K up to 60 fps
DCI 2KPsF up to 30 fps
1080p up to 60 fps
1080PsF up to 30 fps
1080i up to 60 fps
SDI (10-Bit 4:2:2 RGB, YUV)
DCI 4K up to 60 fps
UHD 4K up to 60 fps
DCI 2K up to 60 fps
DCI 2KPsF up to 30 fps
1080p up to 60 fps
1080PsF up to 30 fps
1080i up to 60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
Embedded Audio Input: SDI
Output
Video Outputs: 20x BNC (12G-SDI)
Output Video Format:
SDI (10/12-Bit 4:4:4 RGB, YUV)
DCI 4K up to 30 fps
UHD 4K up to 30 fps
DCI 2K up to 60 fps
DCI 2KPsF up to 30 fps
1080p up to 60 fps
1080PsF up to 30 fps
1080i up to 60 fps
SDI (10-Bit 4:2:2 RGB, YUV)
DCI 4K up to 60 fps
UHD 4K up to 60 fps
DCI 2K up to 60 fps
DCI 2KPsF up to 30 fps
1080p up to 60 fps
1080PsF up to 30 fps
1080i up to 60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
Embedded Audio Output: SDI
Connectivity

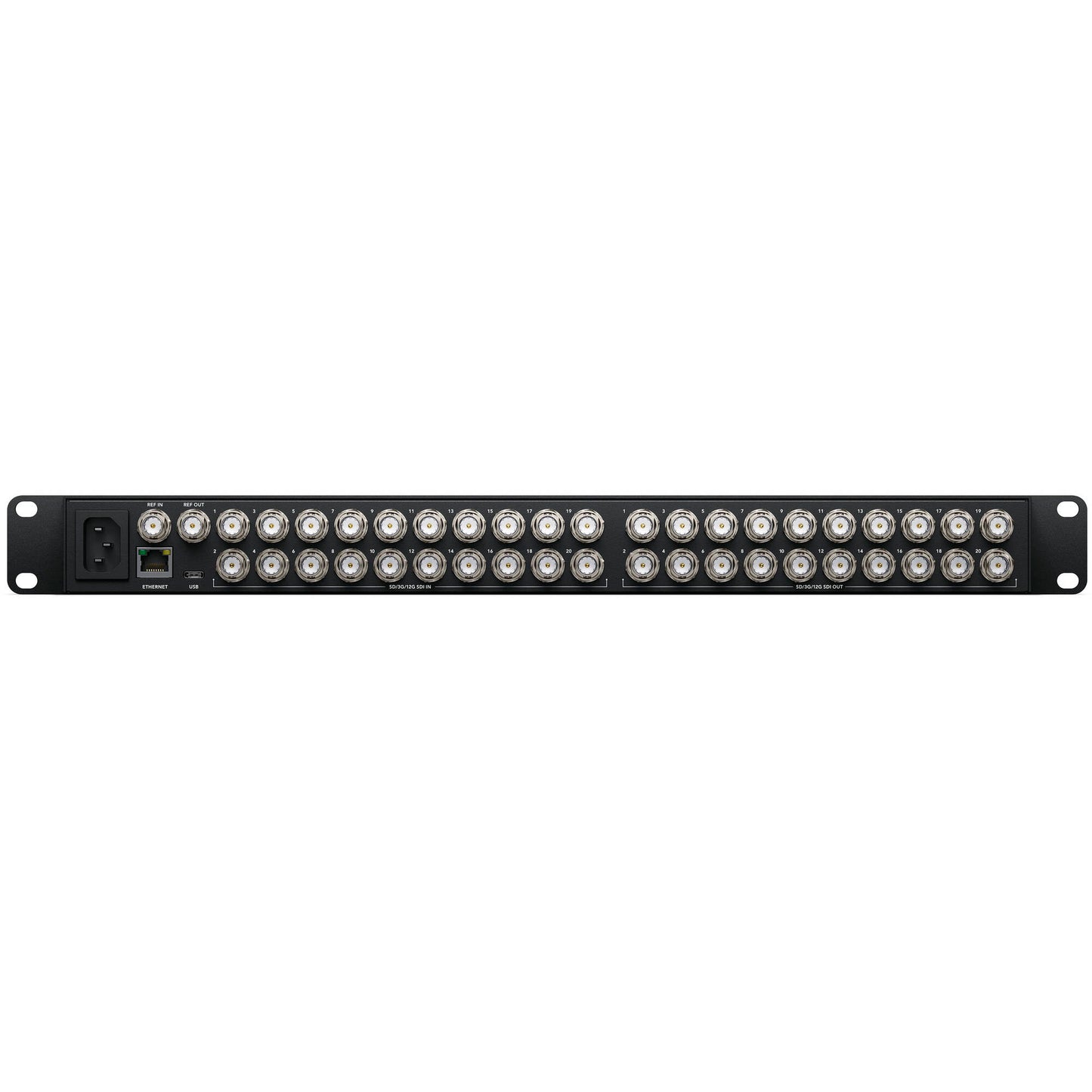

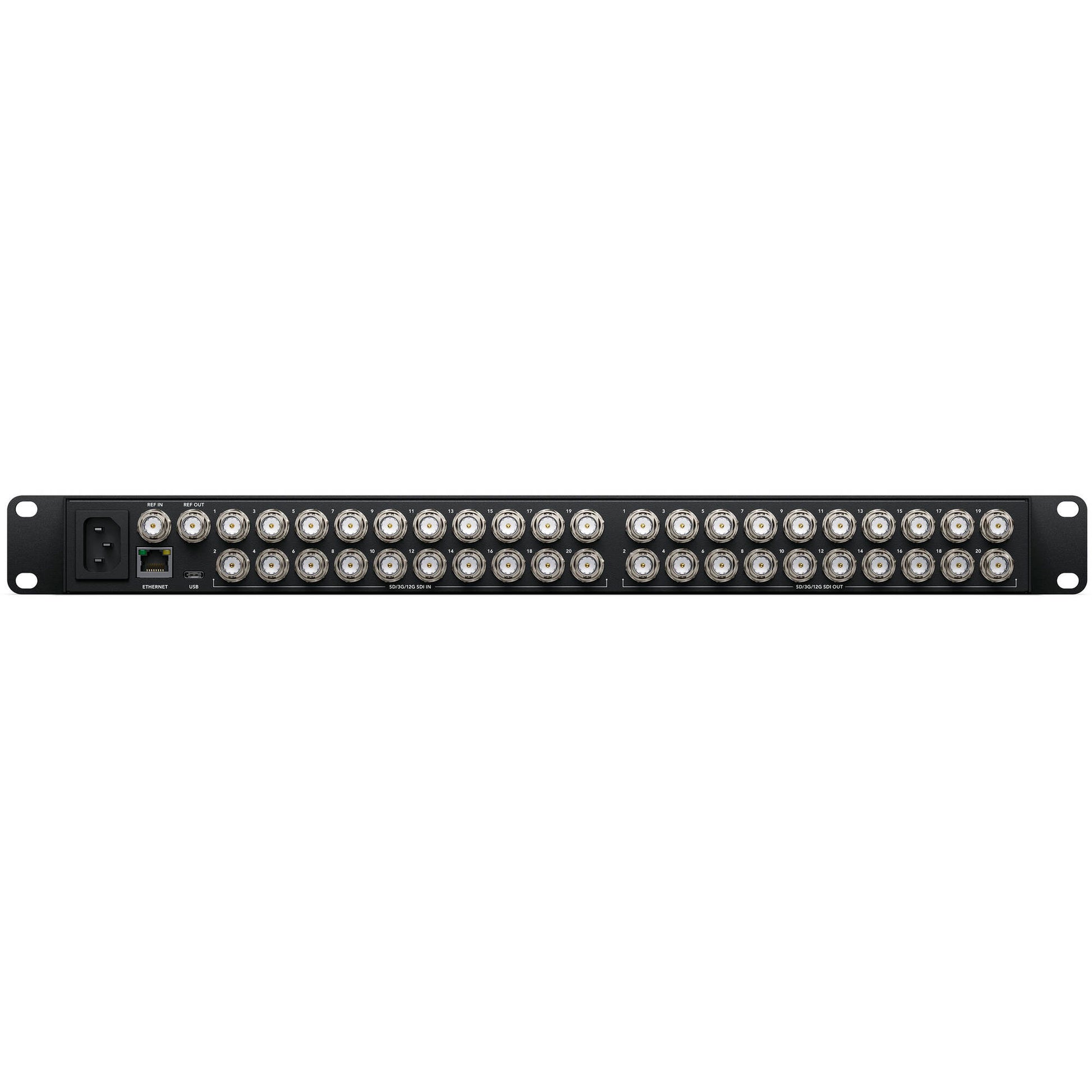

Other I/O: 1x RJ45 LAN, 1x USB-C
Video Standard Compliance: SMPTE 259M/292M/296M/372M/424M/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-10, ITU -R BT.601/BT.656
Display

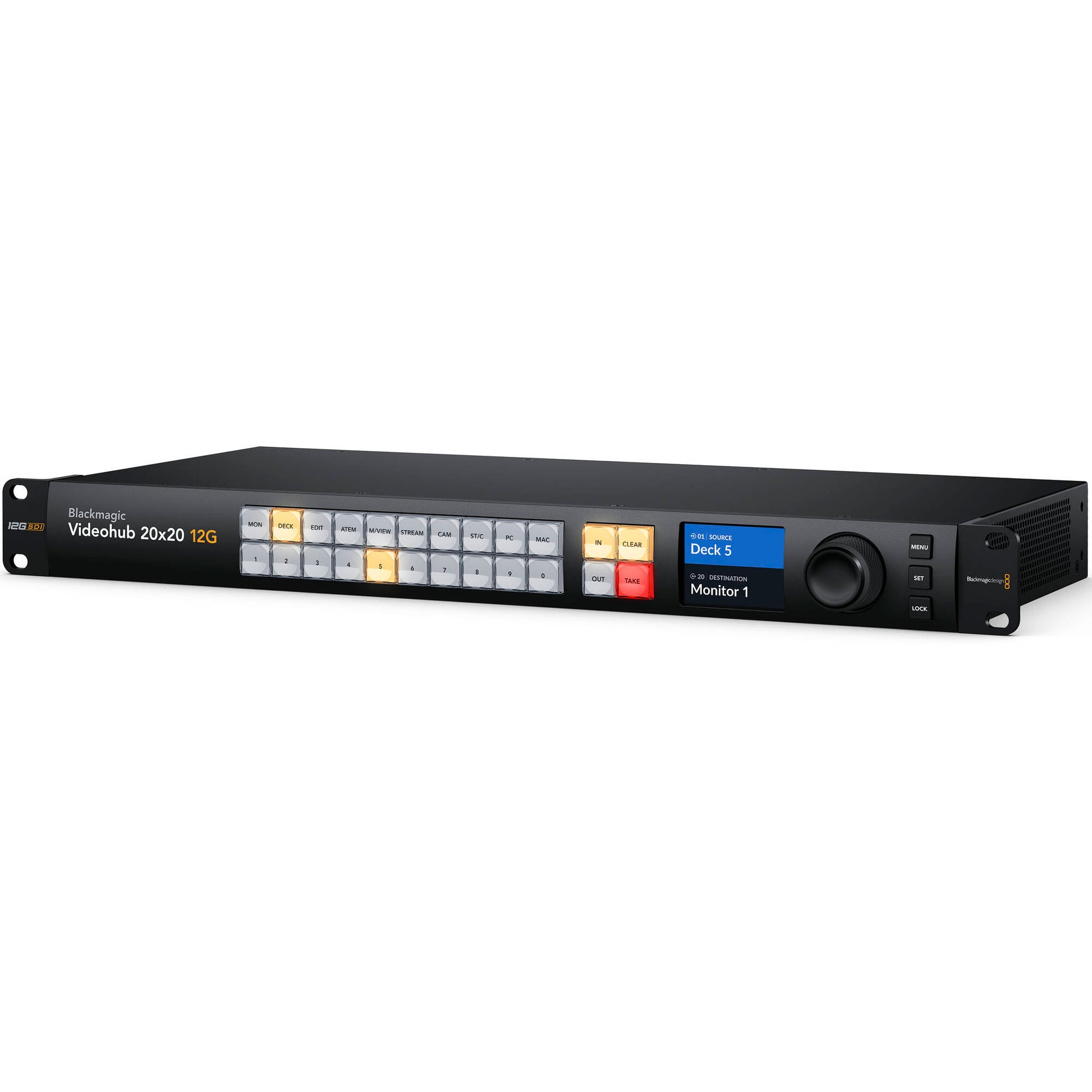

Display Size: 2.2"
Hardware
OS Compatibility: macOS 12 or Later / Windows 10 or Later
Wireless: No
Power
Power I/O: 1x IEC C14 (100 to 240 VAC) Input
Power Consumption: 27.5 W
General
Operating Conditions: 32 to 72°F / 0 to 40°C up to 90% Humidity
Storage Conditions: -4 to 140°F / -20 to 60°C
Rack Form Factor: 1 U
Dimensions: 19 x 9.3 x 1.74" / 48.3 x 23.6 x 4.42 cm
