Key Specifications

Switching Type

Pushbutton, Software

Audio Processing

48 kHz / 24-Bit

Input

Video Inputs

8× BNC (12G-SDI)
1× BNC (12G-SDI)

Input Video Format

SDI
DCI 4K at 23.98–60 fps
UHD 4K at 23.98–60 fps
DCI 2K at 23.98–60 fps
DCI 2KPsF at 23.98–30 fps
1080p at 23.98–60 fps
1080PsF at 23.98–30 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps

Embedded Audio Input

SDI

Output

Video Outputs

4× BNC (12G-SDI)
1× BNC (12G-SDI)
6× BNC (12G-SDI) Loop Output

Output Video Format

SDI
DCI 4K at 23.98–60 fps
UHD 4K at 23.98–60 fps
DCI 2K at 23.98–60 fps
DCI 2KPsF at 23.98–30 fps
1080p at 23.98–60 fps
1080PsF at 23.98–30 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps

Embedded Audio Output

SDI

Connectivity

Inputs/Outputs

1× RJ45

Other I/O

1× USB-C Output
1× BNC Blackburst / Reference / Tri-Level Sync Input
1× BNC Blackburst / Reference / Tri-Level Sync Output

Video Standard Compliance

SMPTE 259M, 292M, 296M, 372M, 424M, 424M-A, 424M-B, ST-2081-1, ST-2081-10, ST-2082-10, ITU-R BT.601, BT.656

Hardware

Wireless

Wi-Fi

Power

Power I/O

1× Barrel (12 VDC) Input
1× IEC C13 (100–240 VAC) Input

Power Consumption

23 W (Device)

General

Operating Conditions

32–104°F / 0–40°C, up to 90% Humidity

Storage Conditions

-4–140°F / -20–60°C, up to 90% Humidity

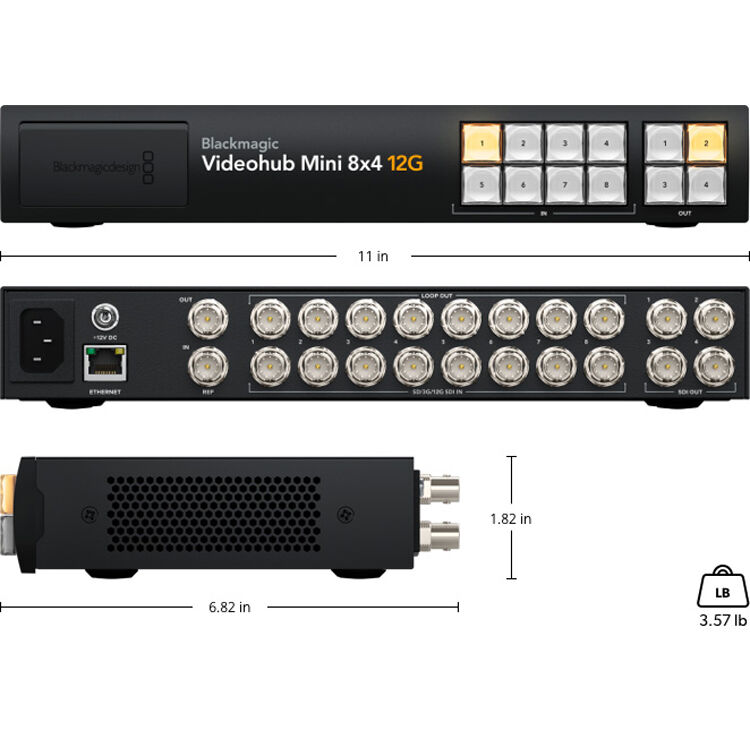

Dimensions (W × H × D)

11 × 6.82 × 1.82" / 27.9 × 17.32 × 4.62 cm

Weight

3.57 lb / 1.62 kg

Packaging Info

Package Weight

4.3 lb

Box Dimensions (L×W×H)

12.9 × 8.9 × 3.5"
