Key Specifications

Product Type

Control System Processor

Model

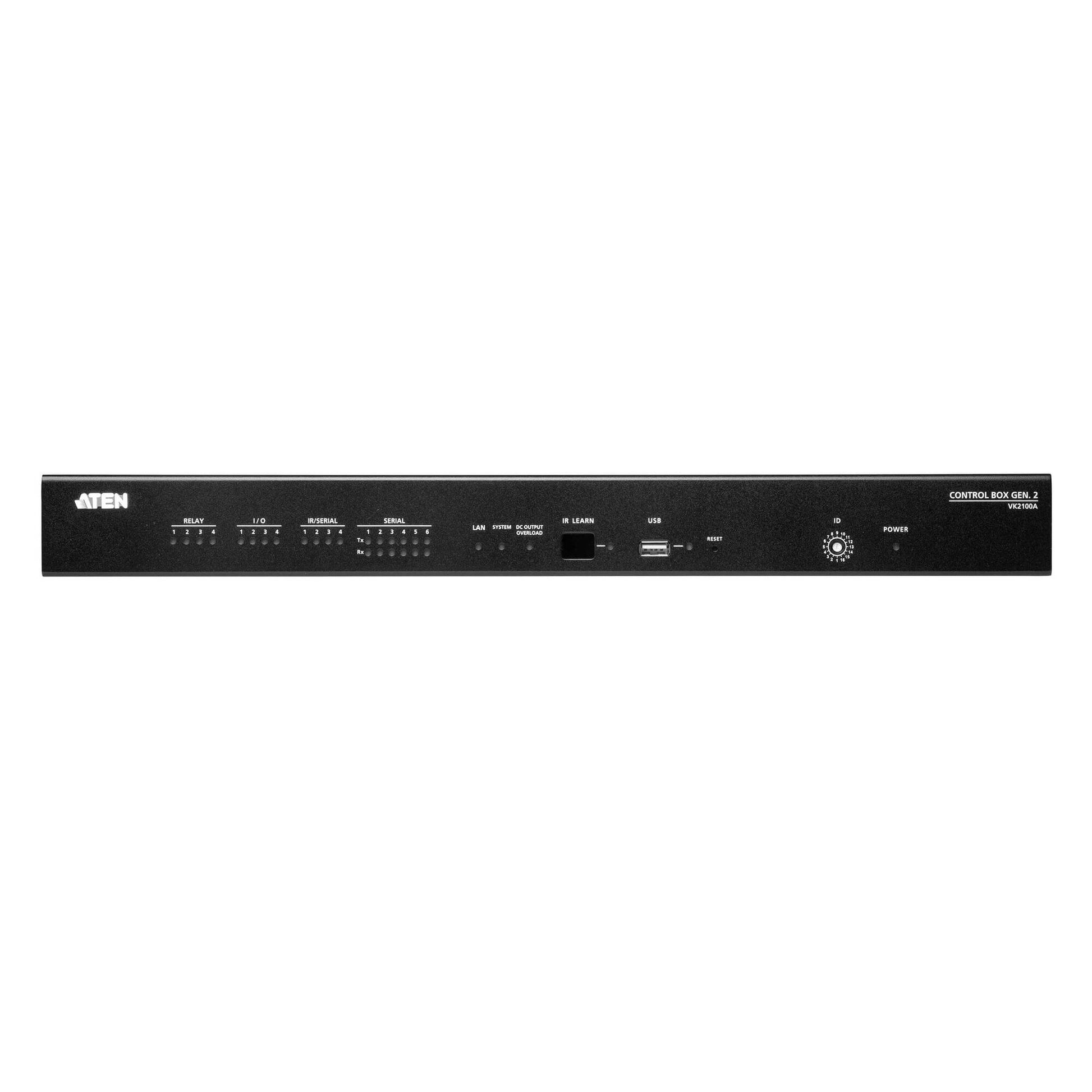

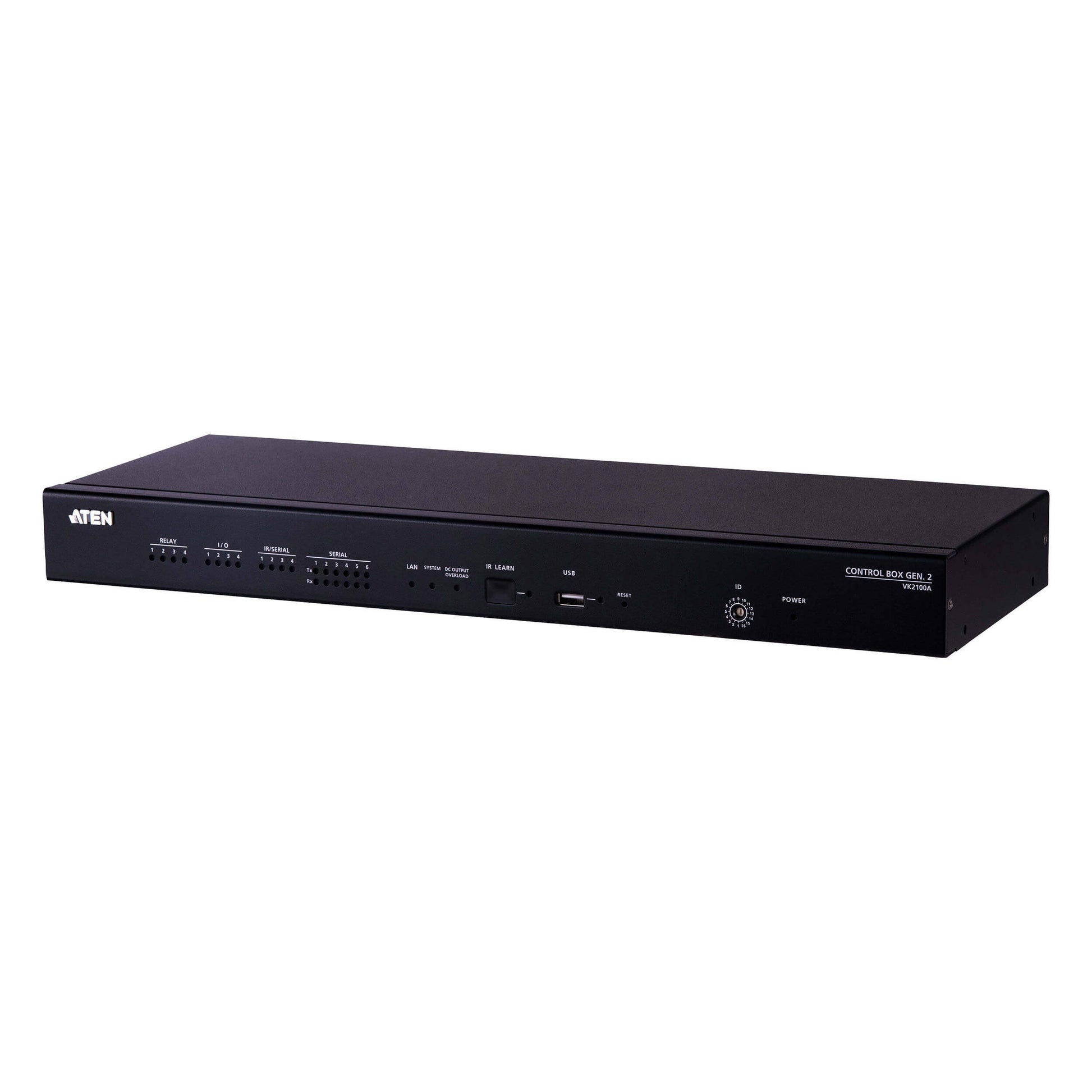

ATEN VK2100A

CPU

Quad-Core Processor

Memory (RAM)

1 GB

Flash Storage

8 GB

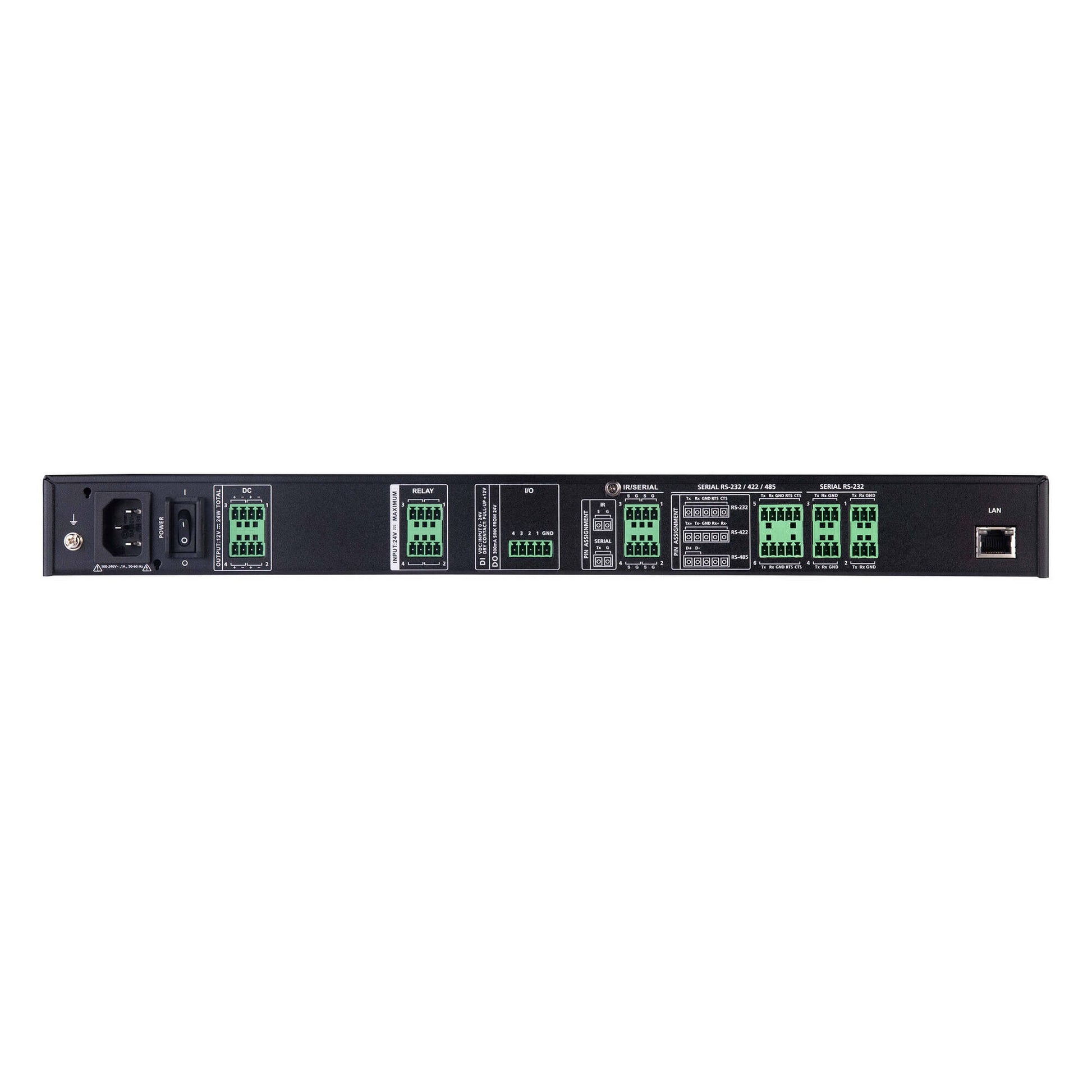

Connectivity

Programmable RS-232 / 422 / 485 Ports

4 x 3-Pin Terminal Blocks (Bidirectional)

RS-232 Ports

2 x 5-Pin Terminal Blocks (Bidirectional)

IR / RS-232 Ports

2 x 4-Pin Terminal Blocks, 4 x Programmable IR / Unidirectional RS-232 Ports

Digital I/O Channels

2 x 4-Pin Terminal Blocks, 4 Channels

Relay Channels

2 x 4-Pin Terminal Blocks, 4 Channels

Ethernet

1 x RJ45 Port

USB

1 x USB-A Port

Power Outputs

4 x 4-Pin Terminal Blocks, 12 VDC Outputs

Power Input

1 x AC Power Input

Control & Sensors

Controller ID Switch

16-Segment Controller ID

Power Switch

On / Off Switch

IR Receiver

Built-In IR Learning Receiver

Power & Environmental

Power Input Range

100 to 240 VAC, 50/60 Hz

Maximum Power Consumption

6.5 W

Operating Temperature

0°C to 50°C (32°F to 122°F)

Storage Temperature

-20°C to 60°C (-4°F to 140°F)

Humidity

0% to 80% RH (Non-Condensing)

Physical Specifications

Housing Material

Metal

Dimensions

17.02 x 6.43 x 1.73" (43.24 x 16.32 x 4.4 cm)

Weight

5.71 lb (2.59 kg)
