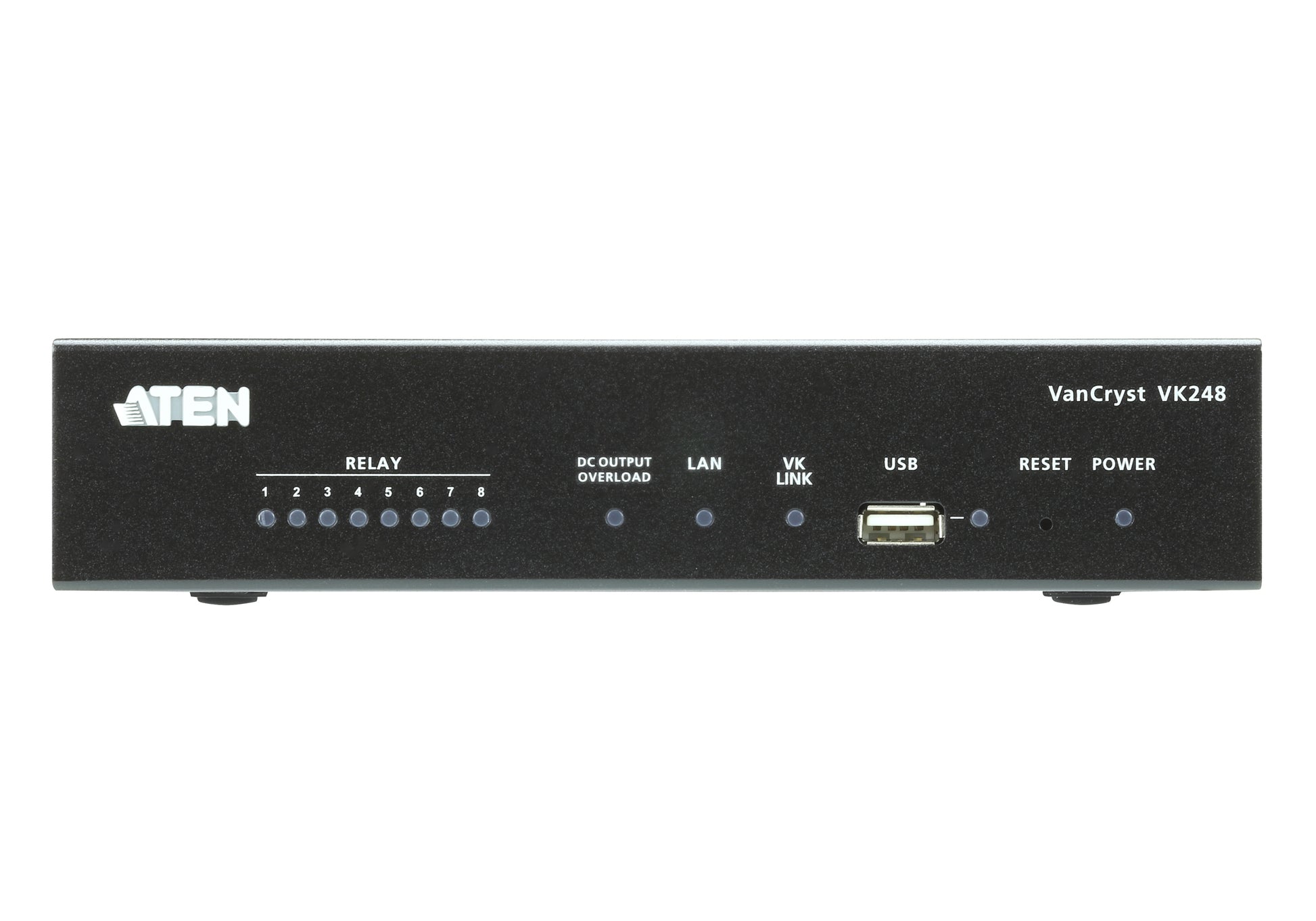

VK248

PRICE FOR INQUIRY

An Ethernet-to-relay channel box ships with 8 channels of relay output
Supports Power over Ethernet (PoE) or DC power supply
WebUI provides VK248 system information, including firmware upgrade
Supports IEEE 802.1x authentication protocol for enhanced network security
Supports Telnet CLI (command-line interface) mode for third-party system integration
An expansion solution for connecting more relay channels to ATEN Control System
Flexible deployment via Ethernet connection
Works with a connected ATEN controller with ID Switch through instant configuration

Price for Inquiry

UNIT: PIECE/S

Product Code: SKU:ATEN-VK248-CHN-5921

An Ethernet-to-relay channel box ships with 8 channels of relay output
Supports Power over Ethernet (PoE) or DC power supply
WebUI provides VK248 system information, including firmware upgrade
Supports IEEE 802.1x authentication protocol for enhanced network security
Supports Telnet CLI (command-line interface) mode for third-party system integration
An expansion solution for connecting more relay channels to ATEN Control System
Flexible deployment via Ethernet connection
Works with a connected ATEN controller with ID Switch through instant configuration

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

ATEN VK248

Key Specifications

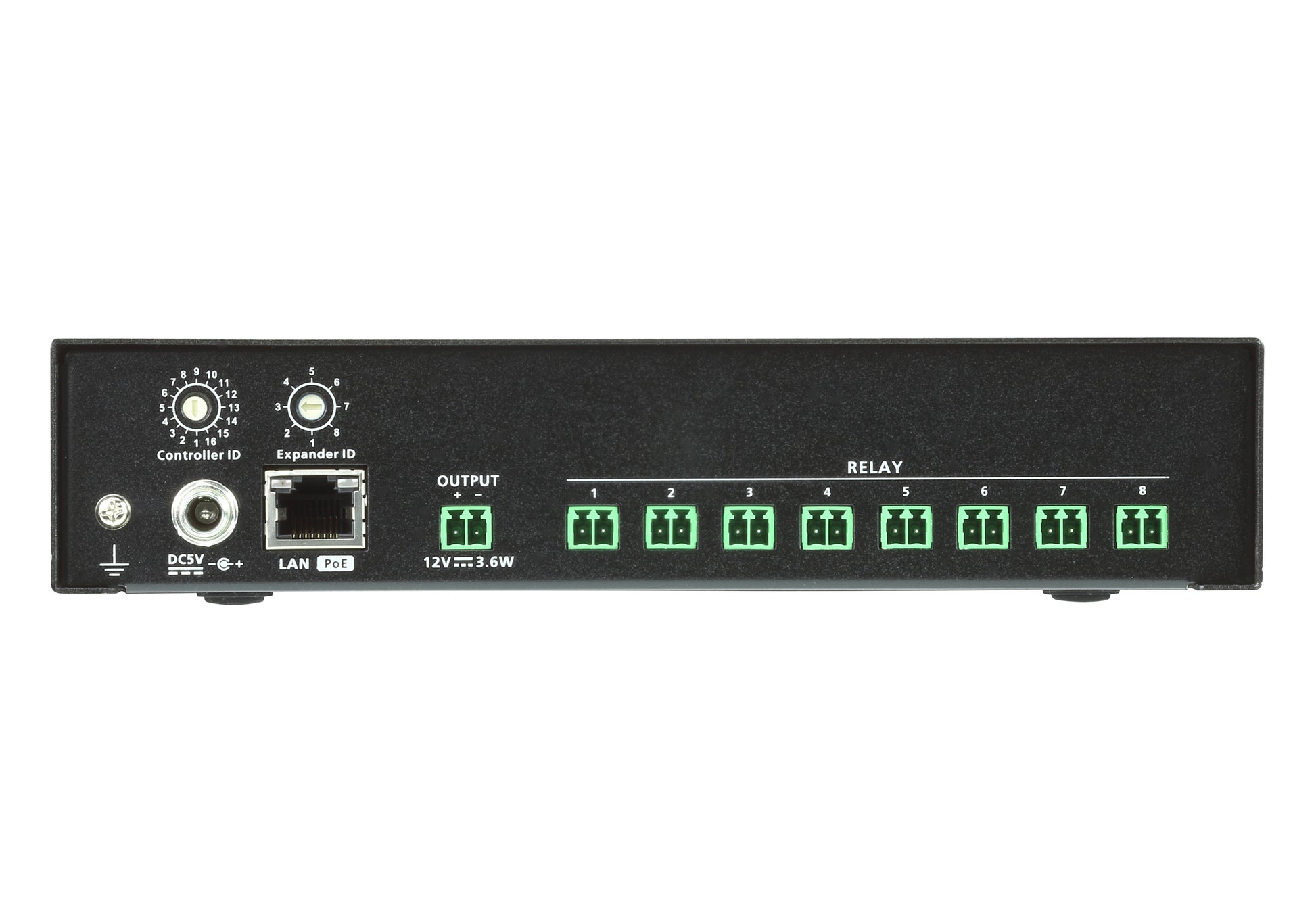

Interfaces
Relay	8 Normally Open Relays (8 x 2-Pole Terminal Block) Contact Rating: Max. 24 VDC, 2 A
Ethernet	1 x RJ-45 Female, 10/100Base-T Supported Protocols: ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH DHCP Enabled Default IP: 192.168.0.60 Subnet Mask: 255.255.255.0
USB	1 x USB Type-A (Firmware Upgrade Only)
Switches
Controller ID	1 x 16-Segment Switch
Expander ID	1 x 8-Segment Switch
Reset Button	1 x Semi-Recessed Pushbutton
Power
Power Consumption	DC 5 V: 2.82 W (24 BTU/h) DC 48 V: 3.53 W (27 BTU/h)
Power Output	12 VDC, 300 mA
Environmental
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Humidity	0% to 80% RH, Non-Condensing
Physical Specifications
Housing	Metal
Weight	0.65 kg (1.43 lb)
Dimensions (L × W × H)	20.00 × 7.58 × 4.20 cm (7.87 × 2.98 × 1.65 in.)
Note	For some rack-mount products, standard physical dimensions may be expressed using an L × W × H format.
