VK330

PRICE FOR INQUIRY

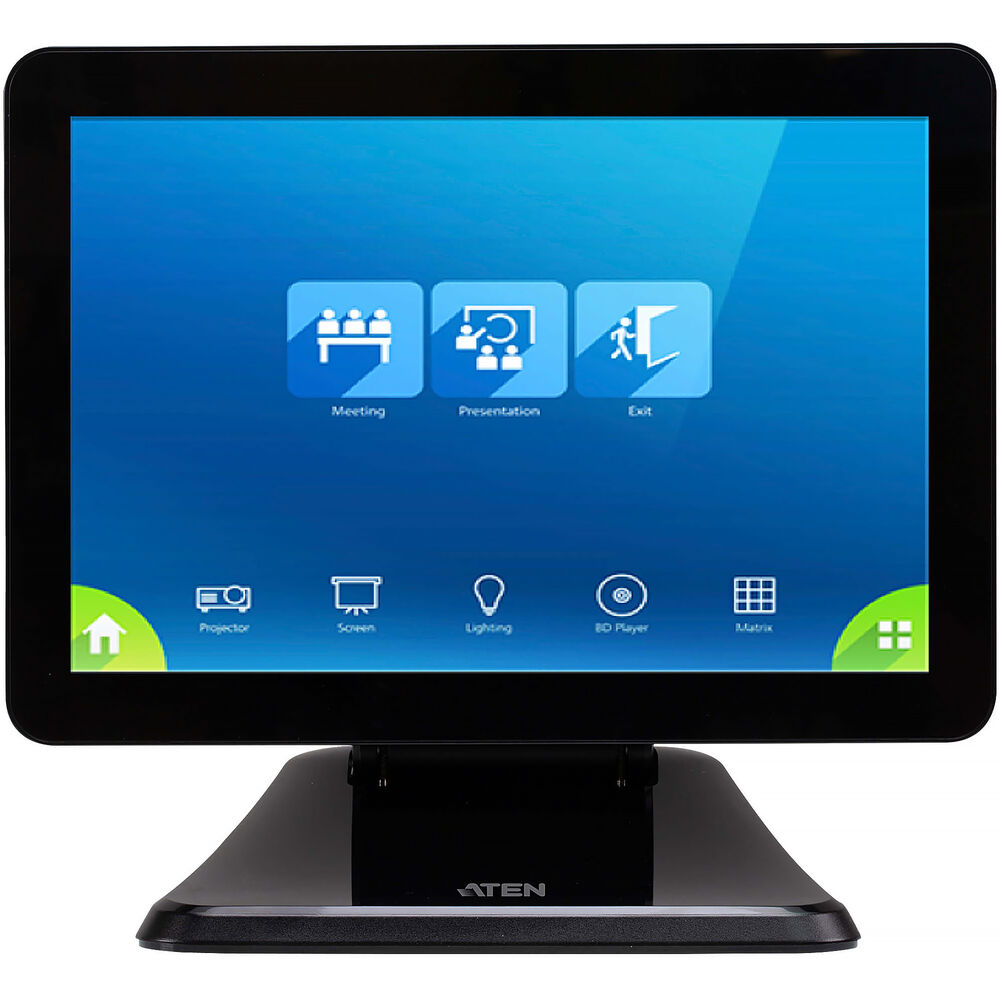

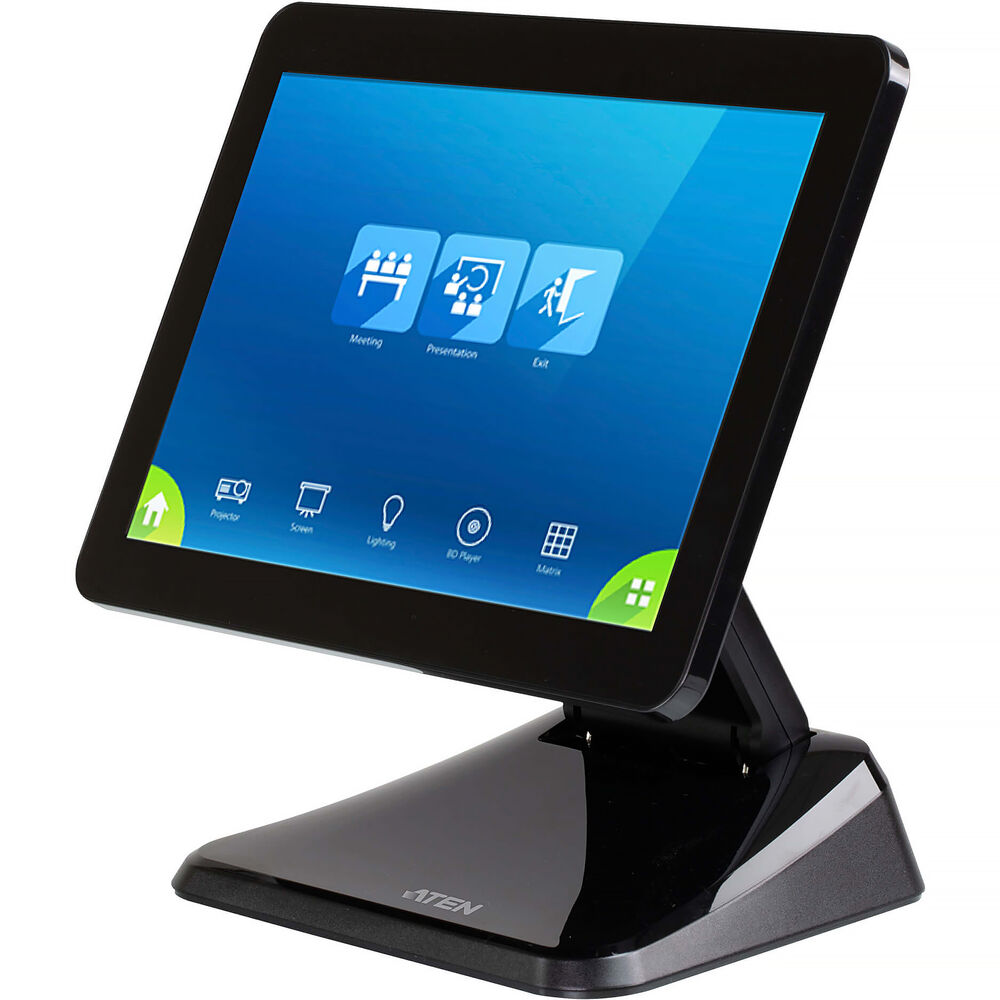

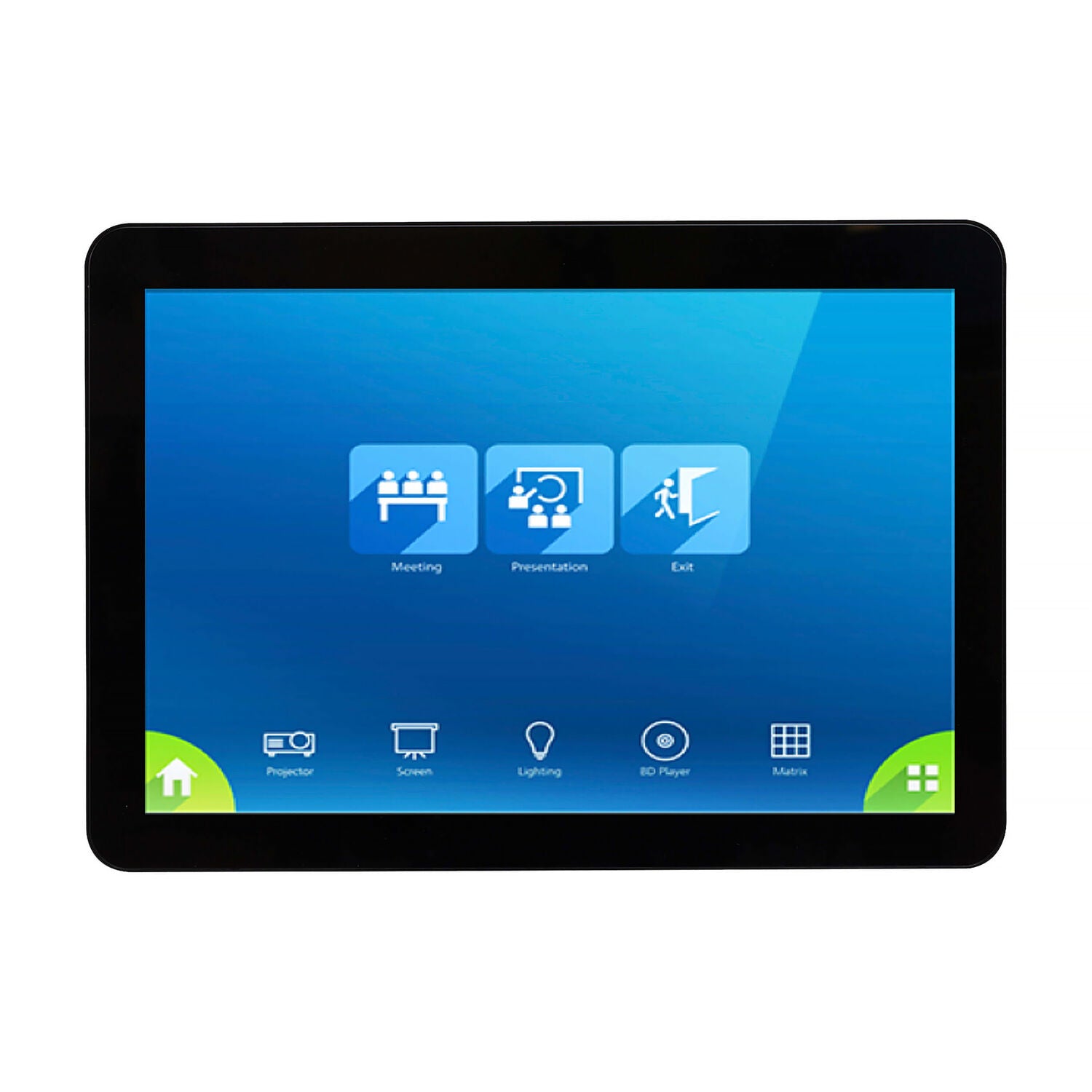

10.1” touch panel
Natively installed with ATEN Control System app and designed for the integrated use with the ATEN Control System
Supports AppSwitcher to allow multiple apps to be switched and operated

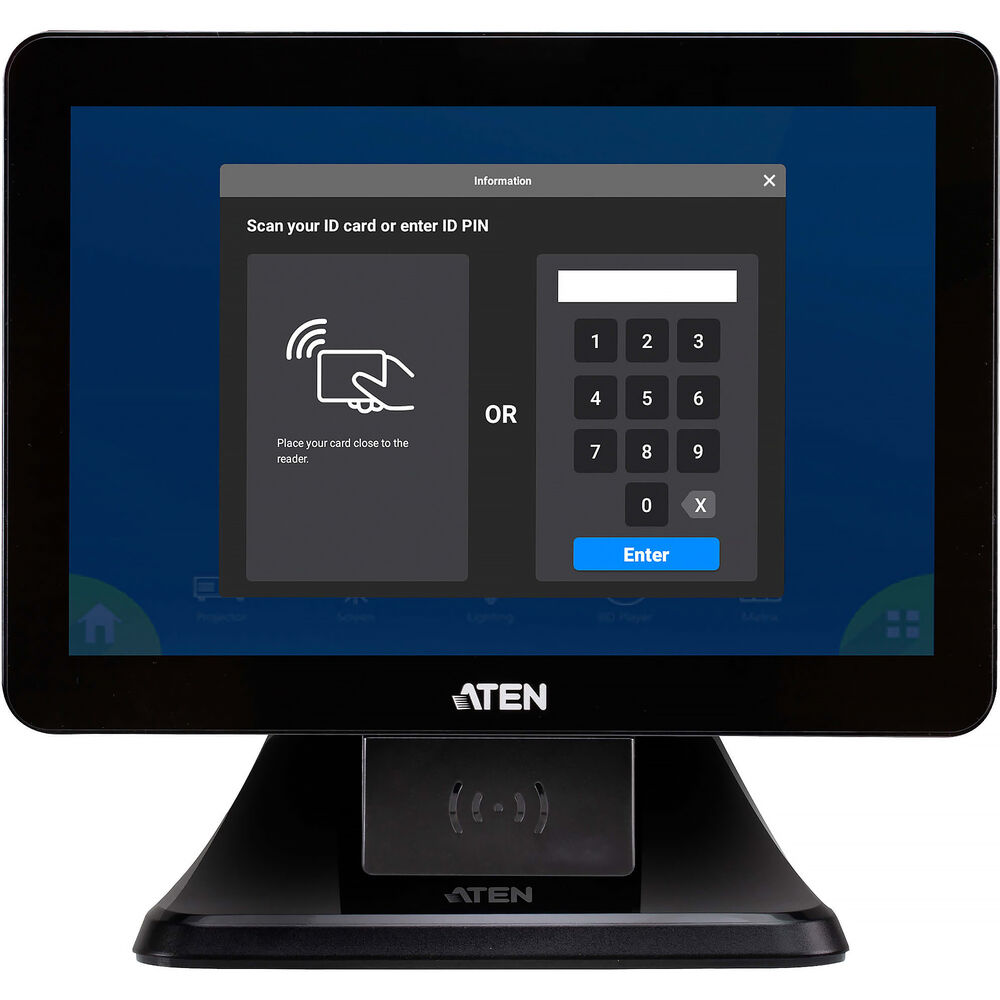

In conjunction with the VK401, the system enables exclusive card-access functionality; only authorized users can scan cards to book and check in meeting rooms and facilitate conference room automation
Integrated with ATEN Unizon and ATEN Room Booking system to display room usage and operating status

Price for Inquiry

UNIT: PIECE/S

Product Code: SKU:ATEN-VK330-CHN-8847

10.1” touch panel
Natively installed with ATEN Control System app and designed for the integrated use with the ATEN Control System
Supports AppSwitcher to allow multiple apps to be switched and operated
In conjunction with the VK401, the system enables exclusive card-access functionality; only authorized users can scan cards to book and check in meeting rooms and facilitate conference room automation
Integrated with ATEN Unizon and ATEN Room Booking system to display room usage and operating status

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

ATEN VK330

Key Specificatins
Processor & Memory
Processor	Quad-Core
SDRAM	2 GB
Flash Memory	16 GB
Display Specifications
Display Type	TFT-LCD
Screen Size	10.1"
Touch Screen	Capacitive
Resolution	1280 × 800
Aspect Ratio	16:10
Color Depth	8-bit
Contrast Ratio	800:1
Backlight	LED
Viewing Angle	±85° (Horizontal), ±85° (Vertical)
Luminance	500 cd/m²
Interfaces
Ethernet	1 x RJ-45 Female, 10/100/1000 Base-T
USB	1 x USB Type-A
Power
Power Input	802.3at PoE+ (Power over Ethernet)
Power Consumption	DC 12 V: 12.8 W (43.65 BTU/h) PoE: 14 W (47.77 BTU/h)
Environmental
Operating Temperature	0°C to 40°C
Storage Temperature	-10°C to 55°C
Humidity	10% to 80% RH, Non-Condensing
Physical Specifications
Housing	Plastic
Weight	0.60 kg (1.32 lb)
Dimensions (L × W × H)	25.22 × 17.78 × 2.45 cm (9.93 × 7.00 × 0.96 in.)
Note	For some rack-mount products, standard physical dimensions may be expressed using an L × W × H format.
